Advanced fractals on MA
Alexander.Gettinger · Mon Nov 08, 2010 2:31 am

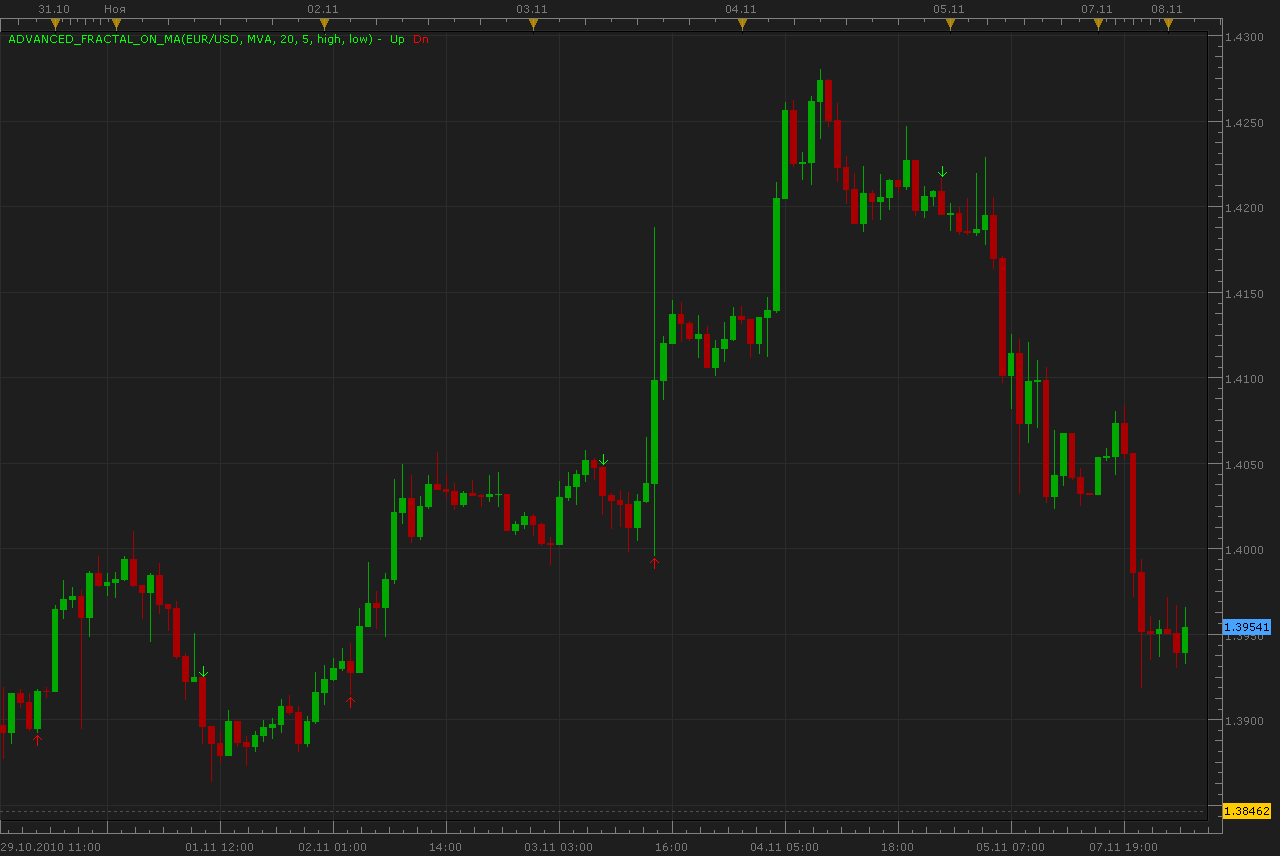

This version of fractals searches maximums and minimums MA using extended variant of MA.
For this indicator must be installed Averages indicator: viewtopic.php?f=17&t=2430 MT4/Mq4 version. viewtopic.php?f=38&t=64330
The indicator was revised and updated
Re: Advanced fractals on MA
sedraude · Mon Nov 08, 2010 3:52 am
Hi Alexander,
Great work, awesome indicator for me. Can you make strategy too based on this indicator?
Thank in advance
Re: Advanced fractals on MA
Apprentice · Mon Nov 08, 2010 4:06 am
Added to developmental cue.
Re: Advanced fractals on MA
Alexander.Gettinger · Mon Nov 08, 2010 5:57 am
Strategy based on this indicator can be find here: viewtopic.php?f=31&t=2624&p=5908#p5908
Re: Advanced fractals on MA
Alexander.Gettinger · Mon Nov 22, 2010 2:46 am
Indicator updated.
Code: Select all `function Init() indicator:name(“Advanced fractal on MA”); indicator:description(“Advanced fractal on MA”); indicator:requiredSource(core.Bar); indicator:type(core.Indicator);
indicator.parameters:addGroup(“Calculation”); indicator.parameters:addString(“Method”, “Method”, “”, “MVA”); indicator.parameters:addStringAlternative(“Method”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“Method”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“Method”, “Wilder”, “”, “Wilder”); indicator.parameters:addStringAlternative(“Method”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“Method”, “SineWMA”, “”, “SineWMA”); indicator.parameters:addStringAlternative(“Method”, “TriMA”, “”, “TriMA”); indicator.parameters:addStringAlternative(“Method”, “LSMA”, “”, “LSMA”); indicator.parameters:addStringAlternative(“Method”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“Method”, “HMA”, “”, “HMA”); indicator.parameters:addStringAlternative(“Method”, “ZeroLagEMA”, “”, “ZeroLagEMA”); indicator.parameters:addStringAlternative(“Method”, “DEMA”, “”, “DEMA”); indicator.parameters:addStringAlternative(“Method”, “T3”, “”, “T3”); indicator.parameters:addStringAlternative(“Method”, “ITrend”, “”, “ITrend”); indicator.parameters:addStringAlternative(“Method”, “Median”, “”, “Median”); indicator.parameters:addStringAlternative(“Method”, “GeoMean”, “”, “GeoMean”); indicator.parameters:addStringAlternative(“Method”, “REMA”, “”, “REMA”); indicator.parameters:addStringAlternative(“Method”, “ILRS”, “”, “ILRS”); indicator.parameters:addStringAlternative(“Method”, “IE/2”, “”, “IE/2”); indicator.parameters:addStringAlternative(“Method”, “TriMAgen”, “”, “TriMAgen”); indicator.parameters:addStringAlternative(“Method”, “JSmooth”, “”, “JSmooth”); indicator.parameters:addInteger(“Period”, “Period”, “”, 20); indicator.parameters:addString(“up_price”, “up_price”, “”, “high”); indicator.parameters:addStringAlternative(“up_price”, “close”, “”, “close”); indicator.parameters:addStringAlternative(“up_price”, “open”, “”, “open”); indicator.parameters:addStringAlternative(“up_price”, “high”, “”, “high”); indicator.parameters:addStringAlternative(“up_price”, “low”, “”, “low”); indicator.parameters:addStringAlternative(“up_price”, “median”, “”, “median”); indicator.parameters:addStringAlternative(“up_price”, “typical”, “”, “typical”); indicator.parameters:addStringAlternative(“up_price”, “weighted”, “”, “weighted”); indicator.parameters:addString(“dn_price”, “dn_price”, “”, “low”); indicator.parameters:addStringAlternative(“dn_price”, “close”, “”, “close”); indicator.parameters:addStringAlternative(“dn_price”, “open”, “”, “open”); indicator.parameters:addStringAlternative(“dn_price”, “high”, “”, “high”); indicator.parameters:addStringAlternative(“dn_price”, “low”, “”, “low”); indicator.parameters:addStringAlternative(“dn_price”, “median”, “”, “median”); indicator.parameters:addStringAlternative(“dn_price”, “typical”, “”, “typical”); indicator.parameters:addStringAlternative(“dn_price”, “weighted”, “”, “weighted”); indicator.parameters:addInteger(“Frame”, “Number of fractals (Odd)”, “Number of fractals (Odd)”, 5, 5,99);
indicator.parameters:addGroup(“Style”); indicator.parameters:addColor(“UP”, “Up fractal color”, “Up fractal color”, core.rgb(0,255,0)); indicator.parameters:addColor(“DOWN”, “Down fractal color”, “Down fractal color”, core.rgb(255,0,0)); end
local first; local source = nil; local Method; local Period; local Frame; local up_price; local dn_price; local MA_up; local MA_dn; local up; local down;
function Prepare() source = instance.source; Method=instance.parameters.Method; Period=instance.parameters.Period; Frame=instance.parameters.Frame; up_price=instance.parameters.up_price; dn_price=instance.parameters.dn_price; if up_price==”close” then MA_up = core.indicators:create(“AVERAGES”, source.close, Method, Period, false); elseif up_price==”open” then MA_up = core.indicators:create(“AVERAGES”, source.open, Method, Period, false); elseif up_price==”high” then MA_up = core.indicators:create(“AVERAGES”, source.high, Method, Period, false); elseif up_price==”low” then MA_up = core.indicators:create(“AVERAGES”, source.low, Method, Period, false); elseif up_price==”median” then MA_up = core.indicators:create(“AVERAGES”, source.median, Method, Period, false); elseif up_price==”typical” then MA_up = core.indicators:create(“AVERAGES”, source.typical, Method, Period, false); else MA_up = core.indicators:create(“AVERAGES”, source.weighted, Method, Period, false); end if dn_price==”close” then MA_dn = core.indicators:create(“AVERAGES”, source.close, Method, Period, false); elseif dn_price==”open” then MA_dn = core.indicators:create(“AVERAGES”, source.open, Method, Period, false); elseif dn_price==”high” then MA_dn = core.indicators:create(“AVERAGES”, source.high, Method, Period, false); elseif dn_price==”low” then MA_dn = core.indicators:create(“AVERAGES”, source.low, Method, Period, false); elseif dn_price==”median” then MA_dn = core.indicators:create(“AVERAGES”, source.median, Method, Period, false); elseif dn_price==”typical” then MA_dn = core.indicators:create(“AVERAGES”, source.typical, Method, Period, false); else MA_dn = core.indicators:create(“AVERAGES”, source.weighted, Method, Period, false); end first = MA_up.DATA:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.Method .. “, “ .. instance.parameters.Period .. “, “ .. instance.parameters.Frame .. “, “ .. instance.parameters.up_price .. “, “ .. instance.parameters.dn_price .. “)”; instance:name(name); up = instance:createTextOutput (“Up”, “Up”, “Wingdings”, 10, core.H_Center, core.V_Top, instance.parameters.UP, 0); down = instance:createTextOutput (“Dn”, “Dn”, “Wingdings”, 10, core.H_Center, core.V_Bottom, instance.parameters.DOWN, 0); end
function Update(period, mode) local shift=math.floor((Frame-1)/2)+1; if (period>first+Frame) then MA_up:update(mode); MA_dn:update(mode); local Fl_UP=true; local Fl_DN=true; local i; for i=1,math.floor((Frame-1)/2),1 do if MA_dn.DATA[period-i-shift]<=MA_dn.DATA[period-shift] or MA_dn.DATA[period+i-shift]<=MA_dn.DATA[period-shift] then Fl_DN=false; end if MA_up.DATA[period-i-shift]>=MA_up.DATA[period-shift] or MA_up.DATA[period+i-shift]>=MA_up.DATA[period-shift] then Fl_UP=false; end end if Fl_UP==true then up:set(period-shift, source.high[period-shift], “\226”); end if Fl_DN==true then down:set(period-shift, source.low[period-shift], “\225”); end end end`
Re: Advanced fractals on MA
Apprentice · Wed Jan 25, 2017 5:17 am
Indicator was revised and updated.
