Altr Trend indicator and signal
Source: https://fxcodebase.com/code/viewtopic.php?f=17&t=1123
Forum: 17 · Topic 1123 · 13 post(s)
Altr Trend indicator and signal
Alexander.Gettinger · Wed May 26, 2010 12:03 am
viewtopic.php?f=27&t=1081&p=2054#p2054

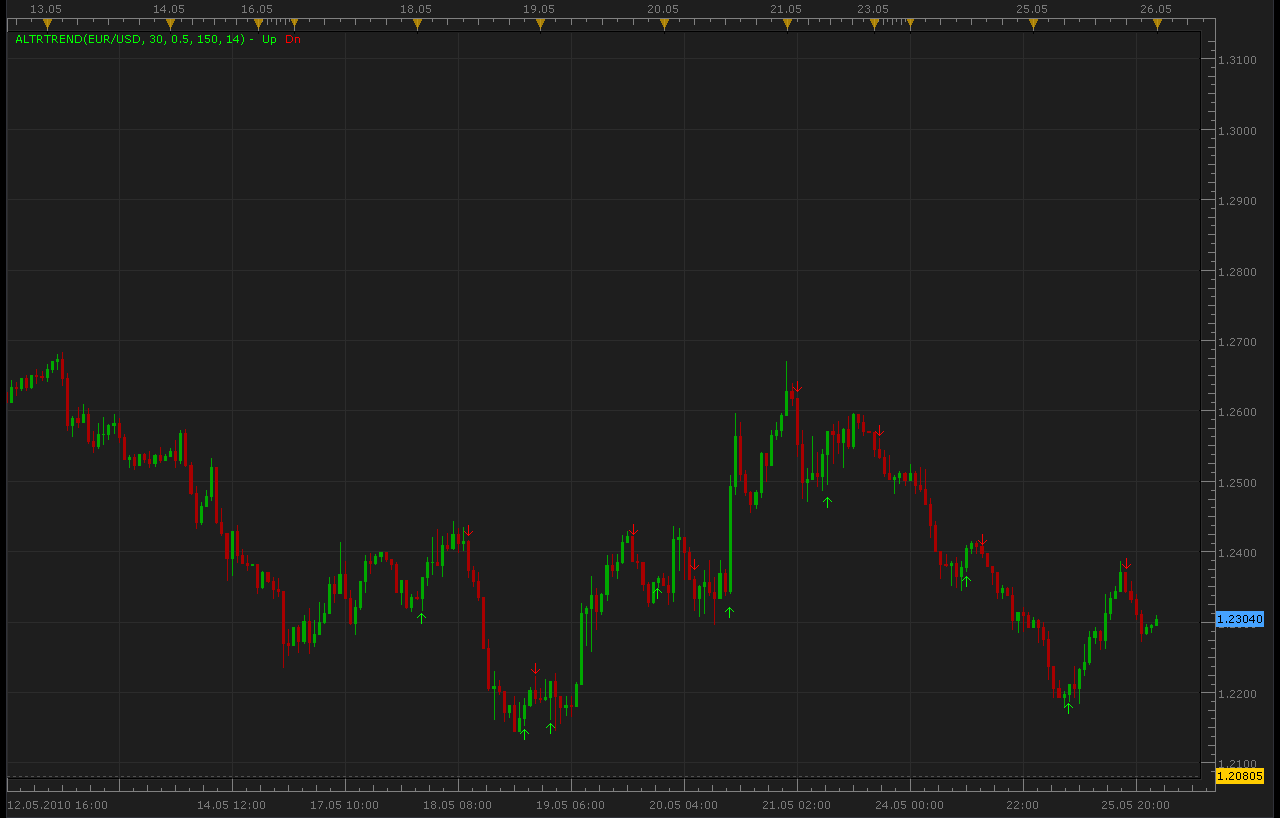

Indicator:
function Init()
indicator:name("Altr Trend indicator");
indicator:description("");
indicator:requiredSource(core.Bar);
indicator:type(core.Indicator);
indicator.parameters:addInteger("K", "K", "No description", 30);
indicator.parameters:addDouble("KStop", "KStop", "No description", 0.5);
indicator.parameters:addInteger("Kperiod", "Kperiod", "No description", 150);
indicator.parameters:addInteger("PerADX", "PerADX", "No description", 14);
indicator.parameters:addColor("UP_color", "Color of UP", "Color of UP", core.rgb(0, 255, 0));
indicator.parameters:addColor("DN_color", "Color of DN", "Color of DN", core.rgb(255, 0, 0));
end
local K;
local KStop;
local Kperiod;
local PerADX;
local first;
local source = nil;
local ADX;
local buffUp=nil;
local buffDn=nil;
local uptrend=nil;
local old=nil;
function Prepare()
K = instance.parameters.K;
KStop = instance.parameters.KStop;
Kperiod = instance.parameters.Kperiod;
PerADX = instance.parameters.PerADX;
source = instance.source;
ADX=core.indicators:create("ADX", source, PerADX);
first = ADX.DATA:first();
local name = profile:id() .. "(" .. source:name() .. ", " .. K .. ", " .. KStop .. ", " .. Kperiod .. ", " .. PerADX .. ")";
instance:name(name);
buffUp = instance:createTextOutput ("Up", "Up", "Wingdings", 10, core.H_Center, core.V_Top, instance.parameters.UP_color, first);
buffDn = instance:createTextOutput ("Dn", "Dn", "Wingdings", 10, core.H_Center, core.V_Bottom, instance.parameters.DN_color, first);
end
function Update(period, mode)
if (period>first+Kperiod) then
ADX:update(mode);
local SSP=math.ceil(Kperiod/ADX.DATA[period-1]);
local AvgRange=0.;
for i=period-SSP,period,1 do
AvgRange=AvgRange+math.abs(source.high[i]-source.low[i]);
end
local Range=AvgRange/(SSP+1);
local SsMax=core.max(source.high,core.rangeTo(period,SSP-1));
local SsMin=core.min(source.low,core.rangeTo(period,SSP-1));
local smin=SsMin+(SsMax-SsMin)*K/100.;
local smax=SsMax-(SsMax-SsMin)*K/100.;
if source.close[period]<smin then
uptrend=false;
end
if source.close[period]>smax then
uptrend=true;
end
if uptrend~=old and uptrend==true then
buffUp:set(period, source.low[period]-Range*KStop, "\225", "");
end
if uptrend~=old and uptrend==false then
buffDn:set(period, source.high[period]+Range*KStop, "\226", "");
end
old=uptrend;
end
end
Signal:
function Init()
strategy:name("Altr Trend signal");
strategy:description("");
strategy.parameters:addGroup("Parameters");
strategy.parameters:addInteger("K", "K", "No description", 30);
strategy.parameters:addDouble("KStop", "KStop", "No description", 0.5);
strategy.parameters:addInteger("Kperiod", "Kperiod", "No description", 150);
strategy.parameters:addInteger("PerADX", "PerADX", "No description", 14);
strategy.parameters:addString("Period", "Timeframe", "", "m5");
strategy.parameters:setFlag("Period", core.FLAG_PERIODS);
strategy.parameters:addGroup("Signals");
strategy.parameters:addBoolean("ShowAlert", "Show Alert", "", true);
strategy.parameters:addBoolean("PlaySound", "Play Sound", "", false);
strategy.parameters:addFile("SoundFile", "Sound File", "", "");
end
local SoundFile;
local gSourceBid = nil;
local gSourceAsk = nil;
local first;
local BidFinished = false;
local AskFinished = false;
local LastBidCandle = nil;
local ADX;
function Prepare()
ShowAlert = instance.parameters.ShowAlert;
if instance.parameters.PlaySound then
SoundFile = instance.parameters.SoundFile;
else
SoundFile = nil;
end
assert(not(PlaySound) or (PlaySound and SoundFile ~= ""), "Sound file must be specified");
assert(instance.parameters.Period ~= "t1", "Signal cannot be applied on ticks");
ExtSetupSignal("Altr Trend signal:", ShowAlert);
gSourceBid = core.host:execute("getHistory", 1, instance.bid:instrument(), instance.parameters.Period, 0, 0, true);
gSourceAsk = core.host:execute("getHistory", 2, instance.bid:instrument(), instance.parameters.Period, 0, 0, false);
ADX = core.indicators:create("ADX", gSourceBid, instance.parameters.PerADX);
first = ADX.DATA:first() + instance.parameters.Kperiod;
local name = profile:id() .. "(" .. instance.bid:instrument() .. "(" .. instance.parameters.Period .. ")" .. instance.parameters.K .. ")" .. instance.parameters.KStop .. ")" .. instance.parameters.Kperiod .. ")" .. instance.parameters.PerADX .. ")";
instance:name(name);
end
local LastDirection=nil;
-- when tick source is updated
function Update()
if not(BidFinished) or not(AskFinished) then
return ;
end
local period;
-- update moving average
ADX:update(core.UpdateLast);
-- calculate enter logic
if LastBidCandle == nil or LastBidCandle ~= gSourceBid:serial(gSourceBid:size() - 1) then
LastBidCandle = gSourceBid:serial(gSourceBid:size() - 1);
period = gSourceBid:size() - 1;
if period > first then
local SSP=math.ceil(instance.parameters.Kperiod/ADX.DATA[period-1]);
local AvgRange=0.;
for i=period-SSP,period,1 do
AvgRange=AvgRange+math.abs(gSourceBid.high[i]-gSourceBid.low[i]);
end
local Range=AvgRange/(SSP+1);
local SsMax=core.max(gSourceBid.high,core.rangeTo(period,SSP-1));
local SsMin=core.min(gSourceBid.low,core.rangeTo(period,SSP-1));
local smin=SsMin+(SsMax-SsMin)*instance.parameters.K/100.;
local smax=SsMax-(SsMax-SsMin)*instance.parameters.K/100.;
if gSourceBid.close[period]<smin and LastDirection~=-1 then
ExtSignal(gSourceBid, period, "Sell", SoundFile);
LastDirection=-1;
end
if gSourceBid.close[period]>smax and LastDirection~=1 then
ExtSignal(gSourceAsk, period, "Buy", SoundFile);
LastDirection=1;
end
end
end
end
function AsyncOperationFinished(cookie)
if cookie == 1 then
BidFinished = true;
elseif cookie == 2 then
AskFinished = true;
end
end
local gSignalBase = ""; -- the base part of the signal message
local gShowAlert = false; -- the flag indicating whether the text alert must be shown
-- ---------------------------------------------------------
-- Sets the base message for the signal
-- @param base The base message of the signals
-- ---------------------------------------------------------
function ExtSetupSignal(base, showAlert)
gSignalBase = base;
gShowAlert = showAlert;
return ;
end
-- ---------------------------------------------------------
-- Signals the message
-- @param message The rest of the message to be added to the signal
-- @param period The number of the period
-- @param sound The sound or nil to silent signal
-- ---------------------------------------------------------
function ExtSignal(source, period, message, soundFile)
if source:isBar() then
source = source.close;
end
if gShowAlert then
terminal:alertMessage(source:instrument(), source[period], gSignalBase .. message, source:date(period));
end
if soundFile ~= nil then
terminal:alertSound(soundFile, false);
end
end
Altr Trend indicator based strategy. viewtopic.php?f=31&t=66618
Re: Altr Trend indicator and signal
Blackcat2 · Thu Jun 03, 2010 12:56 am
This is a useful indicator but I found that it sometime produce false signals..
Here’s the steps to reproduce:
- Install indicators, use default values
- Once an arrow occurs, switch to different time frame.
- If the arrow stays, then the signal is true, if the arrow disappears that means the the signal was false.
- This is especially true when back testing after on it for some time..
Is there a way to fix this?
Thanks.. BC
Re: Altr Trend indicator and signal
Nikolay.Gekht · Thu Jun 03, 2010 8:24 am
The same problem in the logic, as I reported for the BB_Stop signal.
Re: Altr Trend indicator and signal
craige · Thu Dec 30, 2010 2:03 pm
Hey My friend
could you tell me how to configure this indicator’s parameters?
thank you
best regards
Re: Altr Trend indicator and signal
RJH501 · Sun Jul 31, 2011 10:32 pm
Hello Nikolay,
Have you turned the signal into a strategy? If not would you please at your convenience create a strategy for this signal.
It will be much appreciated.
Regards,
Richard
Re: Altr Trend indicator and signal
RJH501 · Tue Aug 09, 2011 4:34 pm
Hello Nikolay,
I had the ALTR Sirnal open a LONG trade today. Is that possible?
I will continue to monitor.
RJH
Re: Altr Trend indicator and signal
virgilio · Tue Sep 06, 2011 7:29 pm
Hello dear, is it possible to have a Multi Time Frame indicator (perhaps up to 5 different time frames) for this indicator? Thanks.
Re: Altr Trend indicator and signal
sunshine · Wed Sep 07, 2011 12:26 am
In the next release of the platform you can choose the time frame for any indicator, right in the indicator properties, on the source tab. Please wait a bit. The beta version will be published on this site soon. Watch for updates.
Re: Altr Trend indicator and signal
easytrading · Tue Jul 05, 2016 5:27 pm
hello Apprentice,
could we have overlay for this indicator please? thanks a lot
Re: Altr Trend indicator and signal
Apprentice · Wed Jul 06, 2016 2:57 am

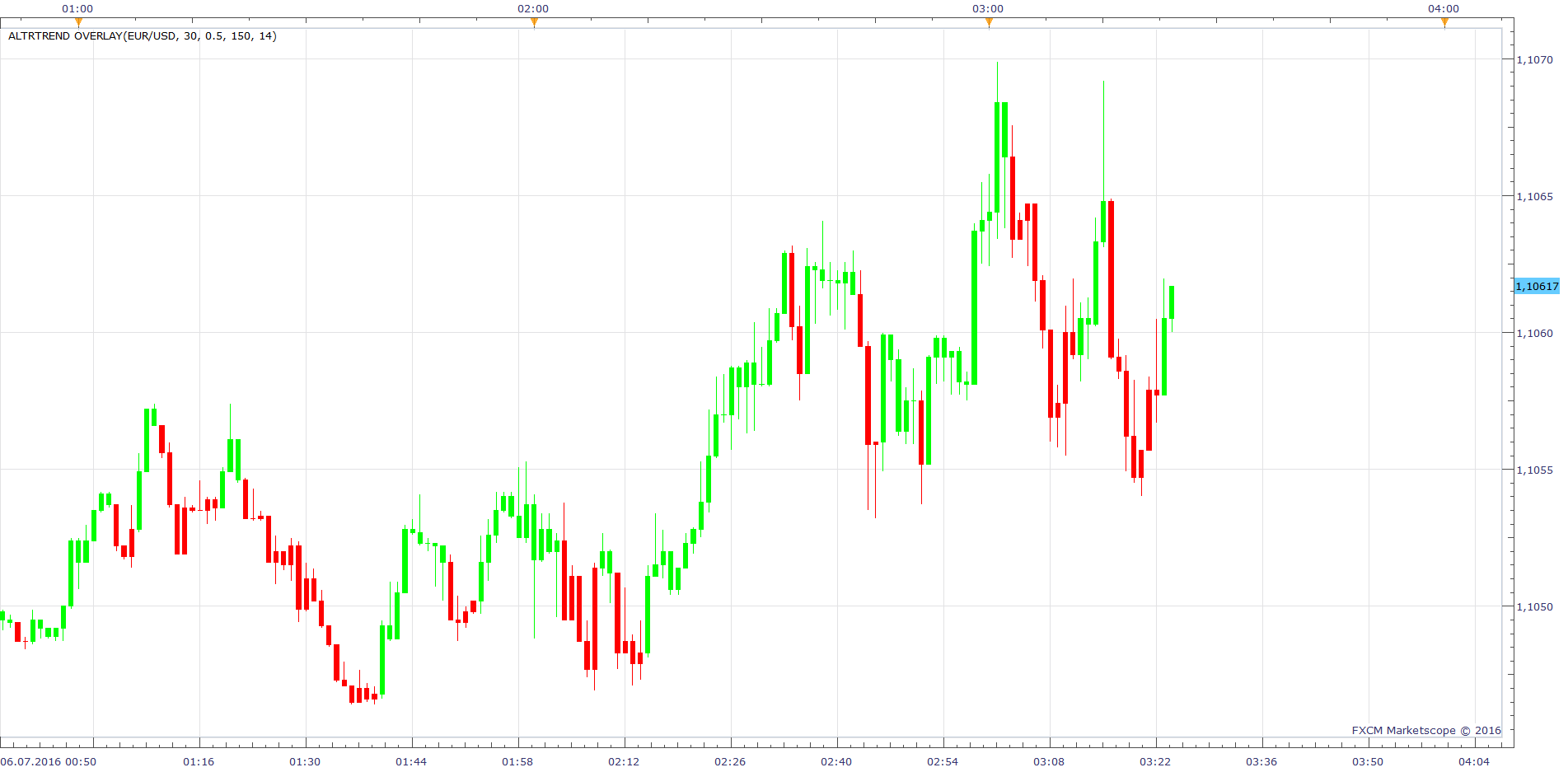

AltrTrend Overlay.lua added.
Re: Altr Trend indicator and signal
Apprentice · Sun Sep 02, 2018 5:42 am
The indicator was revised and updated.
Re: Altr Trend indicator and signal
Reymondpolanco · Sun Sep 02, 2018 12:10 pm
Can you make this like an strategy too.
With this parameters:
when a buy signal open a buy trade and close all sell trades when a sell signal open a sell trade and close all buy trades
Re: Altr Trend indicator and signal
Apprentice · Sun Sep 02, 2018 3:26 pm
Altr Trend indicator based strategy. viewtopic.php?f=31&t=66618
