Belkhayate’s Timing Indicator
Source: https://fxcodebase.com/code/viewtopic.php?f=17&t=715
Forum: 17 · Topic 715 · 14 post(s)

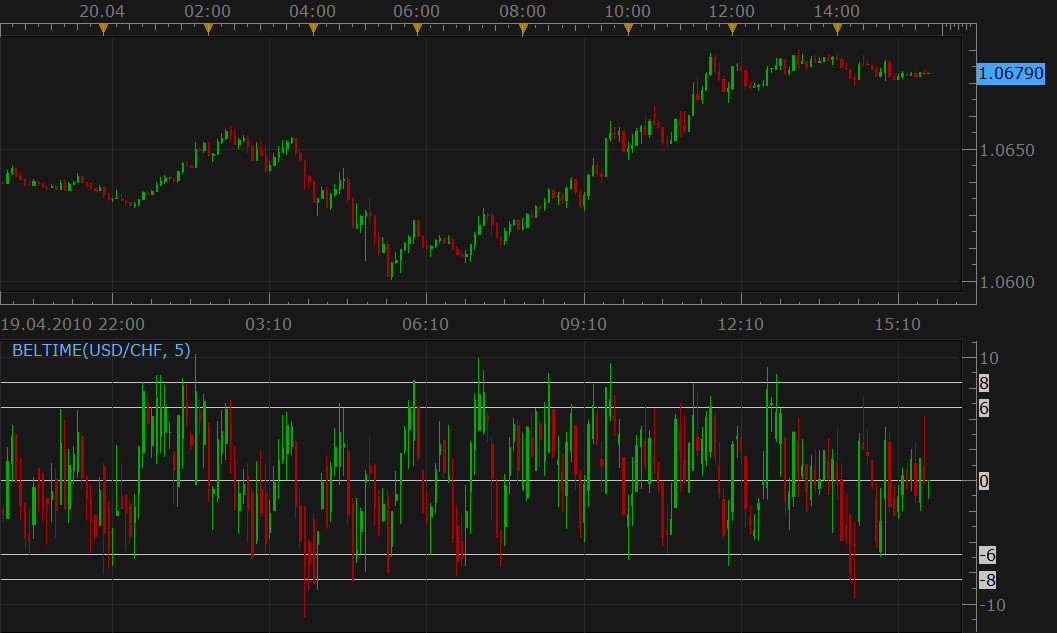

Belkhayate’s Timing Indicator
Nikolay.Gekht · Tue Apr 20, 2010 2:47 pm
Download the indicator:
Code: Select all `– Indicator profile initialization routine – Defines indicator profile properties and indicator parameters function Init() indicator:name(“Belkayate timing indicator”); indicator:description(“”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator);
indicator.parameters:addInteger(“N”, “Number of bars”, “No description”, 5); end
– Indicator instance initialization routine – Processes indicator parameters and creates output streams – Parameters block local N;
local first; local source = nil;
– Streams block local O = nil; local H = nil; local L = nil; local C = nil;
– Routine function Prepare() N = instance.parameters.N; source = instance.source; first = source:first() + N;
local name = profile:id() .. “(“ .. source:name() .. “, “ .. N .. “)”; instance:name(name); O = instance:addStream(“O”, core.Line, name .. “.O”, “O”, 0, first); H = instance:addStream(“H”, core.Line, name .. “.H”, “H”, 0, first); L = instance:addStream(“L”, core.Line, name .. “.L”, “L”, 0, first); C = instance:addStream(“C”, core.Line, name .. “.C”, “C”, 0, first); O:addLevel(8); O:addLevel(6); O:addLevel(0); O:addLevel(-6); O:addLevel(-8); instance:createCandleGroup(“BT”, “BT”, O, H, L, C); end
– Indicator calculation routine function Update(period) if period >= first then local range, sumhigh, sumlow, avg1, avg2; range = core.rangeTo(period, N); sumhigh = core.sum(source.high, range); sumlow = core.sum(source.low, range); avg1 = (sumhigh + sumlow) / (2 * N); avg2 = (sumhigh - sumlow) / (5 * N);
O[period] = (source.open[period] - avg1) / avg2; H[period] = (source.high[period] - avg1) / avg2; L[period] = (source.low[period] - avg1) / avg2; C[period] = (source.close[period] - avg1) / avg2; end end`
Re: Belkhayate’s Timing Indicator
TMos1124 · Tue Jun 19, 2012 4:23 pm
| Can an alert be made for this indicator? (x > | 8 | ….) |
Re: Belkhayate’s Timing Indicator
Apprentice · Wed Jun 20, 2012 1:40 am
Your request is added to the Development List.
Re: Belkhayate’s Timing Indicator
Apprentice · Thu Jun 21, 2012 1:52 pm

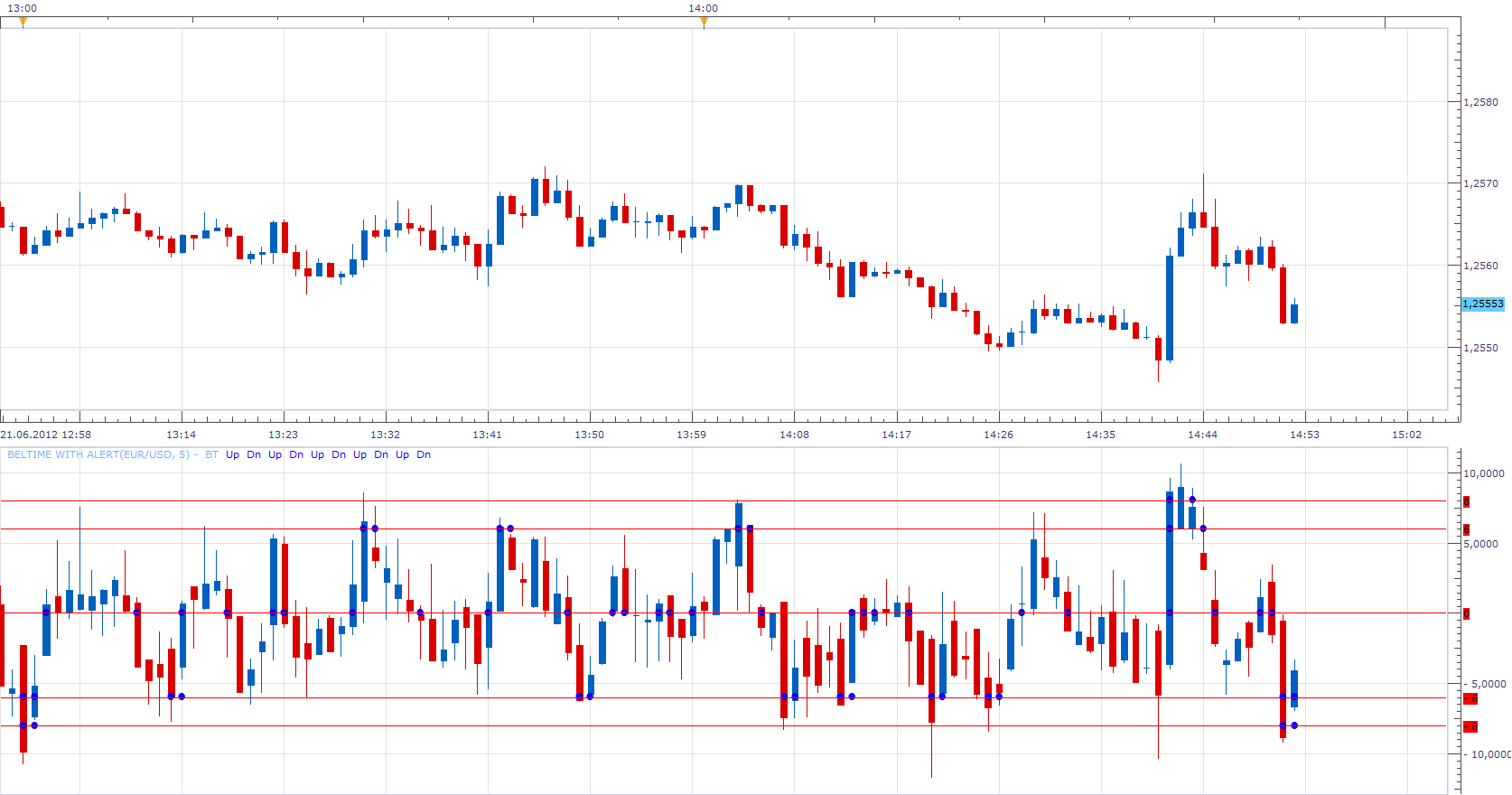

I have made the update of original indicator. OB / OS levels can now be changed. Audio, Email Alerts are now supported.
You can choose from 5 signals, OB1, OB2, OS1, OS2 and Zero Line Cross.
Compatibility issue Fix. _Alert helper is not longer needed. If you want to use the updated version, please make sure to use latest version of TS.
Re: Belkhayate’s Timing Indicator
TMos1124 · Thu Jun 21, 2012 5:39 pm
Is it possible to have this alert at the tick rather than the close of the candle?
Re: Belkhayate’s Timing Indicator
cccornesss · Wed Jun 27, 2012 5:48 am
Thanks, amazing job and indicator!
Could it be possible to add another configurable line/level? I mean: another OB3 & OS3, with alert.
Thank you very much in advance
Re: Belkhayate’s Timing Indicator
Apprentice · Thu Jun 28, 2012 1:16 am
Your request is added to the development list.
Re: Belkhayate’s Timing Indicator
Apprentice · Fri Jun 29, 2012 6:27 am
- OB/OS Level Added.
Re: Belkhayate’s Timing Indicator
cccornesss · Mon Jul 02, 2012 2:13 am
That was quick!!! Thank you very much
Re: Belkhayate’s Timing Indicator
londonfx · Mon Jul 02, 2012 3:30 pm
Please add Mt4 version. Thank you,
Re: Belkhayate’s Timing Indicator
Apprentice · Tue Jul 03, 2012 1:59 am
Your request is added to the development list. (check if there is MT4 indicator)
Re: Belkhayate’s Timing Indicator
Alexander.Gettinger · Mon Jul 23, 2012 10:06 am
MQL4 version of this indicator: viewtopic.php?f=38&t=21219
Re: Belkhayate’s Timing Indicator
Apprentice · Sun Dec 13, 2015 4:08 pm
Compatibility issue Fix. _Alert helper is not longer needed.
Re: Belkhayate’s Timing Indicator
Apprentice · Fri Aug 17, 2018 6:29 am
The indicator was revised and updated.
