fxcodebase-backup
Daystart vertical line
Source: https://fxcodebase.com/code/viewtopic.php?f=17&t=9511
Forum: 17 · Topic 9511 · 26 post(s)
Daystart vertical line
Nikolay.Gekht · Mon Dec 12, 2011 3:51 pm

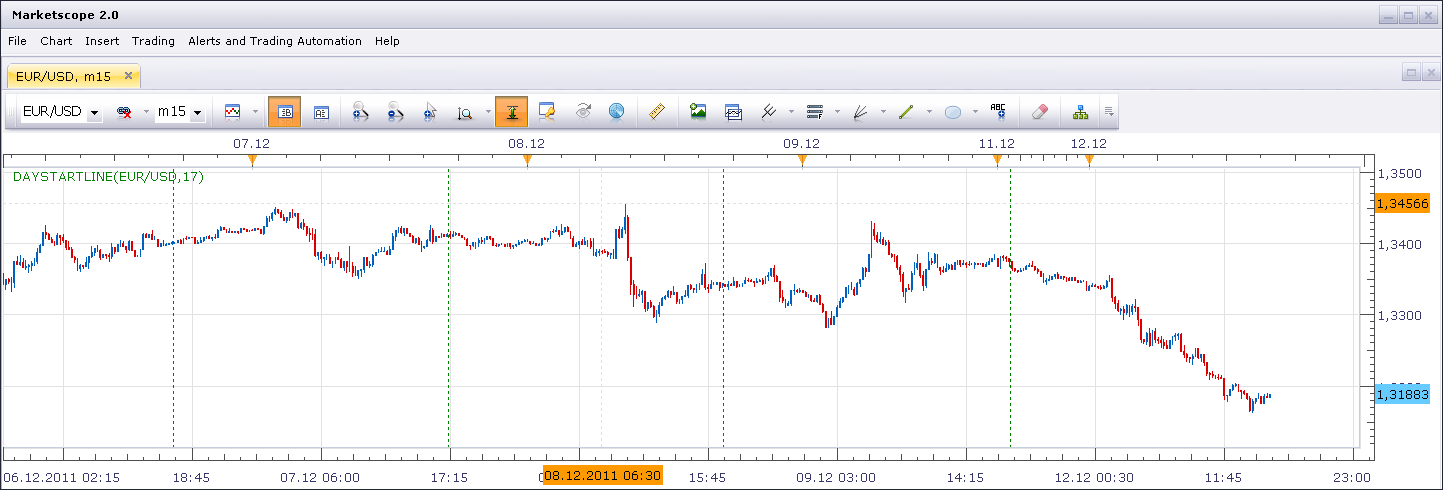

The simple indicator which just draws a vertical line at the beginning of chose hour (17:00EST by default).
Download:
Code: Select all `function Init() indicator:name(“Day Start Line”); indicator:description(“The indicator draws a vertical line at the specified time”); indicator:requiredSource(core.Bar); indicator:type(core.Indicator);
indicator.parameters:addGroup(“Parameters”); indicator.parameters:addInteger(“hour”, “Hour (EST)”, “Hour at start of which the line must be drawn”, 17, 0, 23); indicator.parameters:addGroup(“Style”); indicator.parameters:addColor(“clr”, “Color”, “”, core.rgb(0, 127, 0)); indicator.parameters:addInteger(“width”, “Width”, “”, 1, 1, 5); indicator.parameters:addInteger(“style”, “Style”, “”, core.LINE_DOT); indicator.parameters:setFlag(“style”, core.FLAG_LEVEL_STYLE); end
local source; local dummy, host; local hour, clr, width, style; local canwork, error;
function Prepare(onlyname) source = instance.source; clr = instance.parameters.clr; width = instance.parameters.width; style = instance.parameters.style; hour = instance.parameters.hour; host = core.host;
local s, e = core.getcandle(source:barSize(), 0, host:execute(“getTradingDayOffset”), 0); canwork = not(math.floor(e - s) >= 1);
if not canwork then errtext = “The indicator must be applied on intraday charts”; if onlyname then assert(false, errtext); else core.host:execute(“setStatus”, “error:” .. errtext); end end
local name; name = profile:id() .. “(“ .. source:name() .. “,” .. hour .. “)”; instance:name(name);
if onlyname then return ; end
dummy = instance:addStream(“D”, core.Line, name .. “.D”, “D”, clr, 0); end
local last_s = nil; local id = 0;
function Update(period, mode) if not canwork then return ; end
– calculation restarted if period == 0 then host:execute(“removeAll”); id = 0; end
local s = source:serial(period);
if last_s ~= nil and s == last_s then return ; end
last_s = s;
local date = source:date(period); local t = core.dateToTable(date); if t.min == 0 and t.hour == hour then id = id + 1; host:execute(“drawLine”, id, date, 0, date, 100000, clr, style, width, core.formatDate(host:execute(“convertTime”, core.TZ_EST, core.TZ_TS, date))); end end`
Re: Daystart vertical line
mfoste1 · Mon Dec 12, 2011 4:53 pm
as borat would say….”Very Nice!”
thanks nikolay
Re: Daystart vertical line
nazaar · Mon Dec 12, 2011 5:23 pm
Brilliant, thank you!
Re: Daystart vertical line
nazaar · Thu Dec 15, 2011 1:27 pm
thank you again for making this simple yet very usefultool.
Is it possible, on the daily chart, add the option to place a vertical line on the 1st of each month?
Re: Daystart vertical line
santanae · Mon Dec 19, 2011 9:46 am
Love this Indicator thanks
I just started learning how to create (code) indicators and going through the docs and downloaded the tools to code.I wanted to ask you if there is away to create an indicator to just draw a horizontal line at exactly the close of each trading day (17:00 EST). I’m trying to work on something and I wanted to see if there was a way to do that. Any assistance is apprecaited
Re: X bars back
nazaar · Wed Jan 11, 2012 12:30 pm
Thanks again for the useful and very helpful indicator.
Taking the concept of this indicator I was wondering if you could create another indicator similar to it?
I am looking for an indicator that can count and indicate X bars back. For example, identify the 9th or 13th or 21st bar back. The identifying mark can be a vertical line running through the bar only (instead of a full vertical line) or an symbol place by above or below the X bar back.
thanks in advance.
Re: Daystart vertical line
Apprentice · Wed Jan 11, 2012 4:41 pm
Your request has been added to the developmental cue.
Re: Daystart vertical line
Apprentice · Sat Jan 14, 2012 6:51 am
Requested can be found here. viewtopic.php?f=17&t=11079&p=23420#p23420
Re: WEEK START LINE - vertical line
nazaar · Tue Feb 28, 2012 1:18 pm
Hello,
The daystarlinetime divider has served very well on the lower time line charts but it produces to many lines to frequently on the higher time lines.
could you please add a new time divider indicator similar to the daystartline?
Please add a week start line tool. The weekly start would be Sunday 17:00 or 18:00.
thanks in advance.
Re: Daystart vertical line
Apprentice · Wed Feb 29, 2012 5:14 am
Your request is added to the development list.
Re: Daystart vertical line
FxGump · Mon Sep 10, 2012 6:16 am
I am also interested in the week start line. Is it now available?
Re: Daystart vertical line
Surasit · Wed Nov 07, 2012 8:27 pm
Hello, Is there any week start line available here? Thanks in advance.
Re: Daystart vertical line
Apprentice · Thu Nov 08, 2012 9:47 am
Try My version viewtopic.php?f=17&t=11079&p=43962#p43962
Re: Daystart vertical line
algotime · Wed May 11, 2016 9:09 pm
Hello,
Is there a strategy similar to this? What i am looking for is a automated strategy that looks back at the previous days high and day low and on next session open it places entry order (x) amount of pips over high and below the low with a limit, stop, and trailing stop option
For example- eur/usd previous high was 1.1500 and low was 1.1300. At time of close price settled at 1.1435
On the open 5pm est ( maybe have start time interchangeable as asian session is slow typically) the strategy places a buy order at (x) number of pips above the high such as 10 pips (1.1510) and a sell order at (x) number of pips below the low so using 10 pips again (1.1290) once an order gets triggered the opposite order can either stay in place as a reversal is possible or can cancel
This is similar to constant break strategy but uses the previous day and open/close values as its initiation instead of pips
Thanks for any info or development in my search
Re: Daystart vertical line
Apprentice · Fri May 13, 2016 1:35 pm
Your request is added to the development list.
Re: Daystart vertical line
Recursive Trendline · Tue Aug 29, 2017 8:54 am
Hi Apprentice,
Can we have a mq4 version of the indicator.
Regards,
Re: Daystart vertical line
Apprentice · Wed Aug 30, 2017 4:10 am
Your request is added to the development list, Under Id Number 3881 If someone is interested to do this task, please contact me.
Re: Daystart vertical line
Alexander.Gettinger · Tue Sep 05, 2017 11:22 am
MQL4 version of indicator: viewtopic.php?f=38&t=65056
Re: Daystart vertical line
scandisk · Fri Mar 30, 2018 3:42 pm

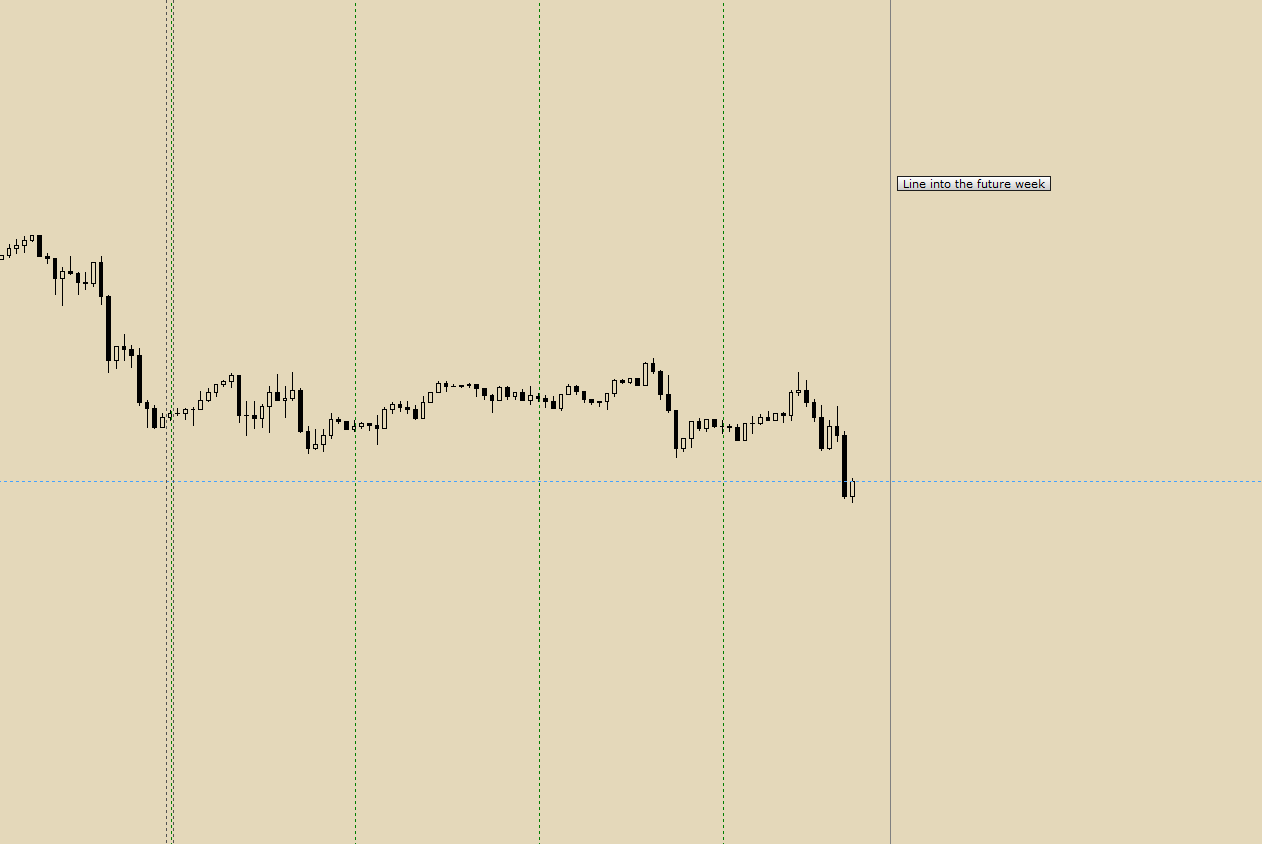

Hi Apprentice could you add a line into the future setting or extended lines for day-start.
Thanks
Re: Daystart vertical line
Apprentice · Tue Apr 03, 2018 5:01 am
Can you clarify. Maybe show on the chart example.
Re: Daystart vertical line
scandisk · Tue Apr 03, 2018 11:54 am
So I just want a line for the next coming week..
Thanks
Re: Daystart vertical line
Apprentice · Wed Apr 04, 2018 5:18 am
As we have in DaysWeekSeparator.lua? viewtopic.php?f=17&t=11079&p=116236&hilit=week#p116236
Re: Daystart vertical line
scandisk · Wed Apr 04, 2018 11:43 am
Apprentice wrote: As we have in DaysWeekSeparator.lua? viewtopic.php?f=17&t=11079&p=116236&hilit=week#p116236
This doesn’t extend into the future??
Re: Daystart vertical line
Apprentice · Thu Apr 05, 2018 4:27 am
Your request is added to the development list under Id Number 4099
Re: Daystart vertical line
Apprentice · Fri Apr 06, 2018 8:19 am
Try this version.
Re: Daystart vertical line
chai88888 · Fri Jan 17, 2020 4:44 am
can include in minute thanks
