Fan of MA

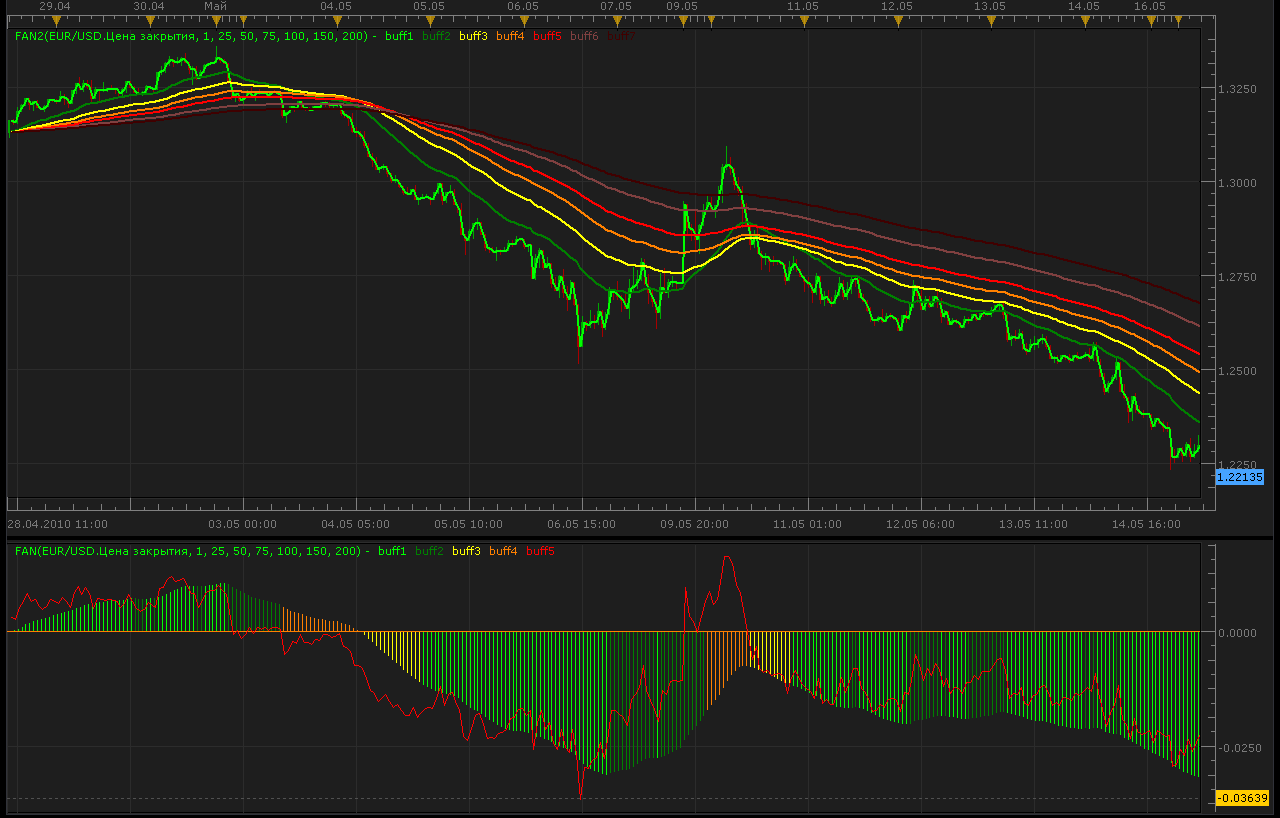

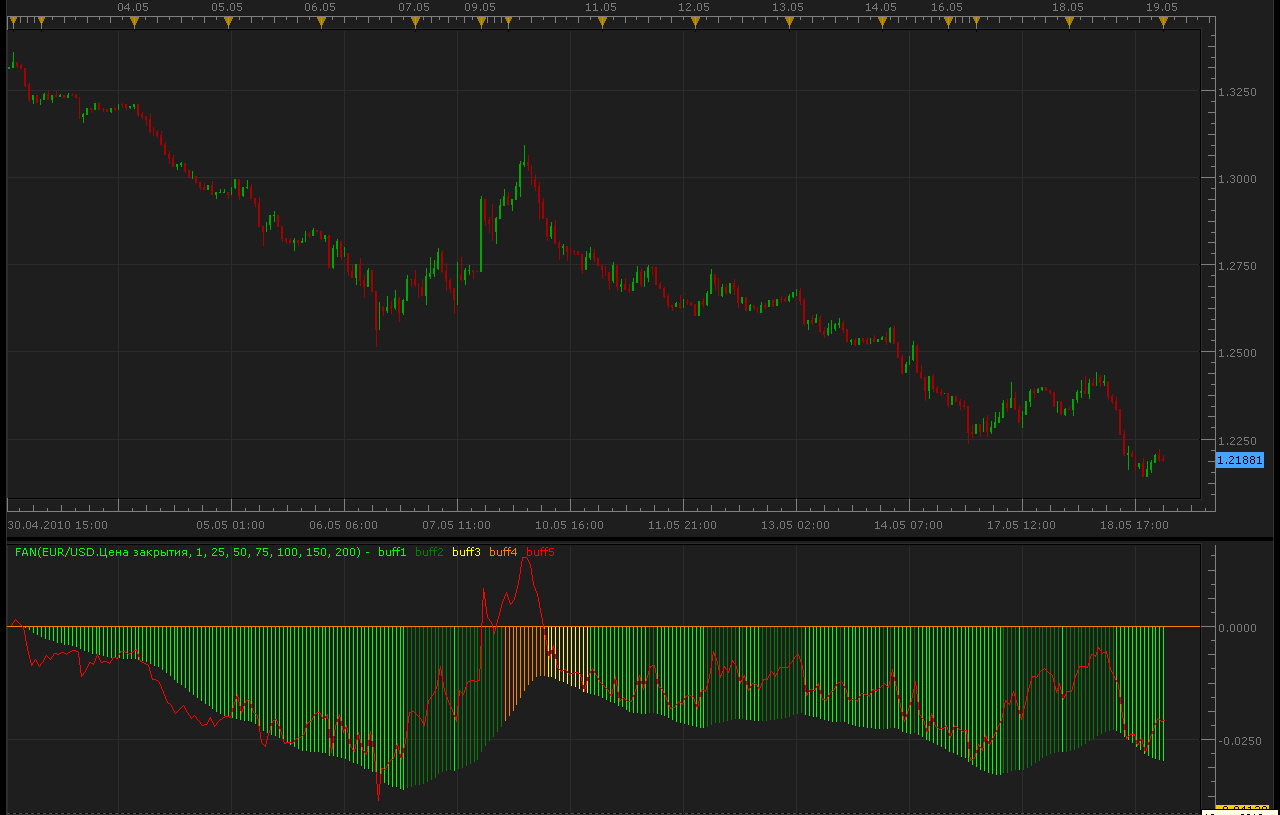

Alexander.Gettinger · Wed May 19, 2010 12:27 am
Fan of 7 MA.
function Init()
indicator:name("FAN");
indicator:description("");
indicator:requiredSource(core.Tick);
indicator:type(core.Oscillator);
indicator.parameters:addInteger("Period_1", "Period 1", "No description", 1);
indicator.parameters:addInteger("Period_2", "Period 2", "No description", 25);
indicator.parameters:addInteger("Period_3", "Period 3", "No description", 50);
indicator.parameters:addInteger("Period_4", "Period 4", "No description", 75);
indicator.parameters:addInteger("Period_5", "Period 5", "No description", 100);
indicator.parameters:addInteger("Period_6", "Period 6", "No description", 150);
indicator.parameters:addInteger("Period_7", "Period 7", "No description", 200);
indicator.parameters:addColor("color_1", "Color 1", "Color 1", core.rgb(0, 255, 0));
indicator.parameters:addColor("color_2", "Color 2", "Color 2", core.rgb(0, 128, 0));
indicator.parameters:addColor("color_3", "Color 3", "Color 3", core.rgb(255, 255, 0));
indicator.parameters:addColor("color_4", "Color 4", "Color 4", core.rgb(255, 128, 0));
indicator.parameters:addColor("color_5", "Color 5", "Color 5", core.rgb(255, 0, 0));
end
local Period1;
local Period2;
local Period3;
local Period4;
local Period5;
local Period6;
local Period7;
local first;
local source = nil;
local buff1=nil;
local buff2=nil;
local buff3=nil;
local buff4=nil;
local buff5=nil;
local MA1;
local MA2;
local MA3;
local MA4;
local MA5;
local MA6;
local MA7;
function Prepare()
Period1 = instance.parameters.Period_1;
Period2 = instance.parameters.Period_2;
Period3 = instance.parameters.Period_3;
Period4 = instance.parameters.Period_4;
Period5 = instance.parameters.Period_5;
Period6 = instance.parameters.Period_6;
Period7 = instance.parameters.Period_7;
source = instance.source;
MA1 = core.indicators:create("EMA", source, Period1);
MA2 = core.indicators:create("EMA", source, Period2);
MA3 = core.indicators:create("EMA", source, Period3);
MA4 = core.indicators:create("EMA", source, Period4);
MA5 = core.indicators:create("EMA", source, Period5);
MA6 = core.indicators:create("EMA", source, Period6);
MA7 = core.indicators:create("EMA", source, Period7);
first = math.max(MA1.DATA:first(),MA2.DATA:first(),MA3.DATA:first(),MA4.DATA:first(),MA5.DATA:first(),MA6.DATA:first(),MA7.DATA:first());
local name = profile:id() .. "(" .. source:name() .. ", " .. Period1 .. ", " .. Period2 .. ", " .. Period3 .. ", " .. Period4 .. ", " .. Period5 .. ", " .. Period6 .. ", " .. Period7 .. ")";
instance:name(name);
buff1 = instance:addStream("buff1", core.Bar, name .. ".buff1", "buff1", instance.parameters.color_1, first);
buff2 = instance:addStream("buff2", core.Bar, name .. ".buff2", "buff2", instance.parameters.color_2, first);
buff3 = instance:addStream("buff3", core.Bar, name .. ".buff3", "buff3", instance.parameters.color_3, first);
buff4 = instance:addStream("buff4", core.Bar, name .. ".buff4", "buff4", instance.parameters.color_4, first);
buff5 = instance:addStream("buff5", core.Line, name .. ".buff5", "buff5", instance.parameters.color_5, first);
end
function Update(period, mode)
if (period>first) then
MA1:update(mode);
MA2:update(mode);
MA3:update(mode);
MA4:update(mode);
MA5:update(mode);
MA6:update(mode);
MA7:update(mode);
local DeltaMA1=MA1.DATA[period]-MA2.DATA[period];
local DeltaMA2=MA1.DATA[period]-MA3.DATA[period];
local DeltaMA3=MA1.DATA[period]-MA4.DATA[period];
local DeltaMA4=MA1.DATA[period]-MA5.DATA[period];
local DeltaMA5=MA1.DATA[period]-MA6.DATA[period];
local DeltaMA6=MA1.DATA[period]-MA7.DATA[period];
local DL=buff1[period-1]+buff2[period-1]+buff3[period-1]+buff4[period-1];
local DeltaFan=DeltaMA6-DeltaMA1;
buff1[period]=0;
buff2[period]=0;
buff3[period]=0;
buff4[period]=0;
if DeltaFan==DL then
buff1[period]=buff1[period-1];
buff2[period]=buff2[period-1];
buff3[period]=buff3[period-1];
buff4[period]=buff4[period-1];
else
if ((MA2.DATA[period]>MA3.DATA[period] and MA3.DATA[period]>MA4.DATA[period] and MA4.DATA[period]>MA5.DATA[period] and MA5.DATA[period]>MA6.DATA[period] and MA6.DATA[period]>MA7.DATA[period]) or (MA2.DATA[period]<MA3.DATA[period] and MA3.DATA[period]<MA4.DATA[period] and MA4.DATA[period]<MA5.DATA[period] and MA5.DATA[period]<MA6.DATA[period] and MA6.DATA[period]<MA7.DATA[period])) then
if (DeltaFan>DL and DeltaFan>0) or (DeltaFan<DL and DeltaFan<0) then
buff1[period]=DeltaFan;
else
buff2[period]=DeltaFan;
end
else
if (DeltaFan>DL and DeltaFan>0) or (DeltaFan<DL and DeltaFan<0) then
buff3[period]=DeltaFan;
else
buff4[period]=DeltaFan;
end
end
end
buff5[period]=(DeltaMA1+DeltaMA2+DeltaMA3+DeltaMA4+DeltaMA5+DeltaMA6)/6.;
end
end
Re: Fan of MA
Alexander.Gettinger · Wed May 19, 2010 12:41 am
function Init()
indicator:name("FAN");
indicator:description("");
indicator:requiredSource(core.Tick);
indicator:type(core.Indicator);
indicator.parameters:addInteger("Period_1", "Period 1", "No description", 1);
indicator.parameters:addInteger("Period_2", "Period 2", "No description", 25);
indicator.parameters:addInteger("Period_3", "Period 3", "No description", 50);
indicator.parameters:addInteger("Period_4", "Period 4", "No description", 75);
indicator.parameters:addInteger("Period_5", "Period 5", "No description", 100);
indicator.parameters:addInteger("Period_6", "Period 6", "No description", 150);
indicator.parameters:addInteger("Period_7", "Period 7", "No description", 200);
indicator.parameters:addColor("color_1", "Color 1", "Color 1", core.rgb(0, 255, 0));
indicator.parameters:addColor("color_2", "Color 2", "Color 2", core.rgb(0, 128, 0));
indicator.parameters:addColor("color_3", "Color 3", "Color 3", core.rgb(255, 255, 0));
indicator.parameters:addColor("color_4", "Color 4", "Color 4", core.rgb(255, 128, 0));
indicator.parameters:addColor("color_5", "Color 5", "Color 5", core.rgb(255, 0, 0));
indicator.parameters:addColor("color_6", "Color 6", "Color 6", core.rgb(128, 64, 64));
indicator.parameters:addColor("color_7", "Color 7", "Color 7", core.rgb(64, 0, 0));
end
local Period1;
local Period2;
local Period3;
local Period4;
local Period5;
local Period6;
local Period7;
local first;
local source = nil;
local buff1=nil;
local buff2=nil;
local buff3=nil;
local buff4=nil;
local buff5=nil;
local buff6=nil;
local buff7=nil;
local MA1;
local MA2;
local MA3;
local MA4;
local MA5;
local MA6;
local MA7;
function Prepare()
Period1 = instance.parameters.Period_1;
Period2 = instance.parameters.Period_2;
Period3 = instance.parameters.Period_3;
Period4 = instance.parameters.Period_4;
Period5 = instance.parameters.Period_5;
Period6 = instance.parameters.Period_6;
Period7 = instance.parameters.Period_7;
source = instance.source;
MA1 = core.indicators:create("EMA", source, Period1);
MA2 = core.indicators:create("EMA", source, Period2);
MA3 = core.indicators:create("EMA", source, Period3);
MA4 = core.indicators:create("EMA", source, Period4);
MA5 = core.indicators:create("EMA", source, Period5);
MA6 = core.indicators:create("EMA", source, Period6);
MA7 = core.indicators:create("EMA", source, Period7);
first = math.max(MA1.DATA:first(),MA2.DATA:first(),MA3.DATA:first(),MA4.DATA:first(),MA5.DATA:first(),MA6.DATA:first(),MA7.DATA:first());
local name = profile:id() .. "(" .. source:name() .. ", " .. Period1 .. ", " .. Period2 .. ", " .. Period3 .. ", " .. Period4 .. ", " .. Period5 .. ", " .. Period6 .. ", " .. Period7 .. ")";
instance:name(name);
buff1 = instance:addStream("buff1", core.Line, name .. ".buff1", "buff1", instance.parameters.color_1, first);
buff2 = instance:addStream("buff2", core.Line, name .. ".buff2", "buff2", instance.parameters.color_2, first);
buff3 = instance:addStream("buff3", core.Line, name .. ".buff3", "buff3", instance.parameters.color_3, first);
buff4 = instance:addStream("buff4", core.Line, name .. ".buff4", "buff4", instance.parameters.color_4, first);
buff5 = instance:addStream("buff5", core.Line, name .. ".buff5", "buff5", instance.parameters.color_5, first);
buff6 = instance:addStream("buff6", core.Line, name .. ".buff6", "buff6", instance.parameters.color_6, first);
buff7 = instance:addStream("buff7", core.Line, name .. ".buff7", "buff7", instance.parameters.color_7, first);
end
function Update(period, mode)
if (period>first) then
MA1:update(mode);
MA2:update(mode);
MA3:update(mode);
MA4:update(mode);
MA5:update(mode);
MA6:update(mode);
MA7:update(mode);
buff1[period]=MA1.DATA[period];
buff2[period]=MA2.DATA[period];
buff3[period]=MA3.DATA[period];
buff4[period]=MA4.DATA[period];
buff5[period]=MA5.DATA[period];
buff6[period]=MA6.DATA[period];
buff7[period]=MA7.DATA[period];
end
end
Re: Fan of MA
one2share · Wed May 19, 2010 5:25 am
Thanks Guys, I love it, Can we get a signal created for this indicator? Thanks
Re: Fan of MA
Nikolay.Gekht · Wed May 19, 2010 8:23 am
Could you specify conditions when the signal must alert?
Re: Fan of MA
one2share · Thu May 20, 2010 1:15 pm
If the signal could have dual signals..1st signal would alert when the bars on the bottom fan indicator has crossed up. the bar has begun to form on the top or either the bottom of the zero. The second alert would occurr when the 50, 100, 150 ma’s cross the 200. If possible, maybe the properties of the signal could include those options, example, alert when ma’s cros (true, false), alert with both occur(true/false) as a matter of choice for the user. The way the user could determine which type of alert to chose from or if they want better confirmation of the trend change but things would need to occur before the alert signals. I hope I have made myself clear
Re: Fan of MA
Alexander.Gettinger · Tue May 25, 2010 3:44 am
You may see other fan indicator here: viewtopic.php?f=17&t=1102
Re: Fan of MA
one2share · Tue May 25, 2010 6:13 am
thanks guys, I love the fans, however if possible, are we able to get signals for these? maybe u can create a signal to alert when all three fans have crossed? or if using one and another indicate for example, heiken ashi we would can a signal when trend change for fan and heiken ashi candle. thanks guys. does anyone know who how I can get the sound to play in the alert? I have tried browsing and placing an audio file in the slot however when the alert pops up, there still is no sound? maybe someone has a file that we can add to upload
Re: Fan of MA
Nikolay.Gekht · Wed May 26, 2010 2:17 pm
one2share wrote: does anyone know who how I can get the sound to play in the alert? I have tried browsing and placing an audio file in the slot however when the alert pops up, there still is no sound? maybe someone has a file that we can add to upload
You can use any wav file to play the sound.
The trading station sounds are located here: C:\Program Files\Candleworks\FXTS2\Sounds
The windows’ sounds are located here: C:\Windows\Media\ (Windows is the folder name where windows is set up).
Re: Fan of MA
one2share · Wed May 26, 2010 2:51 pm
thanks guys, will let u know if I have any luck? I am eager to see the signal for the ma fan…thanks guys again
Re: Fan of MA
VictorFX · Wed May 26, 2010 3:12 pm
Briliant indicator. Thank you so much. one of my favorite.
Re: Fan of MA
Apprentice · Mon Feb 05, 2018 7:27 am
The Indicator was revised and updated.
