Flat/Trend MACD indicator
Source: https://fxcodebase.com/code/viewtopic.php?f=17&t=1719
Forum: 17 · Topic 1719 · 11 post(s)

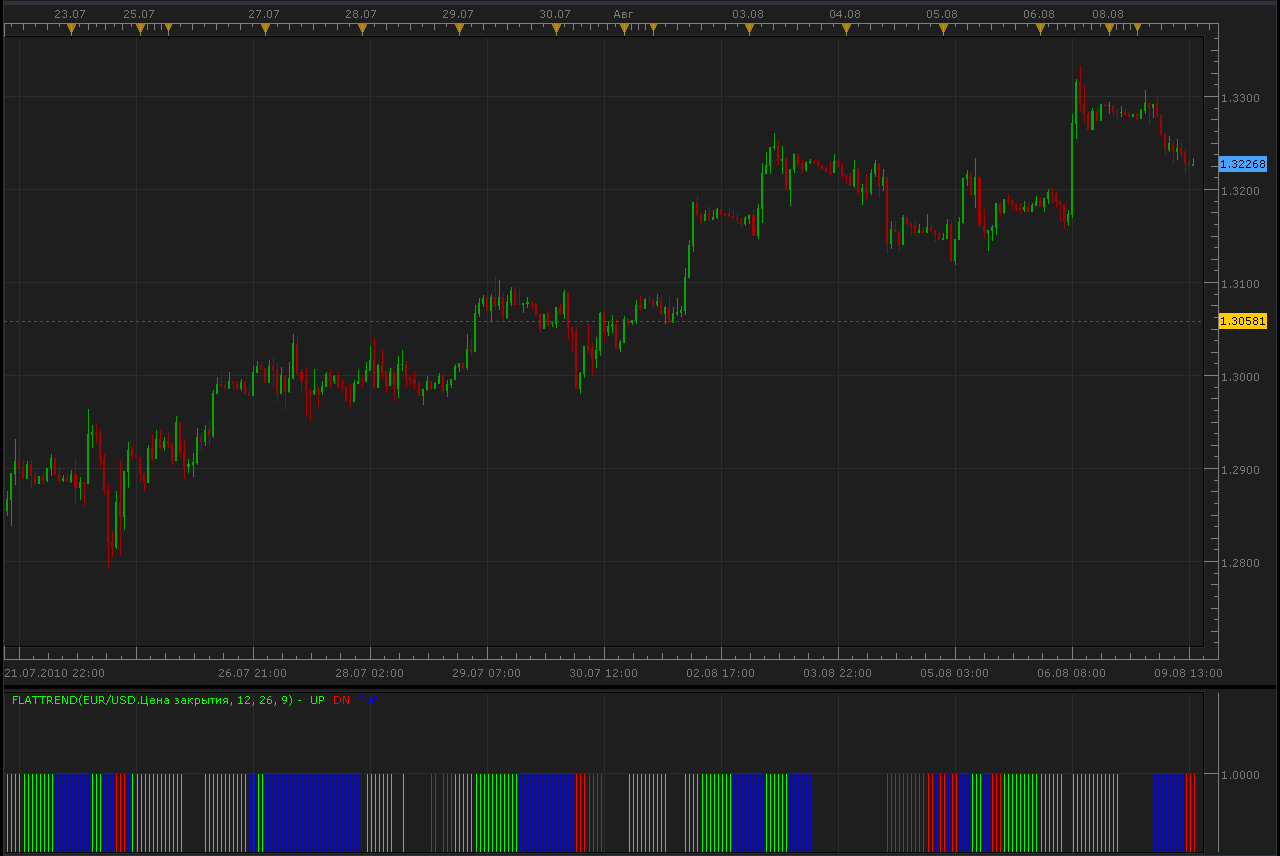

Flat/Trend MACD indicator
Alexander.Gettinger · Mon Aug 09, 2010 2:06 pm
The indicator formula is
if SignalMACD

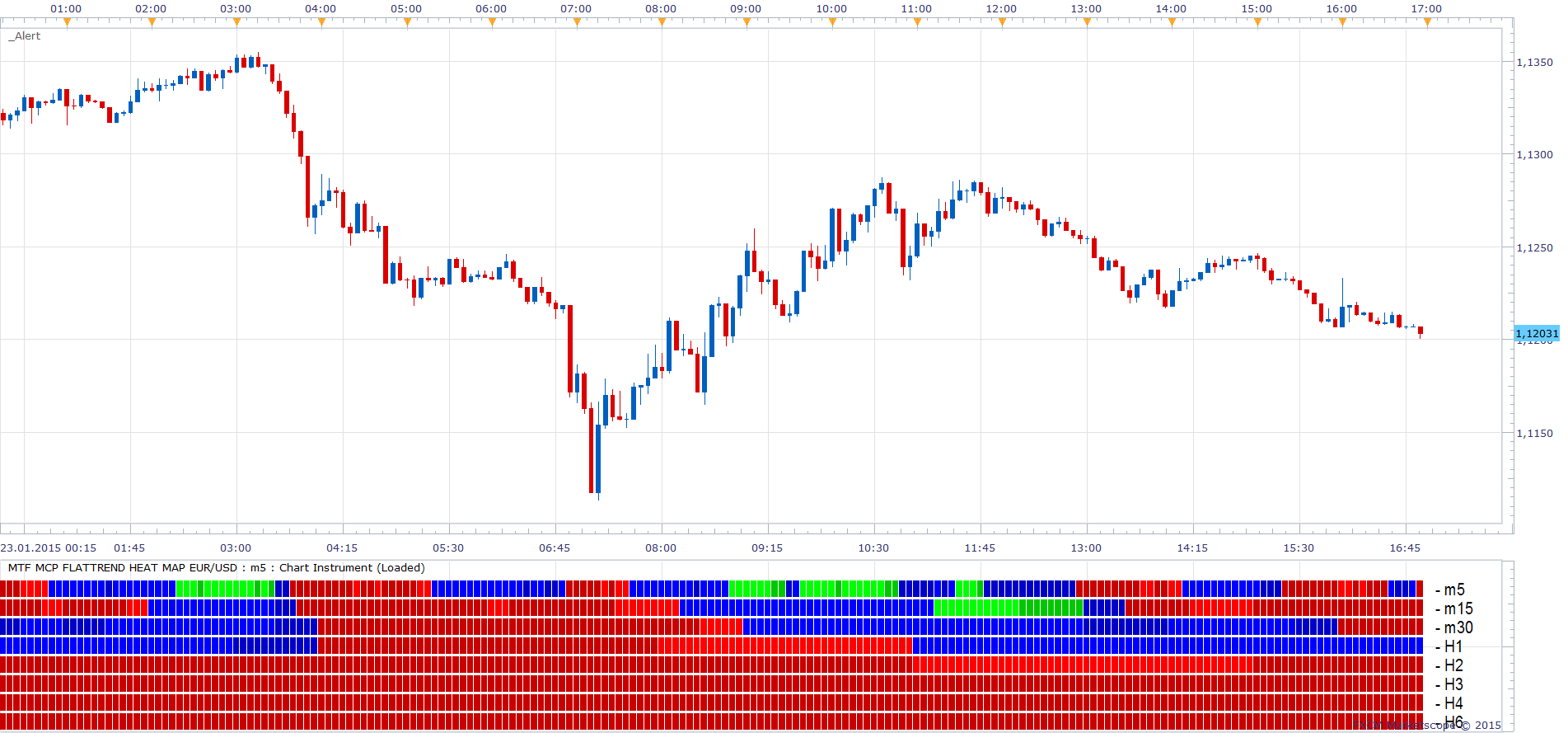

MTF MCP FlatTrend Heat Map.lua
MT4/MQ4 version viewtopic.php?f=38&t=65314&p=115740#p115740

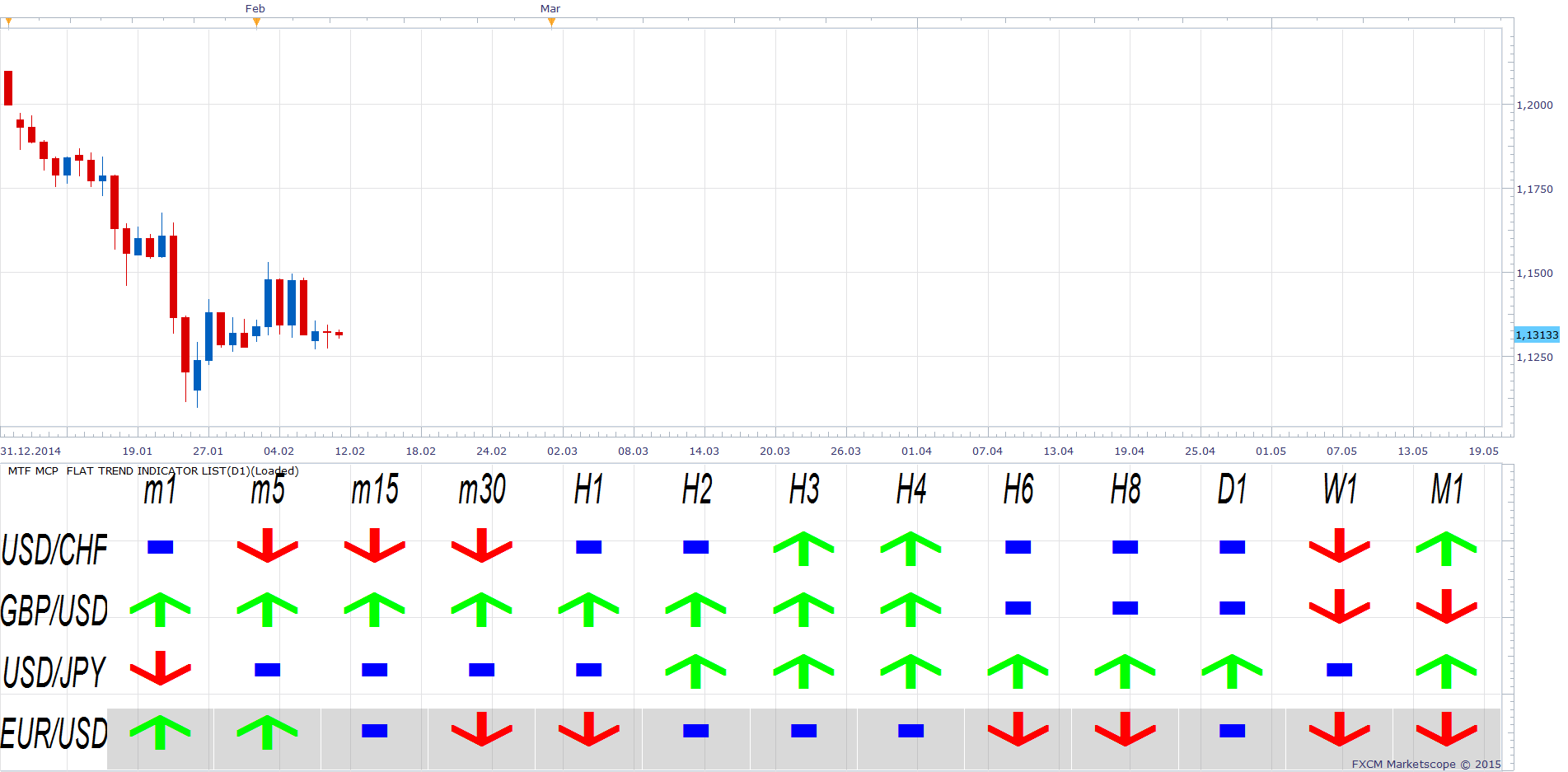

MTF MCP FLAT TREND INDICATOR LIST.lua
MT4/MQ4 version viewtopic.php?f=38&t=65313&p=115739#p115739
Re: Flat/Trend MACD indicator
Alexander.Gettinger · Mon Aug 09, 2010 2:08 pm

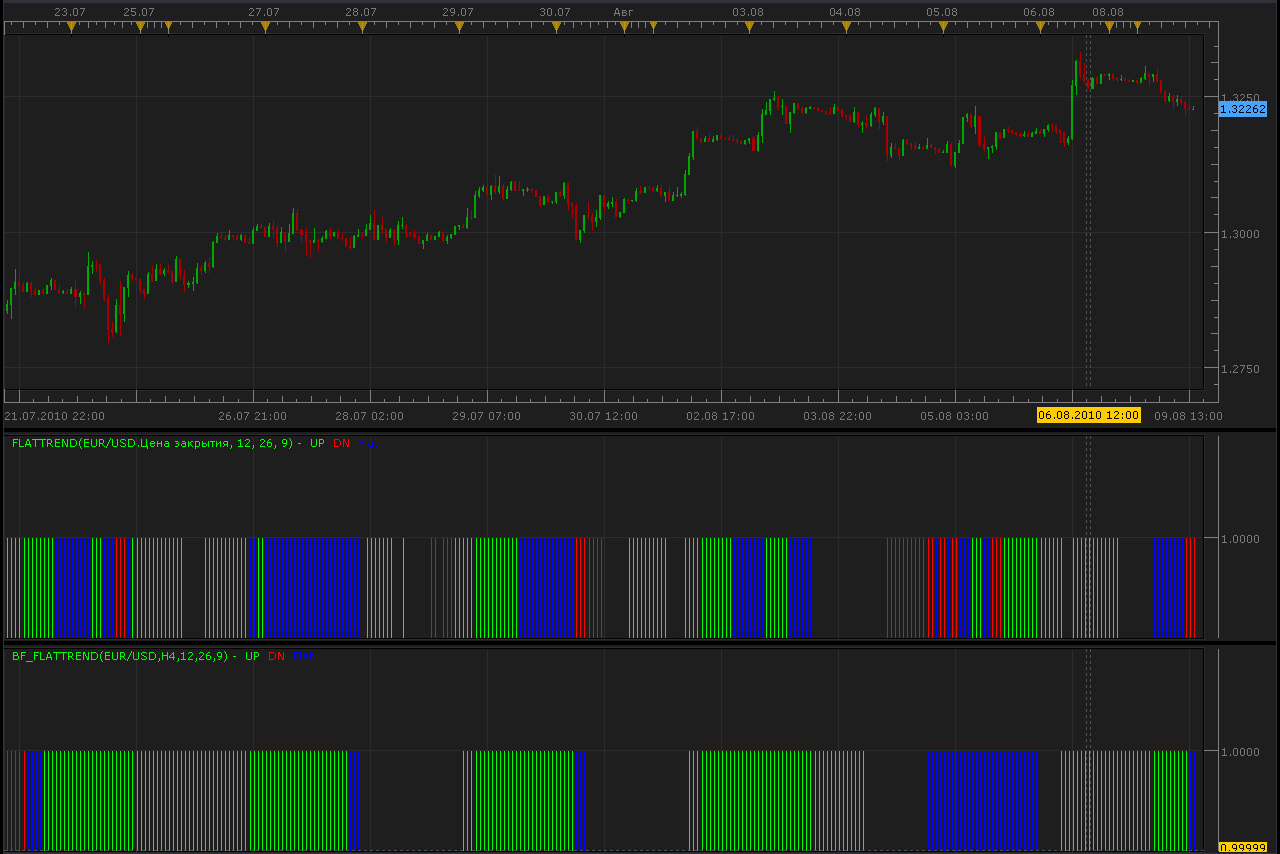

And this indicator for higher timeframe.
function Init()
indicator:name("Bigger timeframe Flat/Trend indicator");
indicator:description("");
indicator:requiredSource(core.Bar);
indicator:type(core.Oscillator);
indicator.parameters:addGroup("Calculation");
indicator.parameters:addString("BS", "Time frame to calculate indicator", "", "D1");
indicator.parameters:setFlag("BS", core.FLAG_PERIODS);
indicator.parameters:addInteger("MACD_Fast", "MACD_Fast", "Period for fast MACD", 12);
indicator.parameters:addInteger("MACD_Slow", "MACD_Slow", "Period for slow MACD", 26);
indicator.parameters:addInteger("MACD_MA", "MACD_MA", "Period for signal MACD", 9);
indicator.parameters:addGroup("Display");
indicator.parameters:addColor("clrUP", "UP trend", "UP trend", core.rgb(0, 255, 0));
indicator.parameters:addColor("clrDN", "DN trend", "DN trend", core.rgb(255, 0, 0));
indicator.parameters:addColor("clrFL", "Flat", "Flat", core.rgb(0, 0, 255));
end
local source; -- the source
local bf_data = nil; -- the high/low data
local MACD_Fast;
local MACD_Slow;
local MACD_MA;
local BS;
local bf_length; -- length of the bigger frame in seconds
local dates; -- candle dates
local host;
local buffUP=nil;
local buffDN=nil;
local buffFL=nil;
local day_offset;
local week_offset;
local extent;
local FlatTrend;
function Prepare()
source = instance.source;
host = core.host;
day_offset = host:execute("getTradingDayOffset");
week_offset = host:execute("getTradingWeekOffset");
BS = instance.parameters.BS;
MACD_Fast = instance.parameters.MACD_Fast;
MACD_Slow = instance.parameters.MACD_Slow;
MACD_MA = instance.parameters.MACD_MA;
extent = MACD_Slow*2;
local s, e, s1, e1;
s, e = core.getcandle(source:barSize(), core.now(), 0, 0);
s1, e1 = core.getcandle(BS, core.now(), 0, 0);
assert ((e - s) <= (e1 - s1), "The chosen time frame must be bigger than the chart time frame!");
bf_length = math.floor((e1 - s1) * 86400 + 0.5);
local name = profile:id() .. "(" .. source:name() .. "," .. BS .. "," .. MACD_Fast .. "," .. MACD_Slow .. "," .. MACD_MA .. ")";
instance:name(name);
buffUP = instance:addStream("UP", core.Bar, name .. ".UP", "UP", instance.parameters.clrUP, 0);
buffDN = instance:addStream("DN", core.Bar, name .. ".DN", "DN", instance.parameters.clrDN, 0);
buffFL = instance:addStream("FL", core.Bar, name .. ".Flat", "Flat", instance.parameters.clrFL, 0);
end
local loading = false;
local loadingFrom, loadingTo;
local pday = nil;
-- the function which is called to calculate the period
function Update(period, mode)
-- get date and time of the hi/lo candle in the reference data
local bf_candle;
bf_candle = core.getcandle(BS, source:date(period), day_offset, week_offset);
-- if data for the specific candle are still loading
-- then do nothing
if loading and bf_candle >= loadingFrom and (loadingTo == 0 or bf_candle <= loadingTo) then
return ;
end
-- if the period is before the source start
-- the do nothing
if period < source:first() then
return ;
end
-- if data is not loaded yet at all
-- load the data
if bf_data == nil then
-- there is no data at all, load initial data
local to, t;
local from;
if (source:isAlive()) then
-- if the source is subscribed for updates
-- then subscribe the current collection as well
to = 0;
else
-- else load up to the last currently available date
t, to = core.getcandle(BS, source:date(period), day_offset, week_offset);
end
from = core.getcandle(BS, source:date(source:first()), day_offset, week_offset);
buffUP:setBookmark(1, period);
-- shift so the bigger frame data is able to provide us with the stoch data at the first period
from = math.floor(from * 86400 - (bf_length * extent) + 0.5) / 86400;
local nontrading, nontradingend;
nontrading, nontradingend = core.isnontrading(from, day_offset);
if nontrading then
-- if it is non-trading, shift for two days to skip the non-trading periods
from = math.floor((from - 2) * 86400 - (bf_length * extent) + 0.5) / 86400;
end
loading = true;
loadingFrom = from;
loadingTo = to;
bf_data = host:execute("getHistory", 1, source:instrument(), BS, loadingFrom, to, source:isBid());
FlatTrend = core.indicators:create("FLATTREND", bf_data.close, MACD_Fast, MACD_Slow, MACD_MA);
return ;
end
-- check whether the requested candle is before
-- the reference collection start
if (bf_candle < bf_data:date(0)) then
buffUP:setBookmark(1, period);
if loading then
return ;
end
-- shift so the bigger frame data is able to provide us with the stoch data at the first period
from = math.floor(bf_candle * 86400 - (bf_length * extent) + 0.5) / 86400;
local nontrading, nontradingend;
nontrading, nontradingend = core.isnontrading(from, day_offset);
if nontrading then
-- if it is non-trading, shift for two days to skip the non-trading periods
from = math.floor((from - 2) * 86400 - (bf_length * extent) + 0.5) / 86400;
end
loading = true;
loadingFrom = from;
loadingTo = bf_data:date(0);
host:execute("extendHistory", 1, bf_data, loadingFrom, loadingTo);
return ;
end
-- check whether the requested candle is after
-- the reference collection end
if (not(source:isAlive()) and bf_candle > bf_data:date(bf_data:size() - 1)) then
buffUP:setBookmark(1, period);
if loading then
return ;
end
loading = true;
loadingFrom = bf_data:date(bf_data:size() - 1);
loadingTo = bf_candle;
host:execute("extendHistory", 1, bf_data, loadingFrom, loadingTo);
return ;
end
FlatTrend:update(mode);
local p;
p = findDateFast(bf_data, bf_candle, true);
if p == -1 then
return ;
end
if FlatTrend:getStream(0):hasData(p) then
buffUP[period] = FlatTrend:getStream(0)[p];
end
if FlatTrend:getStream(1):hasData(p) then
buffDN[period] = FlatTrend:getStream(1)[p];
end
if FlatTrend:getStream(2):hasData(p) then
buffFL[period] = FlatTrend:getStream(2)[p];
end
end
-- the function is called when the async operation is finished
function AsyncOperationFinished(cookie)
local period;
pday = nil;
period = buffUP:getBookmark(1);
if (period < 0) then
period = 0;
end
loading = false;
instance:updateFrom(period);
end
function findDateFast(stream, date, precise)
local datesec = nil;
local periodsec = nil;
local min, max, mid;
datesec = math.floor(date * 86400 + 0.5)
min = 0;
max = stream:size() - 1;
while true do
mid = math.floor((min + max) / 2);
periodsec = math.floor(stream:date(mid) * 86400 + 0.5);
if datesec == periodsec then
return mid;
elseif datesec > periodsec then
min = mid + 1;
else
max = mid - 1;
end
if min > max then
if precise then
return -1;
else
return min - 1;
end
end
end
end
Re: Flat/Trend MACD indicator
jcervinka · Tue Aug 10, 2010 2:13 am
Hi there The indicator work perfect. Great job!!
Thanks
JC.
Re: Flat/Trend MACD indicator
RJH501 · Thu Jul 14, 2011 5:10 am
I observed that there are two settings for “Color of Short Up” I would surmise that one of the settings should be “Color of Short Down” - most likely the bright red 255;0;0.
Your thoughts please.
RJH
Re: Flat/Trend MACD indicator
Apprentice · Sun Jan 25, 2015 7:52 am
MTF MCP FlatTrend Heat Map.lua Added FlatTrend.lua Update
Re: Flat/Trend MACD indicator
transformer · Tue Feb 10, 2015 10:00 pm
HI APPRENTICE,
CAN YOU CREAT MTF MCP LIST FLAT TREND INDICATOR.
THANK YOU
Re: Flat/Trend MACD indicator
Apprentice · Wed Feb 11, 2015 4:23 am
MTF MCP FLAT TREND INDICATOR LIST Added.
Re: Flat/Trend MACD indicator
transformer · Wed Feb 11, 2015 4:59 am
THANK YOU CREATINGI THIS INDICATOR
ONE MORE REQUEST TO MODIFY THIS INDICATOR
1.CAN YOU EXTEND THE LINE TO CURRENCY PAIRS . IF IT IS LOOKING LIKE ALL CURRENCY PAIR GRAB LIST INDICATOR IT WILL LOOK BETTER.
2.CAN YOU HIGH LIGHT THE CURRENCY PAIR WITH GREEN WHEN SELECTED TIME FRAME ARE IN UP TREND{ AND } HIGHLIGHT IT WITH RED WHEN ALL TIME FRAME SELECTED IN LIST ARE IN DOWN TREND
ALL CURRENCY PAIR GRAB INDICATOR IS FOUND IN FOLLOWING PAGE
http://fxcodebase.com/code/viewtopic.ph … RAB#p95491
Re: Flat/Trend MACD indicator
Apprentice · Thu Feb 12, 2015 5:02 am
Your request is added to the development list.
In the meantime, try update version. This will fix, presentation, if a small number of time frames is used.
Re: Flat/Trend MACD indicator
Apprentice · Wed Nov 15, 2017 10:35 am
The indicator was revised and updated.
Re: Flat/Trend MACD indicator
Apprentice · Fri Jun 29, 2018 7:11 am
The indicator was revised and updated.
