Fractal Graph Dimension Indicator (FGDI)
Alexander.Gettinger · Thu Jun 03, 2010 4:21 am

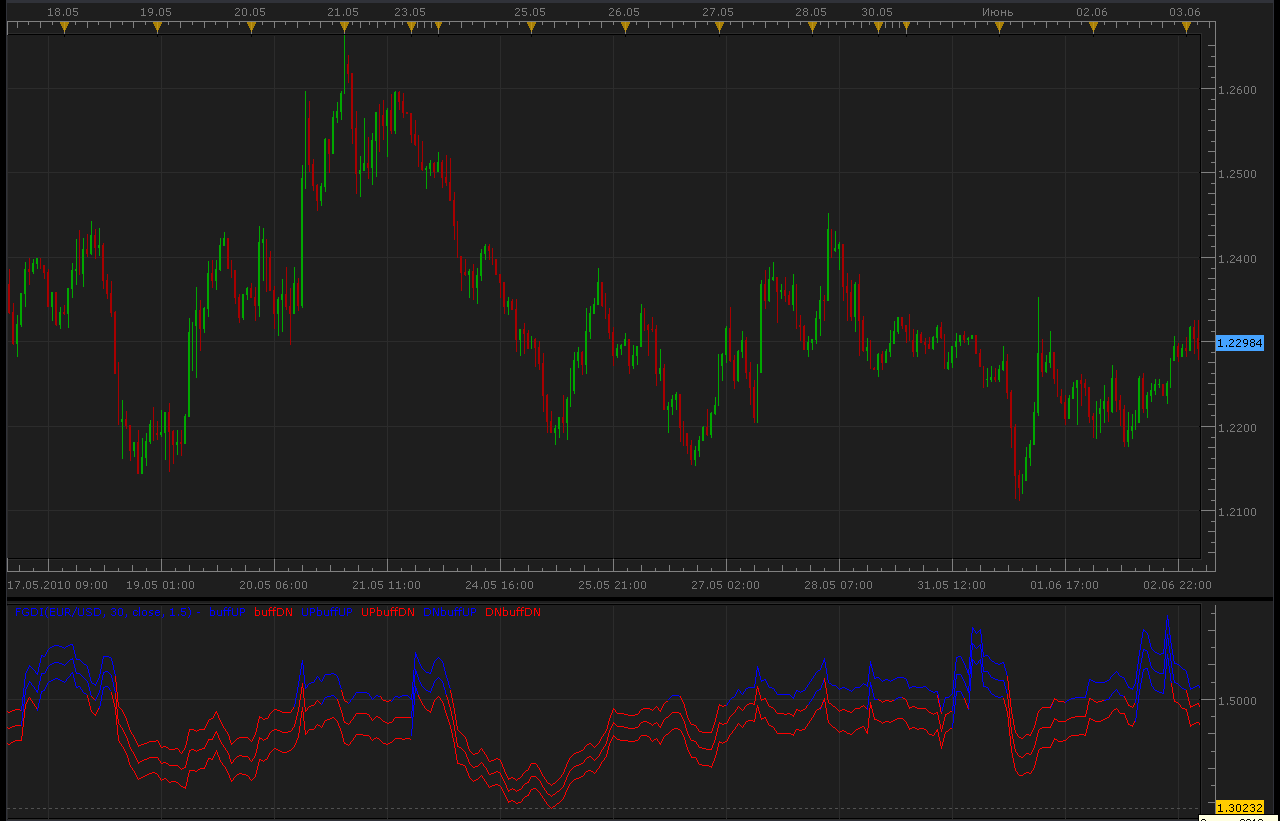

This indicator do not shows trend direction, but it shows the market is in trend or in volatility.
The indicator is described in Technical Analysis of Stocks and Commodities, in a article by Radha Panini, in March, 2007, which is based on Carlos Sevcik, “A procedure to Estimate the Fractal Dimension of Waveforms” article.
Code: Select all `function Init() indicator:name(“Fractal_Graph_Dimension”); indicator:description(“Fractal_Graph_Dimension”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator); indicator.parameters:addInteger(“Period”, “Period”, “Period”, 30); indicator.parameters:addString(“app_price”, “app_price”, “”, “close”); indicator.parameters:addStringAlternative(“app_price”, “close”, “”, “close”); indicator.parameters:addStringAlternative(“app_price”, “open”, “”, “open”); indicator.parameters:addStringAlternative(“app_price”, “high”, “”, “high”); indicator.parameters:addStringAlternative(“app_price”, “low”, “”, “low”); indicator.parameters:addStringAlternative(“app_price”, “median”, “”, “median”); indicator.parameters:addStringAlternative(“app_price”, “typical”, “”, “typical”); indicator.parameters:addStringAlternative(“app_price”, “weighted”, “”, “weighted”);
indicator.parameters:addDouble(“Random_Line”, “Random_Line”, “Random_Line”, 1.5);
indicator.parameters:addColor(“clr_buffUP”, “Color of buffUp”, “Color of buffUp”, core.rgb(0, 0, 255)); indicator.parameters:addColor(“clr_buffDN”, “Color of buffDn”, “Color of buffDn”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“clr_UPbuffUP”, “Color of UPbuffUp”, “Color of UPbuffUp”, core.rgb(0, 0, 255)); indicator.parameters:addColor(“clr_UPbuffDN”, “Color of UPbuffDn”, “Color of UPbuffDn”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“clr_DNbuffUP”, “Color of DNbuffUp”, “Color of DNbuffUp”, core.rgb(0, 0, 255)); indicator.parameters:addColor(“clr_DNbuffDN”, “Color of DNbuffDn”, “Color of DNbuffDn”, core.rgb(255, 0, 0)); end
local first; local source = nil; local Period; local app_price; local Random_Line; local Price; local buffUP=nil; local buffDN=nil;
function Prepare() source = instance.source; Period=instance.parameters.Period; app_price=instance.parameters.app_price; Random_Line=instance.parameters.Random_Line; first = source:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.Period .. “, “ .. instance.parameters.app_price .. “, “ .. instance.parameters.Random_Line .. “)”; instance:name(name); Price = instance:addInternalStream(0, 0); buffUP = instance:addStream(“buffUP”, core.Line, name .. “.buffUP”, “buffUP”, instance.parameters.clr_buffUP, first); buffDN = instance:addStream(“buffDN”, core.Line, name .. “.buffDN”, “buffDN”, instance.parameters.clr_buffDN, first); UPbuffUP = instance:addStream(“UPbuffUP”, core.Line, name .. “.UPbuffUP”, “UPbuffUP”, instance.parameters.clr_UPbuffUP, first); UPbuffDN = instance:addStream(“UPbuffDN”, core.Line, name .. “.UPbuffDN”, “UPbuffDN”, instance.parameters.clr_UPbuffDN, first); DNbuffUP = instance:addStream(“DNbuffUP”, core.Line, name .. “.DNbuffUP”, “DNbuffUP”, instance.parameters.clr_DNbuffUP, first); DNbuffDN = instance:addStream(“DNbuffDN”, core.Line, name .. “.DNbuffDN”, “DNbuffDN”, instance.parameters.clr_DNbuffDN, first); buffUP:addLevel(Random_Line); end
function Update(period, mode) if app_price==”close” then Price[period]=source.close[period]; elseif app_price==”open” then Price[period]=source.open[period]; elseif app_price==”high” then Price[period]=source.high[period]; elseif app_price==”low” then Price[period]=source.low[period]; elseif app_price==”median” then Price[period]=(source.high[period]+source.low[period])/2.; elseif app_price==”typical” then Price[period]=(source.high[period]+source.low[period]+source.close[period])/3.; else Price[period]=(source.high[period]+source.low[period]+2.*source.close[period])/4.; end if (period>first+Period) then
local priceMax=core.max(Price,core.rangeTo(period,Period)); local priceMin=core.min(Price,core.rangeTo(period,Period)); local length=0.; local priorDiff=0.; local sum=0.; for i=period-Period+1,period,1 do if priceMax-priceMin>0. then diff=(Price[i]-priceMin)/(priceMax-priceMin); if i>period-Period+1 then length=length+math.sqrt(math.pow(diff-priorDiff,2)+(1./math.pow(Period,2))); end priorDiff=diff; end end local variance; local fdi; if length>0. then fdi=1.+(math.log(length)+math.log(2.))/math.log(2.(Period-1)); local mean=length/(Period-1); local delta; for i=period-Period+1,period,1 do if priceMax-priceMin>0. then diff=(Price[i]-priceMin)/(priceMax-priceMin); if i>period-Period+1 then delta=math.sqrt(math.pow(diff-priorDiff,2)+(1./math.pow(Period,2))); sum=sum+math.pow(delta-length/(Period-1),2); end priorDiff=diff; end end variance=sum/(math.pow(length,2)math.pow(math.log(2.*(Period-1)),2)); else fdi=0.; variance=0.; end local stddev=math.sqrt(variance); if fdi>Random_Line then buffUP[period]=fdi; buffUP[period-1]=math.max(buffUP[period-1],buffDN[period-1]); buffDN[period]=nil; UPbuffUP[period]=fdi+stddev; UPbuffUP[period-1]=buffUP[period-1]+stddev; UPbuffDN[period]=nil; if fdi-stddev>Random_Line then DNbuffUP[period]=fdi-stddev; DNbuffUP[period-1]=buffUP[period-1]-stddev; DNbuffDN[period]=nil; else DNbuffDN[period]=fdi-stddev; DNbuffDN[period-1]=buffUP[period-1]-stddev; DNbuffUP[period]=nil; end else buffDN[period]=fdi; buffDN[period-1]=math.max(buffUP[period-1],buffDN[period-1]); buffUP[period]=nil; if fdi+stddev>Random_Line then UPbuffUP[period]=fdi+stddev; UPbuffUP[period-1]=buffDN[period-1]+stddev; UPbuffDN[period]=nil; else UPbuffDN[period]=fdi+stddev; UPbuffDN[period-1]=buffDN[period-1]+stddev; UPbuffUP[period]=nil; end DNbuffDN[period]=fdi-stddev; DNbuffDN[period-1]=buffDN[period-1]-stddev; DNbuffUP[period]=nil; end
end end` MT4 / MQ4 version is available here. viewtopic.php?f=38&t=63912
Re: Fractal Graph Dimension Indicator (FGDI)
Apprentice · Thu Jan 12, 2017 8:49 am
Indicator was revised and updated.
Re: Fractal Graph Dimension Indicator (FGDI)
Apprentice · Mon Feb 05, 2018 7:33 am
The Indicator was revised and updated.
