Heikin-Ashi Smoothed
Nikolay.Gekht · Sun Apr 11, 2010 8:14 pm
The Heikin-Ashi smoothed indicator is similar to the regular Heikin-Ashi, but:
a) uses the smoothed open, close, high and low prices b) smooths the candles
So, formula of the indicator is:
open = MVA(MVA(OPEN, N1)[-1] + MVA(CLOSE, N1) / 2, N2) close = MVA(MVA(OPEN, N1) + MVA(CLOSE, N1) + MVA(HIGH, N1) + MVA(LOW, N1)/ 2, N2) high = MAX(open, close, MVA(HIGH, N1), N2) low = MIN(open, close, MVA(LOW, N1), N2)
By default, the indicator hides the source data and is shown instead of the source. To show the both, source data and Heikin-Ashi chart:
1) Uncheck “Hide Source” on the “Data Source” tab of the indicator properties. 2) Check “Show indicator/oscillator in an new area…” on the “Location” tab of the indicator properties.

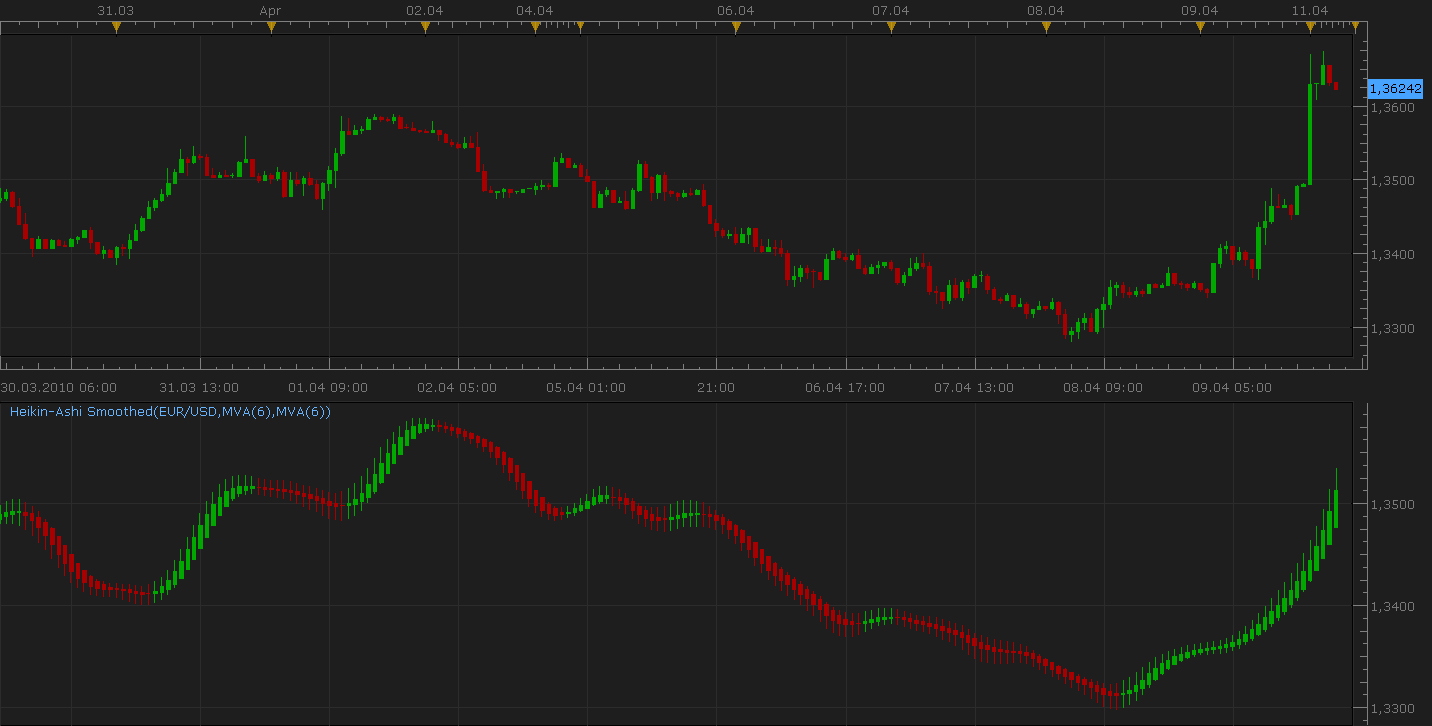

As the standard HA indicator, the HASM indicator result is a regular bar source, so you can apply any existing indicator on it.
Transparent Heikin Ashi Smoothed.lua

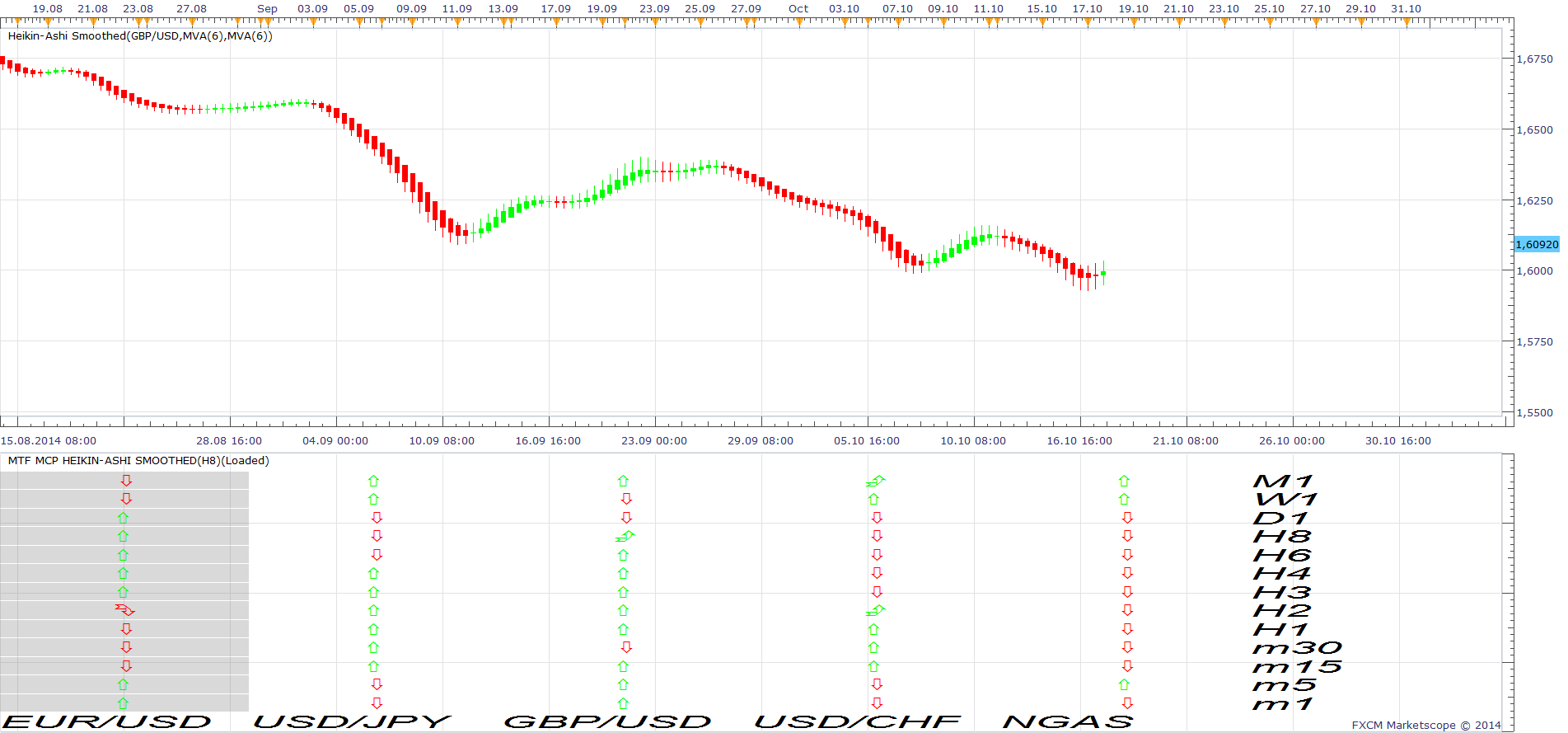

MTF MCP Heikin-Ashi Smoothed.lua
Indicator will show the current direction of Heikin-Ashi Smoothed indicator for all selected time frames and currency pairs. Active Cross is graphically presented.

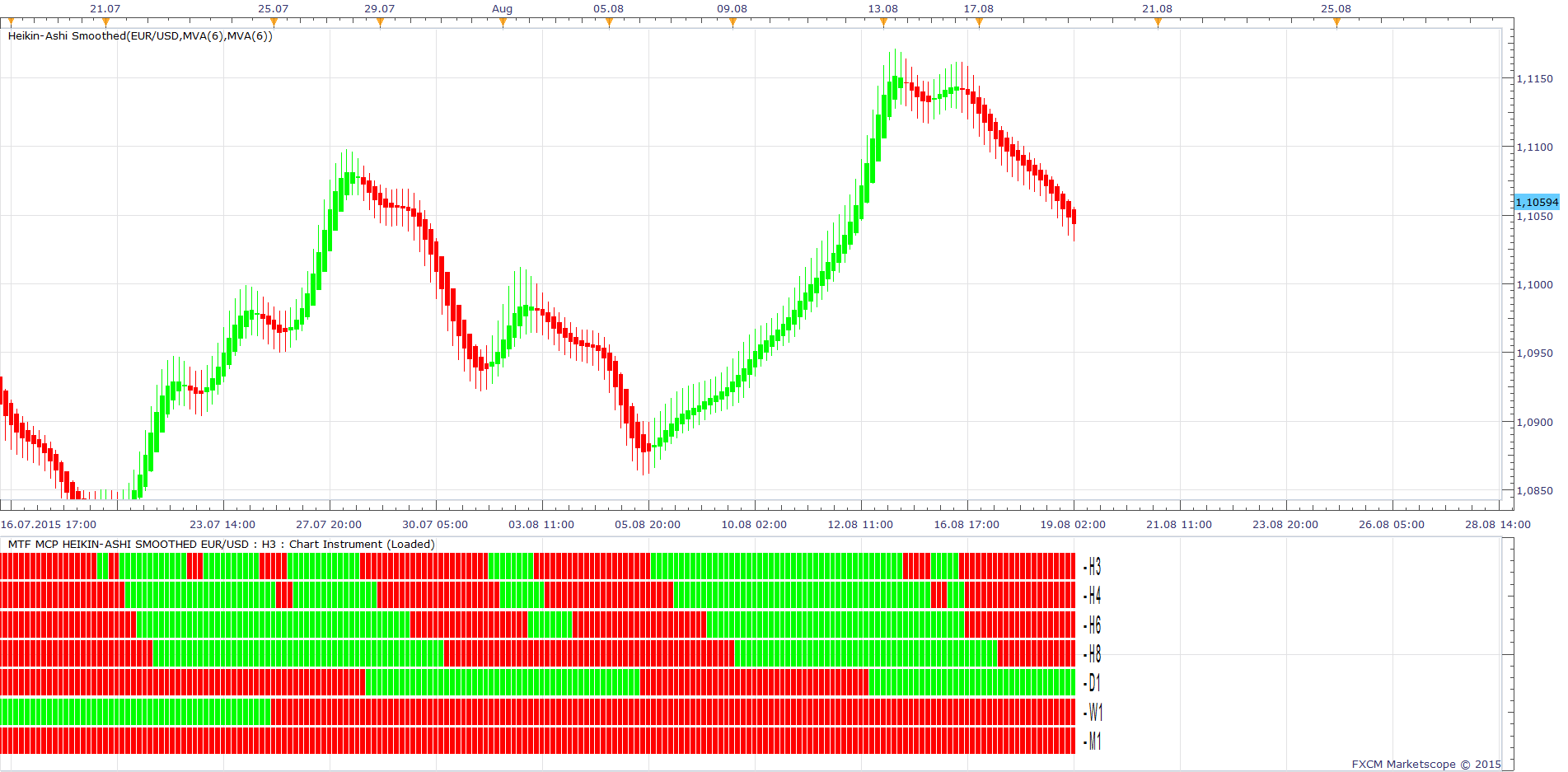

MTF MCP Heikin-Ashi Smoothed (2).lua
A similar indicator can be found here. viewtopic.php?f=17&t=63347&p=105655#p105655
The indicator was revised and updated
Re: Heikin-Ashi Smoothed
koyote44 · Thu May 27, 2010 4:30 pm
Hi Nikolay,
i think you have missing a part in your code. see lines 60 and 75
[upd by ng:] Download:
The original version does not use, in fact, the specified N1 and N2 parameters, so, therefore, the default Moving Average parameter is used. This update fixes this error.
Code: Select all `function Init() indicator:name(“Heikin-Ashi Smoothed”); indicator:description(“”); indicator:requiredSource(core.Bar); indicator:type(core.Indicator); indicator:setTag(“group”, “Trend”); indicator:setTag(“replaceSource”, “t”);
indicator.parameters:addString(“Method1”, “The smoothing method for prices”, “The methods marked by the star () requires to have approriate indicators installed”, “MVA”); indicator.parameters:addStringAlternative(“Method1”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“Method1”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“Method1”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“Method1”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“Method1”, “Vidya (1995)”, “”, “VIDYA”); indicator.parameters:addStringAlternative(“Method1”, “Vidya (1992)”, “”, “VIDYA92”); indicator.parameters:addStringAlternative(“Method1”, “Wilders*”, “”, “WMA”);
indicator.parameters:addInteger(“N1”, “Periods to smooth prices”, “”, 6, 1, 1000);
indicator.parameters:addString(“Method2”, “The smoothing method for candles”, “The methods marked by the star () requires to have approriate indicators installed”, “MVA”); indicator.parameters:addStringAlternative(“Method2”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“Method2”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“Method2”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“Method2”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“Method2”, “Vidya (1995)”, “”, “VIDYA”); indicator.parameters:addStringAlternative(“Method2”, “Vidya (1992)”, “”, “VIDYA92”); indicator.parameters:addStringAlternative(“Method2”, “Wilders*”, “”, “WMA”);
indicator.parameters:addInteger(“N2”, “Periods to smooth candles”, “”, 6, 1, 1000); end
local smopen = nil; local smhigh = nil; local smlow = nil; local smclose = nil;
local iopen = nil; local ihigh = nil; local ilow = nil; local iclose = nil;
local smiopen = nil; local smihigh = nil; local smilow = nil; local smiclose = nil;
local open = nil; local high = nil; local low = nil; local close = nil;
local first1 = 0; local first2 = 0;
– Routine function Prepare() source = instance.source; – was missing, so N1 was not set local N1 = instance.parameters.N1; smopen = core.indicators:create(instance.parameters.Method1, source.open, N1); smclose = core.indicators:create(instance.parameters.Method1, source.close, N1); smhigh = core.indicators:create(instance.parameters.Method1, source.high, N1); smlow = core.indicators:create(instance.parameters.Method1, source.low, N1);
first1 = smopen.DATA:first() + 1;
iopen = instance:addInternalStream(first1, 0); iclose = instance:addInternalStream(first1, 0); ihigh = instance:addInternalStream(first1, 0); ilow = instance:addInternalStream(first1, 0); – was missing, so N2 was not set local N2 = instance.parameters.N2; smiopen = core.indicators:create(instance.parameters.Method2, iopen, N2); smiclose = core.indicators:create(instance.parameters.Method2, iclose, N2); smihigh = core.indicators:create(instance.parameters.Method2, ihigh, N2); smilow = core.indicators:create(instance.parameters.Method2, ilow, N2);
first2 = smiopen.DATA:first() + 1;
local name = “Heikin-Ashi Smoothed” .. “(“ .. source:name() .. “,” .. instance.parameters.Method1 .. “(“ .. instance.parameters.N1 .. “),” .. instance.parameters.Method2 .. “(“ .. instance.parameters.N2.. “))” instance:name(name); open = instance:addStream(“open”, core.Line, name, “open”, core.rgb(0, 0, 0), first2) high = instance:addStream(“high”, core.Line, name, “high”, core.rgb(0, 0, 0), first2) low = instance:addStream(“low”, core.Line, name, “low”, core.rgb(0, 0, 0), first2) close = instance:addStream(“close”, core.Line, name, “close”, core.rgb(0, 0, 0), first2) instance:createCandleGroup(“HAS”, “HAS”, open, high, low, close); end
– Indicator calculation routine function Update(period, mode) – smooth source smopen:update(mode); smhigh:update(mode); smlow:update(mode); smclose:update(mode);
if period >= first1 then – calculate candles if (period == first1) then iopen[period] = (smopen.DATA[period - 1] + smclose.DATA[period - 1]) / 2; else iopen[period] = (iopen[period - 1] + iclose[period - 1]) / 2; end iclose[period] = (smopen.DATA[period] + smhigh.DATA[period] + smlow.DATA[period] + smclose.DATA[period]) / 4; ihigh[period] = math.max(iopen[period], iclose[period], smhigh.DATA[period]); ilow[period] = math.min(iopen[period], iclose[period], smlow.DATA[period]);
– smooth candles smiopen:update(mode); smihigh:update(mode); smilow:update(mode); smiclose:update(mode); end
if period >= first2 then open[period] = smiopen.DATA[period]; close[period] = smiclose.DATA[period]; high[period] = math.max(open[period], close[period], smihigh.DATA[period]); low[period] = math.min(open[period], close[period], smilow.DATA[period]); end end`
Re: Heikin-Ashi Smoothed
Nikolay.Gekht · Thu May 27, 2010 7:43 pm
Thank you very much for spotting and fixing the problem.
Re: Heikin-Ashi Smoothed
kitar01 · Fri May 13, 2011 9:49 am
all ok but this indicator cancel all the candles and do not allow to watch both…
Re: Heikin-Ashi Smoothed
kitar01 · Fri May 13, 2011 9:56 am
ok it is working. would be better if we can have a separated colour option… thank you
Re: Heikin-Ashi Smoothed
Apprentice · Fri May 13, 2011 11:26 am
Color option added.
Re: Heikin-Ashi Smoothed
lisa_baby_xx · Mon May 16, 2011 4:03 am
Hi,
I have only yesterday discoverd the joy of the Heikin-Ashi Smoothed Indicator.
Is there a signal available for this type of indicator? One that signals when the bars change colour?
Many thanks and much love. XX lisa_baby_xx
Re: Heikin-Ashi Smoothed
Apprentice · Mon May 16, 2011 5:22 am
Signal that you seek is available here. viewtopic.php?f=29&t=2344&p=5013&hilit=Heikin+Ashi#p5013
Re: Heikin-Ashi Smoothed
lisa_baby_xx · Mon May 16, 2011 5:24 am
Thanks sweetie. XX.
lisa_baby_xx
Re: Heikin-Ashi Smoothed
Platinum · Wed Jul 06, 2011 1:48 pm
Hi,
I love this indicator. Can anyone please explain wht MVA is?
I would like to program this indcator into excel Can anyone please help me with the formula? Any help would be greatly appreciated.
Many Thanks
Re: Heikin-Ashi Smoothed
sunshine · Wed Jul 06, 2011 11:34 pm
The formula of Heikin-Ashi Smoothed is in the top post. MVA is a simple moving average. Please see: Simple Moving Average (MVA, SMA)
Re: Heikin-Ashi Smoothed
motoko123 · Tue Oct 11, 2011 4:14 pm
What does N1 and N2 refer to?
Thanks
Re: Heikin-Ashi Smoothed
Apprentice · Tue Oct 11, 2011 4:34 pm
N1 and N2 are variables, which retain information on the period for moving averages, that the user has selected.
Re: Heikin-Ashi Smoothed
TheEdge · Wed Jan 11, 2012 11:28 am
Hello,
Is there anyway to have this indicator show as hollow boxes rather than a solid color?
Thanks
Re: Heikin-Ashi Smoothed
Apprentice · Wed Jan 11, 2012 4:38 pm
Unfortunately not. I will forward the request to the development team.
Re: Heikin-Ashi Smoothed
Alexander.Gettinger · Sat Feb 04, 2012 9:28 pm
Heikin-Ashi Smoothed indicator with Averages indicator smoothing.
Download:
For this indicator must be installed AVERAGES indicator (viewtopic.php?f=17&t=2430).
Re: Heikin-Ashi Smoothed
TheEdge · Thu Feb 09, 2012 7:18 am
Feature Request,
Is it possible to have the standard Heikin-Ashi and this indicator without the high and low shadows so they only show the “Real Body” of the candle?
I realize this would be 2 different indicators but this would help clean up the charts.
Thanks
Re: Heikin-Ashi Smoothed
Apprentice · Fri Feb 10, 2012 4:34 am
Your request is added to the development list. When we find the time someone will help you.
Re: Heikin-Ashi Smoothed
Alexander.Gettinger · Fri Feb 17, 2012 3:10 pm
TheEdge wrote: Is it possible to have the standard Heikin-Ashi and this indicator without the high and low shadows so they only show the “Real Body” of the candle?
See this version of indicator:
Re: Heikin-Ashi Smoothed
chriswant · Sun Feb 19, 2012 12:29 am
hello, This indicator is Great… would it be possible to add some future candle say 5-10, maybe in a different color, based on the past, maybe with a percentage of accuracy of just for its general movement
Re: Heikin-Ashi Smoothed
Apprentice · Mon Feb 20, 2012 4:01 am
The algorithm for the prediction would be a great help. Unfortunately I’m not sure how to write such an algorithm. The development of this something takes time and money. I have people who have experience with such problems. However, no funding for such work.
Re: Heikin-Ashi Smoothed
brunettesrule · Thu Mar 15, 2012 8:00 pm
Hi
I have tried to download this indicator. HASM.lau (after your posting of fixing 2 lines) and HASMTB.lau. But when I try to get it on my chart it doesn’t change and comes up as a strategy? can someone please help me with what I am doing wrong.
Cheers, Jane
Re: Heikin-Ashi Smoothed
briansummy · Tue Mar 20, 2012 10:50 pm
Alexander.Gettinger wrote:
TheEdge wrote: Is it possible to have the standard Heikin-Ashi and this indicator without the high and low shadows so they only show the “Real Body” of the candle?
See this version of indicator:
HASM3.lua
Can you do a system with HASM3 BUY/SELL when in agreement to TSF (Data Source = HASM3 Close) GREEN/RED signal where exit is a disagreement? A Daily chart for NZDJPY looks amazing. I’d be curious to back test that. As long as there is no repainting or anything false, it’s very nice.
Re: Heikin-Ashi Smoothed
Apprentice · Wed Mar 21, 2012 6:13 am
Your request is added to the development list.
Re: Heikin-Ashi Smoothed
jdjones23 · Sun Jul 29, 2012 8:52 pm
Is there a way to update this indicator so that you can select the color of the up and down candles. Right now, can only use green and red. Great indicator!.. thanks
Re: Heikin-Ashi Smoothed
rtsayers · Sat Sep 01, 2012 3:23 am
I was wondering if you code this indicator for the heikin ashi? Its called the Hadelta oscillator. Also this one in the post uses divergence. But without divergence would be just fine!
Thanks!!
http://www.forex-tsd.com/blogs/newdigit … -prev.html
Re: Heikin-Ashi Smoothed
Apprentice · Mon Sep 03, 2012 2:47 pm
Do you have a description, formula or code for this indicator. Try my version. viewtopic.php?f=17&t=22967
Re: Heikin-Ashi Smoothed
trendwatch · Mon Nov 05, 2012 10:22 am
Hi,
Could you possibly add the color option to this version too: HASM3.lua (hide wick version).
The original HASM version has this already, so maybe it isn’t a lot of work for you.
Thanks in advance.
Re: Heikin-Ashi Smoothed
Apprentice · Tue Nov 06, 2012 7:21 am
Your request is added to the development list.
Re: Heikin-Ashi Smoothed
Apprentice · Fri Oct 17, 2014 8:11 am
Transparent Heikin Ashi Smoothed.lua Added. See First post in topic.
Re: Heikin-Ashi Smoothed
Apprentice · Fri Oct 17, 2014 11:54 am
MTF MCP Heikin-Ashi Smoothed Added.
Re: Heikin-Ashi Smoothed
easytrading · Sun Oct 19, 2014 6:24 pm
hello , could anyone help to develop a strategy for this indicator based on HA smothed bar color changing with the option of deferent timeframes please, thanks.
Re: Heikin-Ashi Smoothed
Apprentice · Mon Oct 20, 2014 10:45 am
U can use Heiken_AshiSmoothed_N_Bars_Strategy.lua Set Count of bars Parameter to 1 viewtopic.php?f=31&t=3655
Re: Heikin-Ashi Smoothed
Apprentice · Wed Aug 19, 2015 4:10 am
MTF MCP Heikin-Ashi Smoothed Added.
Re: Heikin-Ashi Smoothed
gregoryyul · Thu Aug 20, 2015 11:06 am
Hi
Thanks for creating the MTF MCP Indicator.
It’s working well for me but I can’t figure out how to get the bar graph representation for the current chart, I only get the coloured arrows.
Can you pls explain how to do this?
Thanks for your time
Re: Heikin-Ashi Smoothed
all_in · Tue Aug 25, 2015 9:45 am
gregoryyul wrote: Hi
Thanks for creating the MTF MCP Indicator.
It’s working well for me but I can’t figure out how to get the bar graph representation for the current chart, I only get the coloured arrows.
Can you pls explain how to do this?
Thanks for your time
I’d like to know this as well.
Also, am I right in saying, that until the bar closes, the indicator could repaint? If so, could it be made to only display when the specific timeframe period has completed? i.e. Looking at the M5 chart, the H1 HA is bullish, but the H1 candle hasn’t completed and could change.
Thanks
Re: Heikin-Ashi Smoothed
Apprentice · Wed Aug 26, 2015 10:05 am
gregoryyul Try MTF MCP Heikin-Ashi Smoothed (2).lua ALL_IN MTF MCP indicator will reflect change in HASM indicator.
Re: Heikin-Ashi Smoothed
all_in · Mon Sep 07, 2015 2:04 pm
Thanks
Re: Heikin-Ashi Smoothed
jarmush · Sun Oct 25, 2015 8:55 pm
all_in: Yes, it can change colors. Heikin Ashi OPEN is allways in the middle of the previous Heikin Ashi candle, but other candles use most actual values so can change colors (including HA CLOSE - have a look at this: http://www.technicalindicators.net/indi … hi-candles). And the HA variations behave the same. Hope this helps.
Re: Heikin-Ashi Smoothed
Apprentice · Tue Oct 27, 2015 3:39 am
“HASM” will not use HA formula to calculate. It is calculated as follows. open = MVA(MVA(OPEN, N1)[-1] + MVA(CLOSE, N1) / 2, N2) close = MVA(MVA(OPEN, N1) + MVA(CLOSE, N1) + MVA(HIGH, N1) + MVA(LOW, N1)/ 2, N2) high = MAX(open, close, MVA(HIGH, N1), N2) low = MIN(open, close, MVA(LOW, N1), N2)
Re: Heikin-Ashi Smoothed
DAVIDR · Mon Jan 18, 2016 7:21 am
Hi, is it possible to display this over a candle chart, so that both this indicator and candles are displayed at the same time.
All the best.
Re: Heikin-Ashi Smoothed
Apprentice · Wed Jan 20, 2016 5:48 am
Sure, try this version.
Re: Heikin-Ashi Smoothed
Apprentice · Mon May 16, 2016 10:06 am
HASM with Alert.lua added.
Re: Heikin-Ashi Smoothed
sagymmm · Sun Jun 05, 2016 9:02 pm
Hello Apprentice, can we have a strategy that opens a trade automatically in the direction that we choose manually. For example I choose to buy a certain pair, when The HASM closes the candle green we go long and when it closes red the trade automatically close and the opposite. Thanks
Re: Heikin-Ashi Smoothed
Apprentice · Mon Jun 06, 2016 2:38 am
You can use Heiken_AshiSmoothed_N_Bars_Strategy.lua viewtopic.php?f=31&t=3655&p=12016&hilit=HASM#p12016
Re: Heikin-Ashi Smoothed
Apprentice · Mon Jun 06, 2016 2:50 am
Try this version. viewtopic.php?f=31&t=63566
Re: Heikin-Ashi Smoothed
pizzaboy · Fri Jun 17, 2016 11:18 am
Do we have any strategy that uses the MTF MCP Heikin-Ashi Smoothed? I just need a reference to build my own. TIA
Re: Heikin-Ashi Smoothed
Apprentice · Sun Jun 19, 2016 3:21 am
Here you can find a few of the MTF and MCP strategies templates. viewtopic.php?f=28&t=2712
Re: Heikin-Ashi Smoothed
jrichardson83 · Sun Jul 09, 2017 9:25 pm
Apprentice wrote:

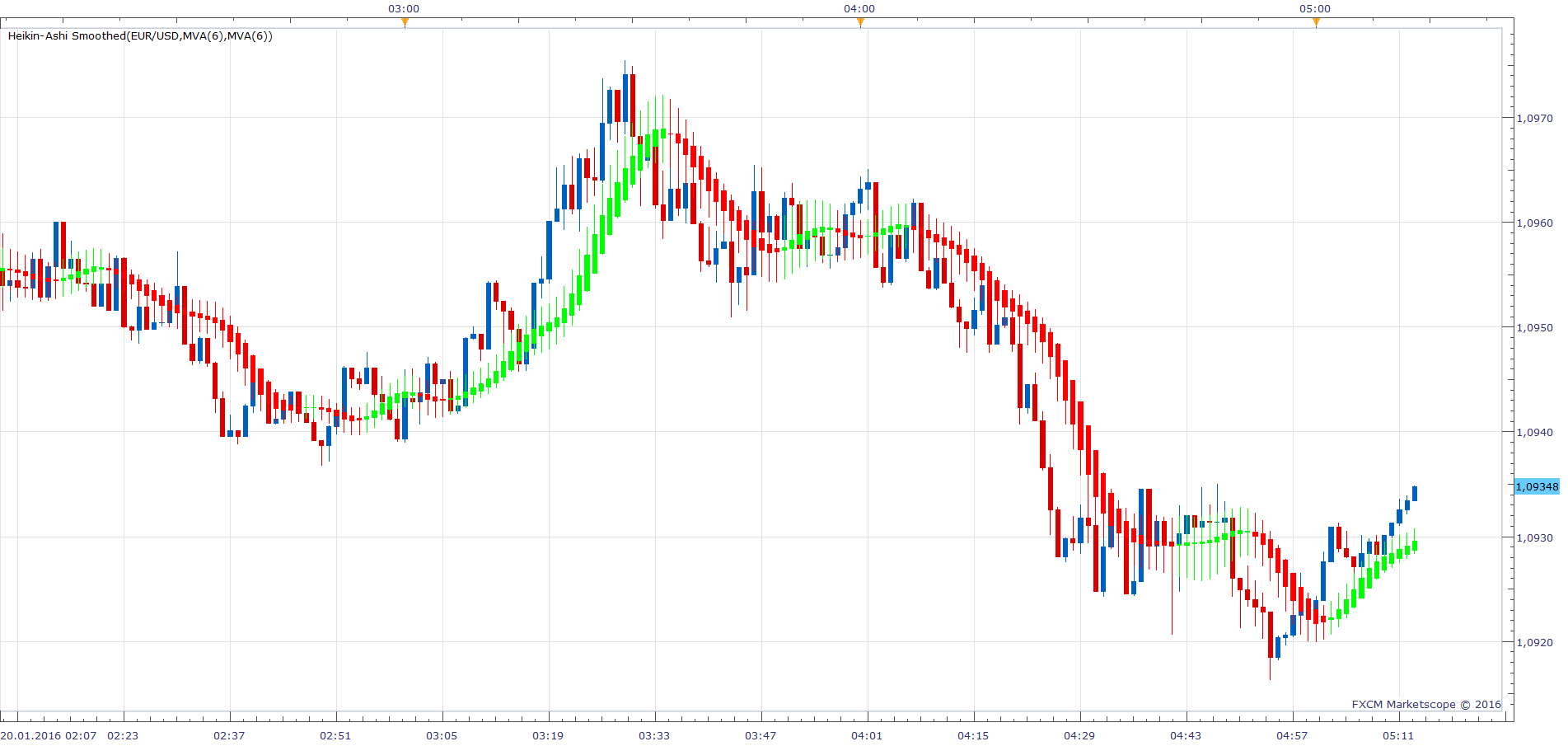

EURUSD m1 (01-20-2016 1113).png
Sure, try this version.
HASM.lua
I wanted to request an update to the implementation of the “On-Chart” smoothed heiken ashi.
-
Could the moving average options be updated to reflect all the moving averages available in the “Averages” indicator. I believe that the HASM3 indicator has this implementation?
-
Can the indicator be coded into an oscillator, much like the MTF version, which would just show red or green when the colors of the heiken ashi candles change?
Re: Heikin-Ashi Smoothed
Apprentice · Mon Jul 10, 2017 3:51 pm
Can you define the “On-Chart”
About 2. request. Your request is added to the development list, Under Id Number 3821 If someone is interested to do this task, please contact me.
Re: Heikin-Ashi Smoothed
Apprentice · Wed Jul 12, 2017 4:34 pm
MTF MCP HASM .lua added.
