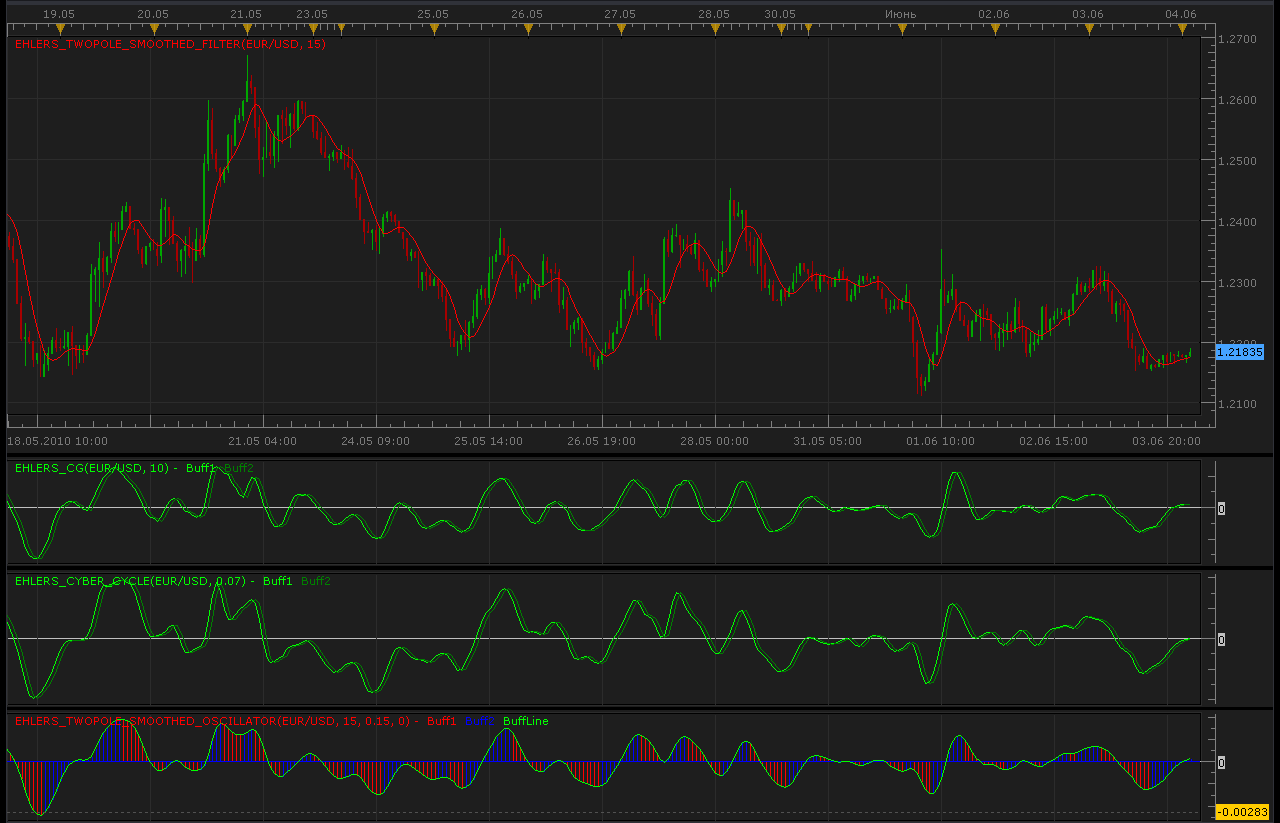

John Ehler’s indicators
Alexander.Gettinger · Fri Jun 04, 2010 2:03 am
Original researches by John F. Ehlers, described in “Cybernetic Analysis for Stocks and Futures” (2004) ISBN: 0-471-46307-8
Center of Gravity I see also here: viewtopic.php?f=17&t=366&p=605&hilit=Ehler#p605
Center of Gravity indicator:
Code: Select all `function Init() indicator:name(“Ehlers CG Oscillator”); indicator:description(“Ehlers CG Oscillator”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator); indicator.parameters:addInteger(“Length”, “Length”, “”, 10);
indicator.parameters:addColor(“clr_buff1”, “Color of Buff1”, “Color of Buff1”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“clr_buff2”, “Color of Buff2”, “Color of Buff2”, core.rgb(0, 128, 0)); end
local first; local source = nil; local Length; local Price; local Buff1=nil; local Buff2=nil;
function Prepare() source = instance.source; Length=instance.parameters.Length; Price = instance:addInternalStream(0, 0); first = source:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.Length .. “)”; instance:name(name); Buff1 = instance:addStream(“Buff1”, core.Line, name .. “.Buff1”, “Buff1”, instance.parameters.clr_buff1, first); Buff2 = instance:addStream(“Buff2”, core.Line, name .. “.Buff2”, “Buff2”, instance.parameters.clr_buff2, first); Buff1:addLevel(0); end
function Update(period, mode) if (period>first+Length) then local Num=0.; local Demon=0.; Price[period]=(source.high[period]+source.low[period])/2.; for i=0,Length-1,1 do Num=Num+(i+1)*Price[period-i]; Demon=Demon+Price[period-i]; end if Demon~=0. then Buff1[period]=-Num/Demon+(Length+1.)/2.; else Buff1[period]=0.; end Buff2[period]=Buff1[period-1]; end end`
Cyber cycle indicator:
Code: Select all `function Init() indicator:name(“Ehlers Cyber Cycle”); indicator:description(“Ehlers Cyber Cycle”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator); indicator.parameters:addDouble(“Alpha”, “Alpha”, “”, 0.07);
indicator.parameters:addColor(“clr_buff1”, “Color of Buff1”, “Color of Buff1”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“clr_buff2”, “Color of Buff2”, “Color of Buff2”, core.rgb(0, 128, 0)); end
local first; local source = nil; local Alpha; local Price; local Smooth; local Buff1=nil; local Buff2=nil;
function Prepare() source = instance.source; Alpha=instance.parameters.Alpha; Price = instance:addInternalStream(0, 0); Smooth = instance:addInternalStream(0, 0); first = source:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.Alpha .. “)”; instance:name(name); Buff1 = instance:addStream(“Buff1”, core.Line, name .. “.Buff1”, “Buff1”, instance.parameters.clr_buff1, first); Buff2 = instance:addStream(“Buff2”, core.Line, name .. “.Buff2”, “Buff2”, instance.parameters.clr_buff2, first); Buff1:addLevel(0); end
function Update(period, mode) Price[period]=(source.high[period]+source.low[period])/2.; if (period>first+4) then Smooth[period]=(Price[period]+2.Price[period-1]+2.Price[period-2]+Price[period-3])/6.; if period<first+8 then Buff1[period]=(Price[period]-2.Price[period-1]+Price[period-2])/4.; else Buff1[period]=(1.-0.5Alpha)(1.-0.5Alpha)(Smooth[period]-2.Smooth[period-1]+Smooth[period-2])+2.(1.-Alpha)Buff1[period-1]-(1.-Alpha)(1.-Alpha)Buff1[period-2]; end Buff2[period]=Buff1[period-1]; end end`
Ehlers_CG.lua based strategy. viewtopic.php?f=31&t=2420
Re: John Ehler’s indicators
Alexander.Gettinger · Fri Jun 04, 2010 2:05 am
TwoPole smoothes oscillator:
Code: Select all `function Init() indicator:name(“Ehlers TwoPole smoothes oscillator”); indicator:description(“Ehlers TwoPole smoothes oscillator”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator); indicator.parameters:addInteger(“CuttOff”, “CuttOff”, “”, 15); indicator.parameters:addDouble(“alpha”, “alpha”, “”, 0.15); indicator.parameters:addInteger(“shift”, “shift”, “”, 0);
indicator.parameters:addColor(“clr_Line”, “Color of Line”, “Color of Line”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“clr_buff1”, “Color of Buff1”, “Color of Buff1”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“clr_buff2”, “Color of Buff2”, “Color of Buff2”, core.rgb(0, 0, 255)); end
local first; local source = nil; local CuttOff; local alpha; local shift; local Buff1=nil; local Buff2=nil; local BuffLine=nil; local Ind;
function Prepare() source = instance.source; CuttOff=instance.parameters.CuttOff; alpha=instance.parameters.alpha; shift=instance.parameters.shift; Ind = core.indicators:create(“EHLERS_TWOPOLE_SMOOTHED_FILTER”, source, CuttOff); first = Ind.DATA:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.CuttOff .. “, “ .. instance.parameters.alpha .. “, “ .. instance.parameters.shift .. “)”; instance:name(name); Buff1 = instance:addStream(“Buff1”, core.Bar, name .. “.Buff1”, “Buff1”, instance.parameters.clr_buff1, first); Buff2 = instance:addStream(“Buff2”, core.Bar, name .. “.Buff2”, “Buff2”, instance.parameters.clr_buff2, first); BuffLine = instance:addStream(“BuffLine”, core.Line, name .. “.BuffLine”, “BuffLine”, instance.parameters.clr_Line, first); BuffLine:addLevel(0); end
function Update(period, mode) if (period>first) then Ind:update(mode); local Val=Ind.DATA[period]-Ind.DATA[period-1]; local Val1=Ind.DATA[period-1]-Ind.DATA[period-2]; local Val2=Ind.DATA[period-2]-Ind.DATA[period-3]; BuffLine[period]=(alpha-(alphaalpha/4.))Val+(alphaalpha/2.)Val1-(alpha-3.alphaalpha/4.)Val2+2.(1-alpha)BuffLine[period-1]-(1-alpha)(1-alpha)*BuffLine[period-2]; if BuffLine[period]<BuffLine[period-1] then Buff1[period]=BuffLine[period]; Buff2[period]=nil; else Buff1[period]=nil; Buff2[period]=BuffLine[period]; end end end`
TwoPole smoothes filter:
Code: Select all `function Init() indicator:name(“Ehlers TwoPole smoothes filter”); indicator:description(“Ehlers TwoPole smoothes filter”); indicator:requiredSource(core.Bar); indicator:type(core.Indicator); indicator.parameters:addInteger(“CuttOffPeriod”, “CuttOffPeriod”, “”, 15);
indicator.parameters:addColor(“clr_Line”, “Color of Line”, “Color of Line”, core.rgb(255, 0, 0)); end
local first; local source = nil; local CuttOffPeriod; local Price; local BuffLine=nil; local a1; local b1; local coeff1, coeff2, coeff3;
function Prepare() source = instance.source; CuttOffPeriod=instance.parameters.CuttOffPeriod; Price = instance:addInternalStream(0, 0); first = source:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.CuttOffPeriod .. “)”; instance:name(name); BuffLine = instance:addStream(“BuffLine”, core.Line, name .. “.BuffLine”, “BuffLine”, instance.parameters.clr_Line, first); a1=math.exp(-math.sqrt(2.)math.pi/CuttOffPeriod); b1=2.a1math.cos(math.pimath.sqrt(2.)/CuttOffPeriod); coeff2=b1; coeff3=-a1*a1; coeff1=1.-coeff2-coeff3; end
function Update(period, mode) Price[period]=(source.high[period]+source.low[period])/2.; if (period>first) then if period>first+4 then BuffLine[period]=coeff1Price[period]+coeff2BuffLine[period-1]+coeff3*BuffLine[period-2]; else BuffLine[period]=Price[period]; end end end`
Re: John Ehler’s indicators
RJH501 · Mon Aug 22, 2011 3:56 am
Hi Alexander,
Would you please add line style and line width to your Ehlers Two Pole indicator when you have time.
Thank you,
Richard
Re: John Ehler’s indicators
Apprentice · Mon Aug 22, 2011 12:59 pm
Request is added to our database.
Re: John Ehler’s indicators
Alexander.Gettinger · Mon Sep 05, 2011 11:35 am
In the indicators added line style and line width.
Download:
Ehlers_TwoPole_Smoothed_Oscillator.lua
Ehlers_TwoPole_Smoothed_Filter.lua
Re: John Ehler’s indicators
StefPasc · Mon Sep 23, 2013 6:52 am
Alexander.Gettinger wrote: In the indicators added line style and line width.
Download:
Ehlers_TwoPole_Smoothed_Oscillator.lua
Ehlers_CG.lua
Ehlers_Cyber_Cycle.lua
Ehlers_TwoPole_Smoothed_Filter.lua
Recently I am testing Ehlers Leading Indicator found from http://fxcodebase.com/code/viewtopic.php?f=17&t=27612&p=48291&hilit=Ehlers+Leading+Indicator#p48291 I have noticed that ELI can be applied not only to the price data but also to another indicator. Would this be possible also for the above 4 Ehlers indicators ? Current version of the above 4 indicators does not allow us to apply them on other indicators but only on price data. Thank you in advance
Re: John Ehler’s indicators
Apprentice · Mon Sep 23, 2013 7:23 am
Possibly, if you do not mind a small change in the original algorithm.
Re: John Ehler’s indicators
StefPasc · Mon Sep 23, 2013 7:58 am
Apprentice wrote: Possibly, if you do not mind a small change in the original algorithm.
Dear Apprentice thank you for your reply. I am not familiar with programming. Is it possible if you have some time to do this small change ? Thank you again
John Ehler’s indicators (Tick based versions)
Apprentice · Mon Sep 23, 2013 11:31 am

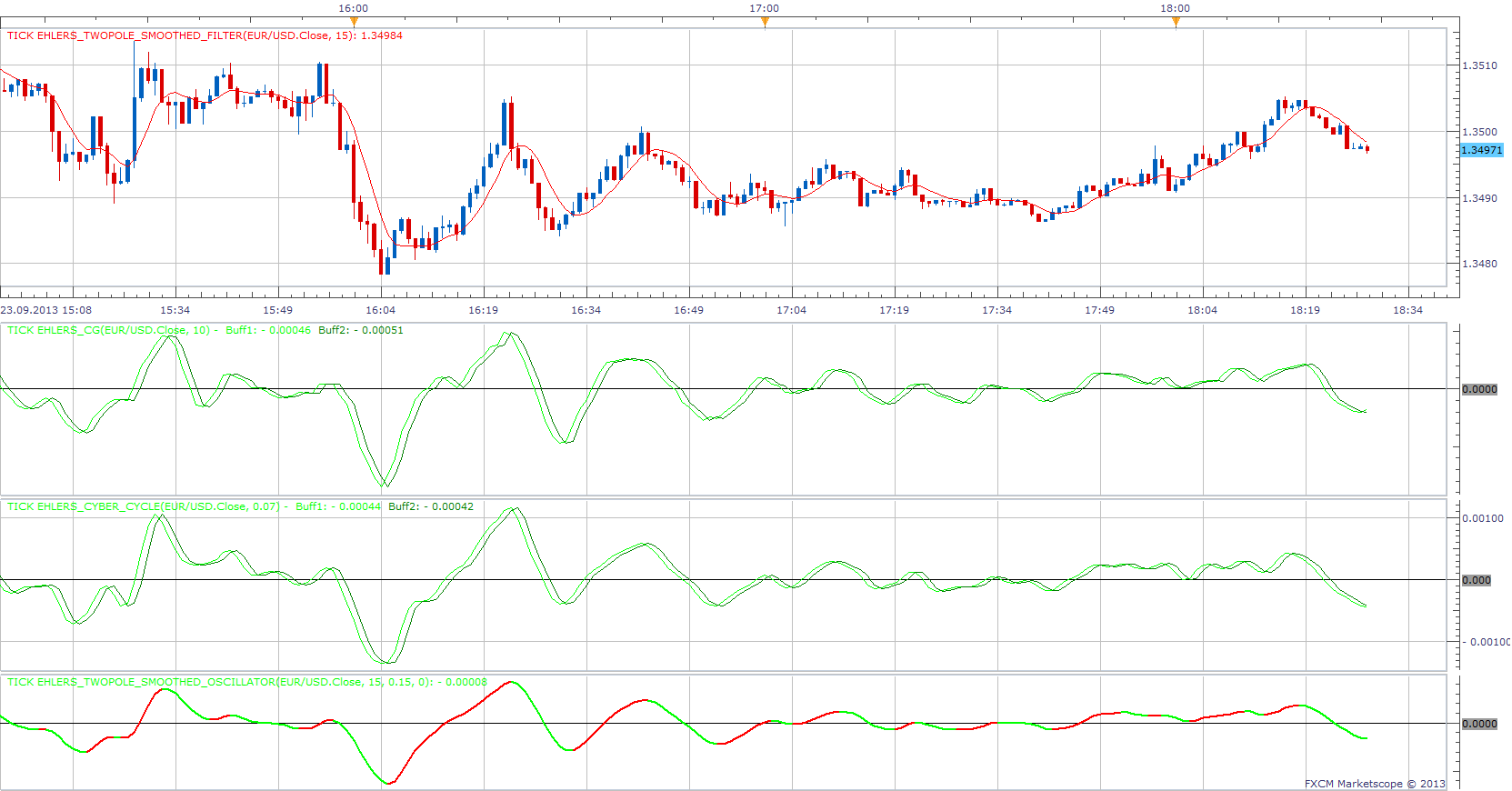

Try this Tick based versions.
Tick Ehlers_TwoPole_Smoothed_Filter.lua
Tick Ehlers_TwoPole_Smoothed_Oscillator.lua
Tick Ehlers TwoPole smoothes filter with Alert.lua
Tick Ehlers_TwoPole_Smoothed_Oscillator with Alert.lua
This indicator version will provides Audio / Email Alerts on Price/Tick Ehlers TwoPole smoothes filter cross.
Compatibility issue fixed. _Alert Helper is not longer needed.
Re: John Ehler’s indicators
StefPasc · Wed Sep 25, 2013 2:10 am
thank you Apprentice ! they work fine..
Re: John Ehler’s indicators
Apprentice · Tue Oct 22, 2013 6:40 am
Tick Ehlers TwoPole smoothes filter with Alert added.
Re: John Ehler’s indicators
StefPasc · Sun Nov 17, 2013 11:29 am
Dear Apprentice,
would it be possible to have an Alert when Tick Ehlers_TwoPole_Smoothed_Oscillator crosses zero line ? This will help me a lot when following different pairs on Trade Station. Thank you in advance
Re: John Ehler’s indicators
Apprentice · Mon Nov 18, 2013 6:12 am
Tick Ehlers_TwoPole_Smoothed_Oscillator with Alert Added.
Re: John Ehler’s indicators
StefPasc · Mon Nov 18, 2013 7:45 am
thank you very much Apprentice
Re: John Ehler’s indicators
Apprentice · Thu Dec 10, 2015 3:26 pm
Compatibility issue fixed. _Alert Helper is not longer needed.
Re: John Ehler’s indicators
Apprentice · Thu Jul 12, 2018 7:45 am
The indicator was revised and updated.
