Alexander.Gettinger · Sun Oct 17, 2010 3:24 pm
ng, apprentice: The indicator has been updated Mar, 29 2011. Please update the older version!!! Nothing is changed in algorithms except fixing SMMA and T3 methods which were wrong, but the calculations are highly optimized. This is extremely important if you are going to use this indicator and strategies based on this indicator in sdk 2.0 backtester and parameters optimizer. See in the end of this post for performance comparison.

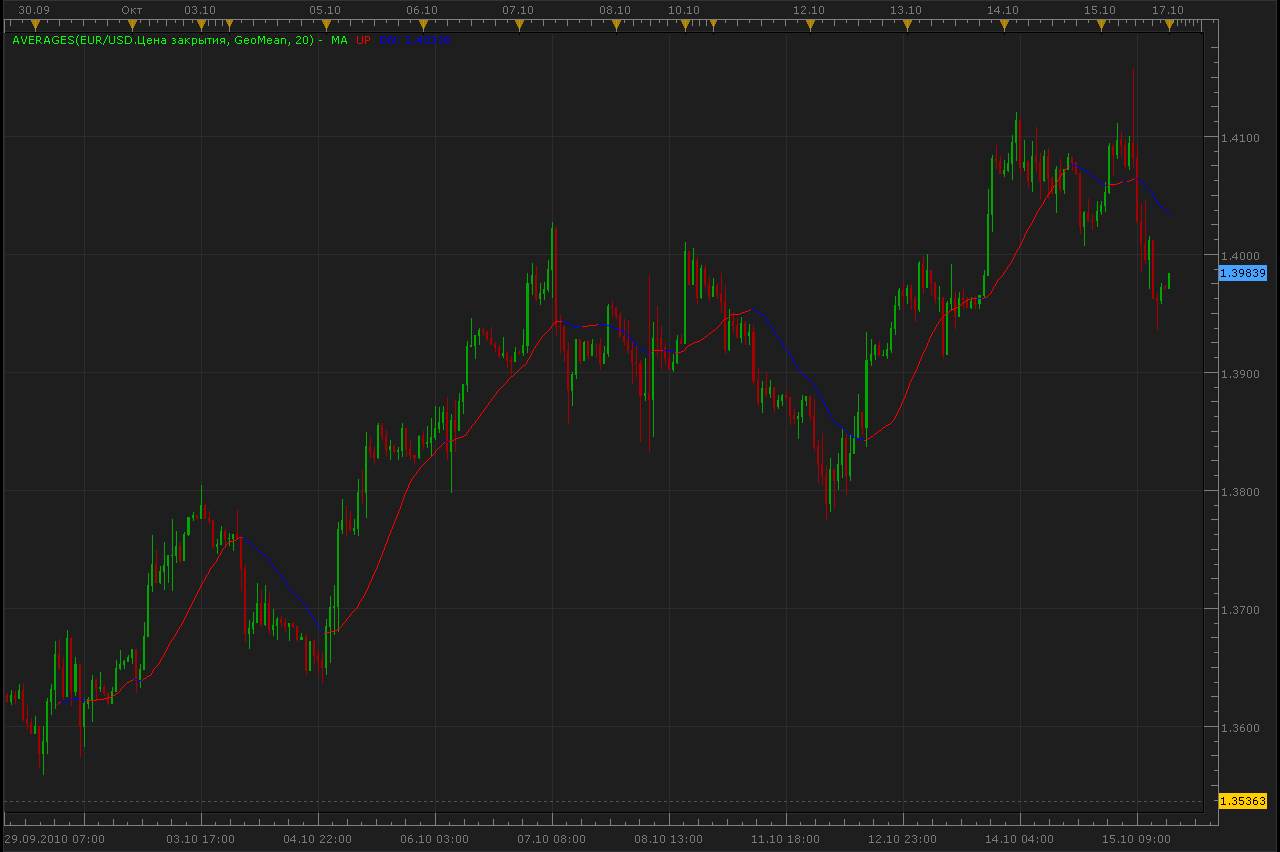

This indicator is a collection of moving averages.
MVA - Simple Moving Average MVA[i]=(Price[i]+Price[i-1]+…+Price[i-N])/N, where N-period
EMA - Exponential Moving Average EMA[i]=EMA[i-1]+2*(Price[i]-EMA[i-1])/(1+N)
Wilder - Wilder Exponential Moving Average Wilder[i]=Wilder[i-1]+(Price[i]-Wilder[i-1])/N
LWMA - Linear Weighted Moving Average LWMA[i]=Sum/Weight, where Sum=Price[i]N+Price[i-1](N-1)+…+Price[i-N+1](1), Weight=N+(N-1)+…+1=N(N+1)/2.
SineWMA - Sine Weighted Moving Average SineWMA[i]=Sum/Weight, where Sum=Price[i-N+1]sin(PI(N)/(N+1))+Price[i-N+2]sin(PI(N-1)/(N+1))+…+Price[i]sin(PI1/(N+1)) Weight= sin(PI(N)/(N+1))+ sin(PI(N-1)/(N+1))+…+ sin(PI*1/(N+1)).
TriMA - Triangular Moving Average TriMA[i]=(MVA(i,len)+MVA(i-1,len)+…+MVA(i-len+1,len))/len, where MVA(i,N) – Simple Moving Average, len=(N+1)/2.
LSMA - Least Square Moving Average LSMA[i]=Sum/(N(N+1)), where Sum=(1-(N+1)/3)Price[i-N+1]+(2-(N+1)/3)Price[i-N+2]+…+(N-(N+1)/3)Price[1].
SMMA - Smoothed Moving Average SMMA[i]=(Sum-SMMA[i-1]+Price[i])/N, where Sum=Price[i-1]+Price[i-2]+…+Price[i-N].
HMA - Hull Moving Average by Alan Hull HMA[i]=LWMA(i,len,(2*LWMA(i,N/2,Price)-LWMA(i,N,Price))), where len=Sqrt(N), LWMA(i,N,Price) - Linear Weighted Moving Average
ZeroLagEMA - Zero-Lag Exponential Moving Average ZeroLagEMA[i]=Alpha(2Price[i]-Price[i-lag])+(1-Alpha)* ZeroLagEMA[i-1], where Alpha=2/(N+1), Lag=(N-1)/2.
DEMA - Double Exponential Moving Average by Patrick Mulloy DEMA[i]=2D1[i]-D2[i], where D1[i]=D1[i-1]+2(Price[i]-D1[i-1])/(1+N), D2[i]=D2[i-1]+2*(D1[i]-D2[i-1])/(1+N).
T3 - T3 by T.Tillson T3[i]=DEMA(i,DEMA2), where DEMA2[i]=DEMA(i,DEMA1), DEMA1[i]=DEMA(i,Price), DEMA - Double Exponential Moving Average
ITrend - Instantaneous Trendline by J.Ehlers ITrend[i]=(Price[i]+2Price[i-1]+Price[i-2])/4 for i<=7, ITrend[i]=(Alpha-0.25AlphaAlpha)Price[i]+0.5AlphaAlphaPrice[i-1]-(Alpha-0.75AlphaAlpha)Price[i-2]+2(1-Alpha)ITrend[i-1]-(1-Alpha)(1-Alpha)ITrend[i-2] for i>7, where Alpha=2/(N+1)
Median - Moving Median Set of the prices (Price[i], Price[i-1], …, Price[i-N]) is sorted (on increase or decrease) and take value from of the set (N/2).
GeoMean - Geometric Mean GeoMean[i]=Price[i]^(1/N)Price[i-1]^(1/N)…*Price[i-N+1]^(1/N).
REMA - Regularized EMA by Chris Satchwell REMA[i]=(REMA[i-1](1+2Lambda)+Alpha(Price[i]-REMA[i-1])-LambdaREMA[i-2])/(1+Lambda), where Alpha=2/(N+1), Lambda=0.5.
ILRS - Integral of Linear Regression Slope ILRS[i]=(NSum1-SumSumy)/(SumSum-NSum2)+MVA(I,N), where Sum=N(N-1)0.5, Sum2=N(N-1)(2N-1)/6, Sum1=1Price[i-1]+2Price[i-2]+…+(N-1)Price[i-N+1], Sumy=Price[i]+Price[i-1]+…+Price[i-N+1], MVA(i,N) – Simple Moving Average.
IE/2 - Combination of LSMA and ILRS IE/2=(ILRS+LSMA)/2
TriMAgen - Triangular Moving Average generalized by J.Ehlers TriMAgen[i]=Sum/(len+1), where Sum=MVA(i,len)+MVA(i-1,len)+…+MVA(i-len,len), where MVA(i,N) – Simple Moving Average, len=(N+1)/2.
JSmooth - Smoothing by Mark Jurik JSmooth[i]=J5[i], where J5[i]=J5[i-1]+J4[i], J4[i]=(J3[i]-J5[i-1])(1-Alpha)(1-Alpha)+J4[i-1]AlphaAlpha, J3[i]=J1[i]+J2[i], J2[i]=(Price[i]-J1[i])(1-Alpha)+J2[i-1]Alpha, J1[i]=Price[i](1-Alpha)+J1[i-1]Alpha, Alpha=0.45N/(0.45(N-1)+2).

Code: Select all `function Init() indicator:name(“Averages indicator”); indicator:description(“Averages indicator”); indicator:requiredSource(core.Tick); indicator:type(core.Indicator);
indicator.parameters:addGroup(“Calculation”); indicator.parameters:addString(“Method”, “Method”, “”, “MVA”); indicator.parameters:addStringAlternative(“Method”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“Method”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“Method”, “Wilder”, “”, “Wilder”); indicator.parameters:addStringAlternative(“Method”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“Method”, “SineWMA”, “”, “SineWMA”); indicator.parameters:addStringAlternative(“Method”, “TriMA”, “”, “TriMA”); indicator.parameters:addStringAlternative(“Method”, “LSMA”, “”, “LSMA”); indicator.parameters:addStringAlternative(“Method”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“Method”, “HMA”, “”, “HMA”); indicator.parameters:addStringAlternative(“Method”, “ZeroLagEMA”, “”, “ZeroLagEMA”); indicator.parameters:addStringAlternative(“Method”, “DEMA”, “”, “DEMA”); indicator.parameters:addStringAlternative(“Method”, “T3”, “”, “T3”); indicator.parameters:addStringAlternative(“Method”, “ITrend”, “”, “ITrend”); indicator.parameters:addStringAlternative(“Method”, “Median”, “”, “Median”); indicator.parameters:addStringAlternative(“Method”, “GeoMean”, “”, “GeoMean”); indicator.parameters:addStringAlternative(“Method”, “REMA”, “”, “REMA”); indicator.parameters:addStringAlternative(“Method”, “ILRS”, “”, “ILRS”); indicator.parameters:addStringAlternative(“Method”, “IE/2”, “”, “IE/2”); indicator.parameters:addStringAlternative(“Method”, “TriMAgen”, “”, “TriMAgen”); indicator.parameters:addStringAlternative(“Method”, “JSmooth”, “”, “JSmooth”);
indicator.parameters:addInteger(“Period”, “Period”, “”, 20); indicator.parameters:addBoolean(“ColorMode”, “ColorMode”, “”, true);
indicator.parameters:addGroup(“Style”); indicator.parameters:addColor(“MainClr”, “Main color”, “Main color”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“UPclr”, “UP color”, “UP color”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“DNclr”, “DN color”, “DN color”, core.rgb(0, 0, 255)); indicator.parameters:addInteger(“widthLinReg”, “Line width”, “Line width”, 1, 1, 5); indicator.parameters:addInteger(“styleLinReg”, “Line style”, “Line style”, core.LINE_SOLID); indicator.parameters:setFlag(“styleLinReg”, core.FLAG_LINE_STYLE); end
local first; local MainBuff = nil; local ColorMode, UPclr, DNclr; local updateParams; local UpdateFunction; local name;
function Prepare(onlyName) source = instance.source; local Method = instance.parameters.Method;
if Method == “IE/2” then Method = “IE_2”; end
Period = instance.parameters.Period; ColorMode = instance.parameters.ColorMode;
if _G[Method .. “Init”] == nil or _G[Method .. “Update”] == nil then assert(false, “The method “ .. Method .. “ is unknown”); end
name = profile:id() .. “(“ .. source:name() .. “,” .. instance.parameters.Method .. “,” .. Period .. “)”; instance:name(name); if onlyName then return ; end
ColorMode = instance.parameters.ColorMode; UPclr = instance.parameters.UPclr; DNclr = instance.parameters.DNclr;
updateParams = _GMethod .. “Init”; UpdateFunction = _G[Method .. “Update”];
MainBuff = instance:addStream(“MainBuff”, core.Line, name .. “.MA”, “MA”, instance.parameters.MainClr, updateParams.first); MainBuff:setWidth(instance.parameters.widthLinReg); MainBuff:setStyle(instance.parameters.styleLinReg);
first = updateParams.first; updateParams.buffer = MainBuff; end
function Update(period, mode) if period >= first then UpdateFunction(updateParams, period, mode); if ColorMode then if MainBuff[period] > MainBuff[period - 1] then MainBuff:setColor(period, UPclr); elseif MainBuff[period] < MainBuff[period - 1] then MainBuff:setColor(period, DNclr); end end end end
– ============================================================================= – Implementations – =============================================================================
– – Simple moving average – function MVAInit(source, n) local p = {}; p.first = source:first() + n - 1; p.n = n; p.offset = n - 1; p.source = source; return p; end
function MVAUpdate(params, period, mode) params.buffer[period] = mathex.avg(params.source, period - params.offset, period); end
– – Exponential moving average – function EMAInit(source, n) local p = {}; p.first = source:first(); p.k = 2.0 / (n + 1.0); p.source = source; return p; end
function EMAUpdate(params, period, mode) if period == params.first then params.buffer[period] = params.source[period]; else params.buffer[period] = (1 - params.k) * params.buffer[period - 1] + params.k * params.source[period]; end end
– – Linear-weighted moving average – function LWMAInit(source, n) local p = {}; p.first = source:first() + n - 1; p.n = n; p.offset = n - 1; p.source = source; return p; end
function LWMAUpdate(params, period, mode) params.buffer[period] = mathex.lwma(params.source, period - params.offset, period); end
– – Wilders smooting average – function WilderInit(source, n) local p = {}; p.n = n; p.n1 = 2 * n - 1; p.k = 2.0 / (p.n1 + 1.0); p.first = source:first() + p.n1 - 1; p.source = source; return p; end
function WilderUpdate(params, period, mode) if period == params.first then params.buffer[period] = mathex.avg(source, period - params.n + 1, period); else params.buffer[period] = ((params.source[period] - params.buffer[period - 1]) * params.k) + params.buffer[period - 1]; end end
– – SMMA (smoothed moving average) – function SMMAInit(source, n) local p = {}; p.first = source:first() + n - 1; p.n = n; p.source = source; return p; end
function SMMAUpdate(params, period, mode) if period == params.first then params.buffer[period] = mathex.avg(params.source, period - params.n + 1, period); else params.buffer[period] = (params.buffer[period - 1] * (params.n - 1) + params.source[period]) / params.n; end end
– – GeoMean – function GeoMeanInit(source, n) local p = {}; p.first = source:first() + n - 1; p.n = n; p.exp = 1 / n; p.offset = n - 1; p.source = source; return p; end
function GeoMeanUpdate(params, period, mode) local i, s, src; s = 1; src = params.source; for i = period - params.offset, period, 1 do s = s * src[i]; end params.buffer[period] = math.pow(s, params.exp); end
– – SineWMA: Sine weighted moving average – function SineWMAInit(source, n) local p = {}; p.source = source; p.n = n; p.offset = n - 1; p.sine = {}; p.first = source:first() + n - 1;
local i, w; w = 0; for i = 1, n, 1 do p.sine[i] = math.sin(math.pi * (n - i + 1) / (n + 1)); w = w + p.sine[i]; end
p.weight = w; p.alwaysZero = (w == 0);
return p; end
function SineWMAUpdate(params, period, mode) local sum = 0; if not params.alwaysZero then local src = params.source; local sine = params.sine; local n = params.n; local p = period - n; for i = 1, n, 1 do sum = sum + src[p + i] * sine[i]; end sum = sum / params.weight; end params.buffer[period] = sum; end
– – TriMA: Triangular Moving Average – function TriMAInit(source, n) local p = {}; p.source = source; p.n = n; p.len = math.ceil((n + 1) / 2); p.first1 = source:first() + p.len - 1; p.mabuffer = instance:addInternalStream(p.first1, 0); p.first = p.first1 + p.len - 1; p.offset = p.len - 1; return p; end
function TriMAUpdate(params, period, mode) local off = params.offset; if period == params.first then – fill sma’s before the first value local i; for i = params.first1, params.first, 1 do params.mabuffer[i] = mathex.avg(params.source, i - off, i); end else params.mabuffer[period] = mathex.avg(params.source, period - off, period); end params.buffer[period] = mathex.avg(params.mabuffer, period - off, period); end
– – LSMA: Least Square Moving Average (or EPMA, Linear Regression Line) – function LSMAInit(source, n) local p = {}; p.source = source; p.n = n; p.offset = p.n - 1; p.first = source:first() + n - 1; return p; end
function LSMAUpdate(params, period, mode) params.buffer[period] = mathex.lreg(params.source, period - params.offset, period); end
– – HMA: Hull Moving Average by Alan Hull – function HMAInit(source, n) assert(n >= 4, “n must be at least 4”); local p = {}; p.source = source; p.n = n; p.len = n; p.halflen = math.max(math.floor(p.len / 2), 1);
p.first1 = source:first() + p.halflen - 1; p.lwma1 = instance:addInternalStream(p.first1, 0);
p.first2 = source:first() + p.len - 1; p.lwma2 = instance:addInternalStream(p.first2, 0);
p.first3 = math.max(p.first1, p.first2); p.tmp = instance:addInternalStream(p.first3, 0);
p.len1 = math.max(math.floor(math.sqrt(n)), 1) - 1; p.first = p.first3 + p.len1 - 1; return p; end
function HMAUpdate(params, period, mode) if period == params.first then local i; local src = params.source;
for i = params.first1, period, 1 do params.lwma1[i] = mathex.lwma(params.source, i - params.halflen + 1, i); end
for i = params.first2, period, 1 do params.lwma2[i] = mathex.lwma(params.source, i - params.len + 1, i); end
for i = params.first3, period, 1 do params.tmp[i] = 2 * params.lwma1[i] - params.lwma2[i]; end else params.lwma1[period] = mathex.lwma(params.source, period - params.halflen + 1, period); params.lwma2[period] = mathex.lwma(params.source, period - params.len + 1, period); params.tmp[period] = 2 * params.lwma1[period] - params.lwma2[period]; end params.buffer[period] = mathex.lwma(params.tmp, period - params.len1 + 1, period); end
– – Zero-lag EMA – function ZeroLagEMAInit(source, n) local p = {}; p.alpha = 2.0 / (n + 1.0); p.lag = math.ceil((n - 1) / 2); p.first = source:first() + p.lag; p.source = source; return p; end
function ZeroLagEMAUpdate(params, period, mode) if period == params.first then params.buffer[period] = params.source[period]; else params.buffer[period] = params.alpha * (2 * params.source[period] - params.source[period - params.lag]) + (1 - params.alpha) * params.buffer[period - 1]; end end
– – DEMA: Double Exponential Moving Average (DEMA) – DEMA(n) = 2 * EMA(n) - EMA(EMA(n), n) – function DEMAInit(source, n) local p = {}; p.first = source:first(); p.k = 2.0 / (n + 1.0); p.ema = instance:addInternalStream(p.first, 0); p.ema2 = instance:addInternalStream(p.first, 0); p.source = source; return p; end
function DEMAUpdate(params, period, mode) if period == params.first then params.ema[period] = params.source[period]; params.ema2[period] = params.source[period]; params.buffer[period] = params.source[period]; else local ema, ema2, k, k1; ema = params.ema; ema2 = params.ema2; k = params.k; k1 = 1 - params.k;
ema[period] = k1 * ema[period - 1] + k * params.source[period]; ema2[period] = k1 * ema2[period - 1] + k * ema[period]; params.buffer[period] = 2 * ema[period] - ema2[period]; end end
– – T3: T3 by T.Tillson – T3 = DEMA(DEMA(DEMA))) – function T3Init(source, n) local p = {};
p.dema1 = DEMAInit(source, n); p.dema1.buffer = instance:addInternalStream(p.dema1.first, 0); p.dema2 = DEMAInit(p.dema1.buffer, n); p.dema2.buffer = instance:addInternalStream(p.dema2.first, 0); p.dema3 = DEMAInit(p.dema2.buffer, n); p.dema3.buffer = nil; p.first = p.dema3.first; return p; end
function T3Update(params, period, mode) if params.dema3.buffer == nil then params.dema3.buffer = params.buffer; end DEMAUpdate(params.dema1, period, mode); DEMAUpdate(params.dema2, period, mode); DEMAUpdate(params.dema3, period, mode); end
– – ITrend – function ITrendInit(source, n) local p = {}, alpha; p.first = source:first() + 2; p.first7 = p.first + 7;
alpha = 2.0 / (n + 1.0); p.k = alpha; p.k1 = (alpha - alpha * alpha / 4); p.k2 = 0.5 * alpha * alpha; p.k3 = (alpha - 0.75 * alpha * alpha); p.k4 = 2 * (1 - alpha); p.k5 = (1 - alpha) * (1 - alpha); p.source = source; return p; end
function ITrendUpdate(params, period, mode) local src = params.source; if period <= params.first7 then params.buffer[period] = (src[period] + 2 * src[period - 1] + src[period - 2]) / 4; else params.buffer[period] = params.k1 * src[period] + params.k2 * src[period - 1] - params.k3 * src[period - 2] + params.k4 * params.buffer[period - 1] - params.k5 * params.buffer[period - 2]; end end
– – Median: the floating median – function MedianInit(source, n) local p = {}; p.source = source; p.first = source:first() + n - 1; p.middle = math.ceil((n - 1) / 2); if p.middle * 2 == (n - 1) then p.even = true; else p.even = false; end p.array = {}; p.n = n; local i = 1, n, 1 do p.array[i] = 0; end return p; end
function MedianUpdate(params, period, mode) local i, arr, n, src; arr = params.array; n = params.n; src = params.source; for i = 1, n, 1 do arr[i] = src[period - n + i]; end table.sort(arr); if params.even then params.buffer[period] = arr[params.middle]; else params.buffer[period] = (arr[params.middle] + arr[params.middle + 1]) / 2; end end
– – REMA - Regularized moving average – Rp + alpha(close - Rp) + lambda(Rp + (Rp-Rpp)) – REMA = ———————————————— – 1 + lambda – Lamda is 0.5 – function REMAInit(source, n) local p = {}; p.first = source:first(); p.first3 = source:first() + 2; p.k = 2.0 / (n + 1.0); p.source = source; return p; end
function REMAUpdate(params, period, mode) if period <= params.first3 then params.buffer[period] = params.source[period]; else local rp = params.buffer[period - 1]; local rpp = params.buffer[period - 2]; params.buffer[period] = (params.k * params.source[period] + (1 - params.k) * rp + 0.5 * (2 * rp - rpp)) / 1.5; end end
– – ILRS: Integral of Linear Regression Slope – ILRS = LINEARREGSLOPE(PRICE, PERIOD) + AVERAGE(PRICE, PERIOD); – function ILRSInit(source, n) local p = {}; p.source = source; p.n = n; p.offset = p.n - 1; p.first = source:first() + n - 1; return p; end
function ILRSUpdate(params, period, mode) local from = period - params.offset; params.buffer[period] = mathex.lregSlope(params.source, from, period) + mathex.avg(params.source, from, period); end
– – IE/2: – IE/2 = (ILRS + LSMA) / 2 – function IE_2Init(source, n) local p = {}; p.source = source; p.n = n; p.offset = p.n - 1; p.first = source:first() + n - 1; return p; end
function IE_2Update(params, period, mode) local from = period - params.offset; params.buffer[period] = (mathex.lregSlope(params.source, from, period) + mathex.avg(params.source, from, period) + mathex.lreg(params.source, from, period)) / 2; end
– – TriMA: Triangular Moving Average generalized – function TriMAgenInit(source, n) local p = {}; p.source = source; p.n = n; p.len = math.floor((n + 1) / 2); p.len2 = math.ceil((n + 1) / 2); p.first1 = source:first() + p.len - 1; p.mabuffer = instance:addInternalStream(p.first1, 0); p.first = p.first1 + p.len2 - 1; p.offset = p.len - 1; p.offset2 = p.len2 - 1; return p; end
function TriMAgenUpdate(params, period, mode) local off = params.offset; if period == params.first then – fill sma’s before the first value local i; for i = params.first1, params.first, 1 do params.mabuffer[i] = mathex.avg(params.source, i - off, i); end else params.mabuffer[period] = mathex.avg(params.source, period - off, period); end params.buffer[period] = mathex.avg(params.mabuffer, period - params.offset2, period); end
– – JSmooth – – function JSmoothInit(source, n) local p = {}; p.first = source:first(); p.first3 = source:first() + 3; p.alpha = 0.45 * (n - 1) / (0.45 * (n - 1) + 2); p.alpha1 = 1 - p.alpha; p.alpha1_2 = math.pow((1 - p.alpha), 2); p.alpha_2 = math.pow(p.alpha, 2) p.a1 = instance:addInternalStream(source:first(), 0); p.a2 = instance:addInternalStream(source:first(), 0); p.a3 = instance:addInternalStream(source:first(), 0); p.a4 = instance:addInternalStream(source:first(), 0); p.source = source; return p; end
function JSmoothUpdate(params, period, mode) if period < params.first3 then params.a1[period] = params.source[period]; params.a2[period] = 0; params.a3[period] = params.source[period]; params.a4[period] = 0; params.buffer[period] = params.source[period]; else local price = params.source[period]; params.a1[period] = params.alpha1 * price + params.alpha * params.a1[period - 1]; params.a2[period] = (price - params.a1[period]) * params.alpha1 + params.alpha * params.a2[period - 1]; params.a3[period] = params.a1[period] + params.a2[period]; params.a4[period] = (params.a3[period] - params.buffer[period - 1]) * params.alpha1_2 + params.alpha_2 * params.a4[period - 1]; params.buffer[period] = params.buffer[period - 1] + params.a4[period]; end end`

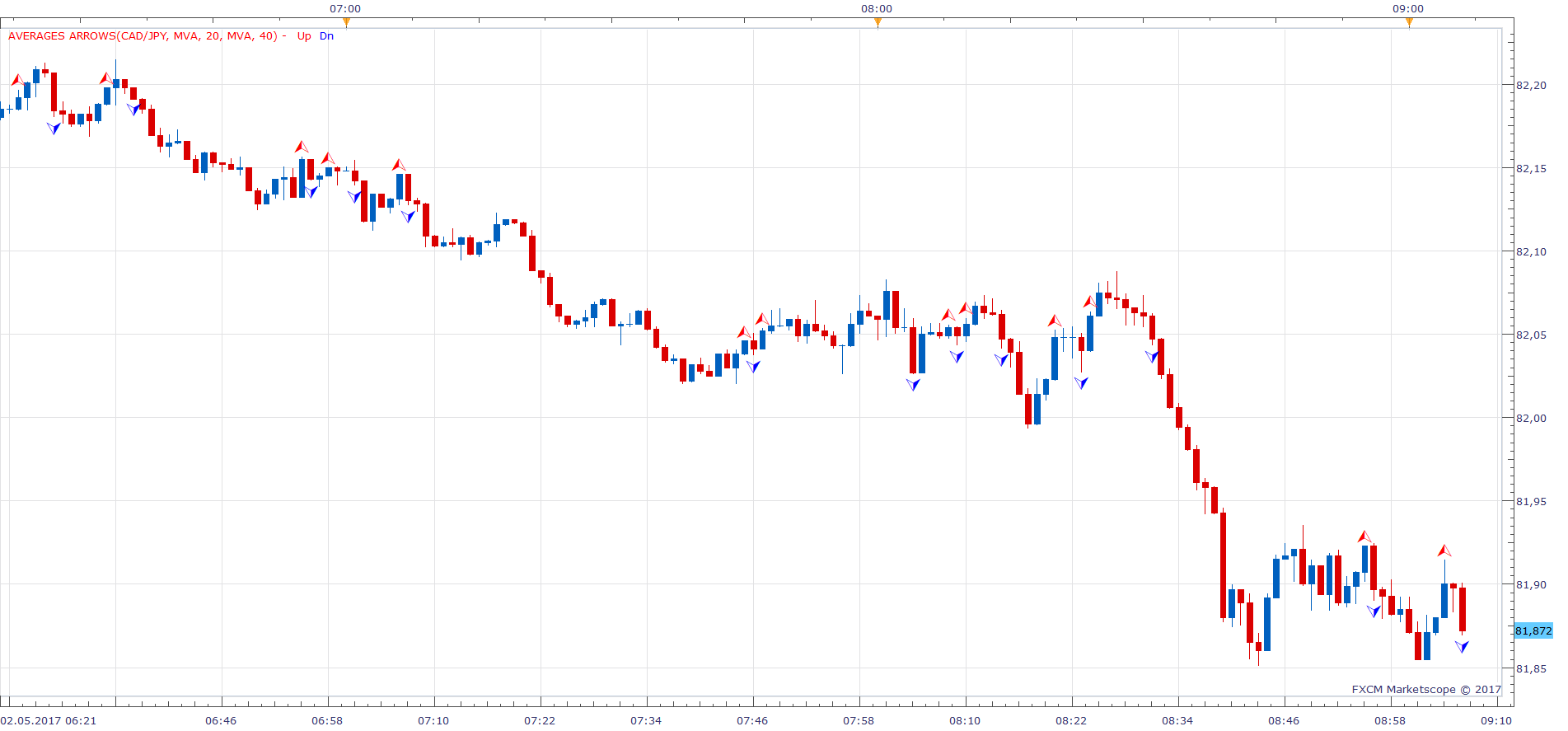

This indicator will provides Audio / Email Alerts on Averages slope change.
Dec 14, 2015: Compatibility issue Fixed. _Alert helper is not longer needed.
If you want to use updated version of this indicator, please make sure to use TS Version 01.14.101415. or higher.

Averages Update. In addition to improving performance, Some algorithms are changed, or corrected.
Fully compatible with the old version.
Please note that some of methods are faster than another. To compare please use the chart below. The hight bar means the faster method (the data is for the optimized version and indicore 1.0):

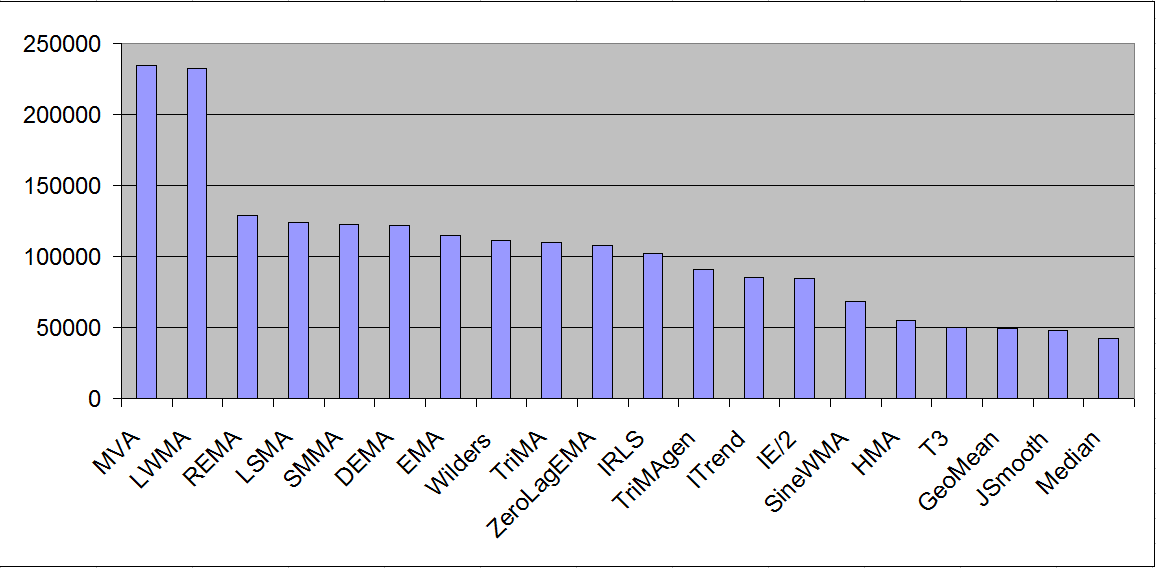

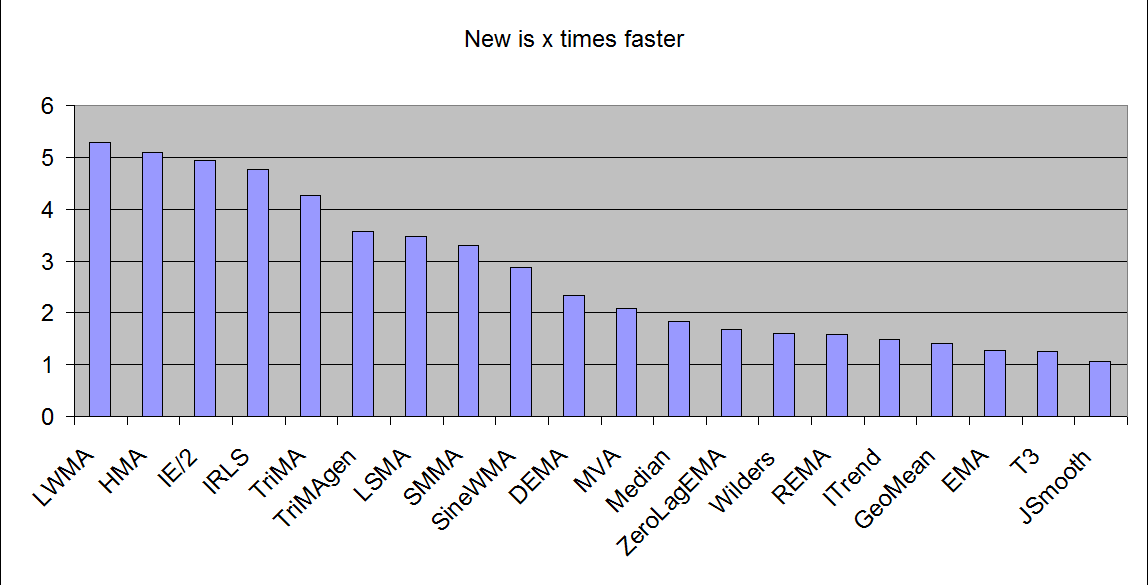

Just to reference here is the comparison of performance of old and new version of the indicator. The higher bar means better performance improvements:

To read how such improvements was made please refer this article: viewtopic.php?f=28&t=3785&start=0
p.s. The original indicator indicator, as far as I see is made on the base of MA_AllAverages indicator by Copyright © 2007-08, TrendLaboratory: http://desynced.no-ip.org/fx/eas/mq4script-2829.php
Old version. For the new version see above.

AveragesNonStandardTimeframe.lua
MT4/MQ4 version. viewtopic.php?f=38&t=66535
sedraude · Sun Oct 17, 2010 10:33 pm
Hi Alexander,
Thank you for your great indi…
Nikolay.Gekht · Mon Oct 18, 2010 9:28 am
great idea!
Alexander.Gettinger · Sun Oct 24, 2010 10:19 am
Thank you!
smartfx · Mon Nov 01, 2010 2:40 am
It’s really precious work! Thank you so much for this indicator!
If it is possible could be made MACD, which has options of choice of those 20 different moving averages? Hope it would be possible, and I am sure it would benefit all of us.
Thank you again!
Apprentice · Mon Nov 01, 2010 5:37 am
Requested can be found here. viewtopic.php?f=17&t=2564&p=5712#p5712
Alexander.Gettinger · Thu Dec 09, 2010 4:11 am

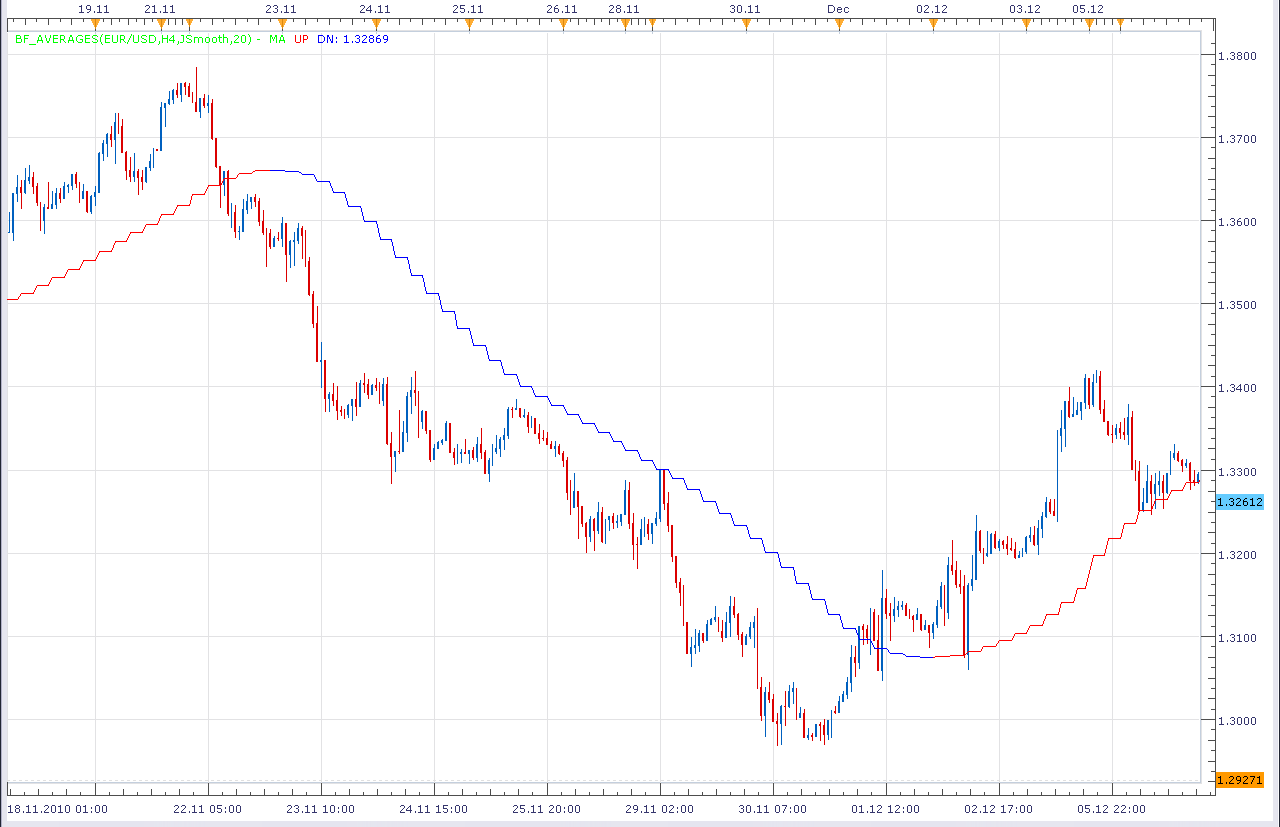

Bigger timeframe version of Averages indicator.

Download:
Alexander.Gettinger · Fri Dec 10, 2010 12:00 am

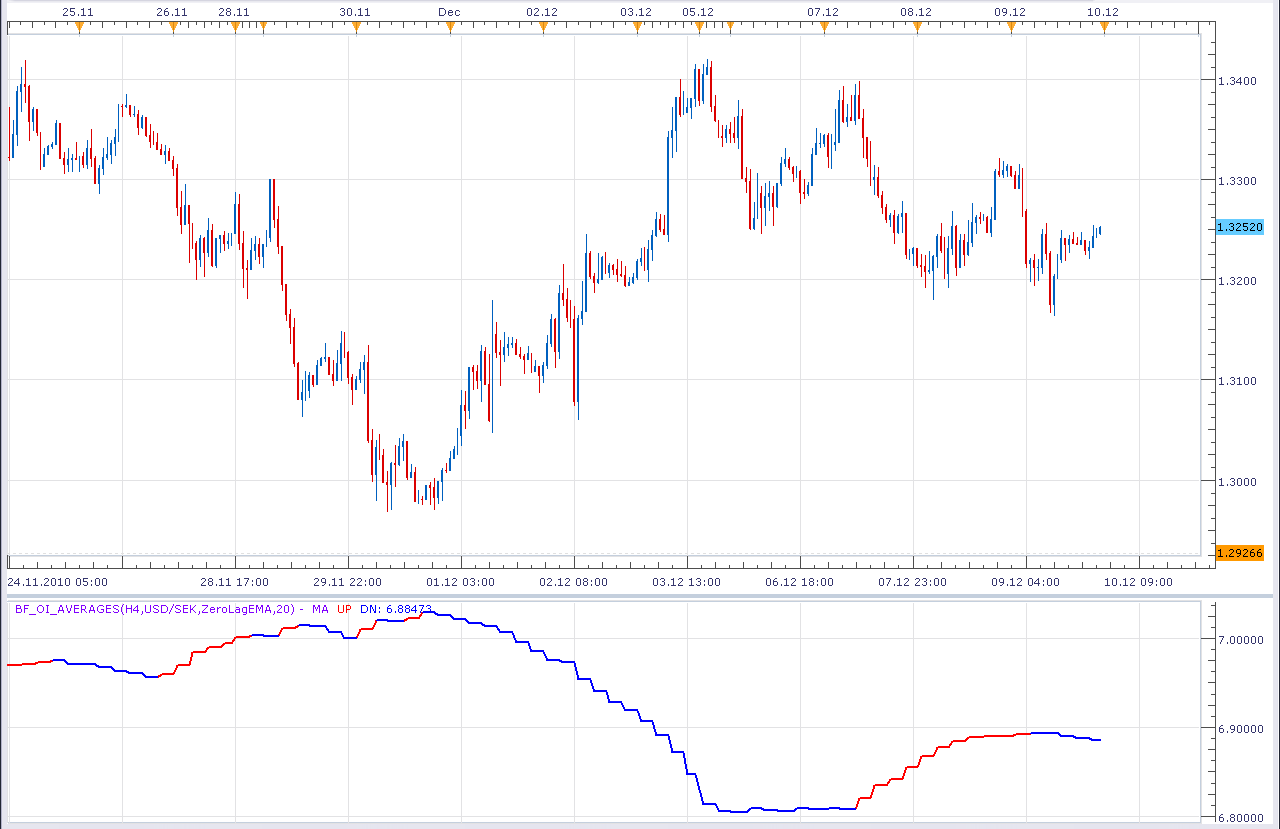

Bigger timeframe and other instrument version of Averages indicator.
For example MA for USD/SEK H4 on EUR/USD H1 chart:

Download:
For this indicator must be installed Averages indicator from top of this topic.
spinemaligna · Sun Jan 02, 2011 11:49 am
Not sure if this is the correct place for this post but here goes. Is it possible to trace a second plot above or below an MA off set by a variable number of pips. What I am trying to achieve is a plot to show how a trailing stop would perform so the offset would be the trailing stop and the Fast MA tracks the price.
Thanks, Ross
Apprentice · Sun Jan 02, 2011 3:05 pm
Something Like this. viewtopic.php?f=17&t=1434&p=3155&hilit=trailing+stop#p3155
But instead of percentage or ATR, that you can set a specific value in the PIPS.
Otherwise a better place to give requests of this type is Indicator and Signal Requests section. viewforum.php?f=27
spinemaligna · Sun Jan 02, 2011 3:59 pm

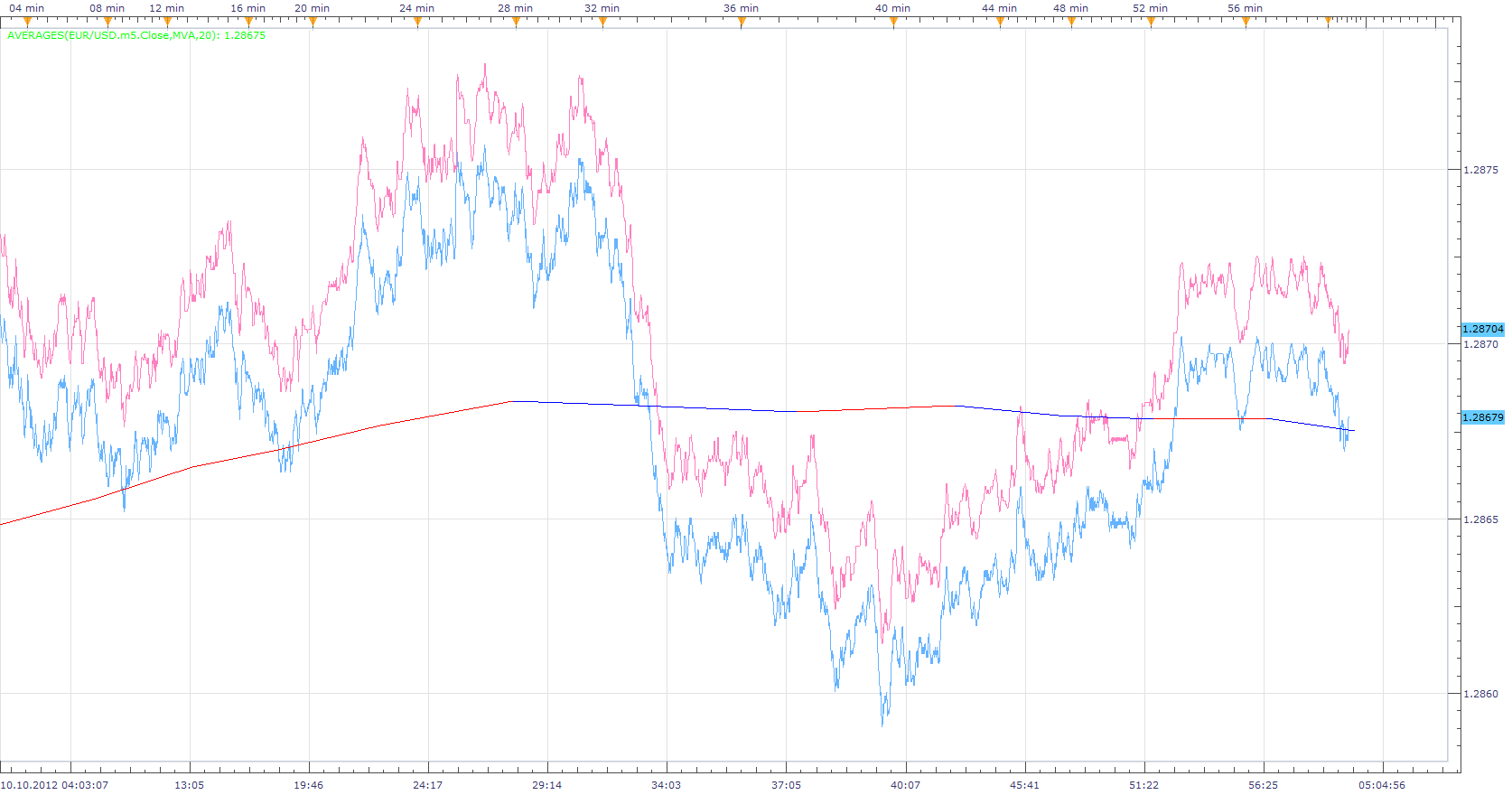

This is something like what I was looking for. So for instance you could select a fast MA (which is closely following price) and select trailing stop figures to compare their performance. Hope this makes sense. p.s. Wasn’t sure what ATR is.
Ross
Apprentice · Mon Jan 03, 2011 10:24 am
When calculating Trailing stop as the initial value we use the current Average True Range (ATR) value.
You can try TickTS.lua, you can find it here. viewtopic.php?f=17&t=1434&p=3150#p3150
As a source for TickTS choose moving average which you want to use.
Apprentice · Wed Mar 30, 2011 4:50 am
Averages Update.
In addition to improving performance, Some algorithms are changed, or corrected.
Fully compatible with the old version was held.
Nikolay.Gekht · Wed Mar 30, 2011 1:34 pm
Updated: Please read the first post for details.
abrown8703 · Wed Mar 30, 2011 3:41 pm
Thanks for this excellent indicator! Personally, my trading has improved significantly with this indicator as part my core strategy. Thanks Again!
sunshine · Sat Apr 23, 2011 10:23 am

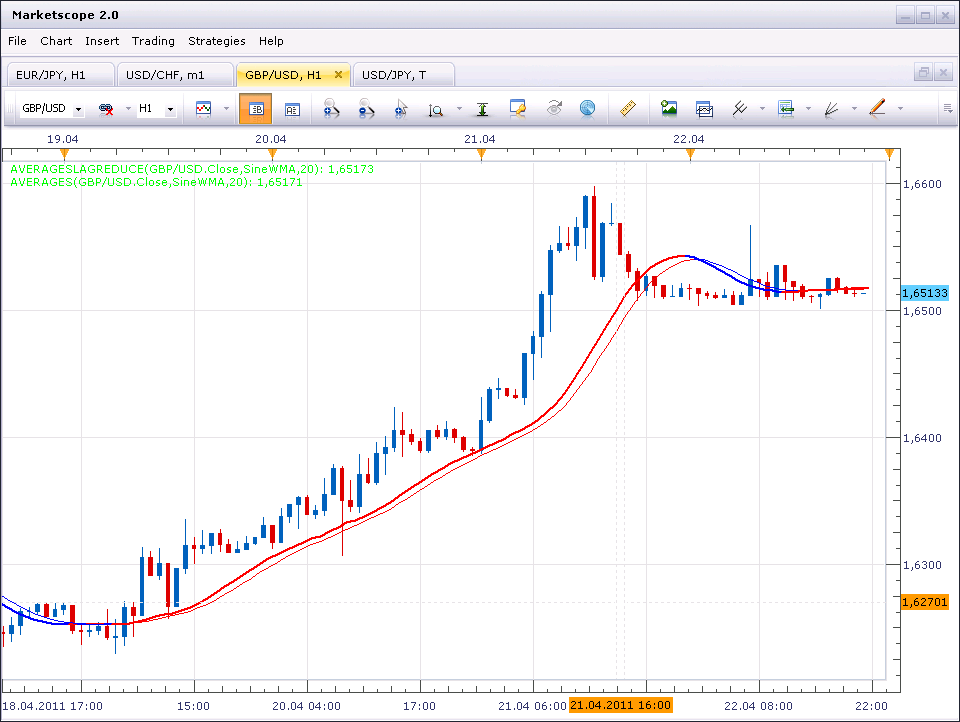

I’ve added an option to set reducing of lag to the Averages indicator. The image below shows how lag has been reduced compared with the initial curve:
station0524 · Sat Jun 11, 2011 11:08 pm
Is it possible to add “KAMA” average to the AVERAGES and Bigger time frame AVERAGES indicators?
Apprentice · Sun Jun 12, 2011 5:43 am
First. It is possible. Second. BF Version Averages of indicators, has already been written. It is Posted within this topic.
station0524 · Thu Jun 16, 2011 1:26 pm
Can you add “KAMA” to the indicator when possible? Thank you in advance
Apprentice · Thu Jun 16, 2011 1:59 pm
Alexis already committed to this task.
Alexander.Gettinger · Tue Jul 26, 2011 2:02 am
KAMA is added to the indicator.
Download:
Alexander.Gettinger · Wed Jul 27, 2011 11:57 pm

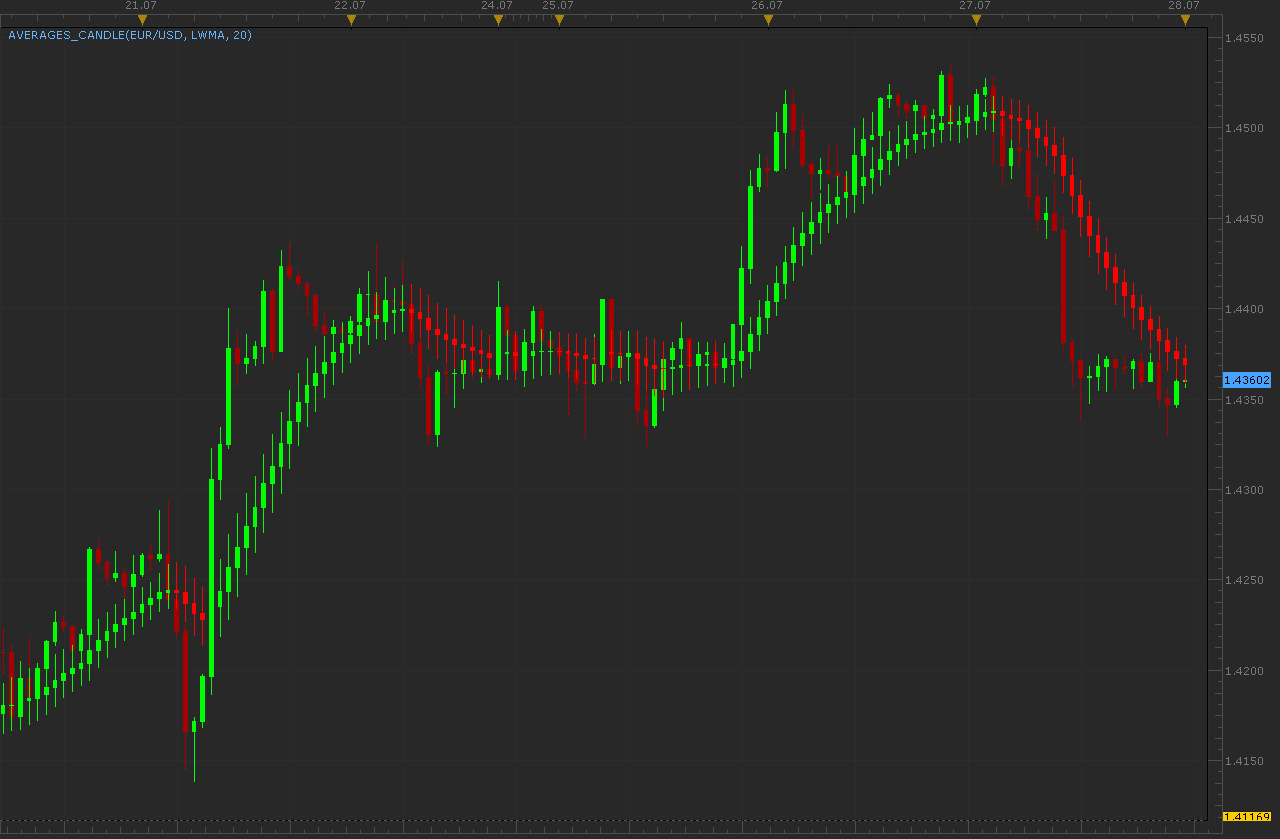

Moving average as candle. Open of candle is a MA for open price and etc.

Download:
For this indicator must be installed AVERAGES indicator from first post of this topic.
station0524 · Thu Jul 28, 2011 6:51 pm
The T3 moving average is incorrect. In the old version of the 20 in 1 indicator the T3 is correct but not in the new version. Don’t know why they changed it when they wrote the new version. You can compare it with any charting package and you will see that the T3 in the old 20 in 1 version is similar to all other charting packages but the T3 in the new version is totally different.
Is it possible to change the T3 back to the correct version?
Trader1 · Thu Sep 01, 2011 6:56 pm
thanks for all the work you have done on this indicator, it’s one of the most useful indicators I ever tried. and not to forget the original developer, GREAT WORK!
thetruth · Wed Sep 14, 2011 10:03 am
This indicator is an exellent tool, great work and thank you!! i need in the same indicator other indicators options like DXMA, Laguerre Filter, and Ehlers_Twopole_Smooted_Filter, Can you add the options?
Thanks!!
Apprentice · Thu Sep 15, 2011 4:59 am
Your request is added to the developmental cue.
Trader1 · Thu Sep 15, 2011 5:51 pm
could you please add alert when the MA is changing color
Alexander.Gettinger · Fri Sep 16, 2011 1:51 am
thetruth wrote: This indicator is an exellent tool, great work and thank you!! i need in the same indicator other indicators options like DXMA, Laguerre Filter, and Ehlers_Twopole_Smooted_Filter, Can you add the options?
Thanks!!
Do you want to see these indicators in the form of candles?
thetruth · Fri Sep 16, 2011 12:24 pm
just the same of averages 20 in 1 concept, like kama modification, thanks.
Hailkay · Wed Sep 28, 2011 7:23 pm
Hi folks, thanks for all the work that is good job from you, I agree, if that’s possible to make an alert when Moving average indicator 20/1 changes color, after the candle closed of course; it’d be great.
Muchos gracias like we say!
Apprentice · Thu Sep 29, 2011 2:52 am
This strategy might help. viewtopic.php?f=31&t=3859
Alexander.Gettinger · Mon Jan 23, 2012 1:21 am

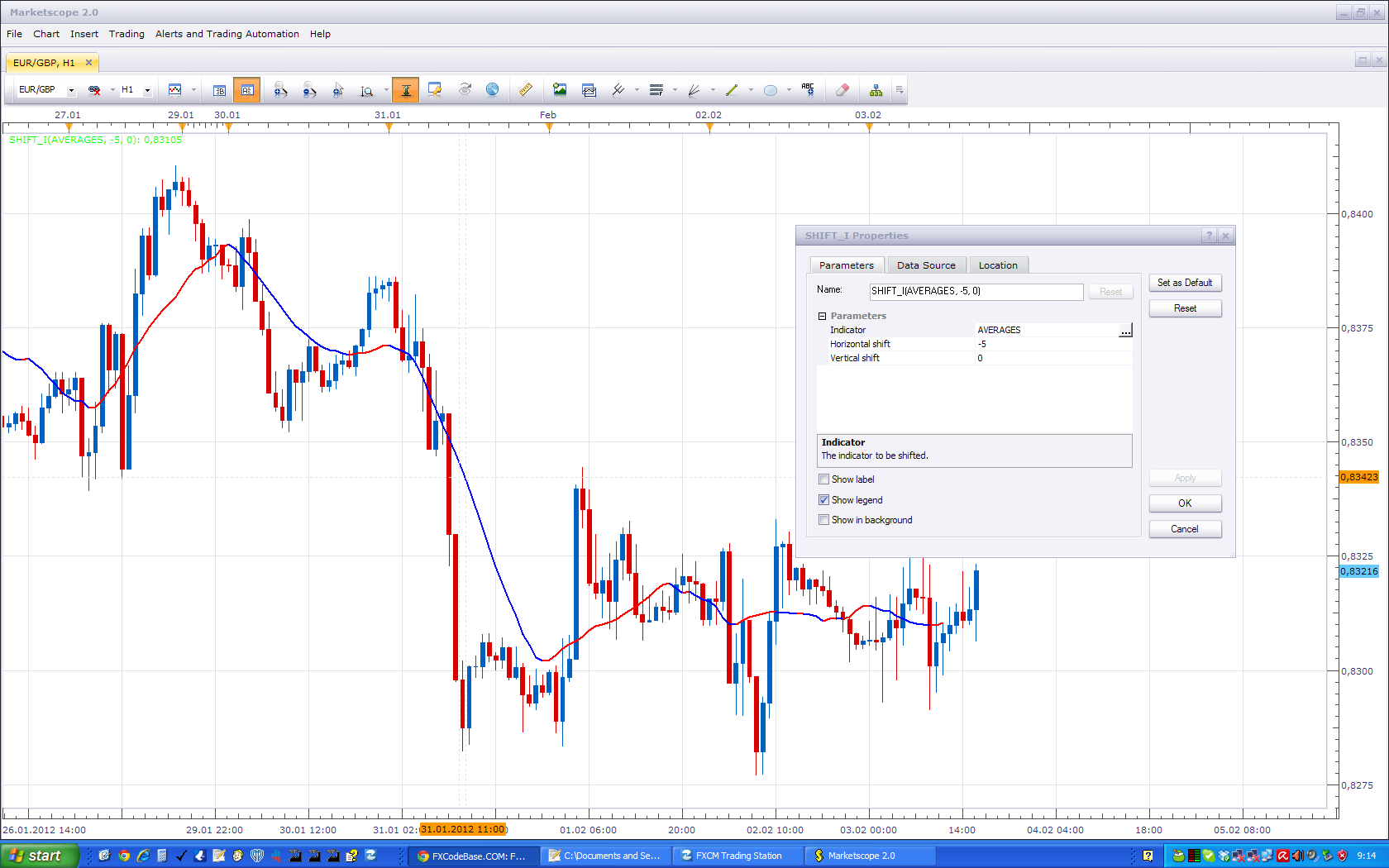

Indicator with horizontal shift.
Download:
Hailkayy · Sat Feb 04, 2012 10:24 pm
No backward shift possible
Apprentice · Sun Feb 05, 2012 3:11 am
Try to use standard buildin Shift_I and Shift_O indicators.
Jigit Jigit · Fri Feb 10, 2012 3:43 am
Hello there Could you possibly add VAMA to this excellent indicator?
Thanks a million
Apprentice · Fri Feb 10, 2012 4:40 am
Your request is added to the list for development.
Alexander.Gettinger · Fri Feb 17, 2012 3:01 pm
Jigit Jigit wrote: Hello there Could you possibly add VAMA to this excellent indicator?
It’s impossible in the current version of indicator. Indicator use tick data and don’t have access to volume data.
briansummy · Sat Mar 17, 2012 2:20 pm
Would you be able to develop an MTF Averages_Candle.lua strategy where a short term Averages_Candle.lua is the signal and a longer term Averages_Candle.lua is the conditional trend?
Also allow the same time frame like H4/H4 and length is difference like a MA crossover? Please let me know if this is possible and time frame. I can offer some funds for faster development. Thanks!
Apprentice · Mon Mar 19, 2012 1:00 am
Your request is added to the list of developers.
Apprentice · Mon Mar 19, 2012 1:39 pm
Requested can be found here. viewtopic.php?f=31&t=14928&p=28285#p28285
briansummy · Tue Mar 20, 2012 10:01 pm
This indicator would also be great in another strategy that just came to mind.
Using Heikin-Ashi Charting and a MVA of about 5. When candles agree buy/sell after n+1 close to prevent a false signal. This looks great on AUDCAD Daily chart. Trade exits when only MVA changes color and reenters when they agree again.
Panther · Fri Jun 01, 2012 10:10 am
Hi, I downloaded the BF_Averages.lua on page one twice. The file size is 8.7 KiB not 9.51KiB; and there is only one color option not two. Thanks
Apprentice · Mon Jun 04, 2012 1:41 am

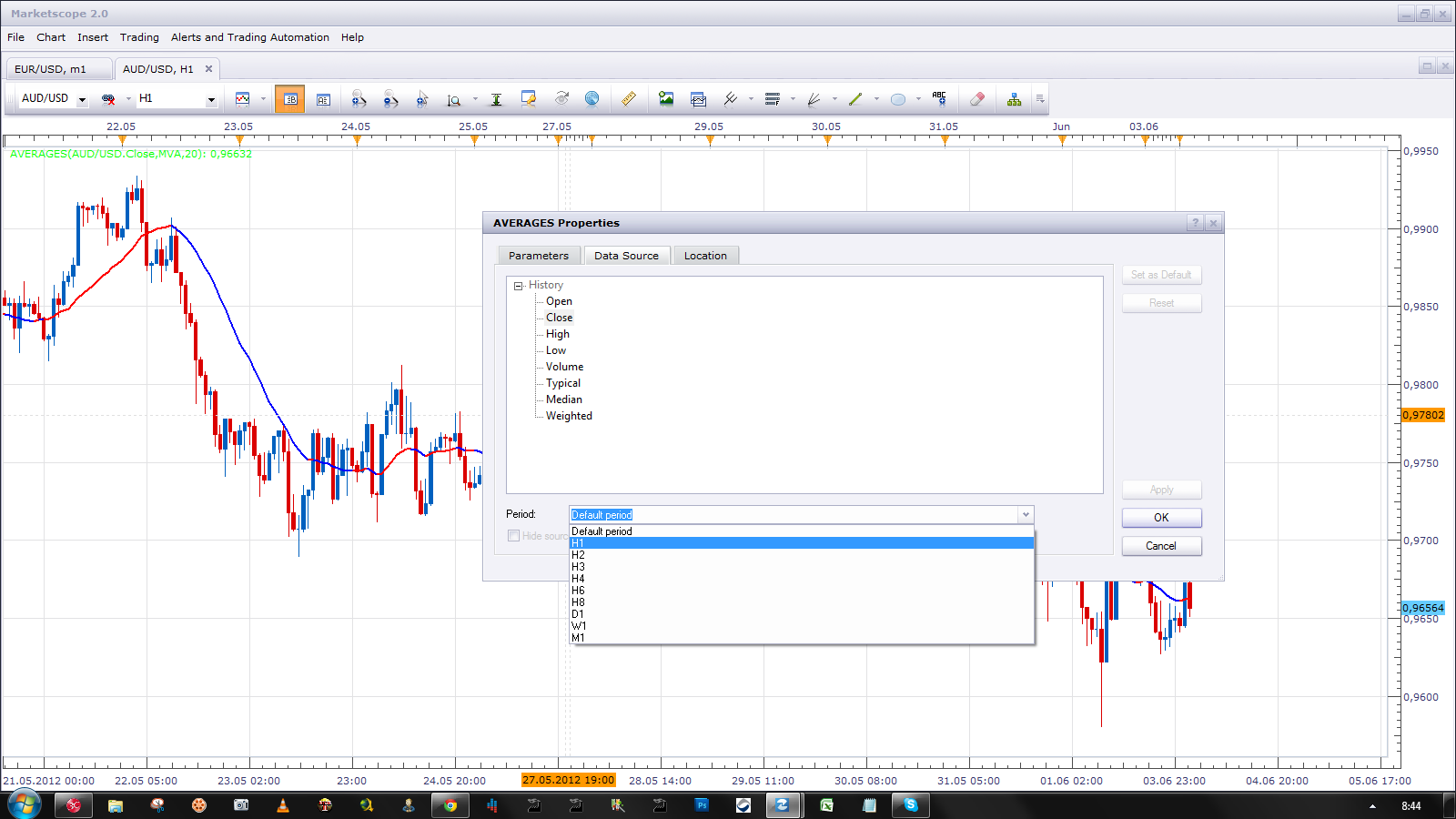

You can use the standard indicator, And then change Source time frame.
Panther · Sun Jun 10, 2012 9:15 am
There is a problem with the standard indicator on the tick chart. When I change source time frame to anything other than default, it disappears.
Apprentice · Tue Jun 12, 2012 2:30 am
If you use tick, and then change a source to H1. Moving average chart will be on, but you will not see it. Because you are using too much magnification.
Panther · Tue Jun 12, 2012 5:57 am
I am using tick with standard indicator. I tried an EMA 8 with an M1, M5 source. The line appeared, then disappeared. I tried a MVA 8, M1 then M5 source the line did not appear. If you are able to use, then there is a problem on my end. I am having great success using standard with default , and BF Indie with M1 and M5. Would it be possible to make the BF Indie two color? Thanks.
Panther · Mon Jul 02, 2012 8:10 am
Hi. I still need a 2 color BF_Averages that will function on the tick chart. I called FXCM support and they had the same problem. The BF_Averages is the only indicator that will work on a tick chart with a higher time frame designation. Thanks for all your work.
Panther · Tue Oct 09, 2012 5:36 am
I would like to again request a two color BF_averages.lua. The averages.lua still disappears when the data source is changed from default to M1 or M5 on a tick chart. Please see my previous posts.
Apprentice · Wed Oct 10, 2012 3:58 am

I have no such problems. True, i have the Beta version of TS, this could make a difference. As for the disappearance of MA, you must bear in mind, that you use a very large magnifying glass, your MA is possible just outside of your chart area.
Panther · Wed Oct 10, 2012 5:28 am
Apprentice, I understand your point. However, I am currently using the BF_averages on a tick chart with M1 and M5 time frames. It works very well. All I want is a 2 color version.
Now, regarding the averages.lua , I just used a MVA 5 with a M1 data source. It did not appear, I zoomed out it appeared, then disappeared. This is true for ANY AND EVERY indicator that you put on a tick chart. Only the time frame format that you developed for the BF_averages indie works.
Your beta version is the only reason it works . Please see previous post, I talked with FXCM support. They had the same problem: it DOES NOT work. PLEASE forgive my emphasis, but I am exasperated. I have waited four months.
Apprentice · Wed Oct 10, 2012 5:42 am
U can try to use the Beta version. Downlaod link can be found here. viewtopic.php?f=30&t=20383
Panther · Wed Oct 10, 2012 5:01 pm
Apprentice, the beta version works. Thanks, I like the averages.lua better than the BF_averages. Other indies work as well. Any estimate of when Trading Station/Marketscope will be updated?
Apprentice · Thu Oct 11, 2012 2:45 am
The next version is expected in prod by the end of year.
Apprentice · Tue Nov 20, 2012 6:46 am
KAMA moving average added.
Panther · Fri May 03, 2013 9:33 am
Apprentice, I have been using this indicator on the latest version of TS II Tick charts with great success. Thanks. I would like to be able to use the high, low choices under the “data source” tab. However, when I apply this indicator to the Tick chart those options are not available. Would it be to much trouble to make those available? I would like to apply it to M1 and M5 periods. Thanks again!
Apprentice · Sun May 05, 2013 6:06 am
This is not possible, Averages indicator need Bar, not Tick as a source… The reason … some moving averages … require Bar as a source …
Outside_The_Box · Thu Oct 10, 2013 7:40 pm
Is it possible to create a strategy that, when color mode is selected, buys when the MA changes to the “UP color”, and sells when the MA changes to the “DN color”? It could also be able to open multiple positions in one direction, set stops, limits, and everything else that an automated strategy should have.
If you put on a 9 period ILRS moving average of the typical price on a chart you’ll see the potential. It does a good job of catching the beginning of a move and a pretty good job keeping you in for the extent of the move.
I tried using strategy builder in TS2 to see if I could do this myself but it said the indicator was not supported. As a side note I’d love to see the strategy builder become more robust. I’d have a ball building strategies all day.
Apprentice · Fri Oct 11, 2013 2:15 am
Your request is added to the development list.
dell123 · Fri Oct 11, 2013 4:17 pm
Apprentice, the strategy request above on 10/10-10/11would be great. I hope under the basic parameters that it would have the option to set up trade times. 1. start time 2. stop time 3. use mandatory closing yes/no 4. mandatory closing time, and the ability to set up to 3 separate ones in a 24 hour time frame. A cycle-identifer as a direction filter on/off with the option 1. to trade only major cycles 2. all cycles in the same direction as the major,3. all cycles major and minor. or something close to it to keep the lower time frames scalping in the right direction.
Thank you
Outside_The_Box · Thu Nov 07, 2013 2:25 am
Apprentice wrote: Your request is added to the development list.
Disregard. I found the Averages strategy. It is what I was looking for.
viewtopic.php?f=31&t=3859&hilit=averages
volnmar · Tue Jun 17, 2014 1:58 am
Can you please make an alert which send email when colour of the average changes?
Apprentice · Wed Jun 18, 2014 6:00 am
Averages with Alert added.
volnmar · Thu Jun 19, 2014 2:37 am
Thats great! thank you very much, last thing which would be usefull is send alert when price cross the average, and if is it possible to may change sound no to be same as alert when colour change
Apprentice · Thu Jun 19, 2014 3:53 am
For Price/MA cross use Price Averages Cross Alert.lua viewtopic.php?f=17&t=59311&p=88941#p88941
volnmar · Fri Jul 04, 2014 1:41 am
Is it possible to show angle of moving average? Lets say 10 last points of moving average against price and time axys?
Apprentice · Fri Jul 04, 2014 5:46 am
Try Slope in Degrees Indicator. viewtopic.php?f=17&t=60870&p=94756#p94756
volnmar · Fri Jul 04, 2014 6:09 am
Thank you
easytrading · Mon Feb 16, 2015 1:37 pm
hello Apprentice,
is it posible to add HPF to the Averages 20 in 1 please? thank you.
Apprentice · Tue Feb 17, 2015 3:33 pm
Your request is added to the development list.
easytrading · Tue Feb 24, 2015 12:09 am
easytrading wrote: hello Apprentice,
is it posible to add HPF to the Averages 20 in 1 please? thank you.
and also allow me to add slope direction line -the colored version- to the Averages 20 in 1 please, with much appreciation as always.
CeresTrader · Sun Mar 08, 2015 1:40 pm
Hi all
I was wondering if you could add Arsi (Adaptive rsi) and Vidya to the indicators
thanks in advance
Apprentice · Tue Mar 10, 2015 3:37 am
Your request is added to the development list.
Victor.Tereschenko · Sun May 03, 2015 6:31 am
CeresTrader wrote: Hi all
I was wondering if you could add Arsi (Adaptive rsi) and Vidya to the indicators
thanks in advance
Implemented.
Apprentice · Tue May 12, 2015 4:49 am
Averages Overlay.lua Added (First, Topmost post)
Victor.Tereschenko · Tue May 12, 2015 11:40 pm
Two new methods added: HPF and VAMA
mulligan · Thu May 14, 2015 8:39 am
Installed the new Averages with HPF and VAMA. With HPF I get the following, Averages.lua:66:Bar source should be selected for HPF. When VAMA is selected, the line simply does not show up on the chart.
Apprentice · Fri May 15, 2015 2:41 am

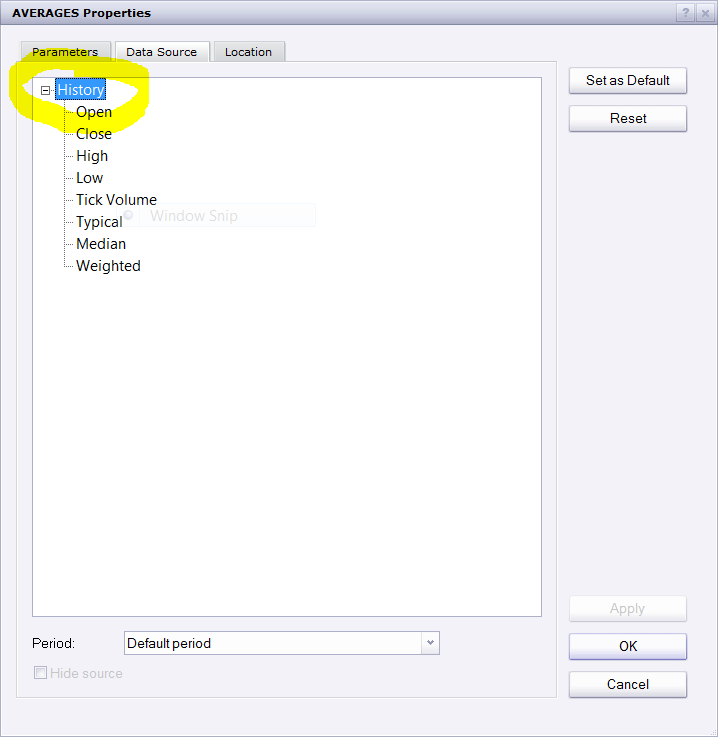

Please click on history for the moving averages that require full bar.
xpertizetrading · Mon Jun 01, 2015 3:15 am
Hi apprentice,
Kindly see if this strategy can be coded. Very simple rules:
Buy: Average colour changes to UP Sell: Average colour changes to DOWN
Regards, Xpertize Trading
Apprentice · Sun Jun 07, 2015 4:17 am
Try Averages Strategy. viewtopic.php?f=31&t=3859&p=9454&hilit=Averages.lua#p9454
jacklrfx · Tue Oct 13, 2015 11:09 am
Hi, Can you include a Non Lag MA (simple I suppose because EMA there is already) in this indicator? And also make a Filter option (for all the type of average), I mean a filter to cacth better the trend?
Thanks
Apprentice · Thu Oct 15, 2015 3:15 am
Your request is added to the development list.
mrlnb2016 · Thu Mar 03, 2016 4:24 am
The decimal place showing in the legend of this indicator is different than the real decimal value - the value in the legend has been rounded.
For example, for EUR/USD, it’s showing 4 decimal place in the legend and 5 decimal place in the real value.
Is it possible to make the legend show the full decimal place of the current MVA value?
Thanks a lot for the help.
Apprentice · Thu Mar 03, 2016 5:05 am
Try it now.
mrlnb2016 · Thu Mar 03, 2016 8:39 am
It’s working now, thanks a lot.
easytrading · Fri Aug 12, 2016 4:26 am
Victor.Tereschenko wrote: by Victor.Tereschenko » Tue May 12, 2015 11:40 pm
Two new methods added: HPF and VAMA ATTACHMENTS Averages.lua New methods: HPF and VAMA (25.53 KiB) Downloaded 395 times
kindly Apprentice, could you please, provide us the price overlay of (two Averages crossing) from the last version of this indicator that was provided by Victor ? many thanks in advance.
Apprentice · Fri Aug 12, 2016 11:51 am
easytrading · Fri Aug 12, 2016 2:48 pm
It will be great Apprentice if you add HPF & VAMA that are already existing in Victor’s version of this indicator to the MA methods for crossing 2 MA Overlay please ?? with many thanks .
Apprentice · Sun Aug 14, 2016 3:58 am
Can you provide a link, The exact filename?
easytrading · Sun Aug 14, 2016 3:34 pm
this is the link: http://www.fxcodebase.com/code/viewtopi … 70#p100440
and this is a copy of Victor’s work it is on page 8 of this post :
Victor.Tereschenko wrote: by Victor.Tereschenko » Tue May 12, 2015 11:40 pm
Two new methods added: HPF and VAMA ATTACHMENTS Averages.lua New methods: HPF and VAMA (25.53 KiB) Downloaded 395 times
Apprentice · Mon Aug 15, 2016 2:09 am
Have overwrite Averages.lua from first page with victors work.
easytrading · Mon Aug 15, 2016 7:54 pm
if you please Apprentice , could you add them (HPF & VAMA) also TO Averages Overlay.lua by adding History option in price source (cause they need whole bar) ? many thanks in advance.
Apprentice · Tue Aug 16, 2016 4:27 am
Overlay need whole bar.
Panther · Sun Aug 21, 2016 10:16 pm
When I use the averages.lua on a Tick chart the only history choice is tick. Would it be possible to include all the choices ( open, close, high, low, tick volume, typical, median, weighted)? Thanks.
Apprentice · Mon Aug 22, 2016 7:12 am
These choices are not available on tick time frame chart. We can write indicator, which will load higher time frames sources. To have this choice.
Panther · Mon Aug 22, 2016 7:50 am
If it too time consuming to include all the choices, maybe just the high, low history. For example, when you choose a period(m1, m5, etc.), then the tick and the high, low choices for the period appear under history.
Apprentice · Tue Aug 23, 2016 2:17 pm
Please use “End of Turn” mode.
Sospool · Tue May 02, 2017 6:34 am
Hello Apprentice and Alexander,
Is it possible to add the arrow option for this indicator ?
Thank you
Apprentice · Tue May 02, 2017 10:01 am
Averages Arrows.lua added.
Sospool · Tue May 02, 2017 12:38 pm
Thanks apprentice
dell123 · Wed Jan 02, 2019 10:44 pm
Were can I fined MT4 of this indicator. Thank you
Apprentice · Thu Jan 03, 2019 4:52 am
Try this version. viewtopic.php?f=38&t=66535
