Non lag Dot indicator
Alexander.Gettinger · Mon Aug 09, 2010 2:23 pm
Code: Select all `function Init() indicator:name(“NonLagDot indicator”); indicator:description(“NonLagDot indicator”); indicator:requiredSource(core.Tick); indicator:type(core.Indicator); indicator.parameters:addInteger(“Length”, “Length”, “Length”, 10); indicator.parameters:addInteger(“Filter”, “Filter”, “Filter”, 0); indicator.parameters:addInteger(“ColorBarBack”, “ColorBarBack”, “ColorBarBack”, 2); indicator.parameters:addDouble(“Deviation”, “Deviation”, “Deviation”, 0);
indicator.parameters:addColor(“clrUP”, “UP color”, “UP color”, core.rgb(0, 0, 255)); indicator.parameters:addColor(“clrDN”, “DN color”, “DN color”, core.rgb(255, 0, 0)); end
local first; local source = nil; local Length; local Filter; local ColorBarBack; local Deviation; local buffUP=nil; local buffDN=nil; local trend; local buff; local Coeff; local Phase; local Len;
function Prepare() source = instance.source; Length=instance.parameters.Length; Filter=instance.parameters.Filter; ColorBarBack=instance.parameters.ColorBarBack; Deviation=instance.parameters.Deviation; trend = instance:addInternalStream(0, 0); buff = instance:addInternalStream(0, 0); first = source:first()+2; local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.Length .. “, “ .. instance.parameters.Filter .. “, “ .. instance.parameters.ColorBarBack .. “, “ .. instance.parameters.Deviation .. “)”; instance:name(name); buffUp = instance:createTextOutput (“Up”, “Up”, “Wingdings”, 10, core.H_Center, core.V_Center, instance.parameters.clrUP, first); buffDn = instance:createTextOutput (“Dn”, “Dn”, “Wingdings”, 10, core.H_Center, core.V_Center, instance.parameters.clrDN, first); Coeff=3.math.pi; Phase=Length-1; Len=Length4.+Phase; end
function Update(period, mode) if (period>first+Len+2) then local Weight=0; local Sum=0; local t=0; for i=0,Len-1,1 do local g=1./(Coefft+1.); if t<=0.5 then g=1.; end local beta=math.cos(math.pit); local alpha=gbeta; Sum=Sum+alphasource[period-i]; Weight=Weight+alpha; if t<1. then t=t+1./(Phase-1.); elseif t<Len-1. then t=t+7./(4.Length-1.); end end if Weight>0. then buff[period]=(1.+Deviation/100.)Sum/Weight; end if Filter>0. then if math.abs(buff[period]-buff[period-1])<Filtersource:pipSize() then buff[period]=buff[period-1]; end end trend[period]=trend[period-1]; if buff[period]-buff[period-1]>Filtersource:pipSize() then trend[period]=1; end if buff[period-1]-buff[period]>Filter*source:pipSize() then trend[period]=-1; end if trend[period]>0 then buffUp:set(period, buff[period], “\159”, “”); if trend[period-ColorBarBack]<0 then buffUp:set(period-ColorBarBack, buff[period-ColorBarBack], “\159”, “”); end end if trend[period]<0 then buffDn:set(period, buff[period], “\159”, “”); if trend[period-ColorBarBack]>0 then buffDn:set(period-ColorBarBack, buff[period-ColorBarBack], “\159”, “”); end end
end end`
New Versions By Apprentice
MT4/MQ4 version. viewtopic.php?f=38&t=69002
Re: Non lag Dot indicator
patick · Wed Aug 11, 2010 5:56 am

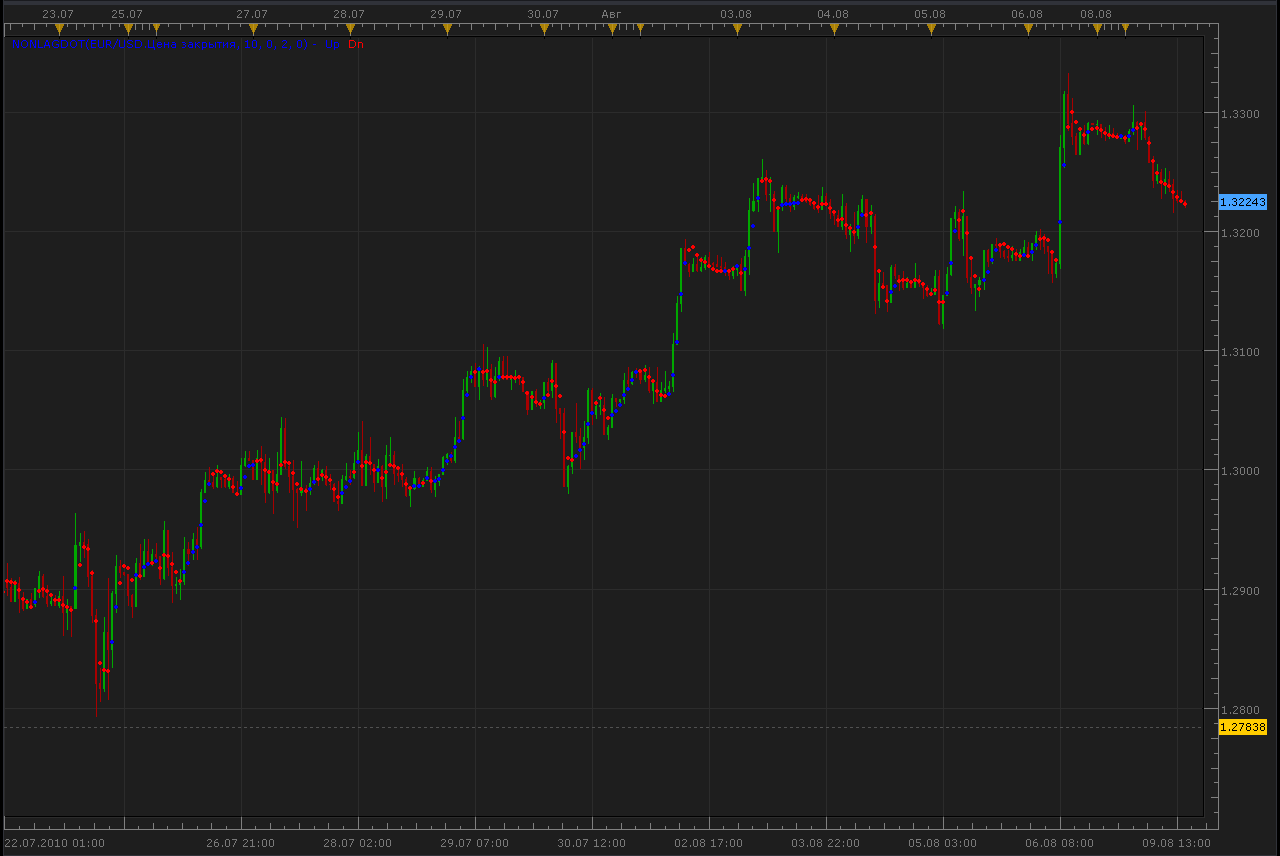

Perhaps this was a design flaw in the orig indicator, but looks like there might be a repainting issue:
Re: Non lag Dot indicator
briansummy · Wed Mar 07, 2012 9:08 pm
From your pic I see what you mean however trading an H1 or longer after the close of the candle I do not see this repainting. You will notice that when looking at the dots color there are breaks by a few candles and then the trend may continue. I use this as the signal in my system compared to a condition with a trend indicator. Maybe compare a short term and long term nonlagdot system? That would be an interesting EA.
Re: Non lag Dot indicator
briansummy · Thu Mar 08, 2012 9:52 am
I just realized, an MTF Nonlagdot would be amazing. Is this possible?
Re: Non lag Dot indicator
aricanderson · Sun Mar 11, 2012 2:22 pm
Is there any way to make a strategy based on this indicator?
Buy after first blue dot and sell after first red dot.
Re: Non lag Dot indicator
Apprentice · Mon Mar 12, 2012 3:15 am
aricanderson: Can you define the Entry, Exit conditions. briansummy : Your request is added to the development list.
Re: Non lag Dot indicator
Alexander.Gettinger · Mon Mar 12, 2012 2:56 pm
briansummy wrote: I just realized, an MTF Nonlagdot would be amazing. Is this possible?

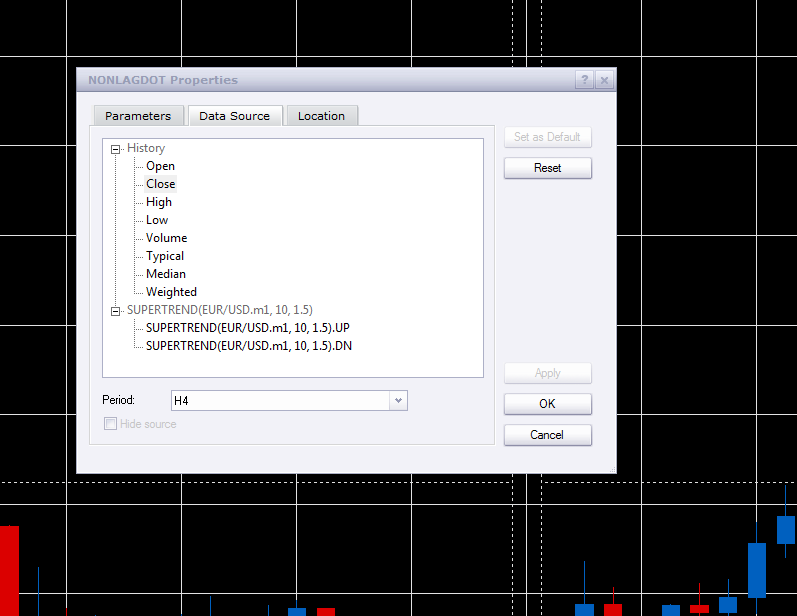

Use parameter “Period” for other TF:
Re: Non lag Dot indicator
briansummy · Tue Mar 13, 2012 9:52 pm
Perfect! Thanks!
Re: Non lag Dot indicator
briansummy · Sat Mar 17, 2012 4:50 pm
Can you do a strategy with NonLagDot in agreement with Parabolic SAR where the dot is the signal and SAR sets trend agreement?
Re: Non lag Dot indicator
Apprentice · Mon Mar 19, 2012 1:05 am
Your request is added to the list of developers.
Re: Non lag Dot indicator
briansummy · Tue Mar 20, 2012 8:52 pm
I have been watching this on a m1 chart and yes it does repaint. Is there anything to prevent this? It looks similar to Fractals with a 3 bar count to calculate.
Re: Non lag Dot indicator
Apprentice · Thu Apr 05, 2012 3:14 am
New Version Added. Old Version Updated.
Re: Non lag Dot indicator
Apprentice · Thu Apr 05, 2012 5:11 am
MTF version can b found here. viewtopic.php?f=17&t=15574&p=29351#p29351
Re: Non lag Dot indicator
Apprentice · Fri Apr 06, 2012 1:03 pm
NLD SAR strategy can be found here. viewtopic.php?f=31&t=15659
Re: Non lag Dot indicator
Coondawg71 · Fri May 24, 2013 1:51 pm
Can we please request the “MACD of Non Lag Dot Indicator” added to Lua development que along with the corresponding Non Lag Dot Signal too please. Signal would be based on change of Non Lag direction and cross of zero signal line of histogram.
Thanks,
sjc
http://www.mql5.com/en/code/1296
Re: Non lag Dot indicator
Apprentice · Sun Jun 02, 2013 12:09 pm
Your request is added to the development list.
Re: Non lag Dot indicator
Alexander.Gettinger · Fri Jun 14, 2013 3:34 pm

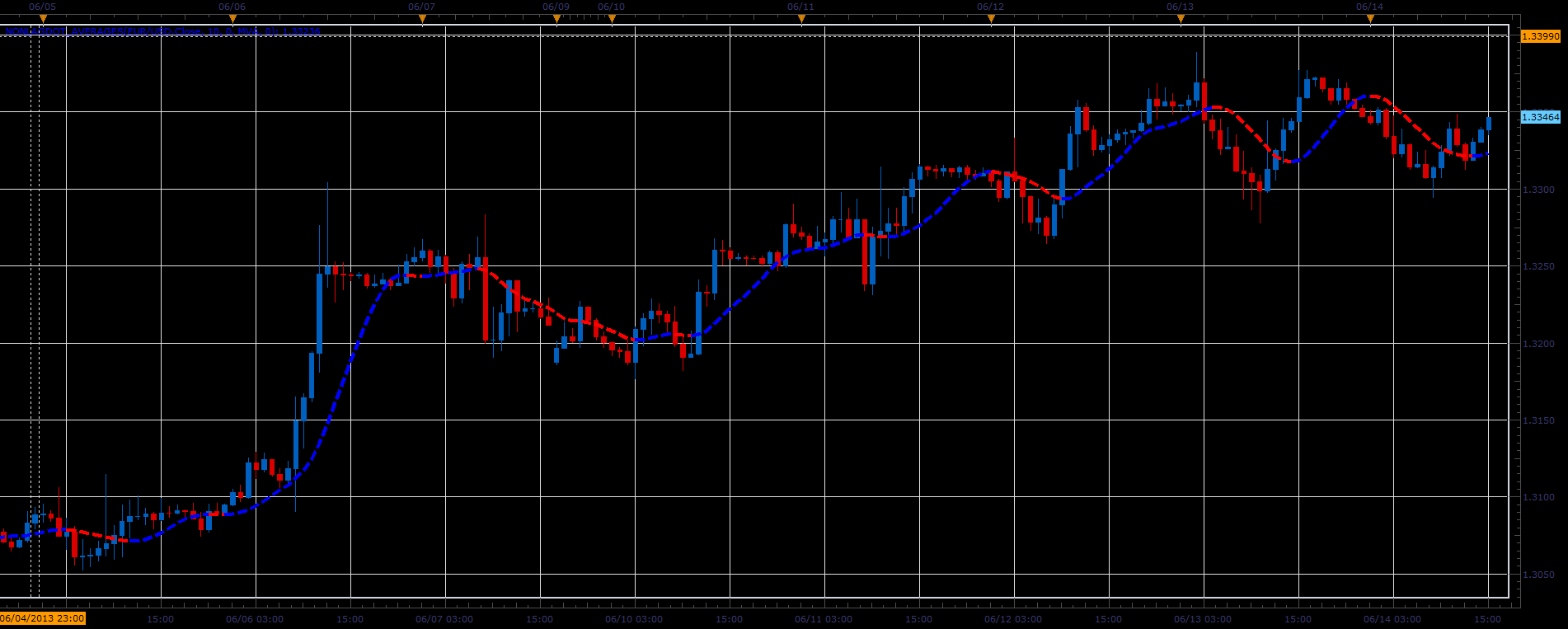

Version of Non Lag Dot with Averages indicator:
Download:
For this indicator must be installed Averages indicator (viewtopic.php?f=17&t=2430).
Re: Non lag Dot indicator
Alexander.Gettinger · Fri Jun 14, 2013 3:36 pm

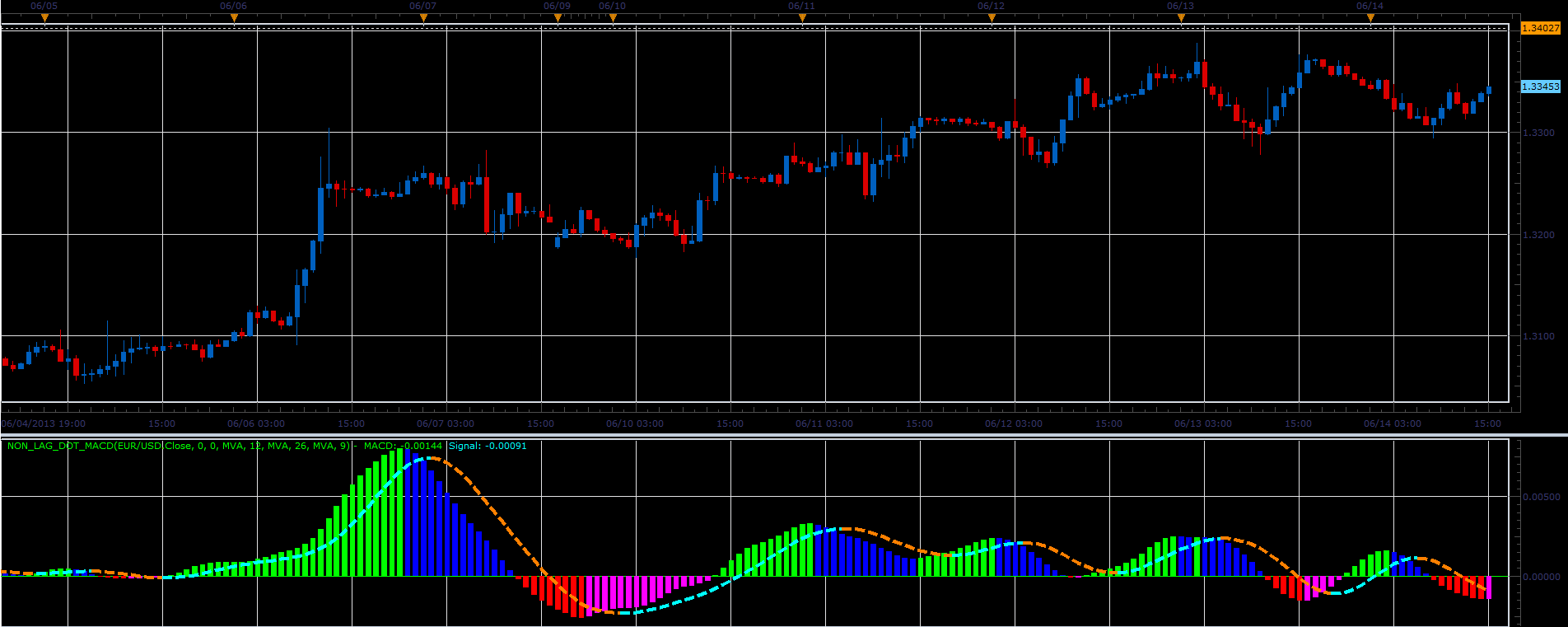

Coondawg71 wrote: Can we please request the “MACD of Non Lag Dot Indicator” added to Lua development que along with the corresponding Non Lag Dot Signal too please. Signal would be based on change of Non Lag direction and cross of zero signal line of histogram. http://www.mql5.com/en/code/1296
Download:
For this indicator must be installed Averages indicator (viewtopic.php?f=17&t=2430) and Nonlagdot_Averages indicator.
Re: Non lag Dot indicator
Alexander.Gettinger · Fri Jun 14, 2013 3:42 pm
MQL4 version of this indicators: viewtopic.php?f=38&t=40966
Re: Non lag Dot indicator
Apprentice · Tue May 23, 2017 6:03 am
Indicator was revised and updated.
Re: Non lag Dot indicator
Recursive Trendline · Fri Sep 08, 2017 10:27 am
Hi Apprentice,
I want the ‘Non Lag Dot’ indicator to repaint maximum one candle behind. What parameters should I place? Colourback = 0 ?
Regards,
Re: Non lag Dot indicator
Apprentice · Sun Sep 10, 2017 6:09 pm
Your request is added to the development list, Under Id Number 3889 If someone is interested to do this task, please contact me.
Re: Non lag Dot indicator
Alexander.Gettinger · Wed Sep 13, 2017 3:24 pm
Recursive Trendline wrote: Hi Apprentice,
I want the ‘Non Lag Dot’ indicator to repaint maximum one candle behind. What parameters should I place? Colourback = 0 ?
Regards,
Colorback=1 for 1 candle behind or Colorback=0 for no repainting.
Re: Non lag Dot indicator
Recursive Trendline · Thu Sep 14, 2017 12:23 pm
Thanks Alexander and Apprentice.
Got it!
Regards
Re: Non lag Dot indicator
Apprentice · Sun Sep 23, 2018 7:04 am
The Indicator was revised and updated.
Re: Non lag Dot indicator
planstyr · Sat Oct 05, 2019 1:01 am
Apprentice wrote: The Indicator was revised and updated.
Can this Non lag Dot indicator be made fro MT4, with NoRepaint Version?
Re: Non lag Dot indicator
Apprentice · Wed Oct 09, 2019 10:54 am
Your request is added to the development list. Development reference 159.
Re: Non lag Dot indicator
planstyr · Wed Oct 09, 2019 11:13 am
Apprentice wrote: Your request is added to the list of developers.
Thanks!
Re: Non lag Dot indicator
Apprentice · Thu Oct 10, 2019 12:44 pm
MT4/MQ4 version. viewtopic.php?f=38&t=69002
