Schaff Trend Cycle Oscillator
Nikolay.Gekht · Wed Jan 20, 2010 7:18 pm

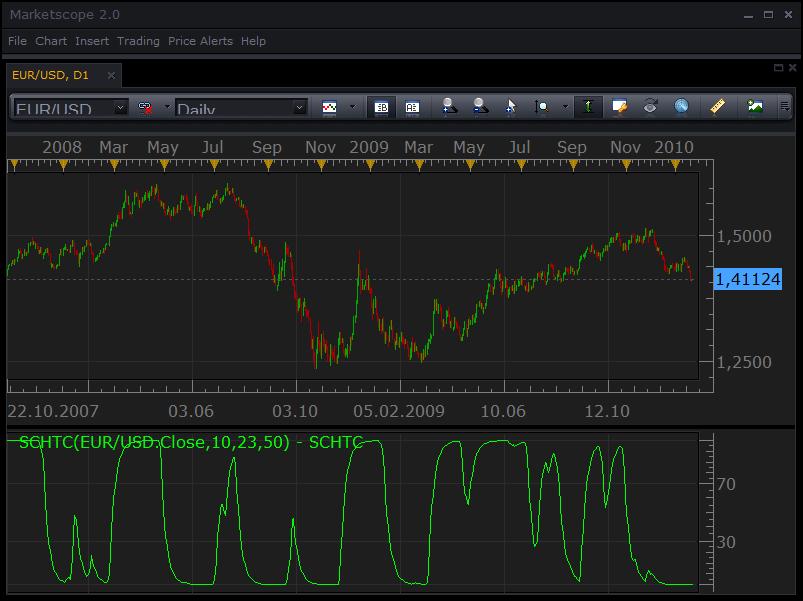

Schaff Trend Cycle Oscillator
Parameters: Schaff cycle periods (C) Short periods (S) Long periods (L)
MCD=WMA(PRICE, S) - WMA(PRICE, L) ST=(MCD - MAX(MCD,C))/(MAX(MCD,C)-MIN(MCD,C) * 100 OSCILLATOR=WMA(ST, C/2);
Where WMA is Wilders Moving Average.
Read more about the indicator here
Download:
Schaff Trend Cycle Oscillator with Alert.lua
This indicator will provides Audio / Email Alerts if and when Schaff Trend Cycle Oscillator cross Central, Over Bought or Over Sold Level.
Dec 14, 2015: Compatibility issue Fixed. _Alert helper is not longer needed.
Re: [beta] Schaff Trend Cycle Oscillator
jackfx09 · Mon Mar 12, 2012 6:17 am
Could we please have a strategy for the Schaff Trend Cycle Oscillator.
Very simple rules, similar to a Stochastic Strategy:
Buy: cross UP through the oversold parameter of user specified threshold (30)
Sell: cross DOWN through the overbought parameter of user specified threshold (70)
Please allow user specified parameter for OVERBOUGHT/OVERSOLD and PERIODS for cycle, short and long periods.
Thanks!
sjc
Re: [beta] Schaff Trend Cycle Oscillator
Apprentice · Mon Mar 12, 2012 12:23 pm
Requested can be found here. viewtopic.php?f=31&t=14741&p=27939#p27939
Re: [beta] Schaff Trend Cycle Oscillator
Coondawg71 · Thu Oct 11, 2012 9:06 am
Could we please request a Schaff Trend Oscillator DIVERGENCE indicator based on the Schaff Trend. Divergence based on PRICE vs. Schaff Trend crossing signal line. This attachment uses EMA as signal line.
Perhaps this MT4 indicator will assist.
Code: Select all
#property copyright "Copyright © 2004, MetaQuotes Software Corp."
#property link "[[email protected]](https://fxcodebase.com/cdn-cgi/l/email-protection) & [[email protected]](https://fxcodebase.com/cdn-cgi/l/email-protection)"
#property indicator_separate_window
#property indicator_buffers 2
#property indicator_color1 LightSeaGreen
#property indicator_color2 Red
//---- input parameters
extern int SigPeriod = 23;
extern int MAShort = 23;
extern int MALong = 50;
extern int Cycle = 10;
extern int BarsCount = 500;
//----
int shift=0;
double MCD=0, LLV=0, HHV=0, i=0, s=0 ,MA_Short=0, MA_Long=0, ST=0;
double smconst=0;
bool check_begin=false;
bool check_begin_MA=false;
int sum=0, n=0, bars_=0;
double MA=0.0, prev=0.0;
double MCD_Arr[500];
//---- buffers
double TrendBuffer[];
double SignalBuffer[];
//+------------------------------------------------------------------+
//| Custom indicator initialization function |
//+------------------------------------------------------------------+
int init()
{
//---- 3 additional buffers are used for counting.
IndicatorBuffers(2);
//---- indicator buffers
SetIndexBuffer(0, TrendBuffer);
SetIndexStyle(0, DRAW_LINE);
SetIndexBuffer(1, SignalBuffer);
SetIndexStyle(1, DRAW_LINE);
//---- name for DataWindow and indicator subwindow label
IndicatorShortName("Schaff Trend(" + Cycle + ")");
SetIndexDrawBegin(0, BarsCount);
return(0);
}
//+------------------------------------------------------------------+
//| Schaff Trendy |
//+------------------------------------------------------------------+
int start()
{
check_begin = false;
check_begin_MA = false;
n = 1;
s = 1;
double a = 1 + Cycle / 2;
smconst = 1 / a;
if(BarsCount > 0)
{
if(BarsCount > Bars)
{
bars_ = Bars;
}
else
{
bars_ = BarsCount;
}
}
for(shift = bars_ ; shift >= 0; shift--)
{
MA_Short = iMA(NULL, 0, MAShort, 0, MODE_EMA, PRICE_TYPICAL, shift);
MA_Long = iMA(NULL, 0, MALong, 0, MODE_EMA, PRICE_TYPICAL, shift);
MCD_Arr[n] = MA_Short - MA_Long;
MCD = MA_Short - MA_Long;
//----
if(n >= Cycle )
{
n = 1;
check_begin = true;
}
else
n = n + 1;
if(check_begin)
{
for(int i = 1; i <= Cycle; i++)
{
if(i == 1)
LLV = MCD_Arr[i];
else
if(LLV > MCD_Arr[i])
LLV = MCD_Arr[i];
//----
if(i == 1 )
HHV = MCD_Arr[i];
else
if(HHV < MCD_Arr[i])
HHV = MCD_Arr[i];
}
ST = ((MCD - LLV) / (HHV - LLV))*100 + 0.01;
s = s + 1;
if(s >= (Cycle) / 2)
{
s = 1;
check_begin_MA = true;
}
}
else ST = 0;
if(check_begin_MA)
{
prev = TrendBuffer[shift+1];
MA = smconst*(ST - prev) + prev;
//Comment ("\nMa= ",MA,"\nPrev= ",prev,"\nST= ",ST,"\nLLV= ",LLV,"\nHHV= ",HHV,"\nMCD= ",MCD,"\nTrendBuffer= ",TrendBuffer[shift-1],"\n smsconst ",smconst);
TrendBuffer[shift]=MA;
}
}
for(shift = bars_ ; shift >= 0; shift--)
{
SignalBuffer[shift]=iMAOnArray(TrendBuffer,0,SigPeriod,0,MODE_EMA,shift);
}
return(0);
}
//+------------------------------------------------------------------+
Thanks,
sjc
Re: [beta] Schaff Trend Cycle Oscillator
Apprentice · Thu Oct 11, 2012 2:03 pm
Your request is added to the development list.
Re: Schaff Trend Cycle Oscillator
Coondawg71 · Fri Oct 12, 2012 8:08 am
Can I please request a MTF MCP heatmap of this indicator. It would prove very useful.
Thanks,
sjc
Re: Schaff Trend Cycle Oscillator
Apprentice · Fri Oct 12, 2012 11:38 am
Calculation Modes
- “Slope” Shows the slope of underlying indicator. Growth or decline.
- “OB/OS” Slope with reference to the overbought / oversold conditions.
- “Central Line” Slope with reference to the Central Line.

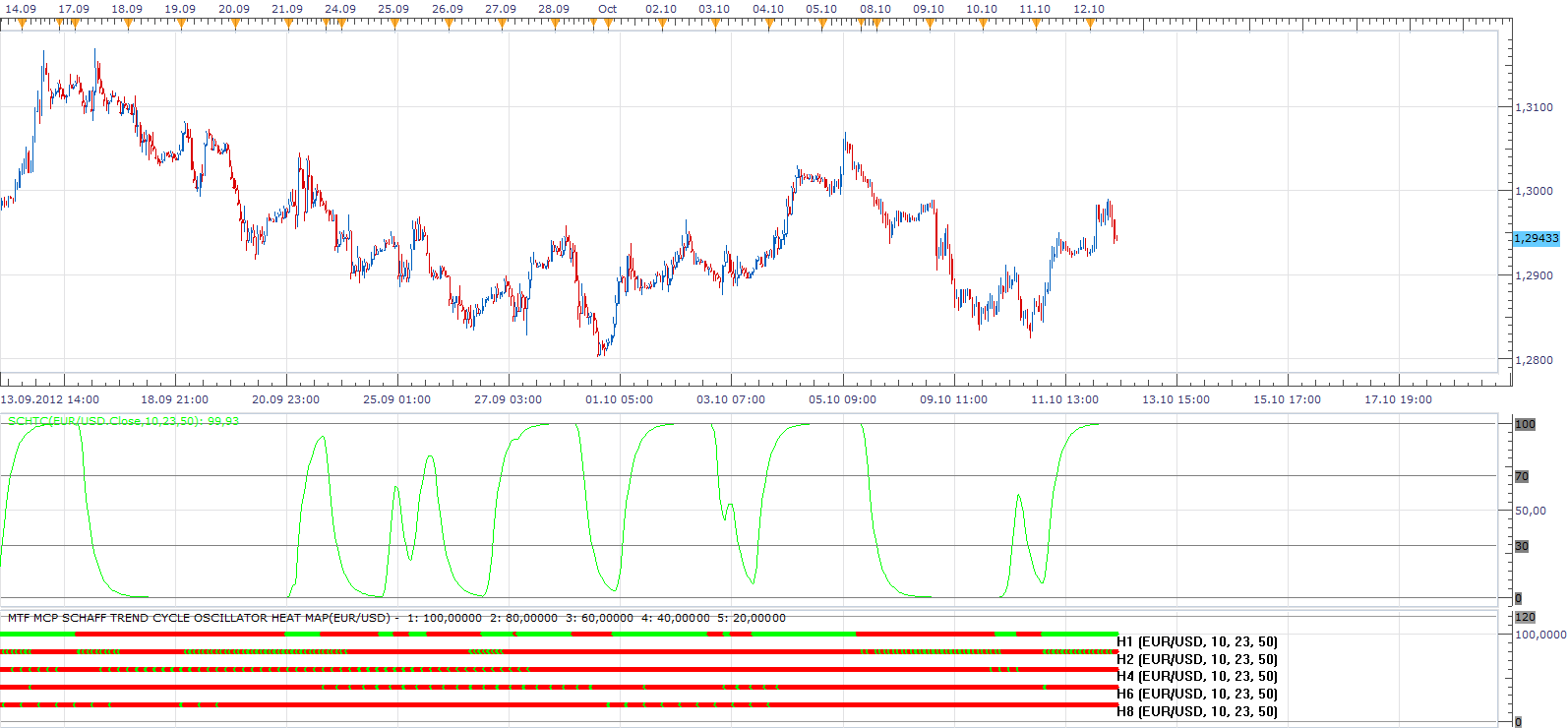

MTF MCP Schaff Trend Cycle Oscillator Heat Map.lua
Please inslatall Schaff Trend Cycle Oscillator (SCHTC) indicator, in order to use this indicator.
Re: Schaff Trend Cycle Oscillator

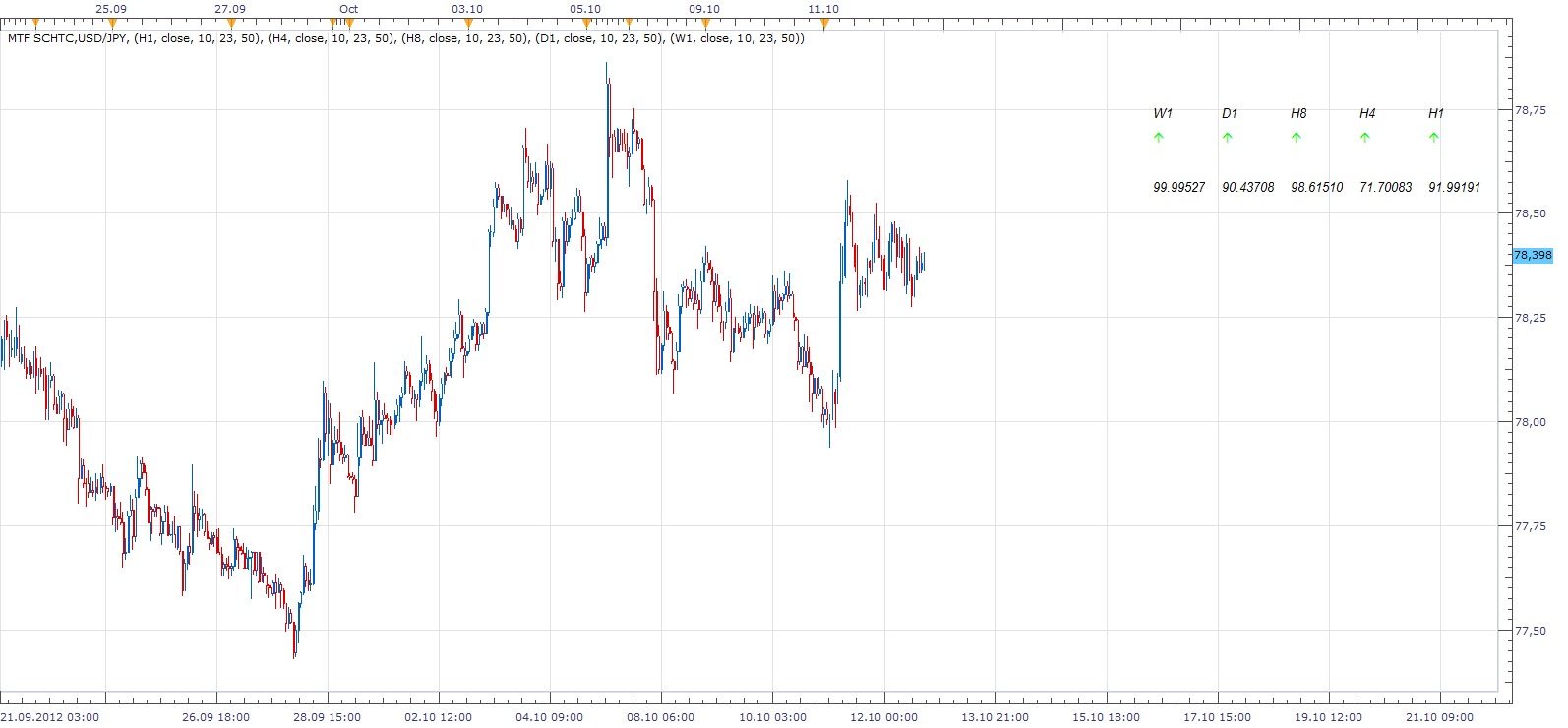

Apprentice · Fri Oct 12, 2012 3:20 pm
Re: Schaff Trend Cycle Oscillator
guangho · Mon Oct 29, 2012 4:55 am
I think this index is very useful, you can now increase on the basis of a same calculation of line? Parameters can be set, it is best to translation.
Thank you very much.
Re: Schaff Trend Cycle Oscillator
Apprentice · Mon Oct 29, 2012 2:46 pm
Can you be more clear, unfortunately I do not understand your remark.
Re: Schaff Trend Cycle Oscillator
swingtrader · Wed Nov 21, 2012 5:11 am
hi,
can you create mtf strategy based on schaff trend cycle indicator
indicator’: SCHAFF TREND CYCLE INDICATOR WITH DEFAULT PARAMETERS
TIME FRAME 1: m15 BUY LEVEL 1: 5 SELL LEVEL1: 95
TIME FRAME 2: H1 BUY LEVEL 2: 98 SELL LEVEL 2: 2
TIME FRAME 3: D1 BUY LEVEL 3: 99 SELL LEVEL3: 1
BUY: 1.SCHAFF TREND CYCLE > BUY LEVEL 2(98) IN H1 AND 2.SCHAFF TREND CYCLE > BUY LEVEL 3 (99) IN D1 AND 3.SCHAFF TREND CYCLE CROSS OVER BUY LEVEL 1 (5) IN M15
SELL: 1.SCHAFF TREND CYCLE < SELL LEVEL 2(2) IN H1 AND
- SCHAFF TREND CYCLE <SELL LEVEL 3(3) IN D1 AND
- SCHAFF TREND CYCLE CROSSUNDER SELL LEVEL 1(95) IN M15
EXIT BUY:
- SCHAFF TREND CYCLE CROSS UNDER SELL LEVEL 1 IN M15 OR
- SCHAFF TREND CYCLE CROSS UNDER BUY LEVEL 2 IN H1
EXIT SELL:
- SCHAFF TREND CYCLE CROSS OVER BUY LEVEL 1 IN M15 OR
- SCHAFF TREND CYCLE CROSS OVER SELL LEVEL 2 IN H1
Re: Schaff Trend Cycle Oscillator
Apprentice · Thu Nov 22, 2012 5:52 am
Requested can be found here. viewtopic.php?f=31&t=26441
Re: Schaff Trend Cycle Oscillator
Apprentice · Wed Jun 12, 2013 12:33 am
Few Bug are now Fixed in both MTF versions.
Re: Schaff Trend Cycle Oscillator
Apprentice · Sun Mar 30, 2014 8:38 am
Schaff Trend Cycle Oscillator with Alert.lua Added.
Re: Schaff Trend Cycle Oscillator
SuperTrader · Thu Oct 08, 2015 7:47 am
Hi Apprentice, your very latest version of this indicator “Schaff Trend Cycle Oscillator with Alert.lua” is fantastic (the most complete Schaff indicator I’ve found so far). Could you please just add a little “something” to it (whenever you have time): Colorize its line so that it’s green when rising and red when falling (or when your live alert triggers or whatever you prefer and easier for you), similarly to the attached screenshot. It would be visually great and much easier on the eyes, especially for traders watching many open charts at the same time). Thank you very much in advance!
Re: Schaff Trend Cycle Oscillator
Apprentice · Mon Oct 12, 2015 5:47 am
Your request is added to the development list.
Re: Schaff Trend Cycle Oscillator
Apprentice · Mon Oct 19, 2015 8:23 am
Color Option Added.
Re: Schaff Trend Cycle Oscillator
SuperTrader · Tue Oct 20, 2015 3:07 am
wow, the color helps a lot when trading on tick-charts, thank you for another good job Apprentice! (by the way, I can’t express how much I appreciate all your efforts here in this forum all these past years, by developing hundreds of indicators, strategies, signals, it’s just great to have someone as talented as you to help us all in here!)
Re: Schaff Trend Cycle Oscillator
Apprentice · Mon Dec 14, 2015 7:14 am
Dec 14, 2015: Compatibility issue Fixed. _Alert helper is not longer needed.
If you want to use updated version of this indicator, please make sure to use TS Version 01.14.101415. or higher.
Re: Schaff Trend Cycle Oscillator
Apprentice · Thu Oct 05, 2017 6:18 am
The indicator was revised and updated.
Re: Schaff Trend Cycle Oscillator
jaricarr · Thu Oct 05, 2017 10:35 pm
Hi Apprentice,
Can you set up a highly adaptable strategy with this indicator please.
Re: Schaff Trend Cycle Oscillator
Apprentice · Fri Oct 06, 2017 12:22 pm
Can you define basic rules?
Re: Schaff Trend Cycle Oscillator
Apprentice · Fri Jun 08, 2018 8:19 am
The Indicator was revised and updated.
