Stochastic RSI
Source: https://fxcodebase.com/code/viewtopic.php?f=17&t=451
Forum: 17 · Topic 451 · 28 post(s)
Stochastic RSI
Nikolay.Gekht · Tue Mar 09, 2010 7:36 pm
The indicator was introduced by by Tuschar Chande and Stanley Kroll in December, 1992 Stocks and Commodities’ article and combines two indicators RSI and Stochastic.

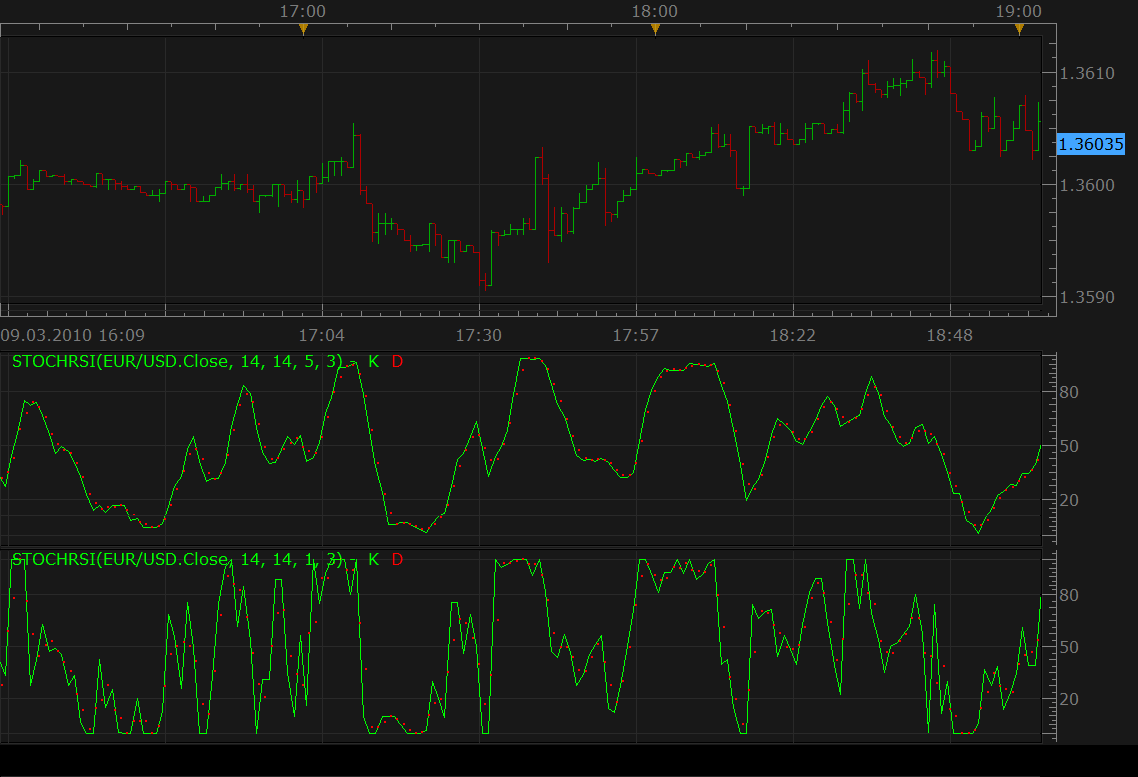

The Stochastic RSI Oscillator is a momentum indicator which shows the relation of the current RSI value relative to its high/low range over a given number of periods.
The indicator has four parameters: N - the number of periods for RSI calculation K - the number of periods to calculate the stochastic fast line SK - the number of periods to smooth the stochastic fast line (use 1 to do not smooth the fast line) D - the number of periods to calculate the stochastic slow line
The formula is: LR = Lowest RSI(PRICE, N) for K periods HR = Highest RSI(PRICE, N) for K periods FAST = MVA((RSI(PRICE, N)[now] - LR) / (HR - LR) * 100), SK) SLOW = MVA(FAST, D)
Code: Select all `– Indicator profile initialization routine – Defines indicator profile properties and indicator parameters function Init() indicator:name(“Stochastic RSI”); indicator:description(“”); indicator:requiredSource(core.Tick); indicator:type(core.Oscillator);
indicator.parameters:addInteger(“N”, “Number of periods for RSI”, “”, 14, 1, 200); indicator.parameters:addInteger(“K”, “%K Stochastic Periods”, “”, 14, 1, 200); indicator.parameters:addInteger(“KS”, “%K Slowing Periods”, “”, 5, 1, 200); indicator.parameters:addInteger(“D”, “%D Slowing Stochastic Periods”, “”, 3, 1, 200); indicator.parameters:addColor(“K_color”, “Color of K”, “Color of K”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“D_color”, “Color of D”, “Color of D”, core.rgb(255, 0, 0)); end
– Indicator instance initialization routine
– Parameters block local N; local K; local KS; local D;
local firstSKI; local firstK; local firstD; local source = nil;
– Streams block local SKI = nil; local SK = nil; local SD = nil; local RSI = nil; local MVA1 = nil; local MVA2 = nil;
– Routine function Prepare() N = instance.parameters.N; K = instance.parameters.K; KS = instance.parameters.KS; D = instance.parameters.D; source = instance.source; first = source:first();
RSI = core.indicators:create(“RSI”, source, N); local name = profile:id() .. “(“ .. source:name() .. “, “ .. N .. “, “ .. K .. “, “ .. KS ..”, “ .. D .. “)”; instance:name(name); firstSKI = RSI.DATA:first() + K; SKI = instance:addInternalStream(firstSKI, 0); MVA1 = core.indicators:create(“MVA”, SKI, KS); firstK = MVA1.DATA:first(); SK = instance:addStream(“K”, core.Line, name .. “.K”, “K”, instance.parameters.K_color, firstK); SK:addLevel(20); SK:addLevel(50); SK:addLevel(80); MVA2 = core.indicators:create(“MVA”, SK, D); firstD = MVA2.DATA:first(); SD = instance:addStream(“D”, core.Dot, name .. “.D”, “D”, instance.parameters.D_color, firstD); end
– Indicator calculation routine function Update(period, mode) RSI:update(mode);
if (period >= firstSKI) then local min, max; local range; range = core.rangeTo(period, K); min = core.min(RSI.DATA, range); max = core.max(RSI.DATA, range); if (min == max) then SKI[period] = 100; else SKI[period] = (RSI.DATA[period] - min) / (max - min) * 100; end end
MVA1:update(mode);
if period >= firstK then SK[period] = MVA1.DATA[period]; end
MVA2:update(mode);
if (period >= firstD) then SD[period] = MVA2.DATA[period]; end end`
Other two version can be found here. viewtopic.php?f=17&t=8169
p.s. Sorry for delays with publishing new indicators. I’m deep in preparing a new Marketscope release… p.p.s. I’m already moved to the new release, so, in case anything fails on the previous version - please do not hesitate to report it immediatelly.
Added By Apprentice

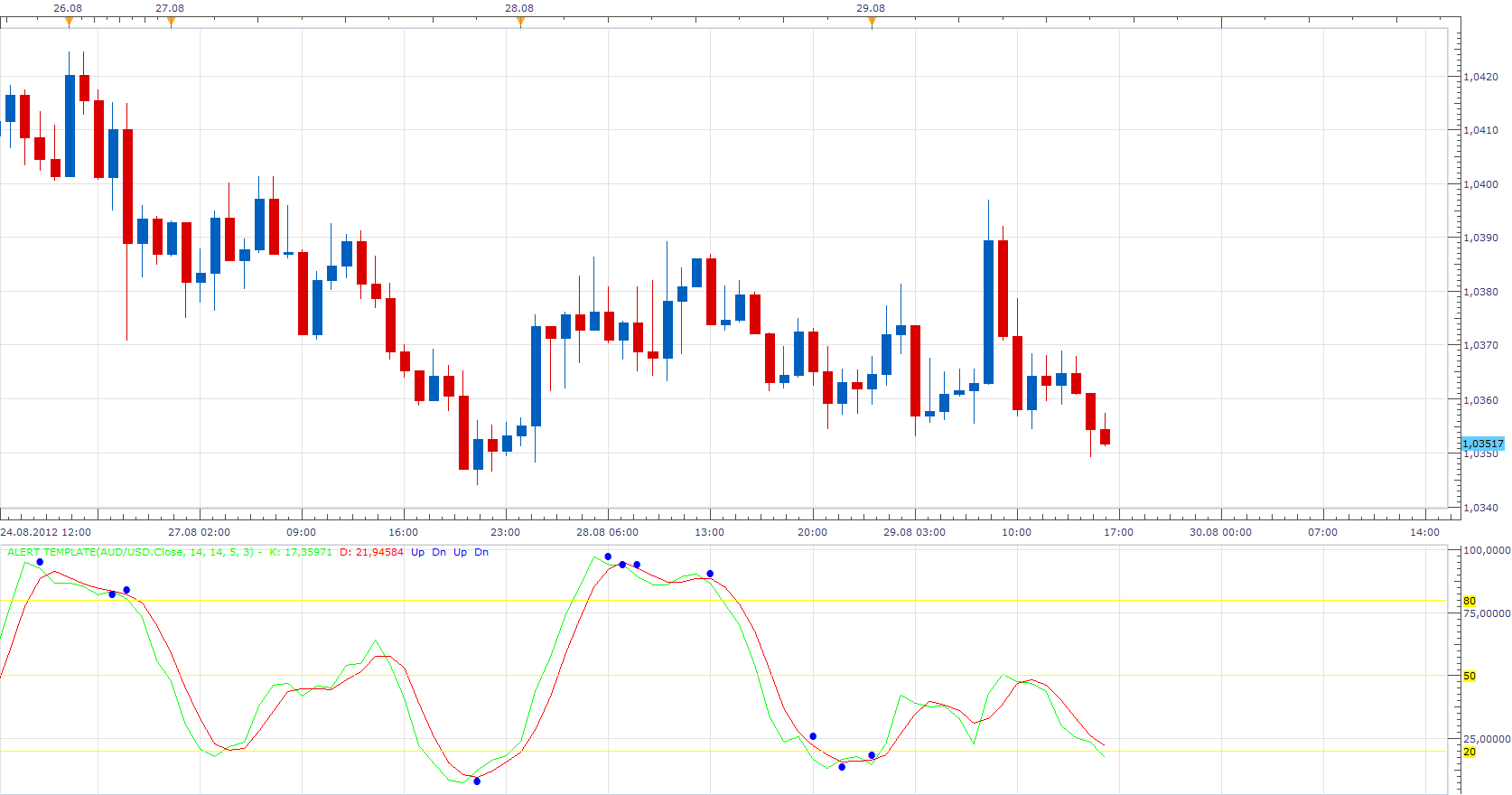

This indicator provides Audio / Email Alerts for six signals. 1) OB Zone Cross 2) OS Zone Cross 3) Cental Line Cross 4) Slope change 5) Slope change in OB zone 6) Slope change in OS zone
Dec 5, 2015: Compatibility issue Fix. _Alert helper is not longer needed.
I also made Style and Performance Updates using subsequently available functionality.
The indicator was revised and updated
Re: Stochastic RSI
kkhart1935 · Tue Mar 01, 2011 9:09 am
I cannot get this to work. I get an error that says to download stochrsi. What am I doing wrong?
Re: Stochastic RSI
kkhart1935 · Tue Mar 01, 2011 9:43 am
I get the following error An error occurred during the calculation of the indicator ‘MTF_ STOCHRSI’. The error details: [string “MTF_ StochRSI.lua”]:140: [string “StochRSI.lua”]:219: attempt to call method ‘barSize’ (a nil value).
Re: Stochastic RSI
Apprentice · Tue Mar 01, 2011 10:07 am
I tested both MTF indicators. I can not repeat the bug.
Interesting. Can you restart the platform.
Re: Stochastic RSI
Apprentice · Tue Apr 26, 2011 3:58 am
Line Style Option Added.
Re: Stochastic RSI
jeisenm · Tue Apr 26, 2011 1:40 pm
very nice indicator. thanks apprentice.
Re: Stochastic RSI
ayatullah · Wed Apr 27, 2011 7:48 am
Dear Apprentice
Thank you for adding this indicator.
Is there a possibility of you adding an alert for when the SK line and SD crossover to this indicator?
Thanks
Jawad
Re: Stochastic RSI
station0524 · Sat May 14, 2011 4:47 pm
I do not know why but the indicator seems to be incorrect. When compared to the same indicator on other charting programs like Metatrader and Fib Trader the values that yours produce is not the same. Put them side by side, same chart, same time frame, same settings, yours is the only one that is different.
Re: Stochastic RSI
Apprentice · Sun May 15, 2011 9:41 am
There are several solutions. Can you post the version you mention. (Code or Link)
Re: Stochastic RSI
station0524 · Sat May 21, 2011 1:13 pm
The version I downloaded is the one posted here on this page. Not sure if you want me to post the metatrader versions or yours.
Re: Stochastic RSI
Apprentice · Sun May 22, 2011 3:24 am
Post, mq4 code you are using. So we could see the difference. Out there is a lot of different versions.
Re: Stochastic RSI
station0524 · Sun May 22, 2011 10:43 am
Here is the code,
Code: Select all `Input Parameters: RSIPeriod = The RSI Period to use (Default 8) PeriodK = The Stochastic %K period. (Default 8) SlowPeriod = The final smoothing (slow) value (Default 3)
Revision History
Version 1.0
- Initial Release
Version 1.1 ( 14 Nov 2007 )
- Fixed bug in HHV/LLV calculations to use current bar. This avoids values > 100 */
#property copyright “Copyright © 2007, Bruce Hellstrom (brucehvn)” #property link “http: //www.metaquotes.net/”
#property indicator_separate_window #property indicator_buffers 1 #property indicator_color1 Blue #property indicator_style1 STYLE_SOLID #property indicator_width1 2
#property indicator_level1 20.0 #property indicator_level2 80.0 #property indicator_levelcolor Red #property indicator_levelwidth 1 #property indicator_levelstyle STYLE_DOT
#define INDICATOR_VERSION “v1.1”
// Input Parameters extern int RSIPeriod = 8; extern int PeriodK = 8; extern int SlowPeriod = 3;
// Buffers double RSIBuffer[]; double StochBuffer[]; double TempBuffer[]; bool debug = false;
// Other Variables string ShortName;
///////////////////////////////////////////////////////////////////// // Custom indicator initialization function /////////////////////////////////////////////////////////////////////
int init() {
IndicatorBuffers( 1 ); SetIndexStyle( 0, DRAW_LINE, STYLE_SOLID, 1 ); SetIndexBuffer( 0, StochBuffer ); SetIndexDrawBegin( 0, RSIPeriod ); ShortName = “MT4-StochasticRSI-Oscillator-“ + INDICATOR_VERSION + “ (“ + RSIPeriod + “,” + PeriodK + “,” + SlowPeriod + “)”; IndicatorShortName( ShortName ); SetIndexLabel( 0, ShortName ); ArraySetAsSeries( RSIBuffer, true ); ArraySetAsSeries( TempBuffer, true ); Print( ShortName ); Print( “Copyright (c) 2007 - Bruce Hellstrom, [email protected]” ); return( 0 ); }
///////////////////////////////////////////////////////////////////// // Custom indicator deinitialization function /////////////////////////////////////////////////////////////////////
int deinit() { return( 0 ); }
///////////////////////////////////////////////////////////////////// // Indicator Logic run on every tick /////////////////////////////////////////////////////////////////////
int start() { int counted_bars = IndicatorCounted(); // Check for errors if ( counted_bars < 0 ) { return( -1 ); }
// Last bar will be recounted if ( counted_bars > 0 ) { counted_bars–; }
// Resize the non-buffer array if necessary if ( ArraySize( RSIBuffer ) != ArraySize( StochBuffer ) ) { ArraySetAsSeries( RSIBuffer, false ); ArrayResize( RSIBuffer, ArraySize( StochBuffer ) ); ArraySetAsSeries( RSIBuffer, true ); } if ( ArraySize( TempBuffer ) != ArraySize( StochBuffer ) ) { ArraySetAsSeries( TempBuffer, false ); ArrayResize( TempBuffer, ArraySize( StochBuffer ) ); ArraySetAsSeries( TempBuffer, true ); } // Get the upper limit int limit = Bars - counted_bars; for ( int ictr = 0; ictr < limit; ictr++ ) { RSIBuffer[ictr] = iRSI( NULL, 0, RSIPeriod, PRICE_CLOSE, ictr ); if ( debug ) { if ( RSIBuffer[ictr] > 100.0 ) { Print( “Bar: “, ictr, “ RSI: “, RSIBuffer[ictr] ); } } }
for ( ictr = 0; ictr < limit; ictr++ ) { double llv = LLV( RSIBuffer, PeriodK, ictr ); double hhv = HHV( RSIBuffer, PeriodK, ictr ); if ( ( hhv - llv ) > 0 ) { TempBuffer[ictr] = ( ( RSIBuffer[ictr] - llv ) / ( hhv - llv ) ) * 100; if ( debug && ictr < 100 ) { if ( TempBuffer[ictr] > 100.0 ) { Print( “Bar: “, ictr, “ TempBuffer: “, TempBuffer[ictr], “ RSI: “, RSIBuffer[ictr], “ hhv: “, hhv, “ llv:”, llv ); } } } } for ( ictr = 0; ictr < limit; ictr++ ) { StochBuffer[ictr] = iMAOnArray( TempBuffer, 0, SlowPeriod, 0, MODE_EMA, ictr ); } return( 0 ); }
double LLV( double& indBuffer[], int Periods, int shift ) { double dblRet = 0.0; int startindex = shift; for ( int llvctr = startindex; llvctr < ( startindex + Periods ); llvctr++ ) { if ( llvctr == startindex ) { dblRet = indBuffer[llvctr]; } dblRet = MathMin( dblRet, indBuffer[llvctr] ); } return( dblRet ); }
double HHV( double& indBuffer[], int Periods, int shift ) { double dblRet = 0.0; int startindex = shift; for ( int hhvctr = startindex; hhvctr < ( startindex + Periods ); hhvctr++ ) { if ( hhvctr == startindex ) { dblRet = indBuffer[hhvctr]; } dblRet = MathMax( dblRet, indBuffer[hhvctr] ); } return( dblRet ); }`
Re: Stochastic RSI
Alexander.Gettinger · Tue Jul 12, 2011 11:45 pm
Please, see this version of oscillator.
Download:
Re: Stochastic RSI
Blackcat2 · Wed Jul 13, 2011 7:18 pm
Alexander.Gettinger wrote: Please, see this version of oscillator.
Download:
StochasticRSI.lua
I think it requires another indicator, could you please tell me where I can get it?
Thanks
Re: Stochastic RSI
sunshine · Thu Jul 14, 2011 3:09 am
Please install the Averages indicator http://www.fxcodebase.com/code/viewtopi … =17&t=2430
Re: Stochastic RSI
JPNWV7 · Tue Nov 22, 2011 9:09 am
kkhart1935 wrote: I cannot get this to work. I get an error that says to download stochrsi. What am I doing wrong?
I get the same thing
Re: Stochastic RSI
Alexander.Gettinger · Mon Dec 02, 2013 11:08 am
MQL4 version of Stochastic RSI: viewtopic.php?f=38&t=60051.
Re: Stochastic RSI
Apprentice · Sun Dec 06, 2015 4:35 am
Compatibility issue Fix. _Alert helper is not longer needed.
Re: Stochastic RSI
TxChristopher · Thu Aug 11, 2016 10:25 am
Would it be possible for one of you programmers to add a “live” option to this indicator like the “Stochastic with Alert” indicator has? This is a good indicator but the tremendous lag of having to wait for end of turn is especially crippling to it.
The biggest problem with this indicator is once the market starts moving you need to know and waiting for the end of turn often causes losses or missing most of the move, especially in longer time frames obviously because end of turn can be hours away. If this indicator had all the sweet options to alert the trader that the Stochastic with Alert indicator has it would make a huge difference in its usability.
Since they are very similar indicators (but with quite different results often) this would seem like a very easy to do thing.
What say you coders?
Re: Stochastic RSI
Apprentice · Fri Aug 12, 2016 11:23 am
“live” / “end of turn” option add for “Stochastic RSI with Alert”
Re: Stochastic RSI
TxChristopher · Mon Aug 15, 2016 11:45 pm
Apprentice wrote: “live” / “end of turn” option add for “Stochastic RSI with Alert”
Awesome!
How about K/D line cross over/under alert? Too much to ask?
Re: Stochastic RSI
Apprentice · Tue Aug 16, 2016 4:28 am
Your request is added to the development list, Under Id Number 3600 If someone is interested to do this or any task other from list please contact me.
Re: Stochastic RSI
TxChristopher · Tue Aug 16, 2016 8:15 pm
Apprentice wrote: Your request is added to the development list, Under Id Number 3600 If someone is interested to do this or any task other from list please contact me.
How do I track that . . . . I tried to find that area in the forum but could not……..
Re: Stochastic RSI
Apprentice · Wed Aug 17, 2016 2:13 pm
This is an internal forum. For developers only.
Re: Stochastic RSI
Apprentice · Tue Sep 20, 2016 3:59 am
Stochastic RSI with Alert.lua major update. K/D Cross Added.
Re: Stochastic RSI
Apprentice · Tue Mar 14, 2017 8:55 am
Indicator was revised and updated.
Re: Stochastic RSI
lixiaopan0502 · Tue Oct 16, 2018 7:02 pm
Apprentice wrote: Indicator was revised and updated.
Where can I find it ？
Re: Stochastic RSI
Apprentice · Thu Oct 18, 2018 6:37 am
The file was replaced on the first post of this post. Here. viewtopic.php?f=17&t=451
