SuperTrend
Apprentice · Wed Dec 12, 2012 2:01 pm

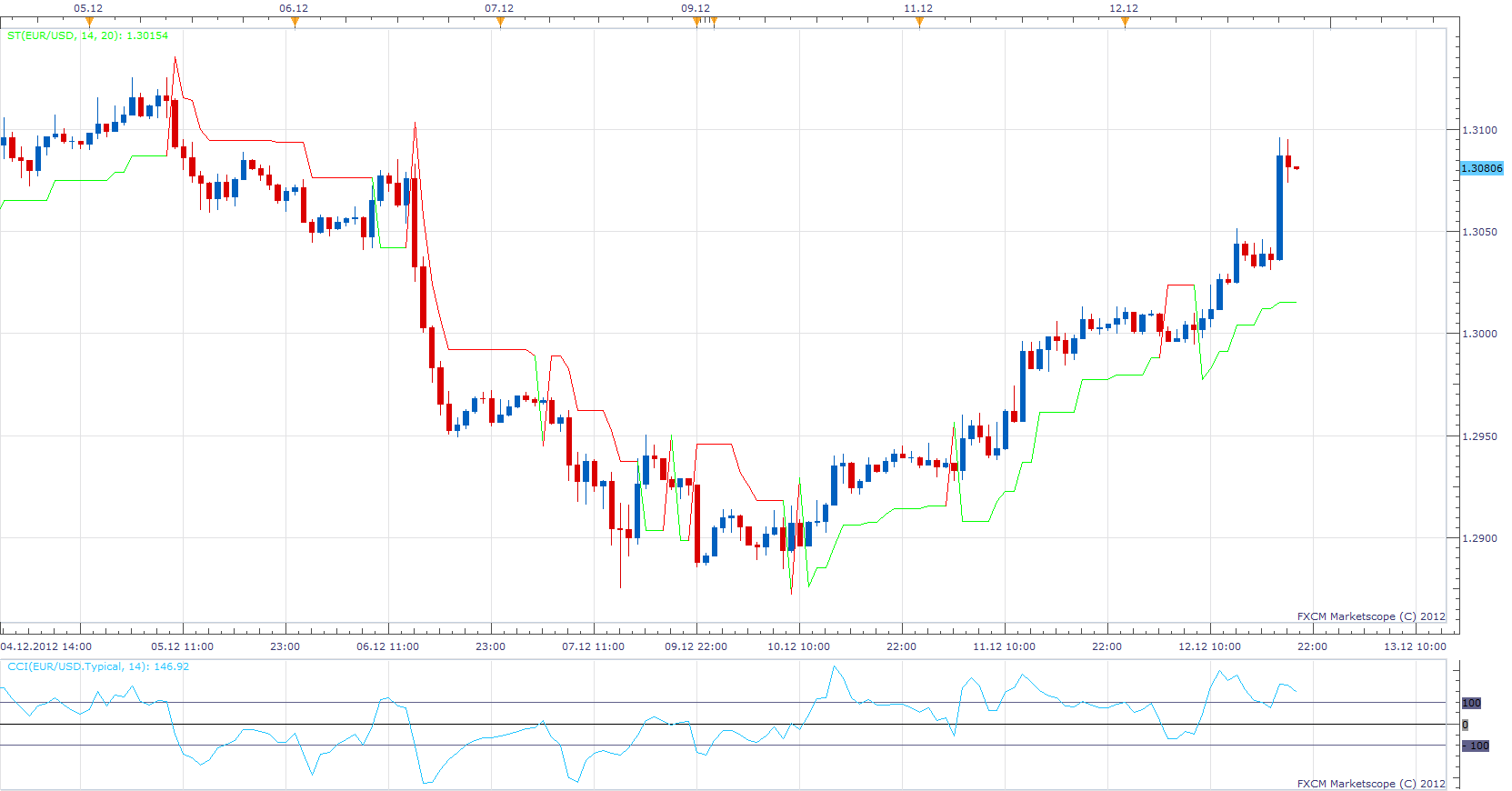

CCI will trigger SuperTrend switch. The user can specifies the distance from High / Low (in pips) after switch. SuperTrend moves only in the direction of the trend. If Price Filter is On. And the price goes in the other direction, the Super Trend will hold its position. Shift Values proposed by the author, based on Chart Time Frame length in minutes.
case 1: Shift = 3; case 5: Shift = 5; case 15: Shift = 7; case 30: Shift = 9; case 60: Shift = 20; case 240: Shift = 35; case 1440: Shift = 40; case 10080: Shift = 100; case 43200: Shift = 120;
Re: SuperTrend
dtb71fx · Wed Dec 12, 2012 6:19 pm
I’m a little confused since there’s so many “SuperTrend” indicators on this site… how is this one different from this SuperTrend: http://fxcodebase.com/code/viewtopic.php?f=17&t=3102&hilit=supertrend
Is it fundamentally that this new one is based on CCI while the older was based on ATR? Or is there other crucial differences?
Re: SuperTrend
Apprentice · Thu Dec 13, 2012 3:55 am
This is an unfortunate coincidence. Unfortunately I did not gave their names. One thing is certain, their algorithms are completely different. It his case, CCI is the trigger. Line is higher / lower from High / Low, for X Pips set by user.
Your (the second) example. The trend is determined, by Midian + / - ATR
Re: SuperTrend
elliotwave5 · Thu Dec 13, 2012 10:03 pm
is the st.lua file posted above in the response the same code as the following mt4 code that i seek a conversion for?
Code: Select all `#property indicator_chart_window #property indicator_buffers 2 #property indicator_color1 MediumSpringGreen #property indicator_color2 Red
double TrendUp[]; double TrendDown[]; double NonTrend[];
int st = 0;
int UpDownShift;
extern int TrendCCI_Period = 14; extern bool Automatic_Timeframe_setting; extern int M1_CCI_Period = 14; extern int M5_CCI_Period = 14; extern int M15_CCI_Period = 14; extern int M30_CCI_Period = 14; extern int H1_CCI_Period = 14; extern int H4_CCI_Period = 14; extern int D1_CCI_Period = 14; extern int W1_CCI_Period = 14; extern int MN_CCI_Period = 14;
//+——————————————————————+ //| Custom indicator initialization function | //+——————————————————————+ int init() { //—- indicators
SetIndexStyle(0, DRAW_LINE, 0, 2); SetIndexBuffer(0, TrendUp); SetIndexStyle(1, DRAW_LINE, 0, 2); SetIndexBuffer(1, TrendDown); switch(Period()) { case 1: UpDownShift = 3; break; case 5: UpDownShift = 5; break; case 15: UpDownShift = 7; break; case 30: UpDownShift = 9; break; case 60: UpDownShift = 20; break; case 240: UpDownShift = 35; break; case 1440: UpDownShift = 40; break; case 10080: UpDownShift = 100; break; case 43200: UpDownShift = 120; break; } //—- return(0); } //+——————————————————————+ //| Custor indicator deinitialization function | //+——————————————————————+ int deinit() { //—- //—- return(0); } //+——————————————————————+ //| Custom indicator iteration function | //+——————————————————————+ int start() { int limit, i, cciPeriod; double cciTrendNow14, cciTrendPrevious14, cciTrendNow, cciTrendPrevious;
int counted_bars = IndicatorCounted(); //—- check for possible errors if(counted_bars < 0) return(-1); //—- last counted bar will be recounted if(counted_bars > 0) counted_bars–;
limit=Bars-counted_bars; if (Automatic_Timeframe_setting == true) { switch(Period()) { case 1: cciPeriod = M1_CCI_Period; break; case 5: cciPeriod = M5_CCI_Period; break; case 15: cciPeriod = M15_CCI_Period; break; case 30: cciPeriod = M30_CCI_Period; break; case 60: cciPeriod = H1_CCI_Period; break; case 240: cciPeriod = H4_CCI_Period; break; case 1440: cciPeriod = D1_CCI_Period; break; case 10080: cciPeriod = W1_CCI_Period; break; case 43200: cciPeriod = MN_CCI_Period; break; } } else { cciPeriod = TrendCCI_Period; } /switch(cciPeriod) { case 14: break; }/ //cciPeriod = TrendCCI_Period; SetIndexLabel(0, (“TrendUp “ + cciPeriod)); SetIndexLabel(1, (“TrendDown “ + cciPeriod)); for(i = limit; i >= 0; i–) { cciTrendNow = iCCI(NULL, 0, cciPeriod, PRICE_TYPICAL, i) + 70; cciTrendPrevious = iCCI(NULL, 0, cciPeriod, PRICE_TYPICAL, i+1) + 70; //cciTrendNow50 = iCCI(NULL, 0, 50, PRICE_TYPICAL, i) + 70; //cciTrendPrevious50 = iCCI(NULL, 0, 50, PRICE_TYPICAL, i+1) + 70; if (cciTrendNow > st && cciTrendPrevious < st) { TrendUp[i+1] = TrendDown[i+1]; //TrendDown[i] = EMPTY_VALUE; } if (cciTrendNow < st && cciTrendPrevious > st) { TrendDown[i+1] = TrendUp[i+1]; //TrendUp[i] = EMPTY_VALUE; } if (cciTrendNow > 0) { TrendUp[i] = Low[i] - PointUpDownShift; TrendDown[i] = EMPTY_VALUE; if (Close[i] < Open[i] && TrendDown[i+1] != TrendUp[i+1]) { TrendUp[i] = TrendUp[i+1]; } if (TrendUp[i] < TrendUp[i+1] && TrendDown[i+1] != TrendUp[i+1]) { TrendUp[i] = TrendUp[i+1]; } if (High[i] < High[i+1] && TrendDown[i+1] != TrendUp[i+1]) { TrendUp[i] = TrendUp[i+1]; } } else if (cciTrendNow < 0) { TrendDown[i] = High[i] + PointUpDownShift; TrendUp[i] = EMPTY_VALUE; if (Close[i] > Open[i] && TrendDown[i+1] != TrendUp[i+1]) { TrendDown[i] = TrendDown[i+1]; } if (TrendDown[i] > TrendDown[i+1] && TrendDown[i+1] != TrendUp[i+1]) { TrendDown[i] = TrendDown[i+1]; } if (Low[i] > Low[i+1] && TrendUp[i+1] != TrendDown[i+1]) { TrendDown[i] = TrendDown[i+1]; } } } //—- //—- return(0); } //+——————————————————————+`
Re: SuperTrend
elliotwave5 · Sun Dec 16, 2012 6:36 am
Would it be possible to create an alert for the ST indicator - ie audio, visual, email alert when colour changes?
Re: SuperTrend
Apprentice · Mon Dec 17, 2012 3:40 am
Your request is added to the development list.
Re: SuperTrend
elliotwave5 · Mon Dec 17, 2012 8:22 am
thank you
Re: SuperTrend
Apprentice · Tue Dec 18, 2012 3:57 pm
required can be found here. viewtopic.php?f=31&t=27809
Re: SuperTrend
Apprentice · Fri Sep 16, 2016 5:25 am
Minor Update.
Re: SuperTrend
Apprentice · Mon Aug 28, 2017 3:42 am
The indicator was revised and updated.
Re: SuperTrend
Apprentice · Mon Sep 24, 2018 10:28 am
The indicator was revised and updated.
Re: SuperTrend
conjure · Mon Oct 29, 2018 11:03 am
Can you make the ST.lua working on FXCM metatrader4 platform?
Re: SuperTrend
Apprentice · Tue Oct 30, 2018 4:21 pm
Your request is added to the development list under Id Number 4289
Re: SuperTrend
Apprentice · Wed Oct 31, 2018 5:19 am
Already converted viewtopic.php?f=38&t=63520&p=106451
Re: SuperTrend
Apprentice · Fri Nov 02, 2018 12:07 pm
A similar indicator. viewtopic.php?f=38&t=66882
