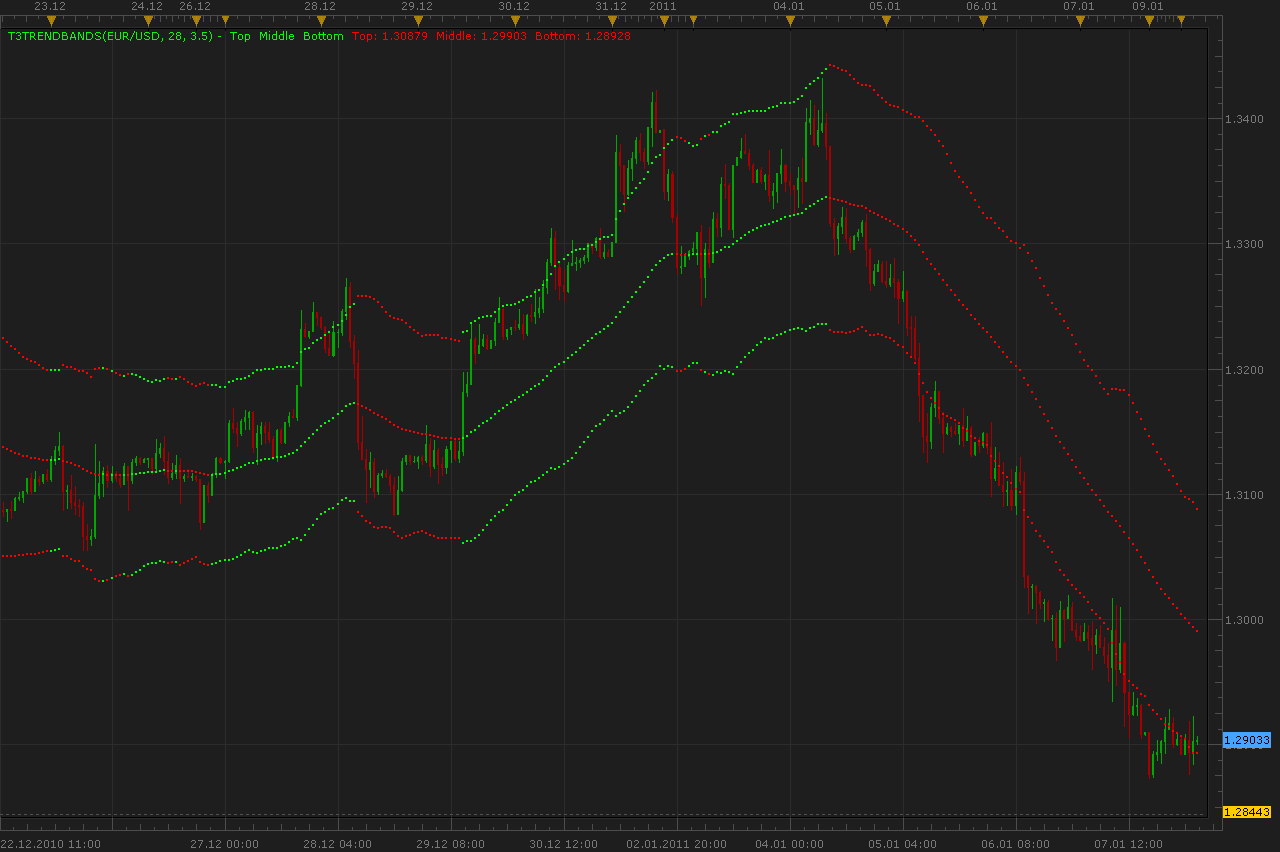

T3Trend Bands
Alexander.Gettinger · Mon Jan 10, 2011 4:25 am
Formulas: MiddleLine[i]=(MiddleLine[i-1](BandBars-1)+Close[i])/BandBars, TopLine[i]=MiddleLine[i]+SmoothRange[i], BottomLine[i]=MiddleLine[i]-SmoothRange[i], where SmoothRange[i]=(SmoothRange[i-1](BandBars-1)+High[i]-Low[i])/BandBars.
MiddleLine[0]=Close[0], SmoothRange[0]=High[0]-Low[0].
Download:
The indicator was revised and updated
Re: T3Trend Bands
aytacasan · Mon Jan 10, 2011 8:48 pm
Sory but translation is not true. I translate but there is a bug but i don’t find it. Can you help me?
Re: T3Trend Bands
aytacasan · Mon Jan 10, 2011 8:51 pm
Sory but translation is not true. I translate but there is a bug and i can’t fix it. Can you help me?
INDICATOR CODE:
Code: Select all `– Indicator profile initialization routine – Defines indicator profile properties and indicator parameters – TODO: Add minimal and maximal value of numeric parameters and default color of the streams function Init() indicator:name(resources:get(“name”)); indicator:description(resources:get(“description”)); indicator:requiredSource(core.Bar); indicator:type(core.Indicator); indicator:setTag(“group”, “İndikatörlerim”);
indicator.parameters:addGroup(“Calculation”); indicator.parameters:addInteger(“BandDays”, resources:get(“param_BandDays_name”), resources:get(“param_BandDays_description”), 28); indicator.parameters:addDouble(“DevConstant”, resources:get(“param_DevConstant_name”), resources:get(“param_DevConstant_description”), 3.5); indicator.parameters:addGroup(“Style”); indicator.parameters:addColor(“TrendBandTop_color”, resources:get(“param_TrendBandTop_color_name”), resources:get(“param_TrendBandTop_color_description”), core.rgb(0, 0, 0)); indicator.parameters:addInteger(“TrendBandTop_width”, resources:get(“param_TrendBandTop_width_name”), resources:get(“param_TrendBandTop_width_description”), 2, 1, 5); indicator.parameters:addInteger(“TrendBandTop_style”, resources:get(“param_TrendBandTop_style_name”), resources:get(“param_TrendBandTop_style_description”), core.LINE_SOLID); indicator.parameters:setFlag(“TrendBandTop_style”, core.FLAG_LINE_STYLE); indicator.parameters:addColor(“TrendBandMiddle_colorUp”, resources:get(“param_TrendBandMiddle_colorUp_name”), resources:get(“param_TrendBandMiddle_colorUp_description”), core.rgb(0, 255, 0)); indicator.parameters:addColor(“TrendBandMiddle_colorDown”, resources:get(“param_TrendBandMiddle_colorDown_name”), resources:get(“param_TrendBandMiddle_colorDown_description”), core.rgb(255, 0, 255)); indicator.parameters:addInteger(“TrendBandMiddle_width”, resources:get(“param_TrendBandMiddle_width_name”), resources:get(“param_TrendBandMiddle_width_description”), 2, 1, 5); indicator.parameters:addInteger(“TrendBandMiddle_style”, resources:get(“param_TrendBandMiddle_style_name”), resources:get(“param_TrendBandMiddle_style_description”), core.LINE_SOLID); indicator.parameters:setFlag(“TrendBandMiddle_style”, core.FLAG_LINE_STYLE); indicator.parameters:addColor(“TrendBandBottom_color”, resources:get(“param_TrendBandBottom_color_name”), resources:get(“param_TrendBandBottom_color_description”), core.rgb(0, 0, 0)); indicator.parameters:addInteger(“TrendBandBottom_width”, resources:get(“param_TrendBandBottom_width_name”), resources:get(“param_TrendBandBottom_width_description”), 2, 1, 5); indicator.parameters:addInteger(“TrendBandBottom_style”, resources:get(“param_TrendBandBottom_style_name”), resources:get(“param_TrendBandBottom_style_description”), core.LINE_SOLID); indicator.parameters:setFlag(“TrendBandBottom_style”, core.FLAG_LINE_STYLE); end
– Indicator instance initialization routine – Processes indicator parameters and creates output streams – TODO: Refine the first period calculation for each of the output streams. – TODO: Calculate all constants, create instances all subsequent indicators and load all required libraries – Parameters block local BandDays; local DevConstant;
local first; local source = nil;
– Streams block local TrendBandTop = nil; local TrendBandMiddleUp = nil; local TrendBandMiddleDown = nil; local TrendBandBottom = nil;
– Routine function Prepare() BandDays = instance.parameters.BandDays; DevConstant = instance.parameters.DevConstant; source = instance.source; first = source:first();
local name = profile:id() .. “(“ .. source:name() .. “, “ .. BandDays .. “, “ .. DevConstant .. “)”; instance:name(name); TrendBandTop = instance:addStream(“TrendBandTop”, core.Line, name .. “.TrendBandTop”, “TrendBandTop”, instance.parameters.TrendBandTop_color, first); TrendBandTop:setWidth(instance.parameters.TrendBandTop_width); TrendBandTop:setStyle(instance.parameters.TrendBandTop_style); TrendBandMiddleUp = instance:addStream(“TrendBandMiddleUp”, core.Line, name .. “.TrendBandMiddleUp”, “TrendBandMiddleUp”, instance.parameters.TrendBandMiddle_colorUp, first); TrendBandMiddleUp:setWidth(instance.parameters.TrendBandMiddle_width); TrendBandMiddleUp:setStyle(instance.parameters.TrendBandMiddle_style); TrendBandMiddleDown = instance:addStream(“TrendBandMiddleDown”, core.Line, name .. “.TrendBandMiddleDown”, “TrendBandMiddleDown”, instance.parameters.TrendBandMiddle_colorDown, first); TrendBandMiddleDown:setWidth(instance.parameters.TrendBandMiddle_width); TrendBandMiddleDown:setStyle(instance.parameters.TrendBandMiddle_style); TrendBandBottom = instance:addStream(“TrendBandBottom”, core.Line, name .. “.TrendBandBottom”, “TrendBandBottom”, instance.parameters.TrendBandBottom_color, first); TrendBandBottom:setWidth(instance.parameters.TrendBandBottom_width); TrendBandBottom:setStyle(instance.parameters.TrendBandBottom_style); end
local serial = nil; local bOBLow = 0.0; local bOBHigh = 0.0; local expSmoothPrice = 0; local expSmoothRange = 0; local crossOver = false; local crossUnder = false; local directionUp = false;
– Indicator calculation routine – TODO: Add your code for calculation output values function Update(period) if period > first and source:hasData(period - 1) and serial ~= source:serial(period) then if period == first + 1 then expSmoothPrice = source.close[period - 1]; expSmoothRange = source.high[period - 1] - source.low[period - 1]; if source.open[period - 1] > expSmoothPrice then directionUp = true; end else expSmoothPrice = (expSmoothPrice * (BandDays - 1) + source.close[period - 1]) / BandDays; expSmoothRange = (expSmoothRange * (BandDays - 1) + (source.high[period - 1] - source.low[period - 1])) / BandDays; end
TrendBandTop[period] = expSmoothPrice + (expSmoothRange * DevConstant); if directionUp then TrendBandMiddleUp[period] = expSmoothPrice; else TrendBandMiddleDown[period] = expSmoothPrice; end TrendBandBottom[period] = expSmoothPrice - (expSmoothRange * DevConstant);
if bOBHigh > 0 and source.close[period - 1] > bOBHigh then directionUp = true; bOBHigh = 0; elseif bOBLow > 0 and source.close[period - 1] < bOBLow then directionUp = false; bOBLow = 0; end if crossOver and source.high[period - 1] >= expSmoothPrice and source.low[period - 1] >= expSmoothPrice then bOBHigh = source.high[period - 1]; crossOver = false; elseif crossUnder and source.high[period - 1] <= expSmoothPrice and source.low[period - 1] <= expSmoothPrice then bOBLow = source.low[period - 1]; crossUnder = false; end
if directionUp and core.crossesUnder(source.close, TrendBandMiddleUp, 1) then crossUnder = true; elseif not(directionUp) and core.crossesOver(source.close, TrendBandMiddleDown, 1) then crossOver = true; end
serial = source:serial(period); end end
[b]RESOURCE CODE:[/b]
default=enu [enu] codepage=1252 name=TrendBands description=TrendBands param_BandDays_name=BandDays param_BandDays_description=BandDays param_DevConstant_name=DevConstant param_DevConstant_description=DevConstant param_TrendBandTop_color_name=Color of TrendBandTop param_TrendBandTop_color_description=Color of TrendBandTop param_TrendBandTop_width_name=Width of TrendBandTop param_TrendBandTop_width_description=Width of TrendBandTop param_TrendBandTop_style_name=Style of TrendBandTop param_TrendBandTop_style_description=Style of TrendBandTop param_TrendBandMiddle_colorUp_name=Up Color of TrendBandMiddle param_TrendBandMiddle_colorUp_description=Up Color of TrendBandMiddle param_TrendBandMiddle_colorDown_name=Down Color of TrendBandMiddle param_TrendBandMiddle_colorDown_description=Down Color of TrendBandMiddle param_TrendBandMiddle_width_name=Width of TrendBandMiddle param_TrendBandMiddle_width_description=Width of TrendBandMiddle param_TrendBandMiddle_style_name=Style of TrendBandMiddle param_TrendBandMiddle_style_description=Style of TrendBandMiddle param_TrendBandBottom_color_name=Color of TrendBandBottom param_TrendBandBottom_color_description=Color of TrendBandBottom param_TrendBandBottom_width_name=Width of TrendBandBottom param_TrendBandBottom_width_description=Width of TrendBandBottom param_TrendBandBottom_style_name=Style of TrendBandBottom param_TrendBandBottom_style_description=Style of TrendBandBottom`
Re: T3Trend Bands
Alexander.Gettinger · Wed Jan 12, 2011 5:25 am
I not found error in your indicator. At me it works. My indicator corresponds to your now.
Re: T3Trend Bands
aytacasan · Wed Jan 12, 2011 7:25 am
Alexander i examine your indicator and it is completely wrong. My indicator source right but there is bug. Bug is middle band color not changing correctly. I try to explain concept. Also I added attachment that I wrote this indicator for Ninja Trader Trading Platform and working correctly.
CAB= Cross Above Bar (When trend is down, cross above middle band bar is CAB) CBB= Cross Below Bar (When trend is up, cross below middle band bar is CBB) BOB= Break of Bar (After cross which bar compalitly above or below middle band) COB= Continuation Bar (After BOB detection, which bar closed higher or lower BOB high or low)
Re: T3Trend Bands
briansummy · Mon Sep 03, 2012 12:36 pm
Neat indicator. Can you add the option to increase dot width? I’ll try changing color for now. Thanks!
Re: T3Trend Bands
Apprentice · Mon Sep 03, 2012 1:34 pm

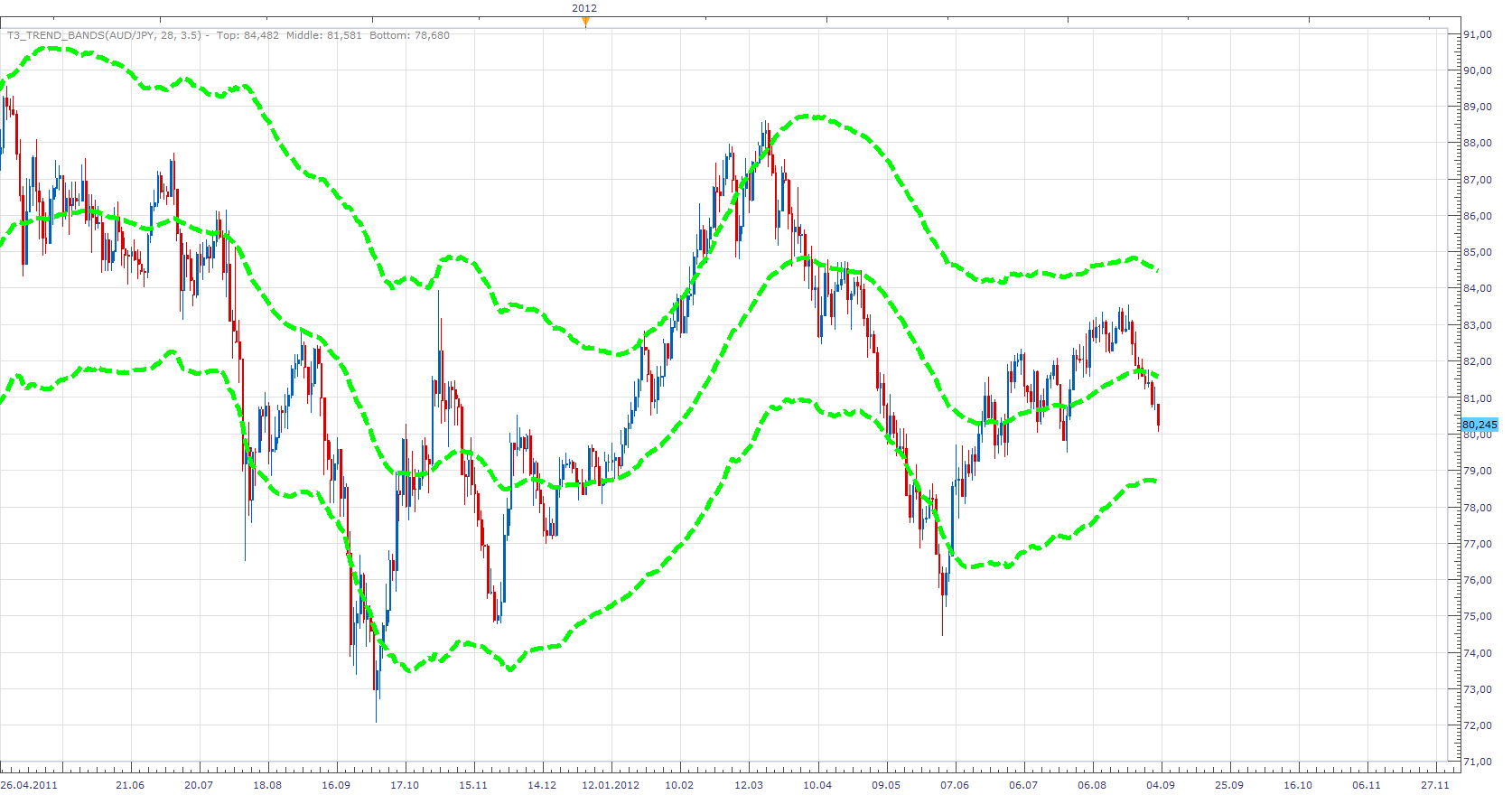

Style Option Added.
Re: T3Trend Bands
Apprentice · Wed Apr 12, 2017 5:31 am
Indicator was revised and updated.
