TMMS
Apprentice · Tue Aug 13, 2019 5:55 am
Based on request. viewtopic.php?f=27&t=68770
Re: TMMS
rch05000 · Tue Aug 13, 2019 12:49 pm
Great! Thank you very much Apprentice.
Re: TMMS
rch05000 · Tue Aug 27, 2019 5:32 am
Hello Apprentice,
Can you upgrade the TMMS.lua indicator as the smTMMS Oscillator V.4 indicator for MT4. Here is the code
Code: Select all `//+——————————————————————+ //| smTMMS Oscillator_vX //+——————————————————————+ #property copyright “Copyright 16.08.2019, SwingMan” #property strict #property indicator_separate_window
//16.08.2019 - v4.0 - with Alerts
#property indicator_buffers 8
#property indicator_color1 clrSienna //lines #property indicator_color2 clrLime #property indicator_color3 clrSlateGray #property indicator_color4 clrGreen //histograms #property indicator_color5 clrRed #property indicator_color6 clrDarkGray #property indicator_color7 clrLime //arrows #property indicator_color8 clrOrange
#property indicator_width1 1 //lines #property indicator_width2 1 #property indicator_width3 1 #property indicator_width4 3 //histograms #property indicator_width5 3 #property indicator_width6 3 #property indicator_width7 1 //arrows #property indicator_width8 1
#property indicator_level1 20 #property indicator_level2 0 #property indicator_level3 -20 #property indicator_levelcolor clrSilver #property indicator_levelstyle STYLE_DOT #property indicator_levelwidth 1
#property indicator_maximum 50 #property indicator_minimum -50 //+——————————————————————+ //| | //+——————————————————————+ enum ENUM_ARROW_TYPE { Circle, Rectangle };
//— inputs //+——————————————————————+ input bool Draw_Oscillator_Lines=false; sinput string sRSI=”RSI”; //================================= input int RSI_Period=14; input ENUM_APPLIED_PRICE RSI_AppliedPrice=PRICE_CLOSE; // sinput string sStochastic=”STOCHASTIC”; //================================= input int Stochastic_1_Period_K = 8; input int Stochastic_1_Period_D = 3; input int Stochastic_1_Slowing = 3; input ENUM_STO_PRICE Stochastic_1_PriceField = STO_LOWHIGH; input ENUM_MA_METHOD Stochastic_1_MAmethod = MODE_SMMA; input int Stochastic_2_Period_K = 14; input int Stochastic_2_Period_D = 3; input int Stochastic_2_Slowing = 3; input ENUM_STO_PRICE Stochastic_2_PriceField = STO_LOWHIGH; input ENUM_MA_METHOD Stochastic_2_MAmethod = MODE_SMMA; // sinput string sHullAverage=”HULL MovingAverage”; //================================= input bool Draw_HullTrend =true; input int Hull_Period =12; input double Hull_Divisor =2; input ENUM_APPLIED_PRICE Hull_AppliedPrice=PRICE_CLOSE; input ENUM_ARROW_TYPE Arrow_Type=Circle; // sinput string sAlerts=”Alerts”; //================================= extern double Alert_Threshold_Line=20; extern bool SendSignal_Alerts =true; extern bool SendSignal_Emails =false; //extern bool Send_Notifications=false; //+——————————————————————+
//—- buffers double bufRSI[],bufStoch1[],bufStoch2[]; double bufHistUP[],bufHistDN[],bufHistNO[]; double bufHullUP[],bufHullDN[],bufHull[],buffHullAvg[],trend[]; double oscAlert[],oscSignal[]; //— variables datetime thisTime,oldTime; bool newBar; //+——————————————————————+ //| Custom indicator initialization function | //+——————————————————————+ int OnInit() { int iArrow=108; //— indicator buffers mapping int iBuff=-1; //— lines iBuff++; SetIndexBuffer(iBuff,bufRSI); SetIndexStyle(iBuff,DRAW_LINE); SetIndexLabel(iBuff,”RSI”); if(Draw_Oscillator_Lines==false) SetIndexStyle(iBuff,DRAW_NONE); iBuff++; SetIndexBuffer(iBuff,bufStoch1); SetIndexStyle(iBuff,DRAW_LINE); SetIndexLabel(iBuff,”Stochastic (“+(string)Stochastic_1_Period_K+”)”); if(Draw_Oscillator_Lines==false) SetIndexStyle(iBuff,DRAW_NONE); iBuff++; SetIndexBuffer(iBuff,bufStoch2); SetIndexStyle(iBuff,DRAW_LINE); SetIndexLabel(iBuff,”Stochastic (“+(string)Stochastic_2_Period_K+”)”); //— histograms iBuff++; SetIndexBuffer(iBuff,bufHistUP); SetIndexStyle(iBuff,DRAW_HISTOGRAM); SetIndexLabel(iBuff,NULL); iBuff++; SetIndexBuffer(iBuff,bufHistDN); SetIndexStyle(iBuff,DRAW_HISTOGRAM); SetIndexLabel(iBuff,NULL); iBuff++; SetIndexBuffer(iBuff,bufHistNO); SetIndexStyle(iBuff,DRAW_HISTOGRAM); SetIndexLabel(iBuff,NULL); //— arrows - HULL moving average if(Arrow_Type==Circle) iArrow=108; else if(Arrow_Type==Rectangle) iArrow=110; iBuff++; SetIndexBuffer(iBuff,bufHullUP); SetIndexStyle(iBuff,DRAW_ARROW); SetIndexArrow(iBuff,iArrow); SetIndexLabel(iBuff,”HMA_Trend UP”); if(Draw_HullTrend==false) SetIndexStyle(iBuff,DRAW_NONE); iBuff++; SetIndexBuffer(iBuff,bufHullDN); SetIndexStyle(iBuff,DRAW_ARROW); SetIndexArrow(iBuff,iArrow); SetIndexLabel(iBuff,”HMA_Trend DOWN”); if(Draw_HullTrend==false) SetIndexStyle(iBuff,DRAW_NONE);
//— more buffers IndicatorBuffers(13); iBuff++; SetIndexBuffer(iBuff,bufHull); iBuff++; SetIndexBuffer(iBuff,buffHullAvg); iBuff++; SetIndexBuffer(iBuff,trend); iBuff++; SetIndexBuffer(iBuff,oscAlert); SetIndexEmptyValue(iBuff,EMPTY_VALUE); iBuff++; SetIndexBuffer(iBuff,oscSignal); SetIndexEmptyValue(iBuff,EMPTY_VALUE); //— IndicatorDigits(2); return(INIT_SUCCEEDED); } //—
//+——————————————————————+ //| Custom indicator iteration function | //+——————————————————————+ int OnCalculate(const int rates_total, const int prev_calculated, const datetime &time[], const double &open[], const double &high[], const double &low[], const double &close[], const long &tick_volume[], const long &volume[], const int &spread[]) { //— int i,pos; double threshold=50,limit=0;
//— if(rates_total<=10) return(0);
thisTime=Time[0]; if(thisTime!=oldTime) {oldTime=thisTime; newBar=true;} else newBar=false;
pos=0;
//— main loop of calculations for(i=pos; i<rates_total; i++) { //— oscillators bufRSI[i]=iRSI(Symbol(),Period(),RSI_Period,RSI_AppliedPrice,i); bufStoch1[i]=iStochastic(Symbol(),Period(), Stochastic_1_Period_K,Stochastic_1_Period_D,Stochastic_1_Slowing, Stochastic_1_MAmethod,Stochastic_1_PriceField,MODE_MAIN,i); bufStoch2[i]=iStochastic(Symbol(),Period(), Stochastic_2_Period_K,Stochastic_2_Period_D,Stochastic_2_Slowing, Stochastic_2_MAmethod,Stochastic_2_PriceField,MODE_MAIN,i); bufRSI[i]=bufRSI[i]-threshold; bufStoch1[i]=bufStoch1[i]-threshold; bufStoch2[i]=bufStoch2[i]-threshold;
//— histograms; Alerts bufHistUP[i]=EMPTY_VALUE; bufHistDN[i]=EMPTY_VALUE; bufHistNO[i]=EMPTY_VALUE; oscAlert[i] =EMPTY_VALUE; if(bufRSI[i]>limit && bufStoch1[i]>limit && bufStoch2[i]>limit) { bufHistUP[i]=bufStoch2[i]; if(bufHistUP[i]>Alert_Threshold_Line) oscAlert[i]=1; } else if(bufRSI[i]<limit && bufStoch1[i]<limit && bufStoch2[i]<limit) { bufHistDN[i]=bufStoch2[i]; if(bufHistUP[i]<-Alert_Threshold_Line) oscAlert[i]=-1; } else { bufHistNO[i]=bufStoch2[i]; } }
//========================== //— Last bar; Alerts at previous bar i=0; if(newBar==true) { if(oscAlert[i+2]==EMPTY_VALUE && oscAlert[i+1]==1 && oscSignal[i]==EMPTY_VALUE) { SendAlerts(i,OP_BUY,Symbol(),Period()); oscSignal[i]=1; } else if(oscAlert[i+2]==EMPTY_VALUE && oscAlert[i+1]==-1 && oscSignal[i]==EMPTY_VALUE) { SendAlerts(i,OP_SELL,Symbol(),Period()); oscSignal[i]=1; } }
//— Hull Moving Average if(Draw_HullTrend==true) Get_HullMovingAverage(rates_total,bufHullUP,bufHullDN);
//— return value of prev_calculated for next call return(rates_total); } //+——————————————————————+ //| | //+——————————————————————+ void Get_HullMovingAverage(int limitX,double &hullUP[],double &hullDN[]) { double zero=0; //– Hull moving average current TF ————- int MA_period1=(int)(Hull_Period/Hull_Divisor); int pPeriod=(int)MathSqrt(Hull_Period);
for(int i=0; i<limitX; i++) bufHull[i]=2*iMA(Symbol(),Period(),MA_period1,0,MODE_LWMA,Hull_AppliedPrice,i)- iMA(Symbol(),Period(),Hull_Period,0,MODE_LWMA,Hull_AppliedPrice,i);
for(int i=0; i<limitX-Hull_Period; i++) buffHullAvg[i]=iMAOnArray(bufHull,0,pPeriod,0,MODE_LWMA,i);
//– Arrows Hull moving average trend ———– for(int i=limitX-Hull_Period-1; i>=0; i–) { //trend[i]=trend[i+1]; if(buffHullAvg[i]>=buffHullAvg[i+1]) trend[i]=1; else trend[i]=-1;
if(trend[i]>0) { hullUP[i]=zero; hullDN[i]=EMPTY_VALUE; } else if(trend[i]<0) { hullUP[i]=EMPTY_VALUE; hullDN[i]=zero; } } } // ********** // ** ALERTS ** // ********** //+——————————————————————+ // Send Alerts //+——————————————————————+ void SendAlerts(int iBar,int iSignalDirection,string sSymbol,int iPeriod) { if(SendSignal_Alerts == false && SendSignal_Emails == false) return; //— string subjectEmailAlert=”TMMS Oscillator”;
string sPeriod = “ (“+Get_PeriodString(iPeriod)+”) “; double dEntryPrice = iOpen(sSymbol,iPeriod,iBar); string sEntryPrice = “ “+DoubleToString(dEntryPrice,Digits); string sTime = “ “ + TimeToStr(TimeCurrent(),TIME_MINUTES|TIME_SECONDS) + “ “; string sBarTime = “ Bar: “ + TimeToStr(Time[iBar],TIME_MINUTES|TIME_SECONDS) + “ “;
string sText,sTextAlert;
//— LONG Entry Signal —————————————— if(iSignalDirection==OP_BUY) { sText=” LONG entry”; } else
//— SHORT Entry Signal —————————————– if(iSignalDirection==OP_SELL) { sText=” SHORT entry”; }
//— Send alerts sTextAlert=sSymbol+sPeriod+sText+sTime+” TMMS Oscillator: “+sEntryPrice;
if(SendSignal_Alerts==true) Alert(sTextAlert);
if(SendSignal_Emails==true) SendMail(subjectEmailAlert,sTextAlert); } //+——————————————————————+ //| | //+——————————————————————+ string Get_PeriodString(int iPeriod) { string sPeriod; switch(iPeriod) { case PERIOD_M1: sPeriod=”M1”; break; case PERIOD_M5: sPeriod=”M5”; break; case PERIOD_M15: sPeriod=”M15”; break; case PERIOD_M30: sPeriod=”M30”; break; case PERIOD_H1: sPeriod=”H1”; break; case PERIOD_H4: sPeriod=”H4”; break; case PERIOD_D1: sPeriod=”D1”; break; case PERIOD_W1: sPeriod=”W1”; break; case PERIOD_MN1: sPeriod=”MN1”; break; } return(sPeriod); } //+——————————————————————+` thank you in advance
Re: TMMS
Apprentice · Tue Aug 27, 2019 7:05 am
Your request is added to the development list. Internal develper referance 2.
Re: TMMS
Apprentice · Wed Aug 28, 2019 10:52 am

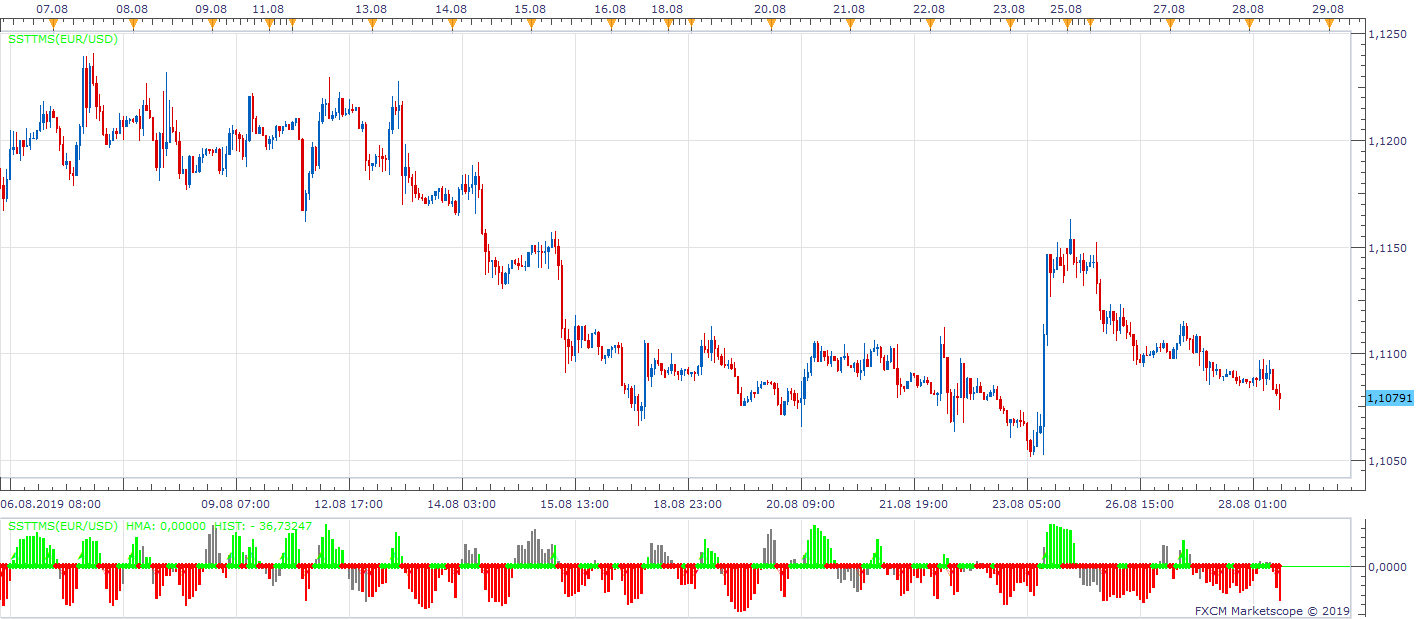

HMA: viewtopic.php?f=17&t=1659
Re: TMMS
rch05000 · Wed Aug 28, 2019 11:32 am
Great job! Thank you Apprentice
