Trix
Nikolay.Gekht · Thu May 13, 2010 4:45 pm

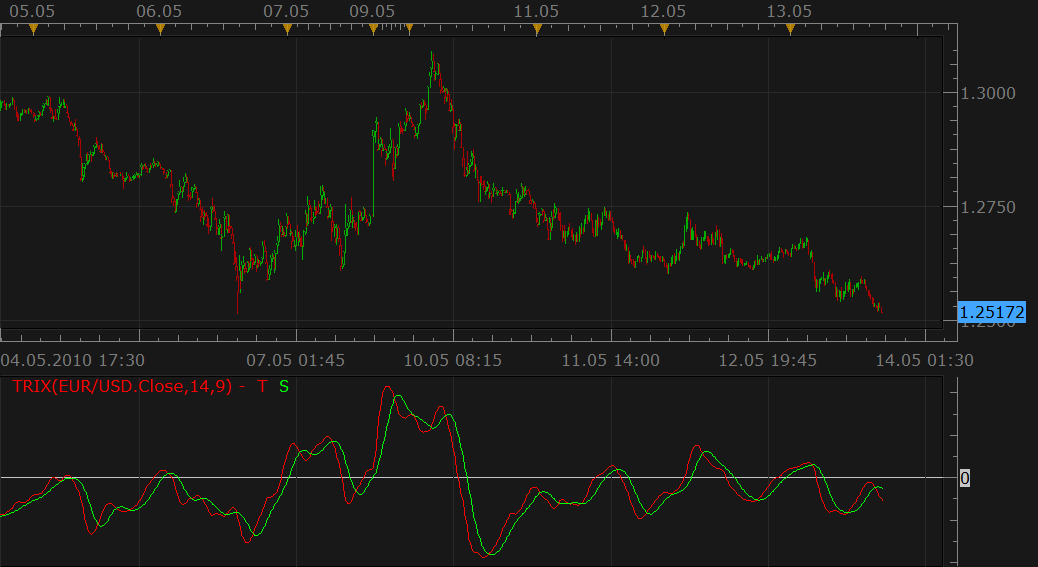

The TRIX Indicator was developed in the early 1980s by Jack Hutson who was an editor for the Technical Analysis of Stocks and Commodities magazine. Its name is comprised of its calculation: Triple Exponential.
The trix indicator is a tripple-smoothed price weighted against the previous tripple-smoothed price: TrMA = (EMA(EMA(EMA(price, N), N), N) TRIX(N)i = (TrMAi - TrMAi - 1) / TrMAi - 1). SIGNAL(N, S) = SMA(TRIX(N), S)
HISTOGRAM = TRIX - SIGNAL
The formula is from Appel, Gerald: Winning Stock Market Systems. Signalert Corp., Great Neck, N.Y. 1974.
The indicator was revised and updated The implementation lets you choose methods individually for each moving average. Please note that the methods marked using (*) requires the corresponding indicators to be downloaded and installed.
The common trading rule is: Buy when TRIX is below zero and crosses its Signal Line from below. Sell when TRIX is above zero and crosses its Signal Line from above.
Download the indicator:
Code: Select all `– TRIX index indicator function Init() indicator:name(“TRIX Index”); indicator:description(“The indicator eliminates cycles shorter than the selected indicator period. “); indicator:requiredSource(core.Tick); indicator:type(core.Oscillator);
indicator.parameters:addInteger(“P_N”, “TRIX Periods”, “”, 14); indicator.parameters:addString(“MA_1”, “First Smoothing Method”, “The methods marked by an asterisk () require the appropriate indicators to be loaded.”, “EMA”); indicator.parameters:addStringAlternative(“MA_1”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“MA_1”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“MA_1”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“MA_1”, “TMA”, “”, “TMA”); indicator.parameters:addStringAlternative(“MA_1”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“MA_1”, “Vidya (1995)”, “”, “VIDYA”); indicator.parameters:addStringAlternative(“MA_1”, “Vidya (1992)”, “”, “VIDYA92”); indicator.parameters:addStringAlternative(“MA_1”, “Wilders”, “”, “WMA”); indicator.parameters:addString(“MA_2”, “Second Smoothing Method”, “The methods marked by an asterisk () require the appropriate indicators to be loaded.”, “EMA”); indicator.parameters:addStringAlternative(“MA_2”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“MA_2”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“MA_2”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“MA_2”, “TMA”, “”, “TMA”); indicator.parameters:addStringAlternative(“MA_2”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“MA_2”, “Vidya (1995)”, “”, “VIDYA”); indicator.parameters:addStringAlternative(“MA_2”, “Vidya (1992)”, “”, “VIDYA92”); indicator.parameters:addStringAlternative(“MA_2”, “Wilders”, “”, “WMA”); indicator.parameters:addString(“MA_3”, “Third Smoothing Method”, “The methods marked by an asterisk () require the appropriate indicators to be loaded.”, “EMA”); indicator.parameters:addStringAlternative(“MA_3”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“MA_3”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“MA_3”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“MA_3”, “TMA”, “”, “TMA”); indicator.parameters:addStringAlternative(“MA_3”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“MA_3”, “Vidya (1995)”, “”, “VIDYA”); indicator.parameters:addStringAlternative(“MA_3”, “Vidya (1992)”, “”, “VIDYA92”); indicator.parameters:addStringAlternative(“MA_3”, “Wilders”, “”, “WMA”); indicator.parameters:addInteger(“S_N”, “Signal Periods”, “”, 9); indicator.parameters:addString(“MA_S”, “Signal Smoothing Method”, “The methods marked by an asterisk () require the appropriate indicators to be loaded.”, “MVA”); indicator.parameters:addStringAlternative(“MA_S”, “MVA”, “”, “MVA”); indicator.parameters:addStringAlternative(“MA_S”, “EMA”, “”, “EMA”); indicator.parameters:addStringAlternative(“MA_S”, “LWMA”, “”, “LWMA”); indicator.parameters:addStringAlternative(“MA_S”, “TMA”, “”, “TMA”); indicator.parameters:addStringAlternative(“MA_S”, “SMMA”, “”, “SMMA”); indicator.parameters:addStringAlternative(“MA_S”, “Vidya (1995)”, “”, “VIDYA”); indicator.parameters:addStringAlternative(“MA_S”, “Vidya (1992)”, “”, “VIDYA92”); indicator.parameters:addStringAlternative(“MA_S”, “Wilders”, “”, “WMA”);
indicator.parameters:addColor(“TRIX_color”, “Color of trix line”, “”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“SIGNAL_color”, “Color of signal line”, “”, core.rgb(0, 255, 0)); end
local source; local MA1, MA2, MA3, MA4; local TRIX, SIGNAL;
function Prepare() local name; name = profile:id() .. “(“ .. instance.source:name() .. “,” .. instance.parameters.P_N .. “,” .. instance.parameters.S_N .. “)”; instance:name(name);
MA1 = core.indicators:create(instance.parameters.MA_1, instance.source, instance.parameters.P_N); MA2 = core.indicators:create(instance.parameters.MA_2, MA1.DATA, instance.parameters.P_N); MA3 = core.indicators:create(instance.parameters.MA_3, MA2.DATA, instance.parameters.P_N);
TRIX = instance:addStream(“T”, core.Line, name .. “.T”, “T”, instance.parameters.TRIX_color, MA3.DATA:first() + 1); TRIX:addLevel(0);
MA4 = core.indicators:create(instance.parameters.MA_S, TRIX, instance.parameters.S_N);
SIGNAL = instance:addStream(“S”, core.Line, name .. “.S”, “S”, instance.parameters.SIGNAL_color, MA4.DATA:first()); end
function Update(period, mode) MA1:update(mode); MA2:update(mode); MA3:update(mode);
if period >= TRIX:first() then TRIX[period] = (MA3.DATA[period] - MA3.DATA[period - 1]) / MA3.DATA[period - 1] * 100; end MA4:update(mode); if period >= SIGNAL:first() then SIGNAL[period] = MA4.DATA[period]; end end`
Re: Trix
rorieu · Sun May 16, 2010 8:46 am
Nikolay
I am a Metatrader user looking to change over to Marketscope charts.
I was about to ask about Trix and then it appeared on May13th, thank you!
I have an MT4 version that changes color (with slope /direction or turning points) can this feature be added to your Trix?
Another indicator I use daily is an MA ( Exp, Simple or Linear weighted) which changes color according to SLOPE at a value I can pre-define. Is this possible to implement in Marketscope?
If required I will supply more details of the above indicators.
rorieu
Re: Trix
arindam89 · Mon Dec 12, 2011 5:44 am
hi great work keep it up this is a good indicator can u give me the strategy of trix for trading station 2 thnaks a lot by arindam
Re: Trix
arindam89 · Mon Dec 12, 2011 5:54 am
hi can u give me a trix strategy that works on trading station 2 i.e, .lau file thanks by
Re: Trix
Apprentice · Mon Dec 12, 2011 12:12 pm
Histogram Stream Added.
Re: Trix
jeisenm · Mon Dec 12, 2011 12:50 pm
this is a very interesting indicator. can you explain how to use the histogram display that was just added?
Re: Trix
Apprentice · Mon Dec 12, 2011 1:15 pm
The histogram is calculated similarly to its MACD Kontrapart. Can be used in the same way. It is designed as early detection tool for Trix/Sigal line crossover. Use the divergence.
Re: Trix
arindam89 · Tue Dec 13, 2011 12:40 am
Apprentice wrote: Histogram Stream Added.
HI GOOD WORK YOU ADDED THE HISTOGRAM TO TRIX INDICATOR CAN YOU PLEASE GIVE ME THE TRIX STRATEGY FOR TRADING STATION 2 ALSO I REALLY NEED IT IT WOULD BE REALLY KIND OF YOU COULD HELP ME BY ARINDAM
Re: Trix
Apprentice · Tue Dec 13, 2011 4:18 am
Requested can be found here. viewtopic.php?f=31&t=9558
last request
arindam89 · Wed Dec 14, 2011 7:20 am
Apprentice wrote: Requested can be found here. viewtopic.php?f=31&t=9558
hi i have one last request can you code 2 trix strategies
- when trix crosses signal line upwards and both are above the centre or zero line it opens a long position 2.when trix crosses signal line downwards and both are below the centre or zero line it opens a short position sorry to disturb you again and again but i really need it thanks by arindam
Re: Trix
Apprentice · Thu Dec 15, 2011 5:34 pm
Your request is added to the developmental cue.
Re: Trix
Apprentice · Sun Apr 01, 2012 8:38 am

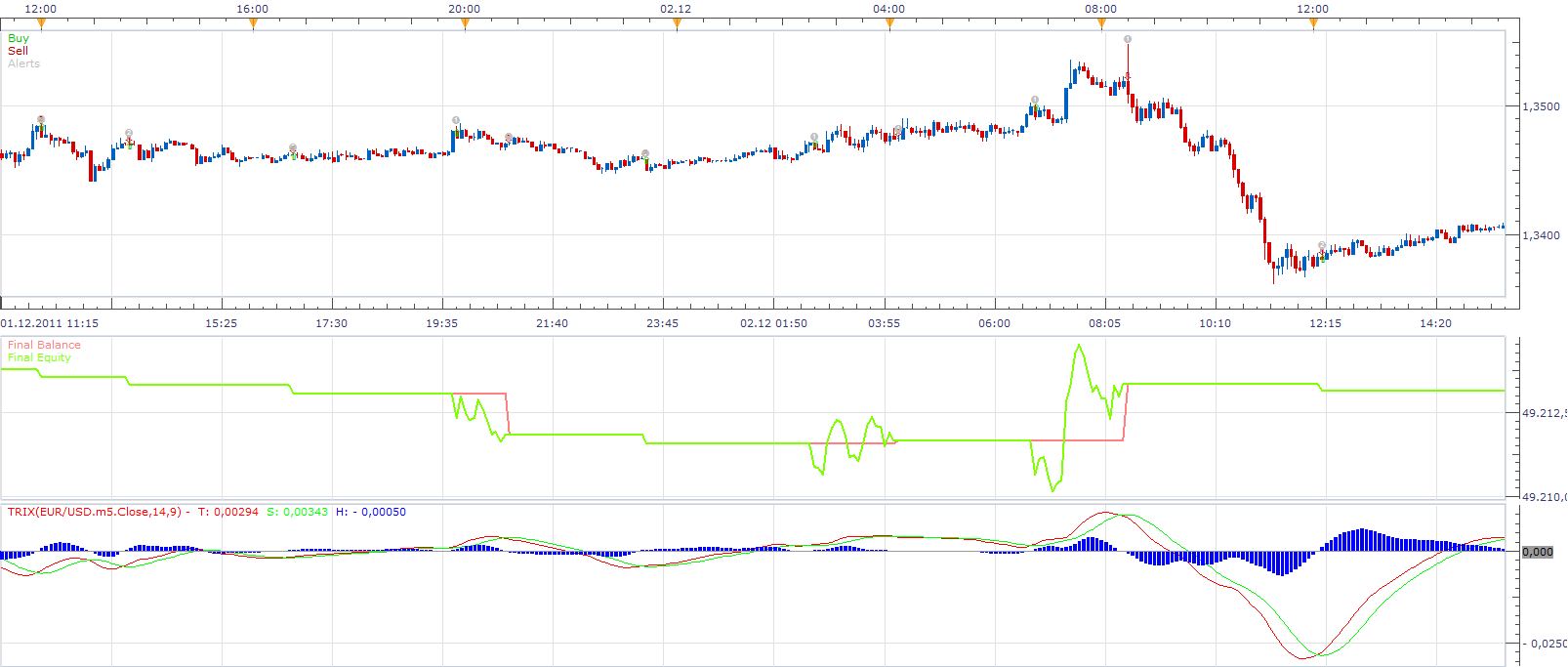

For arindam89
Long Trix Line Signal Line CrossOver and Signal Line > 0
Short Trix Line Signal Line CrossUnder and Signal Line < 0
Exit Long Trix Line Signal Line CrossUnder or Signal Line < 0
Exit Short Long Trix Line Signal Line CrossOver or Signal Line > 0
Install Trix Indicator, in order to use this strategy. viewtopic.php?f=17&t=1022&hilit=trix
Re: Trix
Alexander.Gettinger · Tue Jun 19, 2012 5:33 pm
MQL4 version of Trix indicator: viewtopic.php?f=38&t=20395
Re: Trix
cersoz · Fri Apr 19, 2013 1:26 pm
Anyone can add to histogram color option? ..like as “http://fxcodebase.com/code/viewtopic.php?f=17&t=229&hilit=histogram”
Re: Trix
Apprentice · Sun Apr 21, 2013 6:09 am
histogram color option added
Re: Trix
Swissy · Mon Dec 23, 2013 7:10 pm
Is this trix indi the same as the Triple Smooth Exponential oscillator that is posted in separate thread? Same file name but looks to be bigger file. Both files states it was developed based on Jack K. Hutson. If they are different, I would like to know what the difference is.
viewtopic.php?f=17&t=31775&p=54173&hilit=trix#p54173
Thank you
Re: Trix
Apprentice · Wed Dec 25, 2013 2:43 pm
I have checked the numbers. They are identical.
Re: Trix
Apprentice · Wed Mar 22, 2017 11:48 am
Indicator was revised and updated.
