Two ZigZags
Alexander.Gettinger · Fri Sep 17, 2010 1:52 am
2 indicators from article http://articles.mql4.com/444

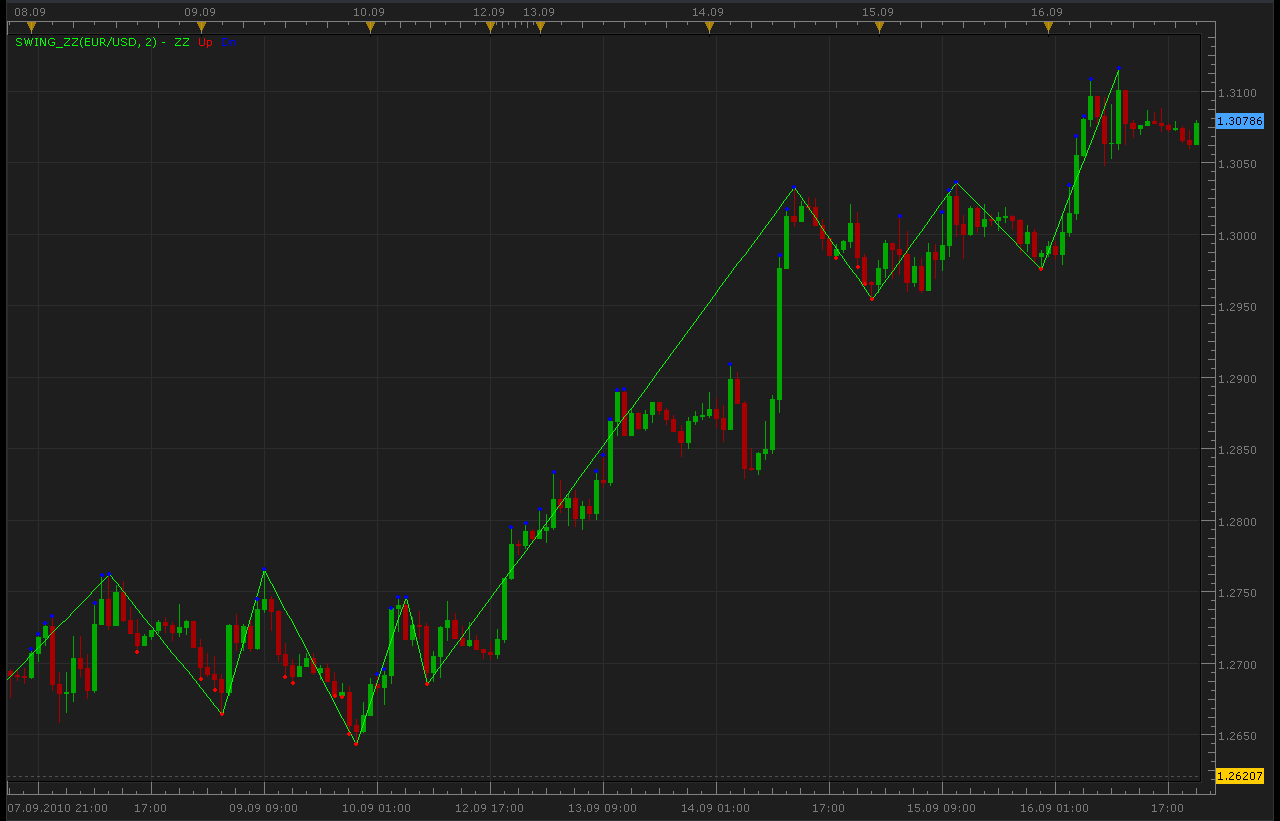

- Gann swing ZigZag.
The indicator was revised and updated
Re: Two ZigZags
Alexander.Gettinger · Fri Sep 17, 2010 2:12 am

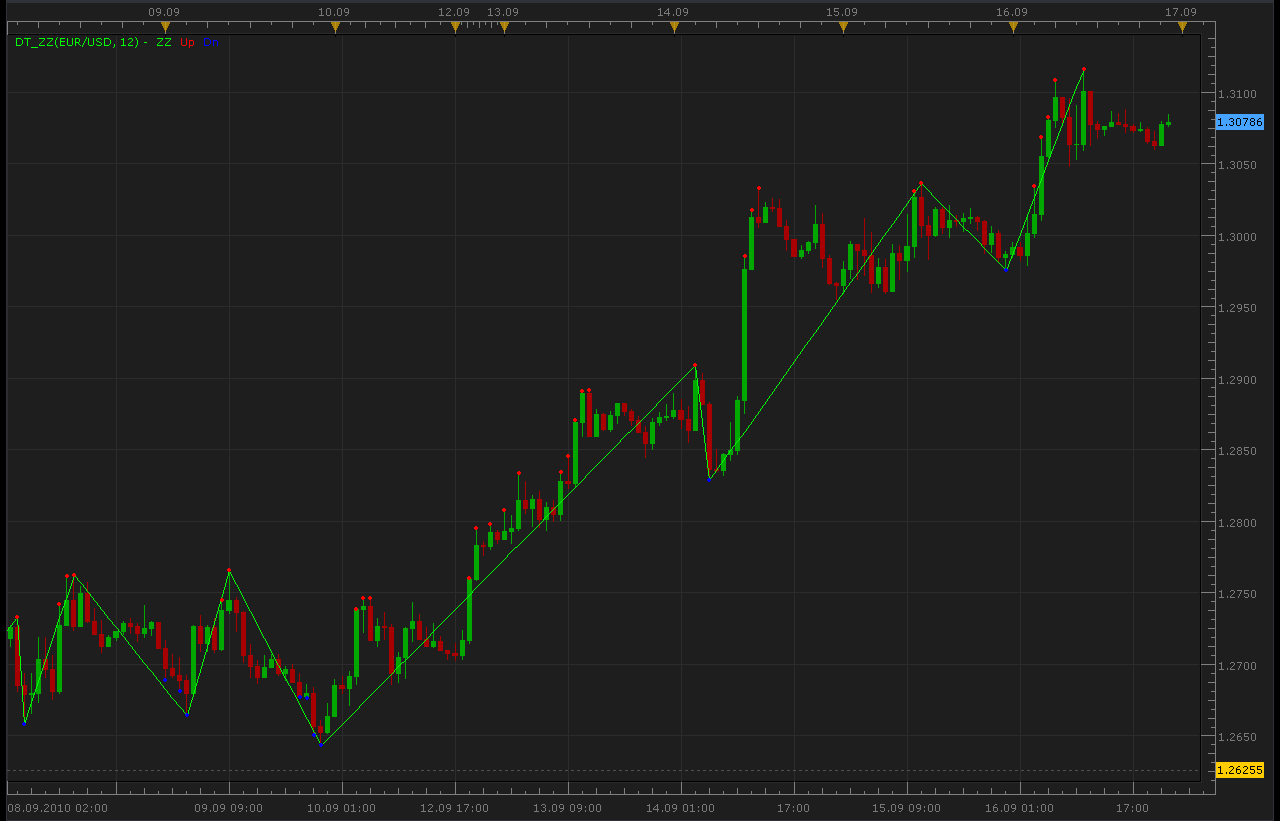

- DT-ZigZag.
Code: Select all `function Init() indicator:name(“DT ZigZag”); indicator:description(“DT ZigZag”); indicator:requiredSource(core.Bar); indicator:type(core.Indicator);
indicator.parameters:addGroup(“Calculation”); indicator.parameters:addInteger(“ExtDepth”, “ExtDepth”, “”, 12);
indicator.parameters:addGroup(“Style”); indicator.parameters:addColor(“clrZZ”, “Color ZigZag”, “Color ZigZag”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“UP_color”, “Color of UP”, “Color of UP”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“DN_color”, “Color of DN”, “Color of DN”, core.rgb(0, 0, 255)); end
local first; local source = nil; local ExtDepth; local zz=0; local zzL=0; local zzH=0; local buffZZ=nil; local buffUp=nil; local buffDn=nil; local i; local shift; local pos; local lasthighpos; local lastlowpos; local curhighpos; local curlowpos; local curlow; local curhigh; local lasthigh; local lastlow; local min; local max;
function Prepare() source = instance.source; ExtDepth=instance.parameters.ExtDepth; first = source:first()+2; zz = instance:addInternalStream(0, 0); zzL = instance:addInternalStream(0, 0); zzH = instance:addInternalStream(0, 0); local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.ExtDepth .. “)”; instance:name(name); buffZZ = instance:addStream(“BuffZZ”, core.Line, name .. “.ZZ”, “ZZ”, instance.parameters.clrZZ, first); buffUp = instance:createTextOutput (“Up”, “Up”, “Wingdings”, 10, core.H_Center, core.V_Center, instance.parameters.UP_color, first); buffDn = instance:createTextOutput (“Dn”, “Dn”, “Wingdings”, 10, core.H_Center, core.V_Center, instance.parameters.DN_color, first); end
function Update(period, mode) if (period>first+ExtDepth) then lasthighpos=first+ExtDepth; lastlowpos=first+ExtDepth; lasthigh=source.high[lasthighpos]; lastlow=source.low[lastlowpos]; for i=first+ExtDepth,period,1 do curlowpos=i; curlow=source.low[i]; curhighpos=i; curhigh=source.high[i]; for ii=i-ExtDepth,i,1 do if source.low[ii]<curlow then curlow=source.low[ii]; curlowpos=ii; end if source.high[ii]>curhigh then curhigh=source.high[ii]; curhighpos=ii; end end if curlow>=lastlow then lastlow=curlow; else if lasthighpos<curlowpos then zzL[curlowpos]=curlow; buffDn:set(curlowpos, curlow, “\159”, “”); min=1000000; pos=lasthighpos; for ii=lasthighpos,curlowpos,1 do if zzL[ii]~=0 and zzL[ii]<min then min=zzL[ii]; pos=ii; end if zzL[ii]~=0 then zz[ii]=0; end end zz[pos]=min; end lastlowpos=curlowpos; lastlow=curlow; end if curhigh<=lasthigh then lasthigh=curhigh; else if lastlowpos<curhighpos then zzH[curhighpos]=curhigh; buffUp:set(curhighpos, curhigh, “\159”, “”); max=-1000000; pos=lastlowpos; for ii=lastlowpos,curhighpos,1 do if zzH[ii]~=0 and zzH[ii]>max then max=zzH[ii]; pos=ii; end if zzH[ii]~=0 then zz[ii]=0; end end zz[pos]=max; end lasthighpos=curhighpos; lasthigh=curhigh; end end local Prev=nil; for i=ExtDepth,period,1 do if zz[i]==zzH[i] and zz[i]>0 then buffZZ[i]=zz[i]; if Prev~=nil then core.drawLine(buffZZ,core.range(Prev,i),buffZZ[Prev],Prev,buffZZ[i],i); end Prev=i; end if zz[i]==zzL[i] and zz[i]>0 then buffZZ[i]=zz[i]; if Prev~=nil and Prev~=i then core.drawLine(buffZZ,core.range(Prev,i),buffZZ[Prev],Prev,buffZZ[i],i); end Prev=i; end end end end`
Re: Two ZigZags
bluemoon · Fri Apr 29, 2011 6:23 am
What is the difference between both indicators?
Re: Two ZigZags
Apprentice · Sun Mar 12, 2017 5:31 pm
Indicator was revised and updated.
