Vortex Indicator
TonyMod · Tue Feb 02, 2010 6:05 pm
VORTEX INDICATOR
Posting a new Vortex Indicator. ‘kingscorpion’ has requested this indicator to be developed for marketscope, and short description was inserted here from his original request.
Information on this indicator can be found here:http://www.traders.com/Reprints/PDF_reprints/VFX_VORTEX.PDF

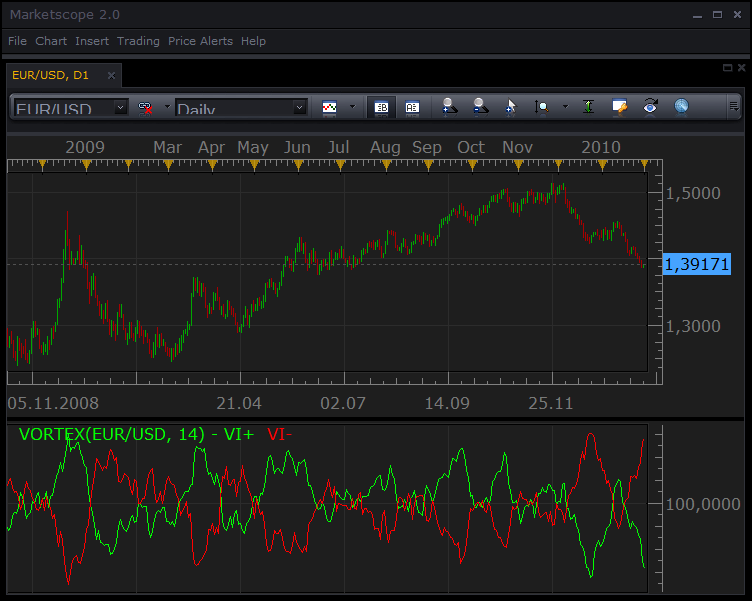

Screenshot Of ‘Vortex Indicator’ from MarketScope
Vortex Indicator by kingscorpion
Vortex, developed by Etienne Botes & Douglas Siepman of http://www.VortexFund.com, uses the relationship between today’s high and yesterday’s low for VM+ (similar to DMI+) and today’s low and yesterday’s high for VM- (similar to DMI-). The indicator plots only two line.
The first calculation is for the positive trending vortex movement VM+: = ABS(Today’s High - Yesterday’s Low)
Next, calculate the negative trending vortex movement –VM. The formula is: =ABS(Today’s Low - Yesterday’s High)
A 14-period sum of both VM+ and VM- is calculated.
Next, we calculate the true range (TR) and need to get the sum of the last 14 periods’ true range.
Finally, we need to calculate the ratio of each 14 period VM+ and 14 period VM- to the sum of the last 14 days’ daily true ranges.
And now the two ratios are drawn for the Vortex Indicator.
-kingscorpion
Code: Select all `– Indicator profile initialization routine function Init() indicator:name(“The Vortext Indicator”); indicator:description(“The indicator was described in Jan, 10 issue of the ‘Stock and Commodites’ Magazin”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator);
indicator.parameters:addInteger(“N”, “Length of the vortex”, “No description”, 14); indicator.parameters:addColor(“VIP_color”, “Color of VI+”, “Color of VI+”, core.rgb(0, 255, 0)); indicator.parameters:addColor(“VIM_color”, “Color of VI-“, “Color of VI-“, core.rgb(255, 0, 0)); end
– Indicator instance initialization routine – Processes indicator parameters and creates output streams local N;
local first; local source = nil;
– Streams block local VIP = nil; local VIM = nil; local iVIP = nil; local iVIN = nil; local iATR = nil;
– Routine function Prepare() N = instance.parameters.N; source = instance.source; iATR = core.indicators:create(“ATR”, instance.source, 1); first = iATR.DATA:first() + N;
local name = profile:id() .. “(“ .. source:name() .. “, “ .. N .. “)”; instance:name(name); VIP = instance:addStream(“VIP”, core.Line, name .. “.VI+”, “VI+”, instance.parameters.VIP_color, first); VIM = instance:addStream(“VIM”, core.Line, name .. “.VI-“, “VI-“, instance.parameters.VIM_color, first);
iVIP = instance:addInternalStream(1, 0); iVIM = instance:addInternalStream(1, 0); end
– Indicator calculation routine function Update(period, mode) iATR:update(mode); if period >= 1 then iVIP[period] = math.abs(source.high[period] - source.low[period - 1]); iVIM[period] = math.abs(source.low[period] - source.high[period - 1]); end if period >= first then local svip, svim, satr; local range; range = core.rangeTo(period, N); svip = core.sum(iVIP, range); svim = core.sum(iVIM, range); satr = core.sum(iATR.DATA, range);
VIP[period] = svip / satr * 100; VIM[period] = svim / satr * 100; end end`
MT4/MQ4 Version. viewtopic.php?f=38&t=64350
Re: Vortex Indicator
jtatalov · Tue Sep 13, 2011 12:59 pm
Can someone please develop a signal with sound for this indicator, thank you in advance
Jason
Re: Vortex Indicator
Apprentice · Thu Sep 15, 2011 12:17 pm
Requested can be found here. viewtopic.php?f=31&t=6571
Re: Vortex Indicator
zmender · Wed Jan 04, 2012 4:09 pm

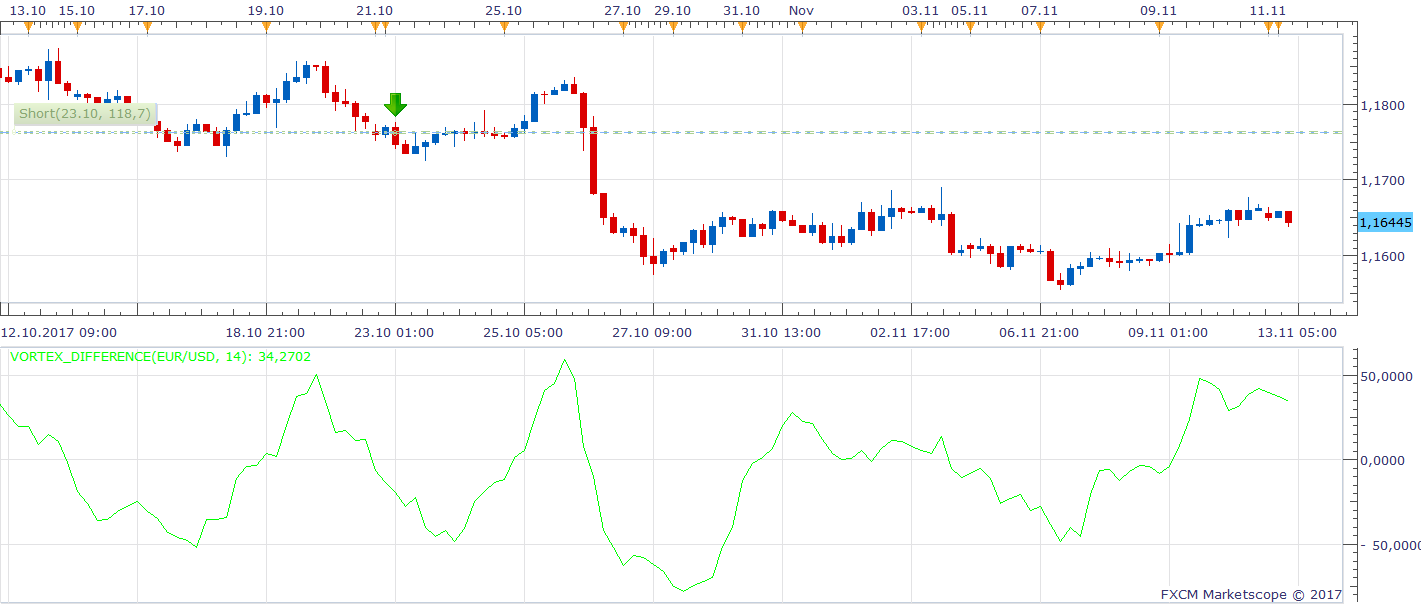

Vortex Difference indicator. Plots the VI+ - VI-
Re: Vortex Indicator
Apprentice · Mon Apr 30, 2012 4:56 am
MQ4/MT4 version. viewtopic.php?f=38&t=64349
MQ4/MT4 version. viewtopic.php?f=38&t=64362
Re: Vortex Indicator
jackfx09 · Mon Apr 30, 2012 6:13 am
nicely done gentlemen, thank you!

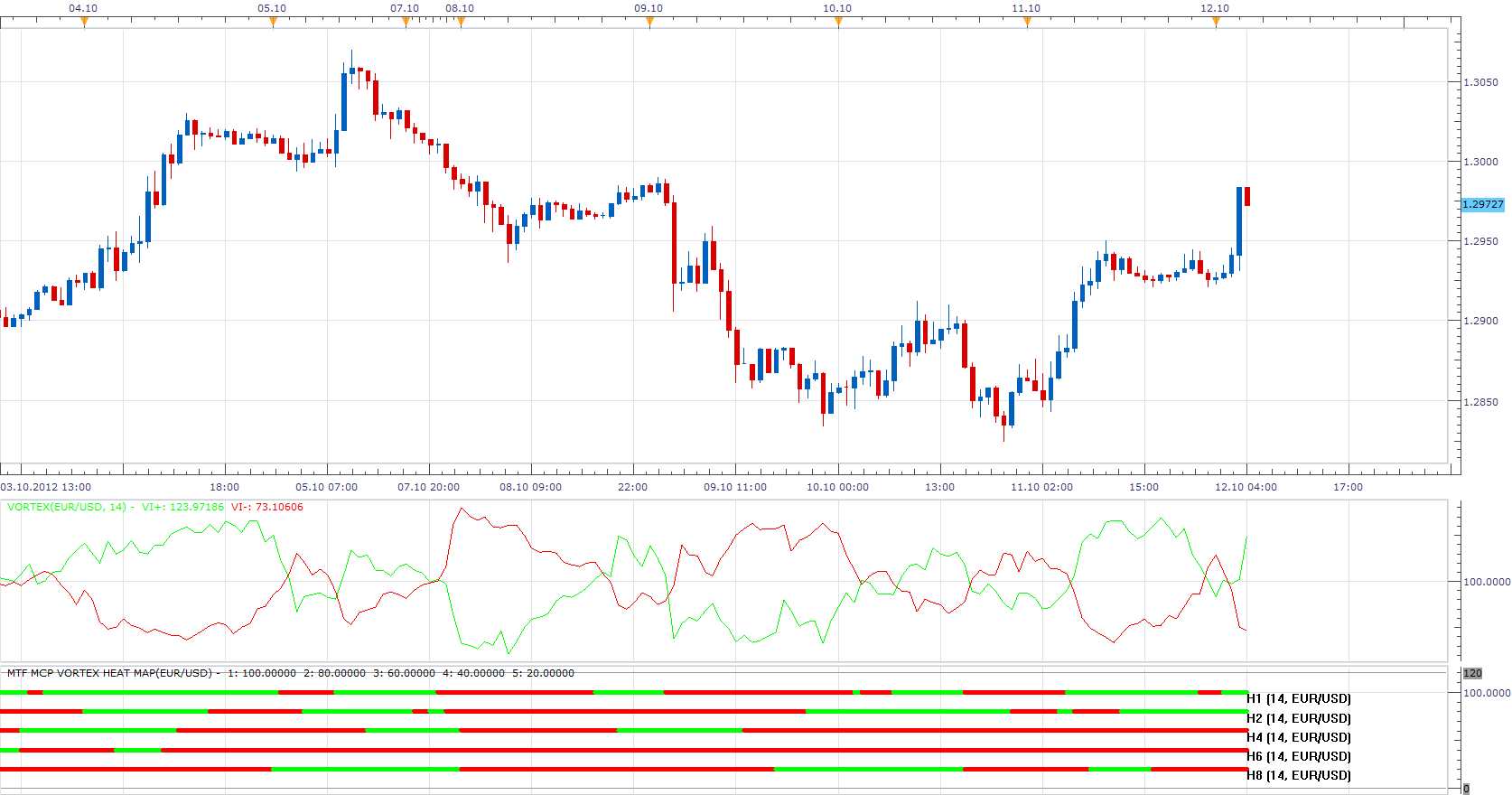

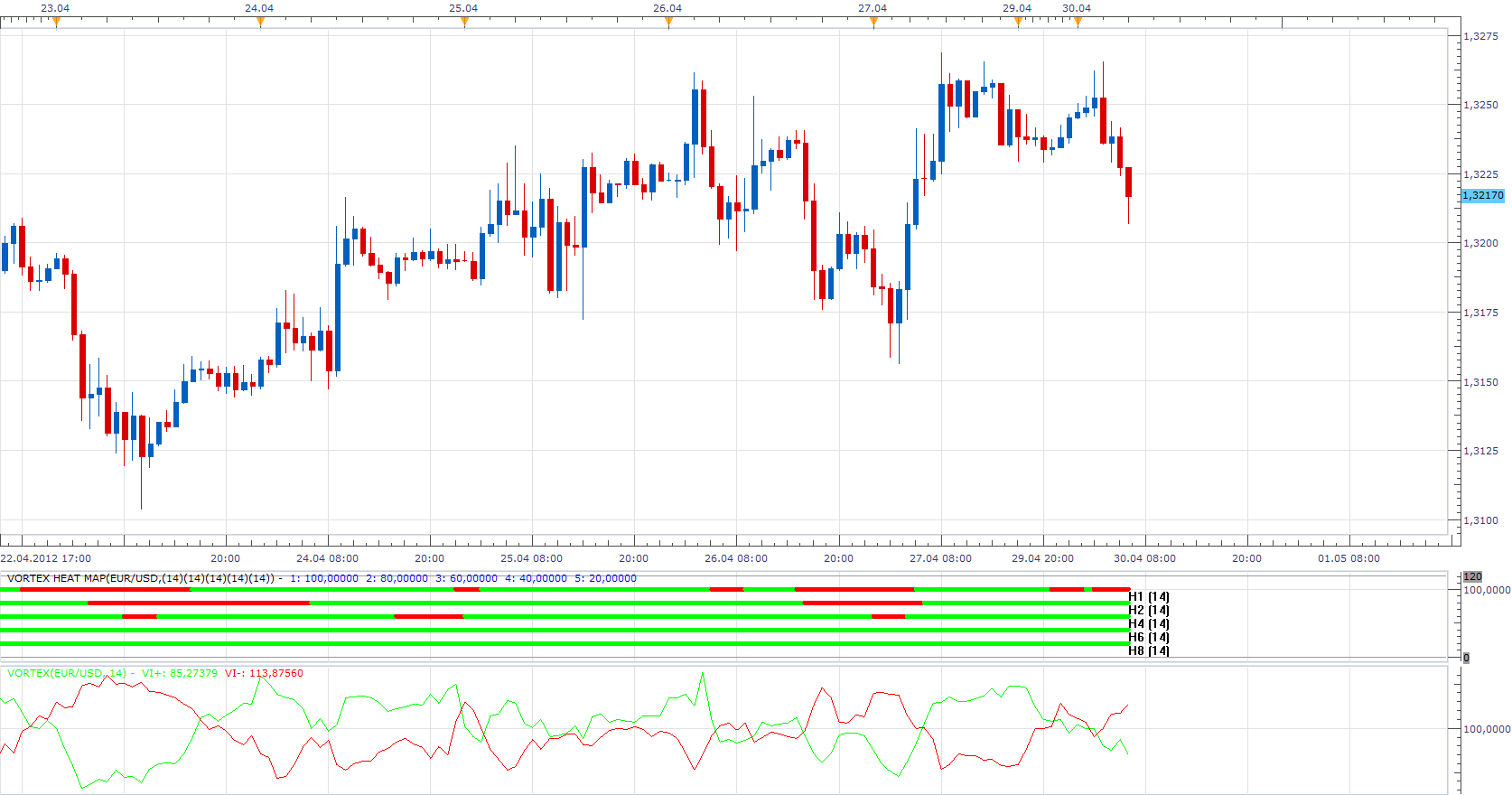

In reference to heat maps, is it possible to create a Multi Currency Pair, MTF heatmap?
Thanks again for your efforts, nice work!
sjc
Re: Vortex Indicator
Apprentice · Tue May 01, 2012 8:24 am
Yes it is possible
Re: Vortex Indicator
Apprentice · Fri Oct 12, 2012 3:12 am
Re: Vortex Indicator
Yodian · Fri Apr 12, 2013 3:48 am

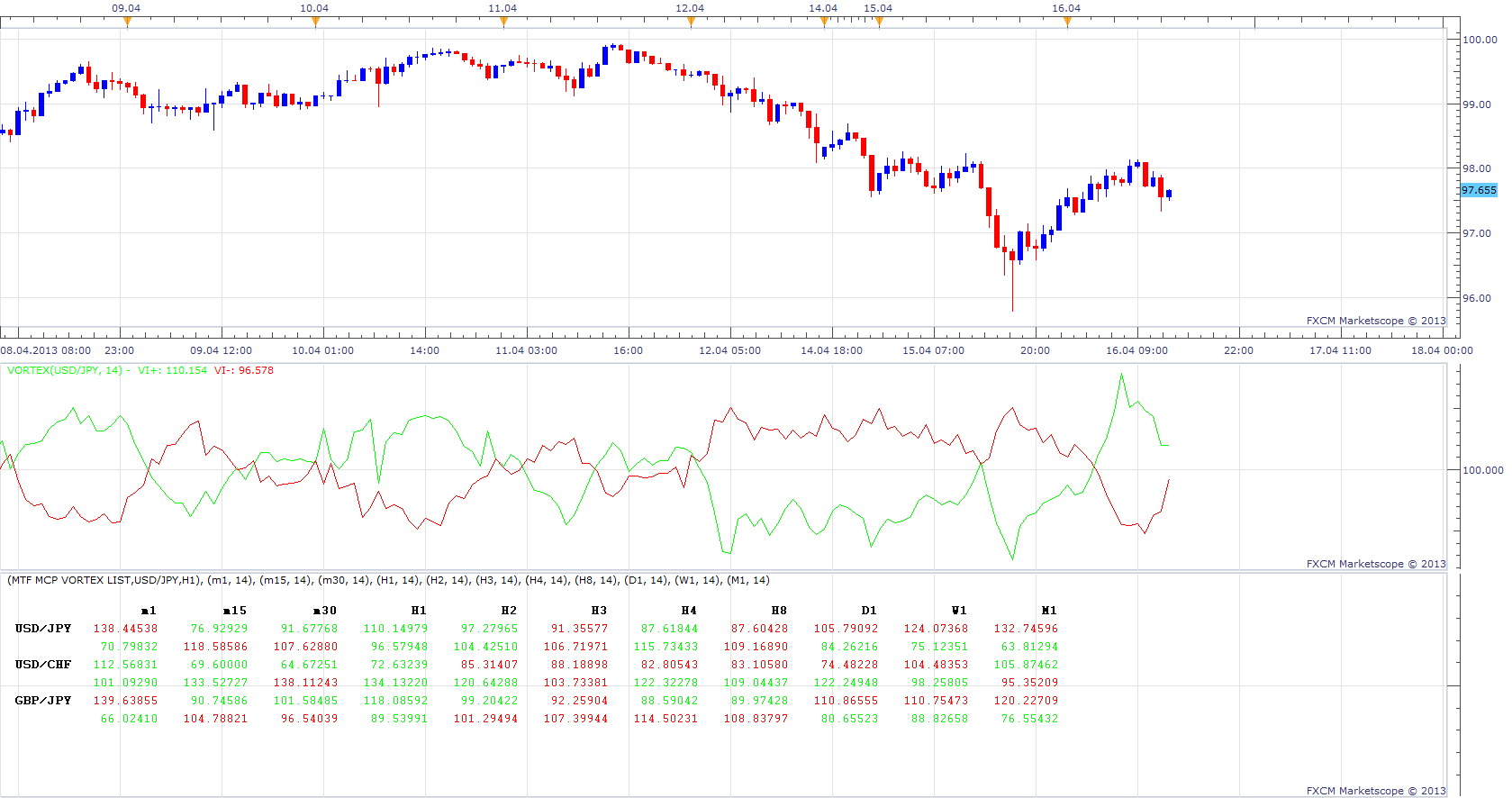

Can you please make the MTF_MCP_Vortex_List to display the actual values (in green for + or Red for -)? This will make it much more usefull to understand the strength of the Vortex.
Thank you in advance!
Re: Vortex Indicator
Apprentice · Tue Apr 16, 2013 1:36 pm

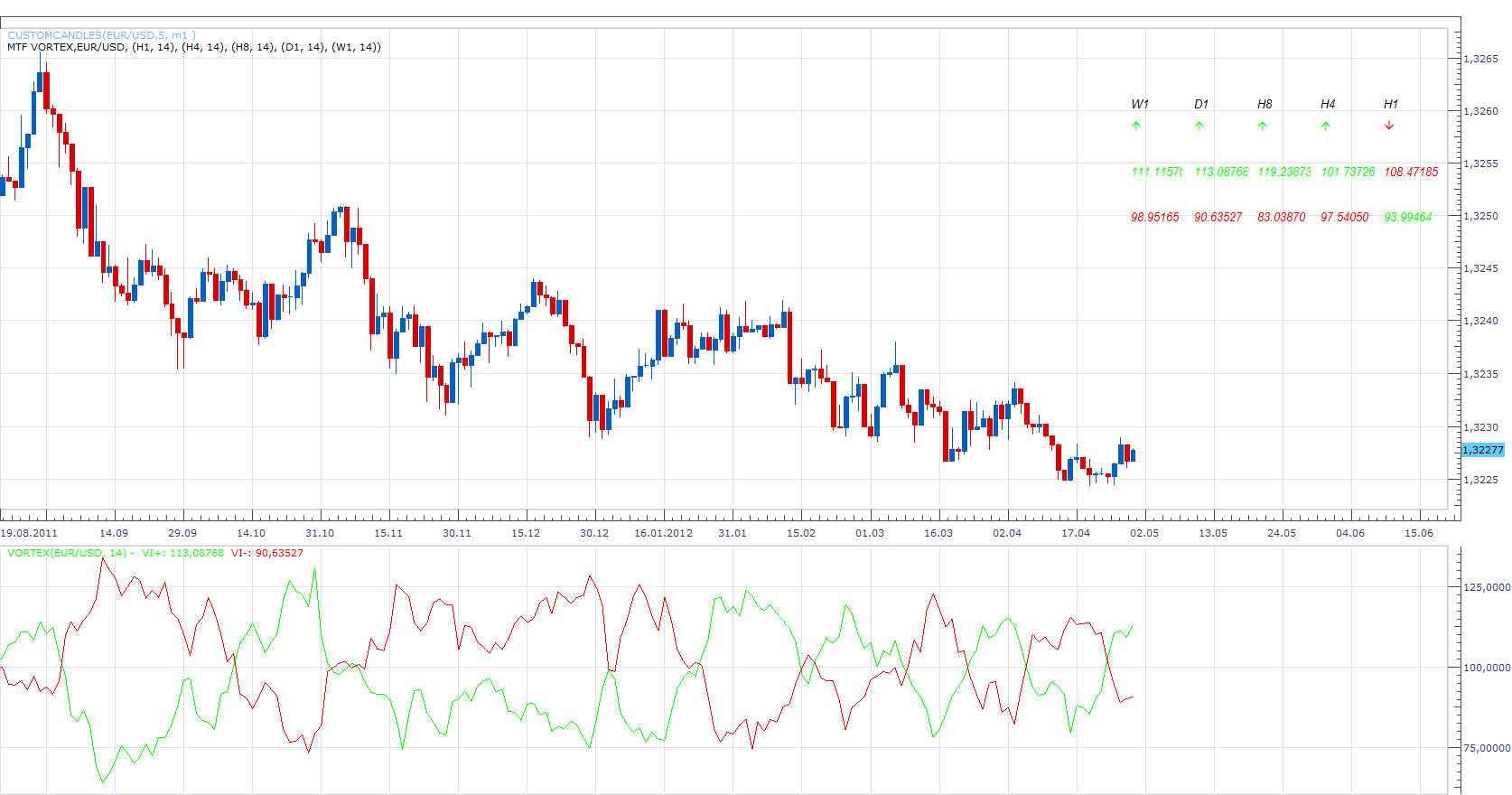

Indicator will show +/- Vortex Values for all currency pairs available, for all time frame selected.
Re: Vortex Indicator
Yodian · Thu Apr 18, 2013 10:48 am
Thanks, but I have two issues: (a)My request was the MTF_MCP_Vortex_List to display the actual values (in Green for + or Red for -). These values in the aforementioned list are the difference of the VI+ & VI- which shows the + difference with a green up arrow, and the - difference with a red down arrow. I just need instead of arrows, their value (difference of VI+ & VI-) in red when negative and in green when positive.
(b) I tried it anyway but I have an error “…145:Cannot recognize the host command”
Thank you in any case for the prompt response.
Looking for your assistance.
Regards,
Yodian
Re: Vortex Indicator
Apprentice · Sun Apr 21, 2013 6:05 am
Please download new version of TS from FXCM web page. This should fix the problems.
Re: Vortex Indicator
Yodian · Sun Apr 21, 2013 1:03 pm
I updated and works fine. When possible I would appreciate the “vortex difference” version. Thanks,
Yodian
Re: Vortex Indicator
Apprentice · Tue Apr 23, 2013 6:09 am
Requested can be found here. viewtopic.php?f=17&t=35281&p=59768#p59768
Re: Vortex Indicator
Alexander.Gettinger · Mon Sep 15, 2014 12:22 pm
MQL4 version of Vortex: viewtopic.php?f=38&t=61152.
Re: Vortex Indicator
Apprentice · Tue Jan 13, 2015 1:00 pm
VORTEX.lua Update.
Re: Vortex Indicator
Apprentice · Mon Nov 13, 2017 8:13 am
The indicator was revised and updated.
Re: Vortex Indicator
Apprentice · Sun Feb 04, 2018 6:59 am
The Indicator was revised and updated.
