ADX & MA Signals
Alexander.Gettinger · Mon Apr 26, 2010 3:27 pm

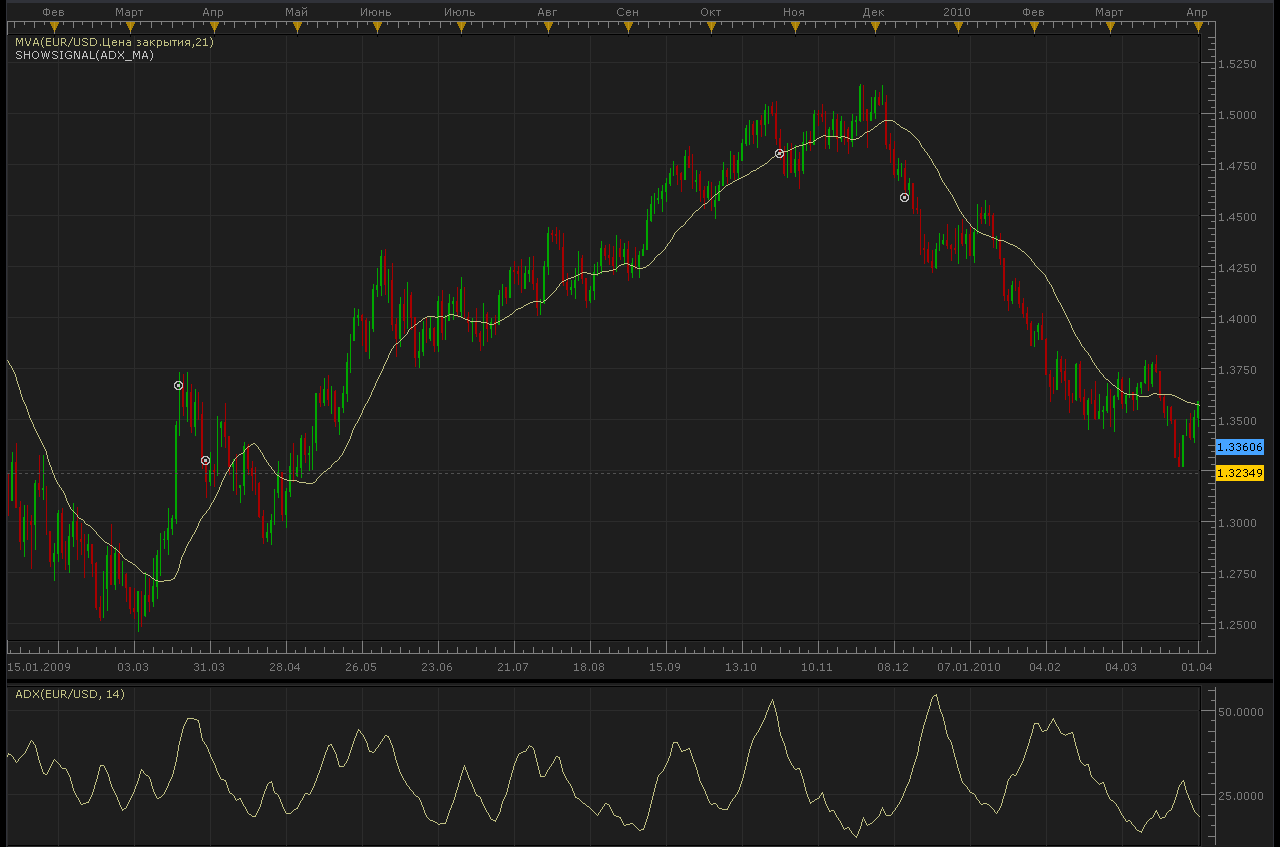

Trading Strategy Algorithm:
-
Open a daily chart for EURUSD, lots 0.1.
-
Draw an ADX with the period of 14, mark level 20 in the indicator.
-
Draw an MA with the period of 21.
Buying signal: The bar closes above MA, and the ADX line is above 20. Selling signal: The bar closes below MA, and the ADX line is above 20.
Code: Select all `function Init() strategy:name(“ADX/MA signal”); strategy:description(“Buying signal: The bar closes above MA, and the ADX line is above 20. Selling signal: The bar closes below MA, and the ADX line is above 20.”);
strategy.parameters:addGroup(“Parameters”);
strategy.parameters:addInteger(“MA_Period”, “Period of MA”, “”, 21); strategy.parameters:addInteger(“ADX_Period”, “Period of ADX”, “”, 14); strategy.parameters:addInteger(“ADX_Value”, “Value of ADX for buy or sell”, “”, 20); strategy.parameters:addInteger(“TP”, “Limit in pips”, “”, 180); strategy.parameters:addInteger(“SL”, “Stop loss in pips”, “”, 420); strategy.parameters:addString(“Period”, “Timeframe”, “”, “m5”); strategy.parameters:setFlag(“Period”, core.FLAG_PERIODS); strategy.parameters:addGroup(“Signals”); strategy.parameters:addBoolean(“ShowAlert”, “Show Alert”, “”, true); strategy.parameters:addBoolean(“PlaySound”, “Play Sound”, “”, false); strategy.parameters:addFile(“SoundFile”, “Sound File”, “”, “”); end
local ADX; local MA; local TP; local SL; local ADX_Value; local SoundFile; local gSourceBid = nil; local gSourceAsk = nil; local first;
local BidFinished = false; local AskFinished = false; local LastBidCandle = nil;
function Prepare() local FastN, SlowN;
ShowAlert = instance.parameters.ShowAlert; if instance.parameters.PlaySound then SoundFile = instance.parameters.SoundFile; else SoundFile = nil; end
TP = instance.parameters.TP * instance.bid:pipSize(); SL = instance.parameters.SL * instance.bid:pipSize(); ADX_Value = instance.parameters.ADX_Value;
assert(not(PlaySound) or (PlaySound and SoundFile ~= “”), “Sound file must be specified”); assert(instance.parameters.Period ~= “t1”, “Signal cannot be applied on ticks”);
ExtSetupSignal(“ADX/MA signal:”, ShowAlert);
gSourceBid = core.host:execute(“getHistory”, 1, instance.bid:instrument(), instance.parameters.Period, 0, 0, true); gSourceAsk = core.host:execute(“getHistory”, 2, instance.bid:instrument(), instance.parameters.Period, 0, 0, false);
ADX = core.indicators:create(“ADX”, gSourceBid, instance.parameters.ADX_Period); MA = core.indicators:create(“MVA”, gSourceBid.close, instance.parameters.MA_Period);
first = math.max(ADX.DATA:first(), MA.DATA:first()) + 2;
local name = profile:id() .. “(“ .. instance.bid:instrument() .. “(“ .. instance.parameters.Period .. “)” .. instance.parameters.ADX_Period .. “,” .. instance.parameters.MA_Period .. “,” .. instance.parameters.ADX_Value .. “)”; instance:name(name); end
local LastDirection=nil;
function Update() if not(BidFinished) or not(AskFinished) then return ; end
local period;
– check for TP/SL (exit logic) if LONG ~= nil then period = gSourceBid:size() - 1; – check profit if gSourceBid.high[period] >= LONG + TP then ExtSignal(gSourceBid.high, period, “Exit Buy (L)”, SoundFile); LONG = nil; elseif gSourceBid.low[period] <= LONG - SL then ExtSignal(gSourceBid.high, period, “Exit Buy (S)”, SoundFile); LONG = nil; end end if SHORT ~= nil then period = gSourceAsk:size() - 1; – check profit if gSourceAsk.low[period] <= SHORT - TP then ExtSignal(gSourceBid.low, period, “Exit Sell (L)”, SoundFile); SHORT = nil; elseif gSourceAsk.high[period] >= SHORT + SL then ExtSignal(gSourceBid.high, period, “Exit Sell (S)”, SoundFile); SHORT = nil; end end
– update moving average ADX:update(core.UpdateLast); MA:update(core.UpdateLast);
– calculate enter logic if LastBidCandle == nil or LastBidCandle ~= gSourceBid:serial(gSourceBid:size() - 1) then LastBidCandle = gSourceBid:serial(gSourceBid:size() - 1);
period = gSourceBid:size() - 2; if period >= first then if LONG==nil and LastDirection~=1 then if gSourceBid.close[period]>MA.DATA[period] and ADX.DATA[period]>=ADX_Value then ExtSignal(gSourceAsk, period, “Buy”, SoundFile); LONG = gSourceAsk.close[period]; LastDirection=1; end elseif SHORT==nil and LastDirectiob~=-1 then if gSourceBid.close[period]<MA.DATA[period] and ADX.DATA[period]>=ADX_Value then ExtSignal(gSourceBid, period, “Sell”, SoundFile); SHORT = gSourceBid.close[period]; LastDirection=-1; end end end end end
function AsyncOperationFinished(cookie) if cookie == 1 then BidFinished = true; elseif cookie == 2 then AskFinished = true; end end
local gSignalBase = “”; – the base part of the signal message local gShowAlert = false; – the flag indicating whether the text alert must be shown
– Sets the base message for the signal – @param base The base message of the signals – ——————————————————— function ExtSetupSignal(base, showAlert) gSignalBase = base; gShowAlert = showAlert; return ; end
– Signals the message – @param message The rest of the message to be added to the signal – @param period The number of the period – @param sound The sound or nil to silent signal – ——————————————————— function ExtSignal(source, period, message, soundFile) if source:isBar() then source = source.close; end if gShowAlert then terminal:alertMessage(source:instrument(), source[period], gSignalBase .. message, source:date(period)); end if soundFile ~= nil then terminal:alertSound(soundFile, false); end end`
Re: ADX & MA Signals
Silver23 · Tue Feb 02, 2016 1:51 pm
Hi Avignon,
Is this a strategy or just a signal?
Re: ADX & MA Signals
Avignon · Wed Feb 03, 2016 4:48 pm
Just signal.
AMHA, to limit false signals, you expect the trade signal in daily but will switch to lower UT to place your order. So you will be sure to be in the trend.
