Heikin-Ashi Signal
Source: https://fxcodebase.com/code/viewtopic.php?f=29&t=1101
Forum: 29 · Topic 1101 · 15 post(s)
Heikin-Ashi Signal
Apprentice · Tue May 25, 2010 3:29 am

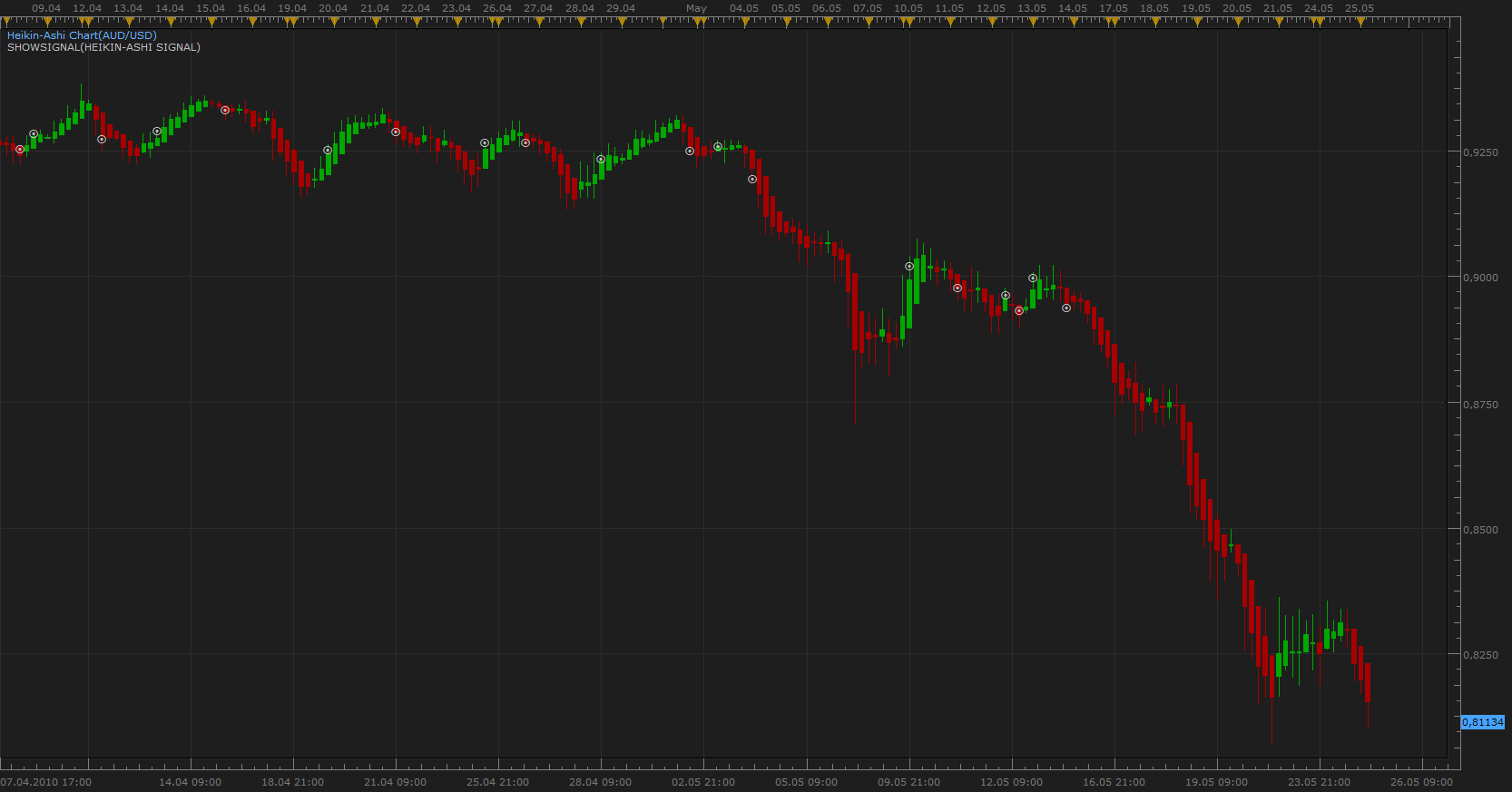

Heikin-Ashi Signal with Filtering

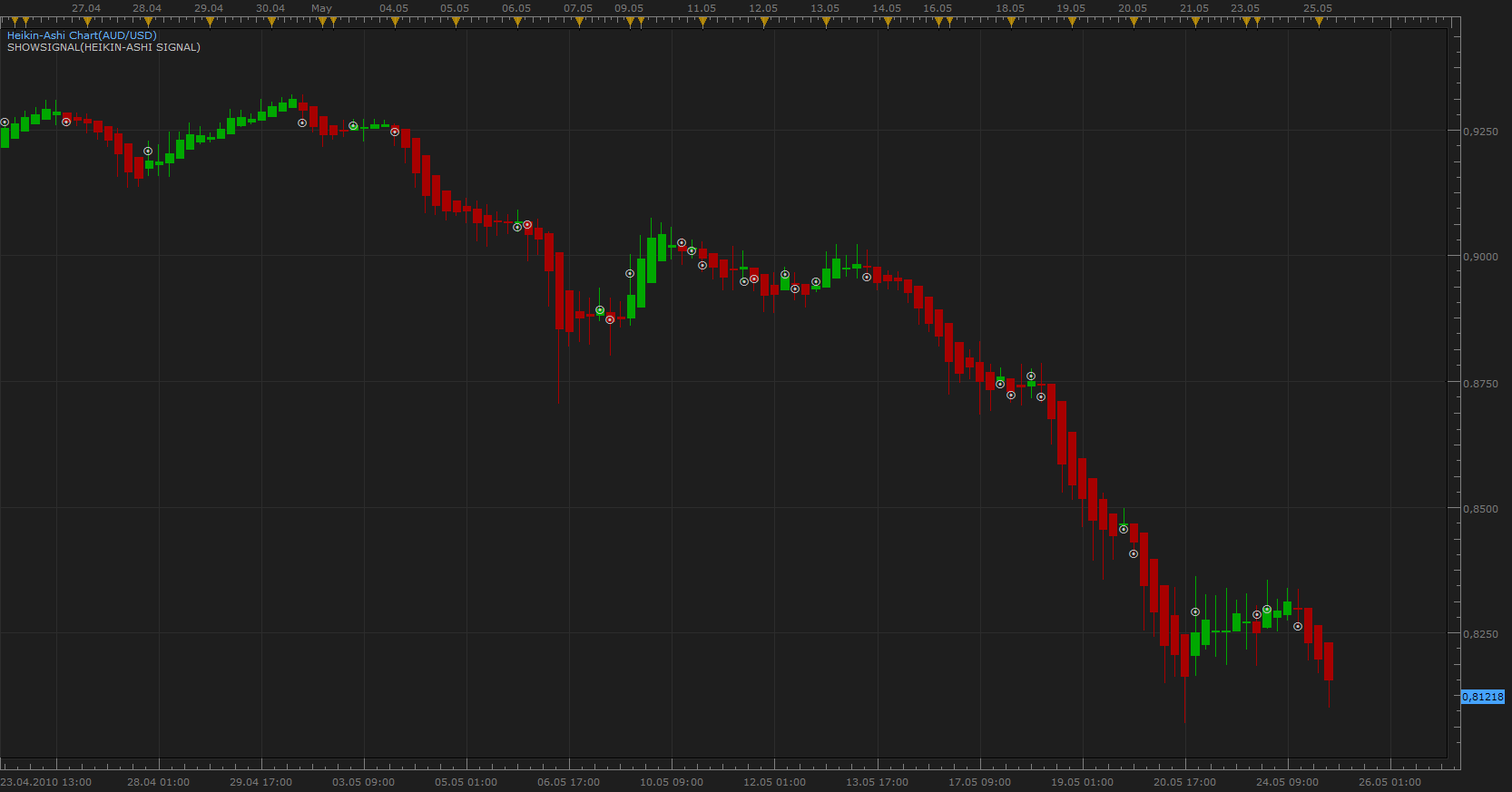

Heikin-Ashi Signal without Filtering
Signal is pretty simple. I have added the option to filtering, delay signal until appearance of the first candle without a wick. Fewer false signals.
Filtering Up Trend - Open = Low Down Trend - Open = High
Heikin-Ashi ( A Better Candlestick) Heikin-Ashi are not another Japanese Candlesticks pattern. Heikin-Ashi Helps identify a trend more easily.
Heikin-Ashi Heikin-Ashi formula Close = (Open+High+Low+Close)/4 Open = [Open (previous bar) + Close (previous bar)]/2 High = Max (High,Open,Close) Low = Min (Low,Open, Close)
Simultaneous Upper and Lower Wicks (shadows ) indicates a trend change, Indecision.
Re: Heikin-Ashi Signal
Apprentice · Tue May 25, 2010 4:03 am
Heikin-Ashi Signal without Filtering.lua
Re: Heikin-Ashi Signal
arunaa · Wed May 26, 2010 9:59 pm
Hi Apprentice, I would be much useful for it to signal when the color of the HA candlestick changes or when dojis are formed(Right now it just signals every 5 minutes, by default, and says Long or Short which is kinda annoying) ..I would like it to signal only when the color of candlestcick changes or when dojis are formed..It is at these points that trend changes are occuring and we need to be alerted..
I have attached pic illustrating my idea..
Re: Heikin-Ashi Signal
Nikolay.Gekht · Thu May 27, 2010 12:02 pm
Could you please tell what is the parameter of the signal did you use? I ran apprentice’s signal this morning on EUR/USD in 5 minute resolution and the alerts were pretty correct. The only difference from your expectation is that Doji candle is not shown.
Please find the version which is a bit simplified and support Doji (you can specify what is “Doji” in terms of max. body length, in pips)
Code: Select all `function Init() strategy:name(“Heikin-Ashi Signal 1”); strategy:description(“Heikin-Ashi Signal 1”);
strategy.parameters:addGroup(“Parameters”);
strategy.parameters:addDouble(“Doji”, “Doji candle sensitivity in pips”, “”, 0.25, 0, 100);
strategy.parameters:addString(“Type”, “Price type”, “”, “Bid”); strategy.parameters:addStringAlternative(“Type”, “Bid”, “”, “Bid”); strategy.parameters:addStringAlternative(“Type”, “Ask”, “”, “Ask”);
strategy.parameters:addString(“Period”, “Timeframe”, “”, “m5”); strategy.parameters:setFlag(“Period”, core.FLAG_PERIODS);
strategy.parameters:addGroup(“Signals”);
strategy.parameters:addBoolean(“ShowAlert”, “Show Alert”, “”, true); strategy.parameters:addBoolean(“PlaySound”, “Play Sound”, “”, false); strategy.parameters:addFile(“SoundFile”, “Sound File”, “”, “”); end
local ShowAlert; local SoundFile; local BarSource = nil; – the source stream local HA = nil; local Doji;
– candle types local UP = 1; local DJ = 0; local DN = -1;
function Prepare() – collect parameters ShowAlert = instance.parameters.ShowAlert;
if instance.parameters.PlaySound then SoundFile = instance.parameters.SoundFile; else SoundFile = nil; end
assert(not(PlaySound) or (PlaySound and SoundFile ~= “ “), “Sound file must be specified”);
Doji = instance.parameters.Doji;
ExtSetupSignal(“Heikin-Ashi Signal”, ShowAlert); BarSource = ExtSubscribe(1, nil, instance.parameters.Period, instance.parameters.Type == “Bid”, “bar”); local ps; ps = BarSource:pipSize(); if ps > 1 then ps = math.pow(10, -ps); end Doji = Doji * ps; HA = core.indicators:create(“HA”, BarSource);
local name = profile:id() .. “(“ .. instance.bid:instrument() .. “)” instance:name(name); end
– when tick source is updated function ExtUpdate(id, source, period) HA:update(core.UpdateLast);
if not(HA.close:hasData(period - 1)) then return ; end
local p = Decode(period - 1); local c = Decode(period);
if c == DJ then ExtSignal(source.close, period, “Doji”, SoundFile); elseif c == UP and p ~= UP then ExtSignal(source.close, period, “Turns to Up”, SoundFile); elseif c == DN and p ~= DN then ExtSignal(source.close, period, “Turns to Dn”, SoundFile); end end
function Decode(period) if math.abs(HA.open[period] - HA.close[period]) <= Doji then return DJ; elseif HA.open[period] > HA.close[period] then return DN; else return UP; end
end
dofile(core.app_path() .. “\strategies\standard\include\helper.lua”);`
Re: Heikin-Ashi Signal
nick818 · Tue Jun 01, 2010 8:38 pm
i am really excited about using this signal, but when i apply it the signal does not show up until some time after……even with filter off. While signal has been in use I have gone to ‘change signal’ on the chart and then pressed OK and it reloads (updates) signal and a more recent signal shows up. The signal is not signaling when the candle closes. This maybe something simple i have over-looked but would still appreciate some feed back
Re: Heikin-Ashi Signal
Nikolay.Gekht · Wed Jun 02, 2010 9:40 am
Hm… the signal can be shown on the chart only using the “showsignal” indicator which is intended solely for the backtesting of signals on the pre-loaded history data. Do you use the signal this way?
Unfortunately, the back-testing indicator is pretty limited in this version. Further versions will support loading of more historical data as well as receiving a new real-time data.
To apply the signal on the real-time data and get text and sound notification - please apply signal using “Signals->Add Signal” command.
Re: Heikin-Ashi Signal
nick818 · Wed Jun 02, 2010 4:18 pm
thanks for the reply, yes you were spot on, and i was trying to use the signal(bullet) in real time. Last evening i actually applied the signal to ‘add signals’ and this works fine. Better in my opinion since their is no need to cycle through charts looking for signal bullets. Thanks again
Heikin Ashi Signal
EvotsStirevot · Sun Jun 13, 2010 9:31 pm
Can only seem to get this to work with daily chart. It shows flat on on my 2 min and 5 min charts. Also where can I find info on using in conjunction with cci?
Thanks
Re: Heikin-Ashi Signal
Apprentice · Mon Jun 14, 2010 2:08 pm
Heikin-Ashi Signal

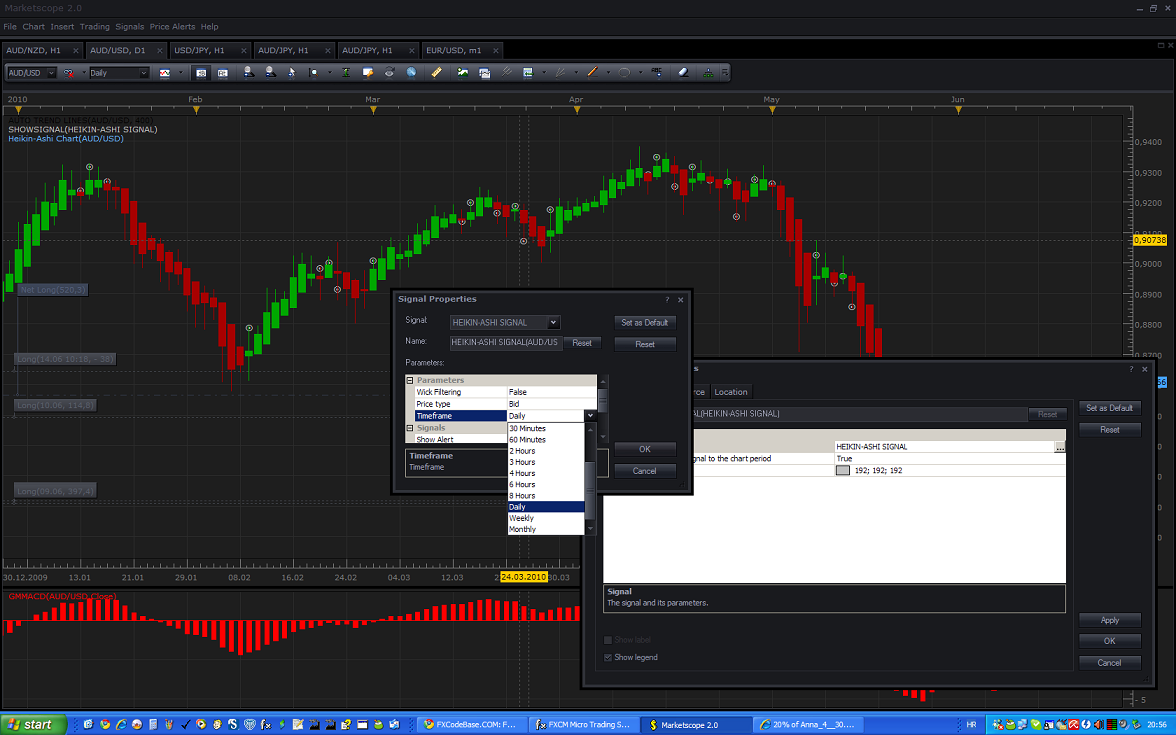

Did you set the required time frame. For reference see the picture.
As Far I know, HA CCI combination has not yet written. Try to articulate trading strategy that you use in order to be able to write the appropriate signal.
Or you use, need only a combination of HA CCI ?
Re: Heikin-Ashi Signal
Inv4x1975 · Tue Apr 12, 2011 2:56 pm
Hi, can someone write this signal when the color change (blue to red) and the open is equal to the high, and when the color change red to blue and the open is equal to the low??
thanks
Re: Heikin-Ashi Signal
JOKER83 · Fri Jul 18, 2014 6:35 am
HALLO Konnen SIE mir Helfen mit Heiken Ashi Signal ICH BRAUCHE Signal Markt Markt auf Verschieden zeitebene und E-Mail benarichtigung
Hi there YOU can Help me Heiken Ashi signal I NEED signal Market Market on Different time flat and e-mail send
Re: Heikin-Ashi Signal
Apprentice · Sat Jul 19, 2014 4:30 am
Your request is added to the development list.
Re: Heikin-Ashi Signal
ronanFR · Thu Apr 09, 2020 1:10 pm
Hello , can you program a heinkin ashi MTF email alert for : Buy when color is green and candle hadn’t low wick Sell when color is red and candle hadn’t high week Thanks Ronan
Re: Heikin-Ashi Signal
Apprentice · Wed Apr 15, 2020 1:21 pm
Your request is added to the development list. Development reference 1073.
Re: Heikin-Ashi Signal
Apprentice · Sun Apr 19, 2020 5:33 am
Try this version. viewtopic.php?f=17&t=69690
