Stochastic signals

Alexander.Gettinger · Thu Aug 19, 2010 2:54 am

There are several ways to interpretation a Stochastic Oscillator. Three popular methods include:

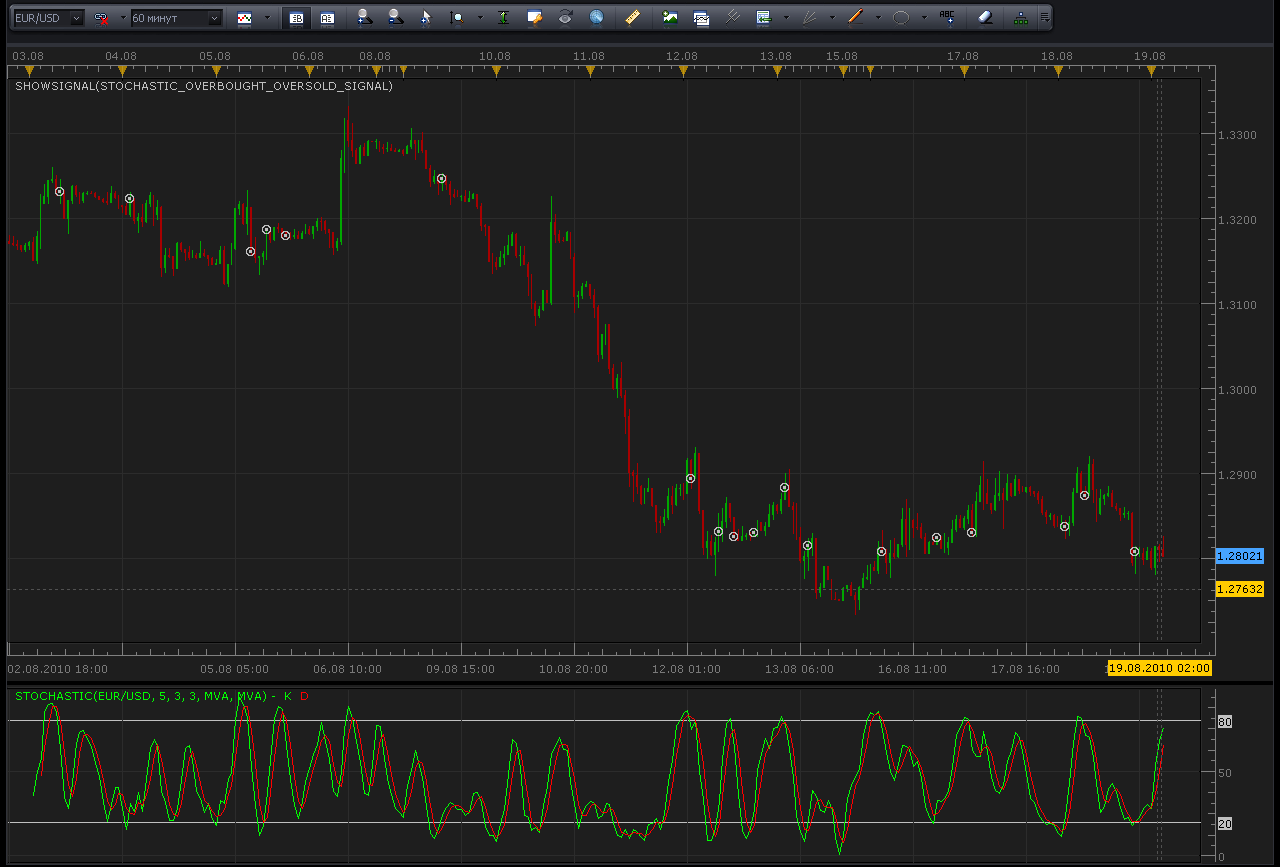

Overbought / Oversold Buy when the Oscillator %K falls below a specific level (e.g., 20) and then rises above that level. Sell when the Oscillator rises above a specific level (e.g., 80) and then falls below that level.

Code: Select all `function Init() strategy:name(“Stochastic Overbought/Oversold signal”); strategy:description(“”);

strategy.parameters:addGroup(“Parameters”); strategy.parameters:addString(“Period”, “Timeframe”, “”, “m5”); strategy.parameters:setFlag(“Period”, core.FLAG_PERIODS); strategy.parameters:addInteger(“K”, “K”, “Parameter of stochastic”, 5); strategy.parameters:addInteger(“SD”, “SD”, “Parameter of stochastic”, 3); strategy.parameters:addInteger(“D”, “D”, “Parameter of stochastic”, 3); strategy.parameters:addInteger(“DownLevel”, “DownLevel”, “”, 20); strategy.parameters:addInteger(“UpLevel”, “UpLevel”, “”, 80);

strategy.parameters:addString(“TypeSignal”, “Type of signal”, “”, “direct”); strategy.parameters:addStringAlternative(“TypeSignal”, “direct”, “”, “direct”); strategy.parameters:addStringAlternative(“TypeSignal”, “reverse”, “”, “reverse”);

strategy.parameters:addGroup(“Signals”); strategy.parameters:addBoolean(“ShowAlert”, “Show Alert”, “”, true); strategy.parameters:addBoolean(“PlaySound”, “Play Sound”, “”, false); strategy.parameters:addFile(“SoundFile”, “Sound File”, “”, “”); end

local SoundFile; local gSourceBid = nil; local gSourceAsk = nil; local first;

local BidFinished = false; local AskFinished = false; local LastBidCandle = nil;

local Stochastic; local EMA8;

function Prepare() ShowAlert = instance.parameters.ShowAlert; if instance.parameters.PlaySound then SoundFile = instance.parameters.SoundFile; else SoundFile = nil; end assert(not(PlaySound) or (PlaySound and SoundFile ~= “”), “Sound file must be specified”); assert(instance.parameters.Period ~= “t1”, “Signal cannot be applied on ticks”);

ExtSetupSignal(“Altr Trend signal:”, ShowAlert);

gSourceBid = core.host:execute(“getHistory”, 1, instance.bid:instrument(), instance.parameters.Period, 0, 0, true); gSourceAsk = core.host:execute(“getHistory”, 2, instance.bid:instrument(), instance.parameters.Period, 0, 0, false);

Stochastic = core.indicators:create(“STOCHASTIC”, gSourceBid, instance.parameters.K, instance.parameters.SD, instance.parameters.D);

first = Stochastic.DATA:first();

local name = profile:id() .. “(“ .. instance.bid:instrument() .. “(“ .. instance.parameters.Period .. instance.parameters.K .. instance.parameters.SD .. instance.parameters.D .. instance.parameters.TypeSignal .. instance.parameters.DownLevel .. instance.parameters.UpLevel .. “)”; instance:name(name); end

local LastDirection=nil;

– when tick source is updated function Update() if not(BidFinished) or not(AskFinished) then return ; end

local period;

– update moving average Stochastic:update(core.UpdateLast);

– calculate enter logic if LastBidCandle == nil or LastBidCandle ~= gSourceBid:serial(gSourceBid:size() - 1) then LastBidCandle = gSourceBid:serial(gSourceBid:size() - 1);

period = gSourceBid:size() - 1; if period > first then if Stochastic.K[period-1]>instance.parameters.UpLevel and Stochastic.K[period]<instance.parameters.UpLevel and instance.parameters.TypeSignal==”direct” and LastDirection~=-1 then ExtSignal(gSourceBid, period, “Sell”, SoundFile); LastDirection=-1; end if Stochastic.K[period-1]<instance.parameters.DownLevel and Stochastic.K[period]>instance.parameters.DownLevel and instance.parameters.TypeSignal==”direct” and LastDirection~=1 then ExtSignal(gSourceAsk, period, “Buy”, SoundFile); LastDirection=1; end

if Stochastic.K[period-1]<instance.parameters.DownLevel and Stochastic.K[period]>instance.parameters.DownLevel and instance.parameters.TypeSignal==”reverse” and LastDirection~=-1 then ExtSignal(gSourceBid, period, “Sell”, SoundFile); LastDirection=-1; end if Stochastic.K[period-1]>instance.parameters.UpLevel and Stochastic.K[period]<instance.parameters.UpLevel and instance.parameters.TypeSignal==”reverse” and LastDirection~=1 then ExtSignal(gSourceAsk, period, “Buy”, SoundFile); LastDirection=1; end end end end

function AsyncOperationFinished(cookie) if cookie == 1 then BidFinished = true; elseif cookie == 2 then AskFinished = true; end end

local gSignalBase = “”; – the base part of the signal message local gShowAlert = false; – the flag indicating whether the text alert must be shown

– Sets the base message for the signal – @param base The base message of the signals – ——————————————————— function ExtSetupSignal(base, showAlert) gSignalBase = base; gShowAlert = showAlert; return ; end

– Signals the message – @param message The rest of the message to be added to the signal – @param period The number of the period – @param sound The sound or nil to silent signal – ——————————————————— function ExtSignal(source, period, message, soundFile) if source:isBar() then source = source.close; end if gShowAlert then terminal:alertMessage(source:instrument(), source[period], gSignalBase .. message, source:date(period)); end if soundFile ~= nil then terminal:alertSound(soundFile, false); end end`

Re: Stochastic signals

Alexander.Gettinger · Thu Aug 19, 2010 2:56 am

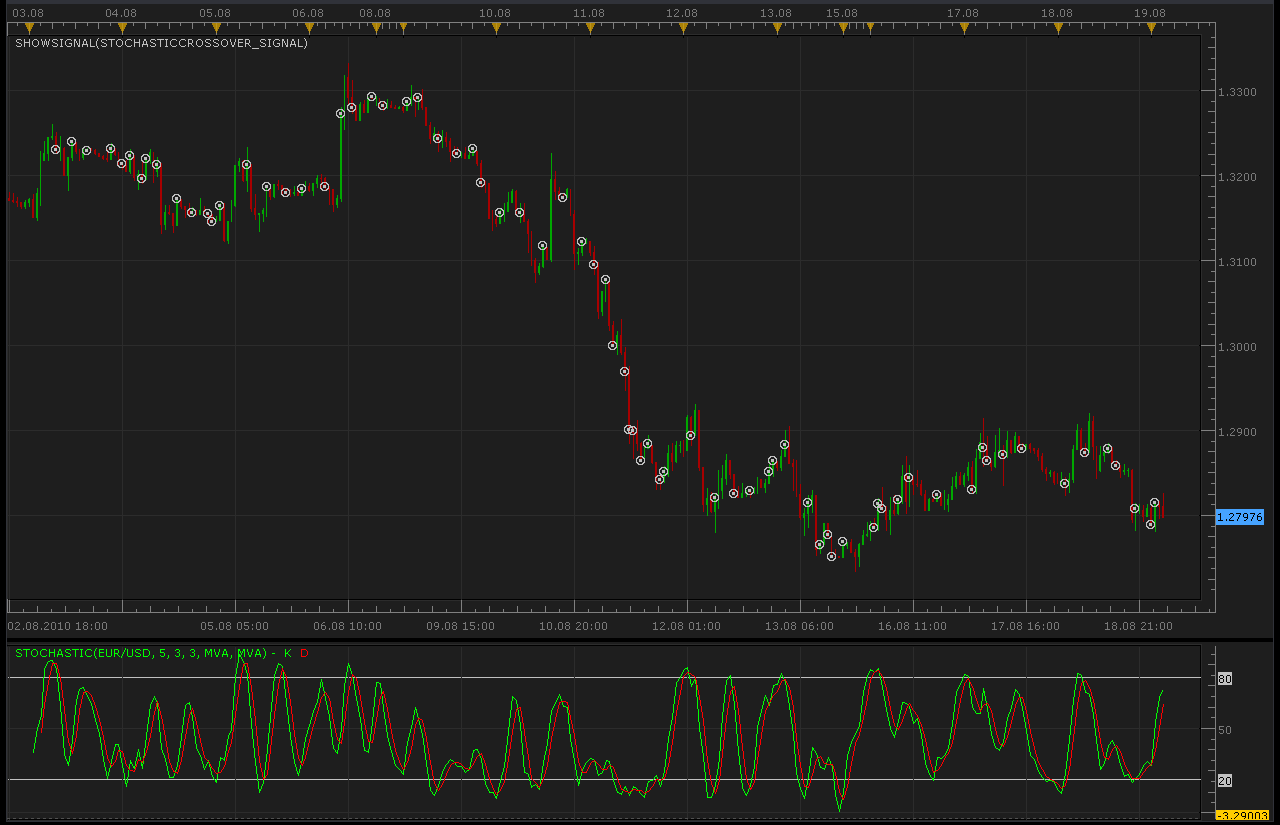

Crossover

Buy when the %K line rises above the %D line and sell when the %K line falls below the %D line.

Code: Select all `function Init() strategy:name(“Stochastic Crossover signal”); strategy:description(“”);

local SoundFile; local gSourceBid = nil; local gSourceAsk = nil; local first;

local BidFinished = false; local AskFinished = false; local LastBidCandle = nil;

local Stochastic; local EMA8;

ExtSetupSignal(“Altr Trend signal:”, ShowAlert);

Stochastic = core.indicators:create(“STOCHASTIC”, gSourceBid, instance.parameters.K, instance.parameters.SD, instance.parameters.D);

first = Stochastic.DATA:first();

local LastDirection=nil;

– when tick source is updated function Update() if not(BidFinished) or not(AskFinished) then return ; end

local period;

– update moving average Stochastic:update(core.UpdateLast);

– calculate enter logic if LastBidCandle == nil or LastBidCandle ~= gSourceBid:serial(gSourceBid:size() - 1) then LastBidCandle = gSourceBid:serial(gSourceBid:size() - 1);

period = gSourceBid:size() - 1; if period > first then if Stochastic.K[period-1]>Stochastic.D[period-1] and Stochastic.K[period]<Stochastic.D[period] and instance.parameters.TypeSignal==”direct” and LastDirection~=-1 then ExtSignal(gSourceBid, period, “Sell”, SoundFile); LastDirection=-1; end if Stochastic.K[period-1]<Stochastic.D[period-1] and Stochastic.K[period]>Stochastic.D[period] and instance.parameters.TypeSignal==”direct” and LastDirection~=1 then ExtSignal(gSourceAsk, period, “Buy”, SoundFile); LastDirection=1; end

if Stochastic.K[period-1]<Stochastic.D[period-1] and Stochastic.K[period]>Stochastic.D[period] and instance.parameters.TypeSignal==”reverse” and LastDirection~=-1 then ExtSignal(gSourceBid, period, “Sell”, SoundFile); LastDirection=-1; end if Stochastic.K[period-1]>Stochastic.D[period-1] and Stochastic.K[period]<Stochastic.D[period] and instance.parameters.TypeSignal==”reverse” and LastDirection~=1 then ExtSignal(gSourceAsk, period, “Buy”, SoundFile); LastDirection=1; end end end end

function AsyncOperationFinished(cookie) if cookie == 1 then BidFinished = true; elseif cookie == 2 then AskFinished = true; end end

local gSignalBase = “”; – the base part of the signal message local gShowAlert = false; – the flag indicating whether the text alert must be shown

Re: Stochastic signals

Alexander.Gettinger · Thu Aug 19, 2010 3:11 am

Divergences between the stochastic lines and the price

Indicators for find divergence:

Code: Select all `– Indicator profile initialization routine – Defines indicator profile properties and indicator parameters function Init() indicator:name(“Stochastic Divergence”); indicator:description(“”); indicator:requiredSource(core.Bar); indicator:type(core.Oscillator);

indicator.parameters:addInteger(“K”, “K”, “Parameter of stochastic”, 5); indicator.parameters:addInteger(“SD”, “SD”, “Parameter of stochastic”, 3); indicator.parameters:addInteger(“D”, “D”, “Parameter of stochastic”, 3); indicator.parameters:addBoolean(“I”, “Indicator mode”, “Keep true value to display labels and lines. Set this parameter to false when the indicator is used in another indicator.”, true); indicator.parameters:addColor(“D_color”, “Color of Divergence line”, “”, core.rgb(0, 155, 255)); indicator.parameters:addColor(“UP_color”, “Color of Uptrend”, “”, core.rgb(255, 0, 0)); indicator.parameters:addColor(“DN_color”, “Color of Downtend”, “”, core.rgb(0, 255, 0)); end

– Indicator instance initialization routine – Processes indicator parameters and creates output streams – Parameters block local I; local DD; local UP_color; local DN_color;

local first; local source = nil;

– Streams block local D = nil; local UP = nil; local DN = nil; local Stochastic = nil; local lineid = nil;

– Routine function Prepare() I = instance.parameters.I; DD = instance.parameters.DD; UP_color = instance.parameters.UP_color; DN_color = instance.parameters.DN_color; source = instance.source; Stochastic = core.indicators:create(“STOCHASTIC”, source, instance.parameters.K,instance.parameters.SD,instance.parameters.D); first = Stochastic.DATA:first();

local name = profile:id() .. “(“ .. source:name() .. “, “ .. instance.parameters.K .. “, “ .. instance.parameters.SD .. “, “ .. instance.parameters.D .. “)”; instance:name(name); D = instance:addStream(“Stochastic”, core.Line, name .. “.Stochastic”, “Stochastic”, instance.parameters.D_color, first, -1); D:addLevel(20); D:addLevel(80); if I then UP = instance:createTextOutput (“Up”, “Up”, “Wingdings”, 10, core.H_Center, core.V_Top, instance.parameters.UP_color, -1); DN = instance:createTextOutput (“Dn”, “Dn”, “Wingdings”, 10, core.H_Center, core.V_Bottom, instance.parameters.DN_color, -1); else UP = instance:addStream(“UP”, core.Bar, name .. “.UP”, “UP”, instance.parameters.D_color, first, -1); DN = instance:addStream(“DN”, core.Bar, name .. “.DN”, “DN”, instance.parameters.D_color, first, -1); end end

local pperiod = nil; local pperiod1 = nil; local line_id = 0;

– Indicator calculation routine function Update(period, mode) – if recaclulation started - remove all if pperiod ~= nil and pperiod > period then core.host:execute(“removeAll”); end pperiod = period; – process only candles which are already closed closed. if pperiod1 ~= nil and pperiod1 == source:serial(period) then return ; end pperiod1 = source:serial(period) period = period - 1;

Stochastic:update(mode); if period >= first then D[period] = Stochastic.K[period]; if period >= first + 2 then processBullish(period - 2); processBearish(period - 2); end end end

function processBullish(period) if isTrough(period) then local curr, prev; curr = period; prev = prevTrough(period); if prev ~= nil then if Stochastic.K[curr] > Stochastic.K[prev] and source.low[curr] < source.low[prev] then if I then DN:set(curr, Stochastic.K[curr], “\225”, “Classic bullish”); line_id = line_id + 1; core.host:execute(“drawLine”, line_id, source:date(prev), Stochastic.K[prev], source:date(curr), Stochastic.K[curr], DN_color); else DN[period] = curr - prev; end elseif Stochastic.K[curr] < Stochastic.K[prev] and source.low[curr] > source.low[prev] then if I then DN:set(curr, Stochastic.K[curr], “\225”, “Reversal bullish”); line_id = line_id + 1; core.host:execute(“drawLine”, line_id, source:date(prev), Stochastic.K[prev], source:date(curr), Stochastic.K[curr], DN_color); else DN[period] = -(curr - prev); end end end

end end

function isTrough(period) local i; if Stochastic.K[period] < Stochastic.K[period - 1] and Stochastic.K[period] < Stochastic.K[period + 1] then for i = period - 1, first, -1 do if Stochastic.K[i] > 80 then return true; elseif Stochastic.K[period] > Stochastic.K[i] then return false; end end end return false; end

function prevTrough(period) local i; for i = period - 5, first, -1 do if Stochastic.K[i] <= Stochastic.K[i - 1] and Stochastic.K[i] < Stochastic.K[i - 2] and Stochastic.K[i] <= Stochastic.K[i + 1] and Stochastic.K[i] < Stochastic.K[i + 2] then return i; end end return nil; end

function processBearish(period) if isPeak(period) then local curr, prev; curr = period; prev = prevPeak(period); if prev ~= nil then if Stochastic.K[curr] < Stochastic.K[prev] and source.high[curr] > source.high[prev] then if I then UP:set(curr, Stochastic.K[curr], “\226”, “Classic bearish”); line_id = line_id + 1; core.host:execute(“drawLine”, line_id, source:date(prev), Stochastic.K[prev], source:date(curr), Stochastic.K[curr], UP_color); else UP[period] = curr - prev; end elseif Stochastic.K[curr] > Stochastic.K[prev] and source.high[curr] < source.high[prev] then if I then UP:set(curr, Stochastic.K[curr], “\226”, “Reversal bearish”); line_id = line_id + 1; core.host:execute(“drawLine”, line_id, source:date(prev), Stochastic.K[prev], source:date(curr), Stochastic.K[curr], UP_color); else UP[period] = -(curr - prev); end end end

end end

function isPeak(period) local i; if Stochastic.K[period] > Stochastic.K[period - 1] and Stochastic.K[period] > Stochastic.K[period + 1] then for i = period - 1, first, -1 do if Stochastic.K[i] < 20 then return true; elseif Stochastic.K[period] < Stochastic.K[i] then return false; end end end return false; end

function prevPeak(period) local i; for i = period - 5, first, -1 do if Stochastic.K[i] >= Stochastic.K[i - 1] and Stochastic.K[i] > Stochastic.K[i - 2] and Stochastic.K[i] >= Stochastic.K[i + 1] and Stochastic.K[i] > Stochastic.K[i + 2] then return i; end end return nil; end` and

Code: Select all `– Indicator profile initialization routine – Defines indicator profile properties and indicator parameters function Init() indicator:name(“Stochastic Divergence”); indicator:description(“Shows Stochastic Divergence”); indicator:requiredSource(core.Bar); indicator:type(core.Indicator);

– Indicator instance initialization routine – Processes indicator parameters and creates output streams – Parameters block local first; local source = nil;

– Streams block local lineid = nil; local dummy;

– Routine function Prepare() UP_color = instance.parameters.UP_color; DN_color = instance.parameters.DN_color; source = instance.source; Stochastic = core.indicators:create(“STOCHASTIC_DIVERGENCE”, source, instance.parameters.K,instance.parameters.SD,instance.parameters.D, false); first = Stochastic.DATA:first();

local pperiod = nil; local pperiod1 = nil; local line_id = 0;

– Indicator calculation routine function Update(period, mode) local l; – if recaclulation started - remove all if pperiod ~= nil and pperiod > period then core.host:execute(“removeAll”); end pperiod = period; – process only candles which are already closed closed. if pperiod1 ~= nil and pperiod1 == source:serial(period) then return ; end pperiod1 = source:serial(period) period = period - 1;

Stochastic:update(mode);

if Stochastic:getStream(1):hasData(period - 2) then l = math.abs(Stochastic:getStream(1)[period - 2]); local prev = period - 2 - l; line_id = line_id + 1; core.host:execute(“drawLine”, line_id, source:date(prev), source.high[prev], source:date(period - 2), source.high[period - 2], UP_color); end if Stochastic:getStream(2):hasData(period - 2) then l = math.abs(Stochastic:getStream(2)[period - 2]); local prev = period - 2 - l; line_id = line_id + 1; core.host:execute(“drawLine”, line_id, source:date(prev), source.low[prev], source:date(period - 2), source.low[period - 2], DN_color); end end`

For work Stochastic_Divergence1.lua must be installed Stochastic_Divergence.lua

Re: Stochastic signals

Alexander.Gettinger · Thu Aug 19, 2010 3:24 am

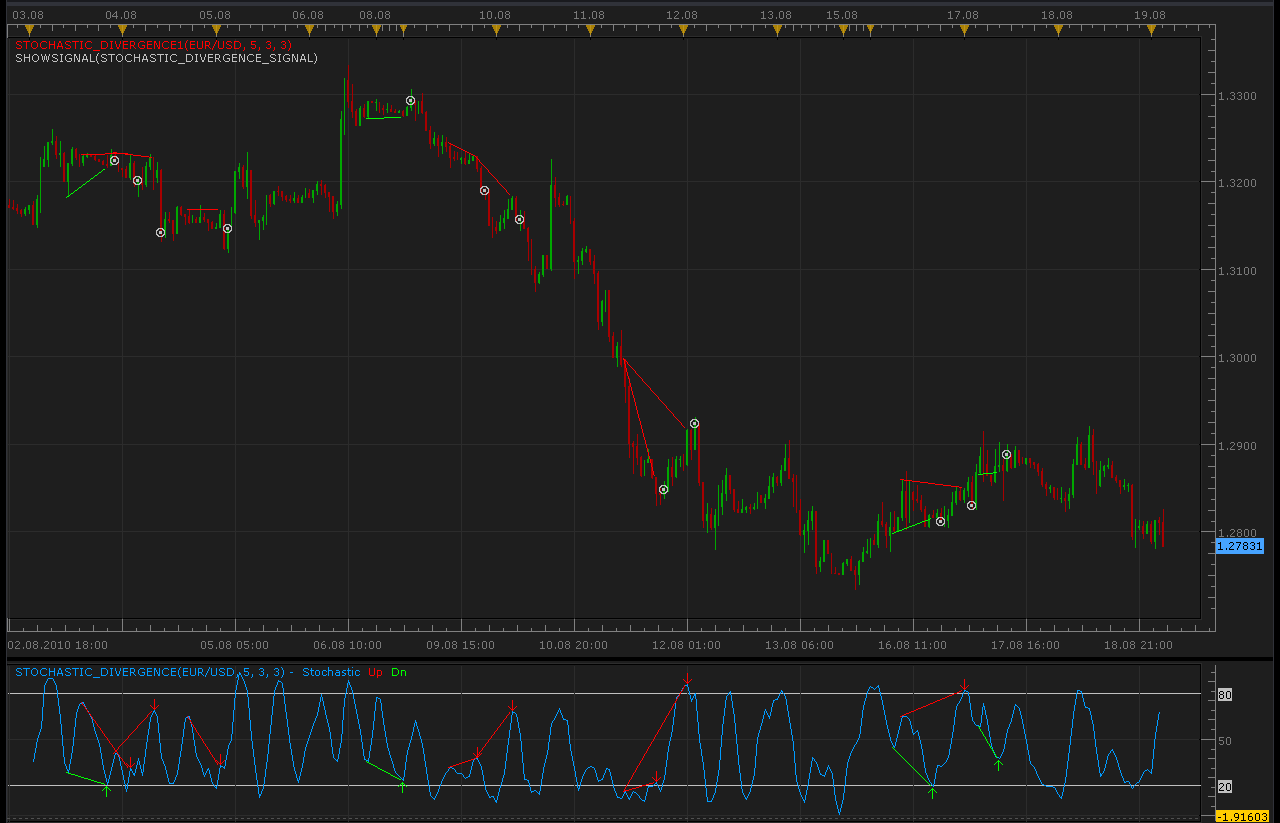

Stochastic divergence signal:

Code: Select all `function Init() strategy:name(“Stochastic Divergence”); strategy:description(“Signals when the Stochastic Divergence detected”);

strategy.parameters:addInteger(“K”, “K”, “Parameter of stochastic”, 5); strategy.parameters:addInteger(“SD”, “SD”, “Parameter of stochastic”, 3); strategy.parameters:addInteger(“D”, “D”, “Parameter of stochastic”, 3);

strategy.parameters:addString(“Period”, “Time frame”, “”, “m1”); strategy.parameters:setFlag(“Period”, core.FLAG_PERIODS);

strategy.parameters:addBoolean(“ShowAlert”, “Show Alert”, “”, true); strategy.parameters:addBoolean(“PlaySound”, “Play Sound”, “”, false); strategy.parameters:addFile(“SoundFile”, “Sound file”, “”, “”); end

local SoundFile; local gSource = nil; – the source stream

function Prepare()

ShowAlert = instance.parameters.ShowAlert;

if instance.parameters.PlaySound then SoundFile = instance.parameters.SoundFile; else SoundFile = nil; end

assert(not(PlaySound) or (PlaySound and SoundFile ~= “”), “Sound file must be specified”);

ExtSetupSignal(profile:id() .. “:”, ShowAlert);

assert(instance.parameters.Period ~= “t1”, “Can’t be applied on ticks!”);

gSource = ExtSubscribe(1, nil, instance.parameters.Period, true, “bar”);

local name = profile:id() .. “(“ .. instance.bid:instrument() .. “(“ .. instance.parameters.Period .. “)” .. “,” .. instance.parameters.K .. “,” .. instance.parameters.SD .. “,” .. instance.parameters.D .. “)”; instance:name(name); end

local Stochastic = nil;

– when tick source is updated function ExtUpdate(id, source, period) if Stochastic == nil then Stochastic = core.indicators:create(“STOCHASTIC_DIVERGENCE”, gSource, instance.parameters.K,instance.parameters.SD,instance.parameters.D, false); end

Stochastic:update(core.UpdateLast);

if period <= instance.parameters.K + 10 then return ; end

local v;

if Stochastic:getStream(1):hasData(period - 2) then v = Stochastic:getStream(1)[period - 2]; if v ~= 0 then ExtSignal(gSource, period, “Bearish”, SoundFile); end end if Stochastic:getStream(2):hasData(period - 2) then v = Stochastic:getStream(2)[period - 2]; if v ~= 0 then ExtSignal(gSource, period, “Bullish”, SoundFile); end end end

dofile(core.app_path() .. “\strategies\standard\include\helper.lua”);`

For work Stochastic_Divergence_Signal.lua must be installed indicator Stochastic_Divergence.lua

Re: Stochastic signals

thetruth · Mon Sep 12, 2011 8:52 am

can you develop an strategy for this indicator? (stochastic divergence.lua) thanks

Re: Stochastic signals

Apprentice · Tue Sep 13, 2011 4:36 am

First, it is not indicators it is a signal. Can you tell me for which signal you want strategy to be developed.

Re: Stochastic signals

thetruth · Wed Oct 05, 2011 4:42 pm

Apprentice wrote: First, it is not indicators it is a signal. Can you tell me for which signal you want strategy to be developed.

Sorry for mistake, is for signal stochastic_divergence_signal thanks!

Re: Stochastic signals

Alexander.Gettinger · Fri Oct 07, 2011 10:28 am

OK. I shall write the strategy for you.

Re: Stochastic signals

Alexander.Gettinger · Sat Oct 08, 2011 11:30 am

Strategies:

Stochastic_Overbought_Oversold_Strategy.lua

StochasticCrossover_Strategy.lua

Stochastic_Divergence_Strategy.lua

Re: Stochastic signals

germano · Sun Oct 09, 2011 1:04 pm

Sirs,

I work with the Stochastic indicator. On the graph of Marketscope2 I have mounted “Stochastic_Divergence.lua” and “Stochastic_Divergence1.lua” and all is OK. Then I followed the steps indicated in “How to Download and Install a Custom Signal/Strategy” to mount “Stochastic_Divergence_Signal.lua.” in “Menage custom strategy” and in “Add Panel Strategy” I have select “Stochastic_Divergence_Signal.lua.”, I have set the parameters and I have click OK, but I can’t place it on the chart. Why this? Can someone help me?

Thanks Germano

Re: Stochastic signals

sunshine · Mon Oct 10, 2011 1:04 am

Could you please provide more details about the issue

1) Did you get a error message? If so, please provide the text of the message. Please also check whether there are errors in the Events log (you can open it by choosing Show Events in the Strategies menu).

2) Please check whether the signal is in the list of available signals. For that, open the Add Strategy dialog (Strategies menu -> Add Strategy). You will see the list of signals. Scroll the list down and check if your signal is in the list. If must be in the Other group. To start the signal, you should add it by clicking the Add button in the Add Strategy dialog. Note that the signal won’t be shown on the chart. You can see it in the list of started strategies (Strategies -> Manage Strategies):

I hope this will help.

Re: Stochastic signals

germano · Mon Oct 10, 2011 3:05 am

Thanks for the reply.

Then:

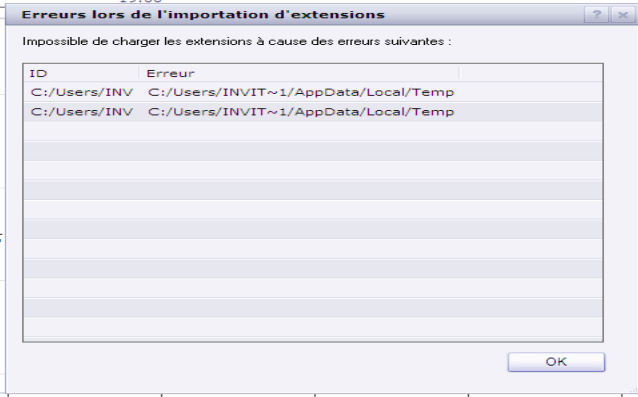

1) I do not receive any error message. In “log Events” is everything OK. Indicates no error.

2) Yes, the signal is in the list of available signals (1 in Recent list + 1 in Others list) and in the “Menage strategy” panel I see “stochastic divergence signal” with the little green circle. However, on the chart does not appear the words “Showsignal (stochastic divergence signal)” and not appear the white circles with the dot inside.

This is the first time that I have a problem in Marketscope.

Germano

Note: Please excuse any errors, but English is not my mother tongue.

Re: Stochastic signals

Apprentice · Mon Oct 10, 2011 3:15 am

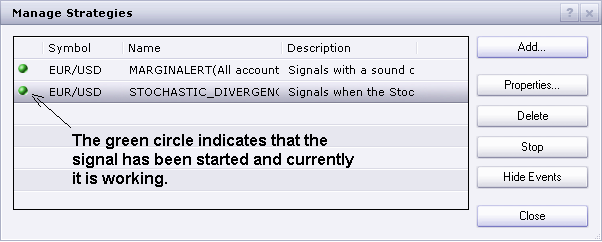

If you use “Menage custom strategy” window then the strategy will not generate on chart display. For this you can use ShowSignal Indiktor or test strategy functionality.

Re: Stochastic signals

germano · Mon Oct 10, 2011 4:05 am

Sorry, I did not understand. How do I use “ShowSignal Indicator”?

Thank you Germano

Re: Stochastic signals

Apprentice · Mon Oct 10, 2011 5:42 am

Add ShowSignal Indicator on chart, and then select Strategy or Signal of your choice, within the ShowSignal Indicator.

Re: Stochastic signals

sunshine · Tue Oct 11, 2011 5:16 am

germano wrote: Sorry, I did not understand. How do I use “ShowSignal Indicator”?

Thank you Germano

Please read this section which describes how to view alerts of a signal on the chart: Show Signal on Chart

Re: Stochastic signals

germano · Tue Oct 11, 2011 8:14 am

Now everything is very clear

Thank you Germano

Re: Stochastic signals

mosesnobleraj · Tue Oct 11, 2011 1:35 pm

sir, can you add following option in this golden strategy. stochastic divergence to buy/sell in oversold/overbought region

Re: Stochastic signals

Apprentice · Tue Oct 11, 2011 4:44 pm

Your request is added to the developmental cue.

Re: Stochastic signals

thetruth · Wed Oct 12, 2011 7:01 am

Alexander.Gettinger wrote: OK. I shall write the strategy for you.

Thanks, and great job!!

Re: Stochastic signals

TraderKen · Sat Oct 22, 2011 4:04 pm

Hi, Can you write signal and strategy of a combined Stochastic like this: Buy/Sell when crossover appears only in Oversold/Overbought Area. Thanks alot, Ken

Re: Stochastic signals

Apprentice · Sat Oct 22, 2011 4:37 pm

Such a strategy already exists. You can find it here. viewtopic.php?f=31&t=2533&hilit=Stochastic

Re: Stochastic signals

DAVIDR · Fri Oct 28, 2011 5:45 am

Hi,

I would like a Stochastic signal to alert me when the signal line touches or crosses the 20 and 80 level, (not when it croses back over the line again).

Can you help?

All the best.

Raaammy

Re: Stochastic signals

Apprentice · Sat Nov 19, 2011 3:55 am

Your request is added to the development queue.

Re: Stochastic signals

TraderKen · Sat Dec 17, 2011 2:48 am

Hi FXcodebase team,

Thanks a lot for your good work.

Can you write signal and strategy of a combined Stochastic strategy like this:

Buy when crossover appears in Oversold Area and the candlestick touches the lower band of the Bollinger Band Sell when the crossover appears in Overbought Area and the candlestick touches the upper band of the Bollinger Band. (It means that the candlesticks must touch the BB just before the crossover for this strategy to be valid).

Thanks alot, Ken

Re: Stochastic signals

Apprentice · Mon Dec 19, 2011 4:56 am

Your request is added to the developmental cue.

Re: Stochastic signals

Alexander.Gettinger · Mon Dec 19, 2011 10:05 pm

TraderKen wrote: Hi FXcodebase team,

Buy when crossover appears in Oversold Area and the candlestick touches the lower band of the Bollinger Band Sell when the crossover appears in Overbought Area and the candlestick touches the upper band of the Bollinger Band. (It means that the candlesticks must touch the BB just before the crossover for this strategy to be valid).

Please, see this strategy: viewtopic.php?f=31&t=10157

Re: Stochastic signals-crossover

mozelly · Wed Sep 12, 2012 11:02 am

I’m trying to get the signal crossovers to show on the chart as shown but to no avail. I understand it is a signal, but you do mention it can be shown on the chart, however if you could send a simplified method it would be appreciated, Regards Peter

Re: Stochastic signals

Apprentice · Wed Sep 12, 2012 11:42 am

Unfortunately, this functionality is excluded from current version. The development team has promised to return in the next update. Currently we can only add signal functionality within indicators?

Re: Stochastic signals

mozelly · Wed Sep 12, 2012 1:17 pm

Apprentice wrote: Unfortunately, this functionality is excluded from current version. The development team has promised to return in the next update. Currently we can only add signal functionality within indicators?

What is the “showsignal “ then as shown in the chart? Peter

Re: Stochastic signals

Apprentice · Wed Sep 12, 2012 1:43 pm

Showsignal is indicator helper tool, which has existed in previous versions of Trade station.

Re: Stochastic signals

mozelly · Thu Sep 13, 2012 1:16 am

Is it possible then just to show a dot on the candlestick chart when the stochastic K & D lines cross? regards Peter

Re: Stochastic signals

mozelly · Thu Sep 13, 2012 4:36 am

Well it seems that “showsignal” is proving a problem. I have contacted fxcm re marketscope to enable how to find it and they are confused. Could you just clarify if the stochastic crossover K & D can be shown on a candlestick chart and if this is via “showsignal”. If so,exactly how do you find it? I can inform you that I cannot find the signal menu either. Regards Peter

Re: Stochastic signals

Apprentice · Thu Sep 13, 2012 4:51 am

for the time being showsignal not exist as such, anywhere. hopefully it will be available in the next version of TS.

Re: Stochastic signals

haveforexfun · Fri Jan 31, 2014 10:14 am

Hello Alexander,

I tried to test the Stochastic Divergence Indicator, but for me it seems that not all divergences are selected. Instead, Divergences are marked wich are from my point of view are not so good.

For me a normal divergence is:

Higher prices (or higher highs) but lower stochastic signals for short. Lower prices (or lower lows) but higher stochastic signals for long.

I have attached a picture to compare the divergences found by the indicator and some divergences wich were not selected (dotted dark blue lines). Whats the problem? Is it possible to code this and if yes, could you also change the strategy?

Have a nice day and thank you for all the work you are doing here for us

haveforexfun

Re: Stochastic signals

cipoforex · Wed Mar 18, 2015 7:20 pm

Hi,

I would like a Stochastic signal to alert me when the signal line touches or crosses the 20 and 80 level, (not when it croses back over the line again).

Can you help?

All the best.

Simone

Re: Stochastic signals

SenseClash · Thu Apr 02, 2015 6:23 am

Would it be possible to modify these (or at least the StochasticCrossover_Signal.lua) so that I could can get an email when the event occurs?

Re: Stochastic signals

SenseClash · Thu Apr 02, 2015 6:32 am

Also, would it be possible to modify it so that I can choose to get 1) only buy signals 2) only sell signals or 3) both?

Re: Stochastic signals

johnnyrocket · Fri Nov 06, 2015 1:25 pm

I am not seeing the dots on my chart. I dont understand what i could be doing wrong here. It installed the bottom part.

Re: Stochastic signals

Apprentice · Fri Nov 13, 2015 6:30 am

Stochastic_Overbought_Oversold_Signal.lua is NOT indicator. You can only add it as signal /strategy.

Re: Stochastic signals

juancrevuelta · Tue Nov 17, 2015 10:03 pm

Alexander.Gettinger wrote: Strategies:

The attachment Stochastic_Overbought_Oversold_Strategy.lua is no longer available

The attachment Stochastic_Overbought_Oversold_Strategy.lua is no longer available

The attachment Stochastic_Overbought_Oversold_Strategy.lua is no longer available

Hello,

I am making a little change to this strategy in order to add a confirmation in a TF lower the stochastic has to be on the same direction that the actual stochastic but the I am getting this error: “Index is out of range” I have been looking for this error but I do not find any clue about it.

Could any body help me with this?

Many thanks in advanced,

JCR

Re: Stochastic signals

Apprentice · Tue Nov 24, 2015 7:36 am

You can not use same period index, for multiple time frame data sources. Try to use core.findDate or methods used for MTF strategies. viewtopic.php?f=28&t=2712

Re: Stochastic signals

juancrevuelta · Tue Nov 24, 2015 9:03 pm

Many thanks apprentice, I will look into this info.

Best Regards,

JCR

Re: Stochastic signals

Avignon · Thu May 21, 2020 3:00 pm

Bug with Stochastic_Overbought_Oversold_Strategy.lua

I haven’t tested the others.

Re: Stochastic signals

Apprentice · Mon May 25, 2020 6:23 am

Your request is added to the development list. Development reference 1351.

Re: Stochastic signals

Apprentice · Tue May 26, 2020 9:17 am

Fixed.

Re: Stochastic signals

Avignon · Tue May 26, 2020 5:22 pm

I keep getting the same error message.

I tried the other 2 indicators, I also have the same error message for each one.

Re: Stochastic signals

Apprentice · Wed May 27, 2020 5:22 am

Stochastic_Overbought_Oversold_Signal.lua

Try this version.

Re: Stochastic signals

Avignon · Thu May 28, 2020 6:07 am

This one works. Thank you.

Is it possible to have the signal in the input of the oversold/overbought area instead of the output as at present?

Re: Stochastic signals

Apprentice · Fri May 29, 2020 4:30 am

I’m not sure I understand, can you elaborate with an example?

Re: Stochastic signals

Avignon · Mon Jun 01, 2020 3:55 pm

I want signal here (and end of turn).

Thanks.

Re: Stochastic signals

Apprentice · Tue Jun 02, 2020 6:04 am

Shifted by one candle back in time? Not sure we can do it for signals/strategies. We can have this on indicators.

Re: Stochastic signals

Avignon · Tue Jun 02, 2020 2:36 pm

Right now the signal is there:

Capture 1.png

I want him there:

Capture 2.png

Re: Stochastic signals

Apprentice · Fri Jul 03, 2020 4:33 am

For K/D line cross, this is simply not possible. We can do it for indicators, still, the arrow will be placed “post festum”.

This site is open source. Improve this page.
