CycleIdentifier
Apprentice · Wed Dec 04, 2019 5:04 pm
Based on request. viewtopic.php?f=27&t=69181
Re: CycleIdentifier
nelsen · Sat Dec 07, 2019 4:34 pm
Apprentice wrote:

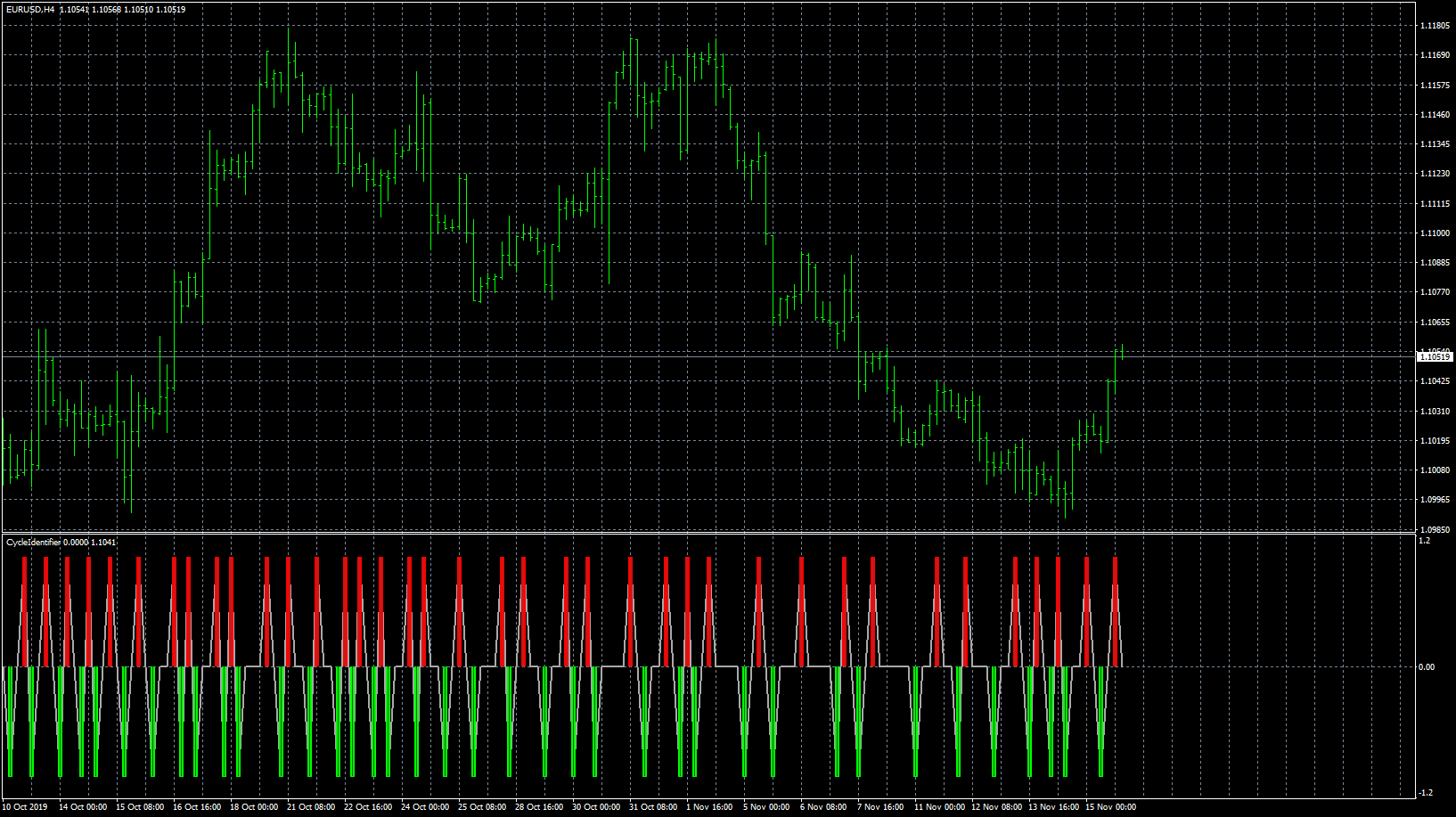

The attachment eurusd-h4-forex-capital-markets-4.png is no longer available
Based on request. viewtopic.php?f=27&t=69181
The attachment eurusd-h4-forex-capital-markets-4.png is no longer available

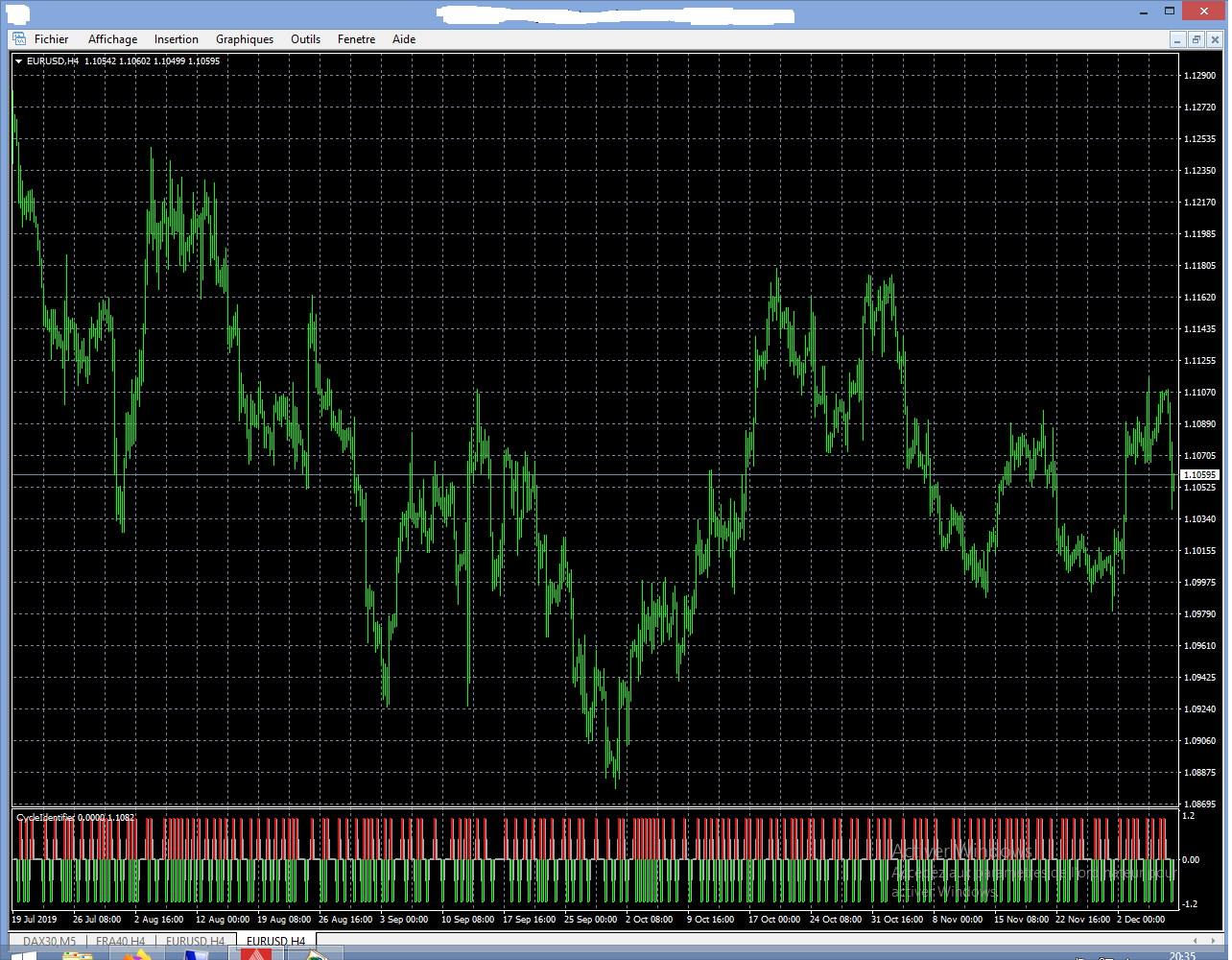

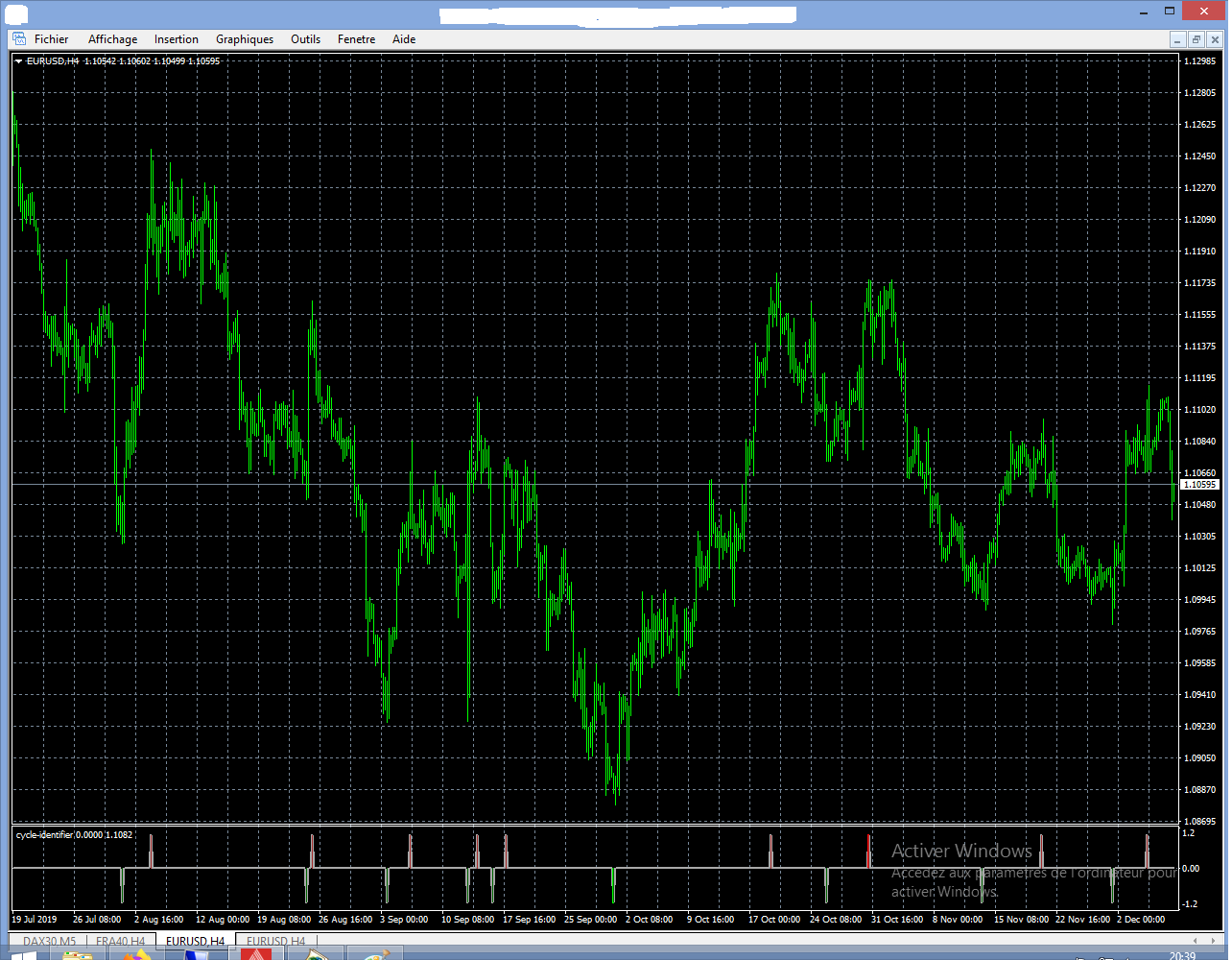

HI APPRENTICE Thanks for the job. I’ll try the alerts as soon as possible. but why are there so many signals?
yet the parameters are the same
Re: CycleIdentifier
Apprentice · Tue Dec 10, 2019 9:37 am
Indicator is REALLY poorly written. Any modifications change its calculations. I have fixed some bugs, but I think the original calculates values not as intended
Re: CycleIdentifier
nelsen · Sun Dec 15, 2019 2:15 pm
Apprentice wrote:
The attachment CycleIdentifier.mq4 is no longer available
Indicator is REALLY poorly written. Any modifications change its calculations. I have fixed some bugs, but I think the original calculates values not as intended
hi Apprentice, thanks. very much I found this indicator by chance. Personally I know nothing about coding but I am interested and watch videos. I tried something: I took the original code and copy-paste the alert part that you created completely at the end of the original code.
I haven’t tested yet because trading is not my job

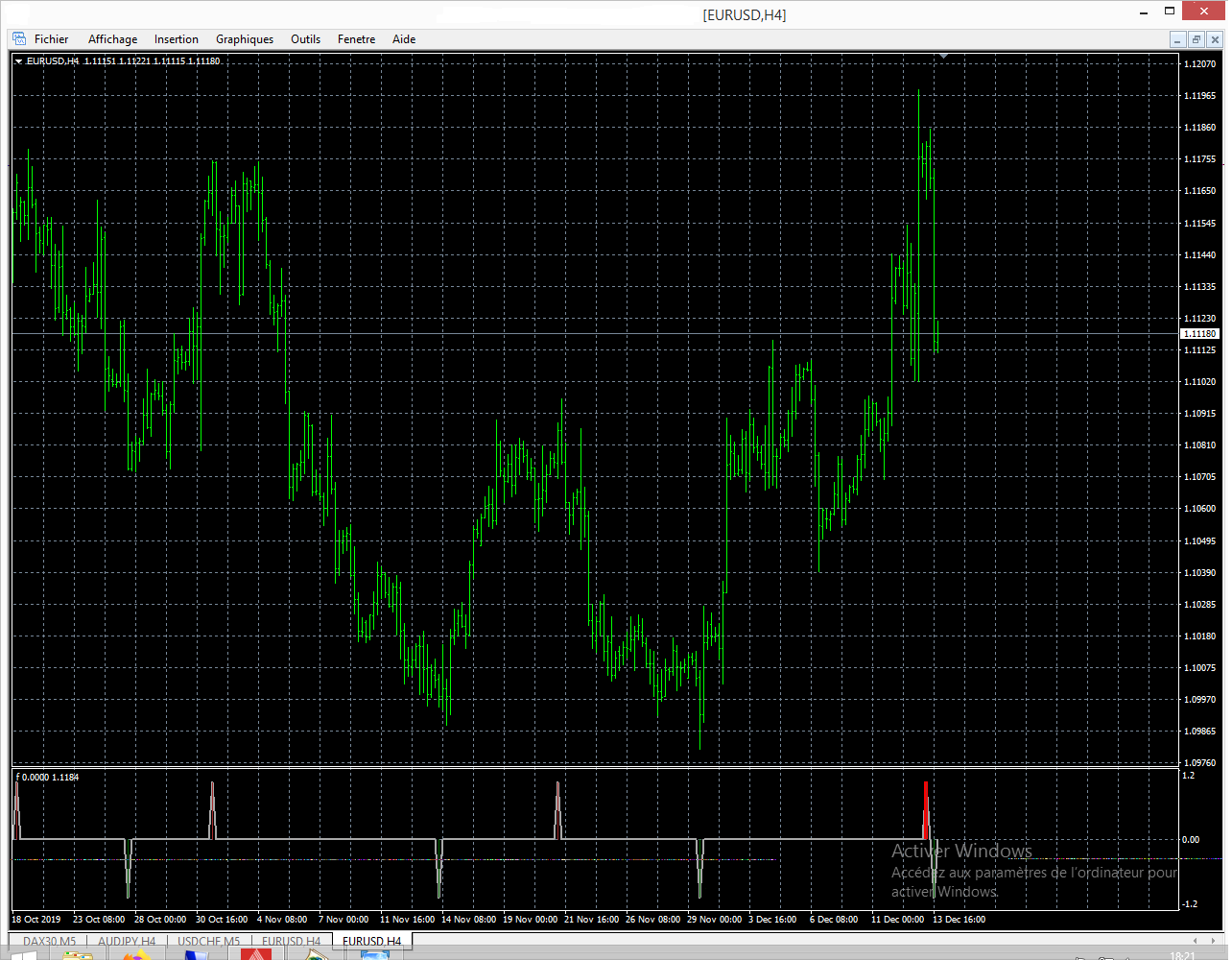

it gives this
#property copyright ""
#property link ""
//----
#property indicator_separate_window
#property indicator_buffers 6
//----
#property indicator_color1 DarkGray
#property indicator_color2 Lime
#property indicator_color3 Red
#property indicator_color4 DarkGreen
#property indicator_color5 Brown
//----
#property indicator_minimum -1.2
#property indicator_maximum 1.2
//----
extern int PriceActionFilter=1;
extern int Length=3;
extern int MajorCycleStrength=4;
extern bool UseCycleFilter=false;
extern int UseFilterSMAorRSI=1;
extern int FilterStrengthSMA=12;
extern int FilterStrengthRSI=21;
//----
double LineBuffer[];
double MajorCycleBuy[];
double MajorCycleSell[];
double MinorCycleBuy[];
double MinorCycleSell[];
double ZL1[];
//----
double CyclePrice=0.0, Strength =0.0, SweepA=0.0, SweepB=0.0;
int Switch=0, Switch2=0, SwitchA=0, SwitchB=0, SwitchC=0, SwitchD=0, SwitchE=0, SwitchAA=0, SwitchBB=0;
double Price1BuyA=0.0, Price2BuyA=0.0;
int Price1BuyB=1.0, Price2BuyB=1.0;
double Price1SellA=0.0, Price2SellA=0.0;
int Price1SellB=0.0, Price2SellB=0.0;
bool ActiveSwitch=True, BuySwitchA=FALSE, BuySwitchB=FALSE, SellSwitchA=FALSE, SellSwitchB=FALSE;
int BuySellFac=01;
bool Condition1, Condition2, Condition3, Condition6;
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int init()
{
SetIndexStyle(0,DRAW_LINE,STYLE_SOLID,2);
SetIndexBuffer(0,LineBuffer);
SetIndexStyle(1,DRAW_HISTOGRAM,STYLE_SOLID,3);
SetIndexBuffer(1,MajorCycleBuy);
SetIndexStyle(2,DRAW_HISTOGRAM,STYLE_SOLID,3);
SetIndexBuffer(2,MajorCycleSell);
SetIndexStyle(3,DRAW_HISTOGRAM,STYLE_SOLID,1);
SetIndexBuffer(3,MinorCycleBuy);
SetIndexStyle(4,DRAW_HISTOGRAM,STYLE_SOLID,1);
SetIndexBuffer(4,MinorCycleSell);
SetIndexStyle(5,DRAW_NONE);
SetIndexBuffer(5,ZL1);
SetIndexEmptyValue(1,0.0);
SetIndexEmptyValue(2,0.0);
SetIndexEmptyValue(3,0.0);
SetIndexEmptyValue(4,0.0);
SetIndexEmptyValue(5,0.0);
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int deinit() {return(0);}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
int start()
{
int counted_bars=IndicatorCounted();
if(counted_bars<0) return(-1);
// if(counted_bars>0) counted_bars--;
// int position=Bars-1;
int position=Bars-counted_bars;
if (position<0) position=0;
//----
int rnglength=250;
double range=0.0, srange=0.0;
for(int pos=position; pos >=0; pos--)
{
srange=0.0;
int j=0;
for(int i=0;i<rnglength;i++)
{
j++;
int posr=pos + i;
if (posr>=Bars)
break;
srange=srange + (High[posr] - Low[posr]);
}
range=srange/j * Length;
int BarNumber=Bars-pos; //??????????
if (BarNumber < 0)
BarNumber=0;
CyclePrice=iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos);
if (UseFilterSMAorRSI==1)
ZL1[pos]=ZeroLag(CyclePrice,FilterStrengthSMA, pos);
if (UseFilterSMAorRSI==2)
ZL1[pos]=ZeroLag( iRSI(NULL, 0, 14, CyclePrice, FilterStrengthRSI ), FilterStrengthRSI, pos);
if (ZL1[pos] > ZL1[pos+1])
SwitchC=1;
if (ZL1[pos] < ZL1[pos+1])
SwitchC=2;
if (BarNumber<=1)
{
if (Strength==0)
SweepA =range;
else
SweepA=Strength;
Price1BuyA =CyclePrice;
Price1SellA =CyclePrice;
}
/* ***************************************************************** */
if (BarNumber > 1)
{
if (Switch > -1)
{
if (CyclePrice < Price1BuyA)
{
if (UseCycleFilter && (SwitchC==2) && BuySwitchA )
{
MinorCycleBuy[pos + BarNumber - Price1BuyB]=0; //MinorBuySell
LineBuffer[pos + BarNumber - Price1BuyB ]=0; //line
}
if (!UseCycleFilter && BuySwitchA)
{
MinorCycleBuy[pos +BarNumber - Price1BuyB]=0;
LineBuffer[pos +BarNumber - Price1BuyB]=0;
}
Price1BuyA=CyclePrice;
Price1BuyB=BarNumber;
BuySwitchA=TRUE;
}
else if (CyclePrice > Price1BuyA)
{
SwitchA=BarNumber - Price1BuyB;
if (!UseCycleFilter)
{
MinorCycleBuy[pos +SwitchA]=-1;//MinorBuySell - DarkGreen
LineBuffer[pos +SwitchA]=-1;//line
}
if (UseCycleFilter && SwitchC ==1)
{
MinorCycleBuy[pos +SwitchA]=-1; //MinorBuySell
LineBuffer[pos +SwitchA]=-1; //line
SwitchD=1;
}
else
{
SwitchD=0;
}
BuySwitchA=TRUE;
double cyclePrice1=iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchA);
if (ActiveSwitch)
{
Condition1=CyclePrice - cyclePrice1>=SweepA;
}
else
{
Condition1=CyclePrice>=cyclePrice1 * (1 + SweepA/1000);
}
if (Condition1 && SwitchA>=BuySellFac)
{
Switch= - 1;
Price1SellA=CyclePrice;
Price1SellB=BarNumber;
SellSwitchA=FALSE;
BuySwitchA=FALSE;
}
}
}
if(Switch < 1)
{
if (CyclePrice > Price1SellA)
{
if (UseCycleFilter && SwitchC==1 && SellSwitchA )
{
MinorCycleSell[pos +BarNumber - Price1SellB]=0; //MinorBuySell
LineBuffer[pos +BarNumber - Price1SellB ]=0; //line
}
if (!UseCycleFilter && SellSwitchA )
{
MinorCycleSell[pos +BarNumber - Price1SellB]=0;//MinorBuySell
LineBuffer[pos +BarNumber - Price1SellB]=0;//line
}
Price1SellA=CyclePrice;
Price1SellB=BarNumber;
SellSwitchA=TRUE;
}
else if (CyclePrice < Price1SellA)
{
SwitchA=BarNumber - Price1SellB;
if (!UseCycleFilter)
{
MinorCycleSell[pos +SwitchA]=1; // MinorBuySell darkRed
LineBuffer[pos +SwitchA]=1; //"CycleLine"
}
if (UseCycleFilter && (SwitchC==2))
{
MinorCycleSell[pos +SwitchA]=1;//MinorBuySell darkRed
LineBuffer[pos +SwitchA]=1;//CycleLine
SwitchD =2;
}
else
SwitchD =0;
SellSwitchA=TRUE;
double cyclePrice2=iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchA);
if (ActiveSwitch)
Condition1=(cyclePrice2 - CyclePrice)>=SweepA;
else
Condition1=CyclePrice<=(cyclePrice2 * (1 - SweepA/1000));
if (Condition1 && SwitchA>=BuySellFac)
{
Switch=1;
Price1BuyA=CyclePrice;
Price1BuyB=BarNumber;
SellSwitchA=FALSE;
BuySwitchA=FALSE;
}
}
}
}
LineBuffer[pos]=0;
MinorCycleBuy[pos]=0;
MinorCycleSell[pos]=0;
//----
if (BarNumber==1)
{
if (Strength==0)
SweepB =range * MajorCycleStrength;
else
SweepB=Strength * MajorCycleStrength;
Price2BuyA=CyclePrice;
Price2SellA=CyclePrice;
}
if (BarNumber > 1)
{
if (Switch2 > - 1)
{
if (CyclePrice < Price2BuyA)
{
if (UseCycleFilter && SwitchC==2 && BuySwitchB )
{
MajorCycleBuy [pos +BarNumber - Price2BuyB]=0; //MajorBuySell,green
// LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line -----
}
if (!UseCycleFilter && BuySwitchB )
{
MajorCycleBuy [pos +BarNumber - Price2BuyB]=0;//MajorBuySell,green
// LineBuffer[pos + BarNumber - Price2BuyB ] = 0; //line-----------
}
Price2BuyA=CyclePrice;
Price2BuyB=BarNumber;
BuySwitchB=TRUE;
}
else if (CyclePrice > Price2BuyA)
{
SwitchB=BarNumber - Price2BuyB;
if (!UseCycleFilter)
{
MajorCycleBuy [pos +SwitchB]=-1; //MajorBuySell green
// LineBuffer[pos + SwitchB] = -1; //line--------------
}
if (UseCycleFilter && SwitchC ==1)
{
MajorCycleBuy [pos +SwitchB]=-1; //MajorBuySell green
// LineBuffer[pos + SwitchB] = -1; //line-----------------
SwitchE =1;
}
else
SwitchE =0;
BuySwitchB=TRUE;
double cyclePrice3=iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchB);
if (ActiveSwitch)
Condition6=CyclePrice - cyclePrice3>=SweepB;
else
Condition6=CyclePrice>=cyclePrice3 * (1 + SweepB/1000);
if (Condition6 && SwitchB>=BuySellFac)
{
Switch2= - 1;
Price2SellA=CyclePrice;
Price2SellB=BarNumber;
SellSwitchB=FALSE;
BuySwitchB=FALSE;
}
}
}
if (Switch2 < 1)
{
if (CyclePrice > Price2SellA )
{
if (UseCycleFilter && SwitchC ==1 && SellSwitchB )
{
MajorCycleSell [pos +BarNumber - Price2SellB]=0; //"MajorBuySell",red
// LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
}
if (!UseCycleFilter && SellSwitchB )
{
MajorCycleSell [pos +BarNumber - Price2SellB]=0;//"MajorBuySell",red
// LineBuffer[pos + BarNumber - Price2SellB ] = 0; //line -----
}
Price2SellA=CyclePrice;
Price2SellB=BarNumber;
SellSwitchB=TRUE;
}
else if (CyclePrice < Price2SellA)
{
SwitchB=BarNumber - Price2SellB ;
if (!UseCycleFilter)
{
MajorCycleSell[pos + SwitchB]=1; //"MajorBuySell",red
// LineBuffer[pos + SwitchB ] = 1; //line -----
}
if (UseCycleFilter && SwitchC ==2)
{
MajorCycleSell [pos + SwitchB]=1; //"MajorBuySell",red
// LineBuffer[pos + SwitchB ] = 1; //line -----
SwitchE =2;
}
else
SwitchE =0;
SellSwitchB=TRUE;
double cyclePrice4=iMA(NULL, 0, PriceActionFilter, 0, MODE_SMMA, PRICE_CLOSE, pos + SwitchB);
if (ActiveSwitch)
Condition6=cyclePrice4 - CyclePrice>=SweepB;
else
Condition6=CyclePrice<=cyclePrice4 * (1.0 - SweepB/1000.0);
if (Condition6 && SwitchB>=BuySellFac)
{
Switch2=1;
Price2BuyA=CyclePrice;
Price2BuyB=BarNumber;
SellSwitchB=FALSE;
BuySwitchB=FALSE;
}
}
}
}
LineBuffer[pos]=0;
MajorCycleSell[pos]=0;
MajorCycleBuy[pos]=0;
}
return(0);
}
//+------------------------------------------------------------------+
//| |
//+------------------------------------------------------------------+
double ZeroLag(double price, int length, int pos)
{
if (length < 3)
{
return(price);
}
double aa=MathExp(-1.414*3.14159/length);
double bb=2*aa*MathCos(1.414*180/length);
double CB=bb;
double CC=-aa*aa;
double CA=1 - CB - CC;
double CD=CA*price + CB*ZL1[pos+1] + CC*ZL1[pos+2];
return(CD);
}
//Signaler v 1.7
// More templates and snippets on https://github.com/sibvic/mq4-templates
input string AlertsSection = ""; // == Alerts ==
input bool popup_alert = false; // Popup message
input bool notification_alert = false; // Push notification
input bool email_alert = false; // Email
input bool play_sound = false; // Play sound on alert
input string sound_file = ""; // Sound file
input bool start_program = false; // Start inputal program
input string program_path = ""; // Path to the inputal program executable
input bool advanced_alert = false; // Advanced alert (Telegram/Discord/other platform (like another MT4))
input string advanced_key = ""; // Advanced alert key
input string Comment2 = "- You can get a key via @profit_robots_bot Telegram Bot. Visit ProfitRobots.com for discord/other platform keys -";
input string Comment3 = "- Allow use of dll in the indicator parameters window -";
input string Comment4 = "- Install AdvancedNotificationsLib.dll -";
// AdvancedNotificationsLib.dll could be downloaded here: http://profitrobots.com/Home/TelegramNotificationsMT4
#import "AdvancedNotificationsLib.dll"
void AdvancedAlert(string key, string text, string instrument, string timeframe);
#import
#import "shell32.dll"
int ShellExecuteW(int hwnd,string Operation,string File,string Parameters,string Directory,int ShowCmd);
#import
class Signaler
{
string _symbol;
ENUM_TIMEFRAMES _timeframe;
string _prefix;
public:
Signaler(const string symbol, ENUM_TIMEFRAMES timeframe)
{
_symbol = symbol;
_timeframe = timeframe;
}
void SetMessagePrefix(string prefix)
{
_prefix = prefix;
}
string GetSymbol()
{
return _symbol;
}
ENUM_TIMEFRAMES GetTimeframe()
{
return _timeframe;
}
string GetTimeframeStr()
{
switch (_timeframe)
{
case PERIOD_M1: return "M1";
case PERIOD_M5: return "M5";
case PERIOD_D1: return "D1";
case PERIOD_H1: return "H1";
case PERIOD_H4: return "H4";
case PERIOD_M15: return "M15";
case PERIOD_M30: return "M30";
case PERIOD_MN1: return "MN1";
case PERIOD_W1: return "W1";
}
return "M1";
}
void SendNotifications(const string subject, string message = NULL, string symbol = NULL, string timeframe = NULL)
{
if (message == NULL)
message = subject;
if (_prefix != "" && _prefix != NULL)
message = _prefix + message;
if (symbol == NULL)
symbol = _symbol;
if (timeframe == NULL)
timeframe = GetTimeframeStr();
if (start_program)
ShellExecuteW(0, "open", program_path, "", "", 1);
if (popup_alert)
Alert(message);
if (email_alert)
SendMail(subject, message);
if (play_sound)
PlaySound(sound_file);
if (notification_alert)
SendNotification(message);
if (advanced_alert && advanced_key != "" && !IsTesting())
AdvancedAlert(advanced_key, message, symbol, timeframe);
}
};
Signaler* signaler;
//+------------------------------------------------------------------+
| // |
Re: CycleIdentifier
sydneygithinji · Mon Mar 23, 2020 4:24 pm
Best indicator ever when looking at the bigger picture in relation to market cycles
Re: CycleIdentifier
AfsalMe · Thu Apr 09, 2020 5:55 am
Good in higher timeframes above H1. Please note that this indicator repaints. So be careful.
